ADX Low-Noise Supply-Air Unit
  • ADX Low-Noise Supply-Air Unit
  • ADX Low-Noise Supply-Air Unit
  • ADX Low-Noise Supply-Air Unit

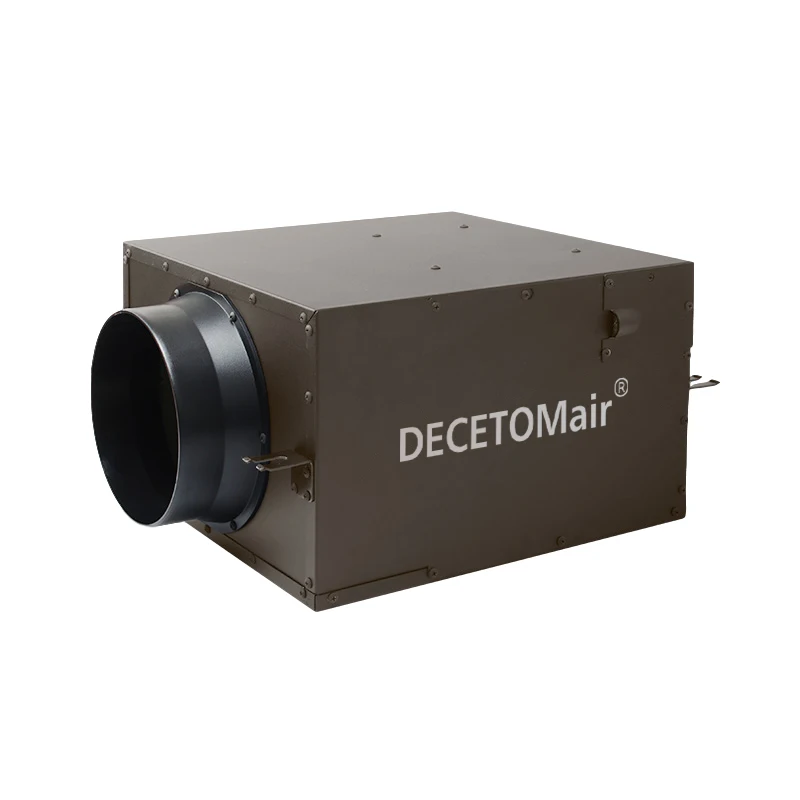

ADX Low-Noise Supply-Air Unit

Short Description:

Low-Noise Supply-Air Unit.
2-speed motor
Switch not included by default

Details

Model
Air volume
Power Supply
Rated power
Max static Pressure
Noise
Interface Size
(m3/h)
(V/Hz)
(W)
(Pa)
dB(A)
(mm)
ADX-200
200
220/50
25
100
21
Φ100
ADX-400
400
220/50
32
102
24
Φ150
ADX-600
600
220/50
40
110
26
Φ150
ADX-800
800
220/50
78
190
28
Φ150
ADX-1000
1000
220/50
115
255
33
Φ200
ADX-1200
1200
220/50
182
275
35
Φ200
ADX-1700
1700
220/50
248
320
37
Φ250
ADX-1900
1900
220/50
395
460
40
Φ250
Brown ducted blower unit pictured against a shopping-mall interior.
No need to open Windows to isolate noise 24 hours continuous injection of freshair/discharge of dirty air to create a comfortable and healthy office/home environmentSilent operation does not disturb as low as 21.8 decibels, quiet learning.

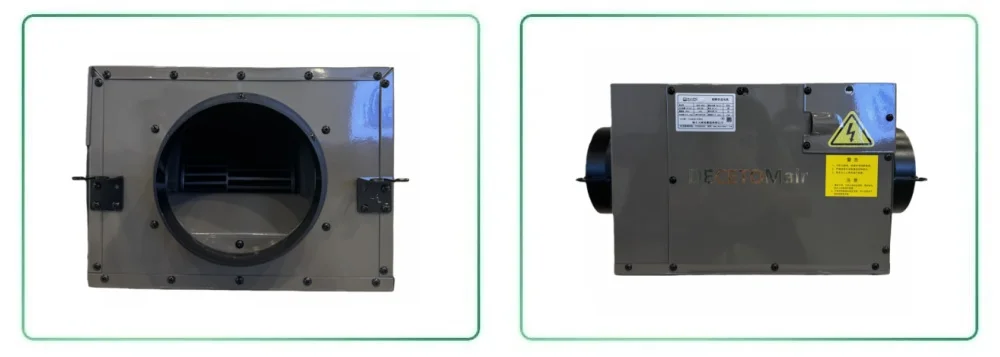

Front and side views of a rectangular ducted blower unit.
Icons depicting a controller, airflow, ventilation ducts and sound.
...........Small size....................High air volume.............High static pressure.................Low noise

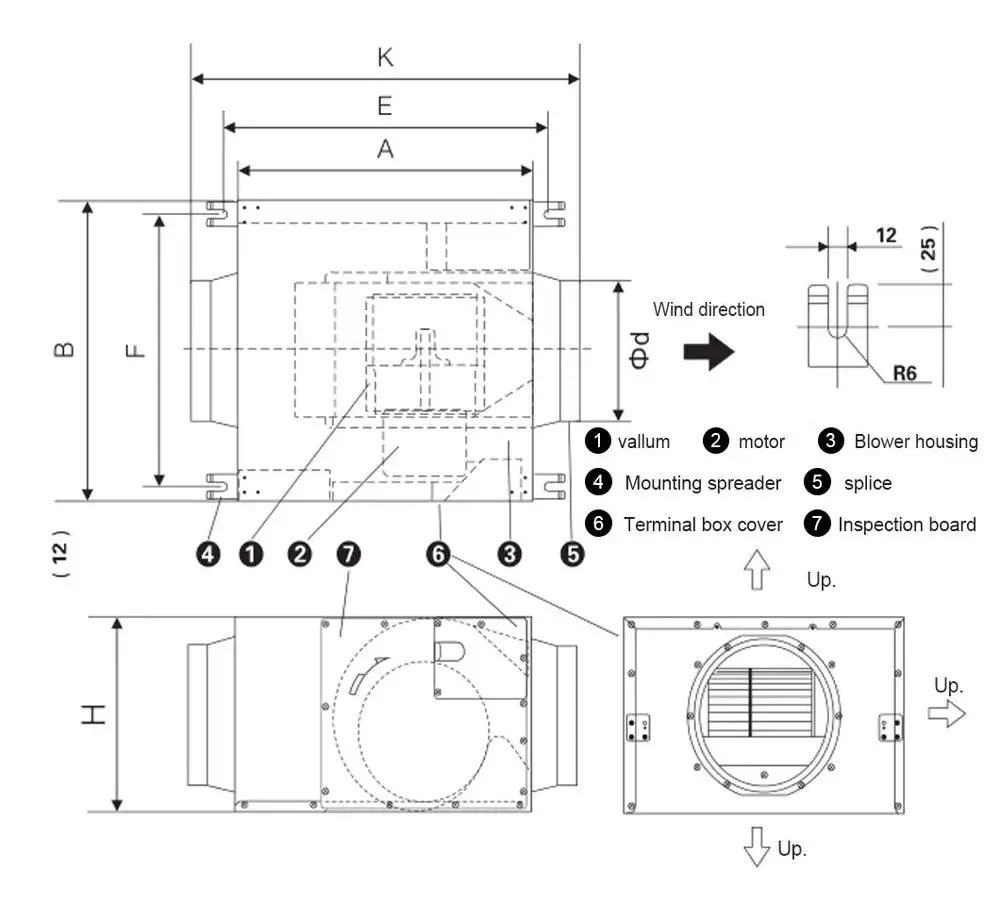

Dimension drawings with numbered callouts for a ducted blower's components.
Unit: mm
Model
A
B
E
F
H
K
Φd
ADX-200
290
290
335
250
184
393
Φ100
ADX-400
300
290
335
250
205
393
Φ150
ADX-600
300
290
346
250
205
422
Φ150
ADX-800
340
320
382
276
230
458
Φ150
ADX-1000
400
375
441
336
255
537
Φ200
ADX-1200
440
420
482
379
296
584
Φ200
ADX-1700
469
471
513
430
296
635
Φ250
ADX-1900
505
495
549
450
334
660
Φ250
Line drawing of a duct fan, suspension hardware and an inspection opening.

PRODUCT ADVANTAGE

Illustration of an electric motor and shaft.


HIGH STATIC

PRESSURE FAN
High static pressure fan, suitable
for all kinds of commercial places
longer pipe line, greater static
pressure greater air volume,
24 hours uninterrupted operation

ACCURATE IMPELLER
STRUCTURE

Newly upgraded ABS / metal

wind wheel, comprehensive
optimization, stable air supply
suitable for long-distance air

supply and exhaust needs

Cylindrical pleated filter cartridge.
Centrifugal fan housing with illustrated airflow arrows.


METAL CASE

Our new air volute uses an all-metal design, scientific air duct, higher
quality, longer experiment time,
more durable.


EASY MAINTENANCE

Careful maintenance door design
multi-point positioning screws
the air tightness is still the same
after maintenance, more worry
and effort saving during
maintenance

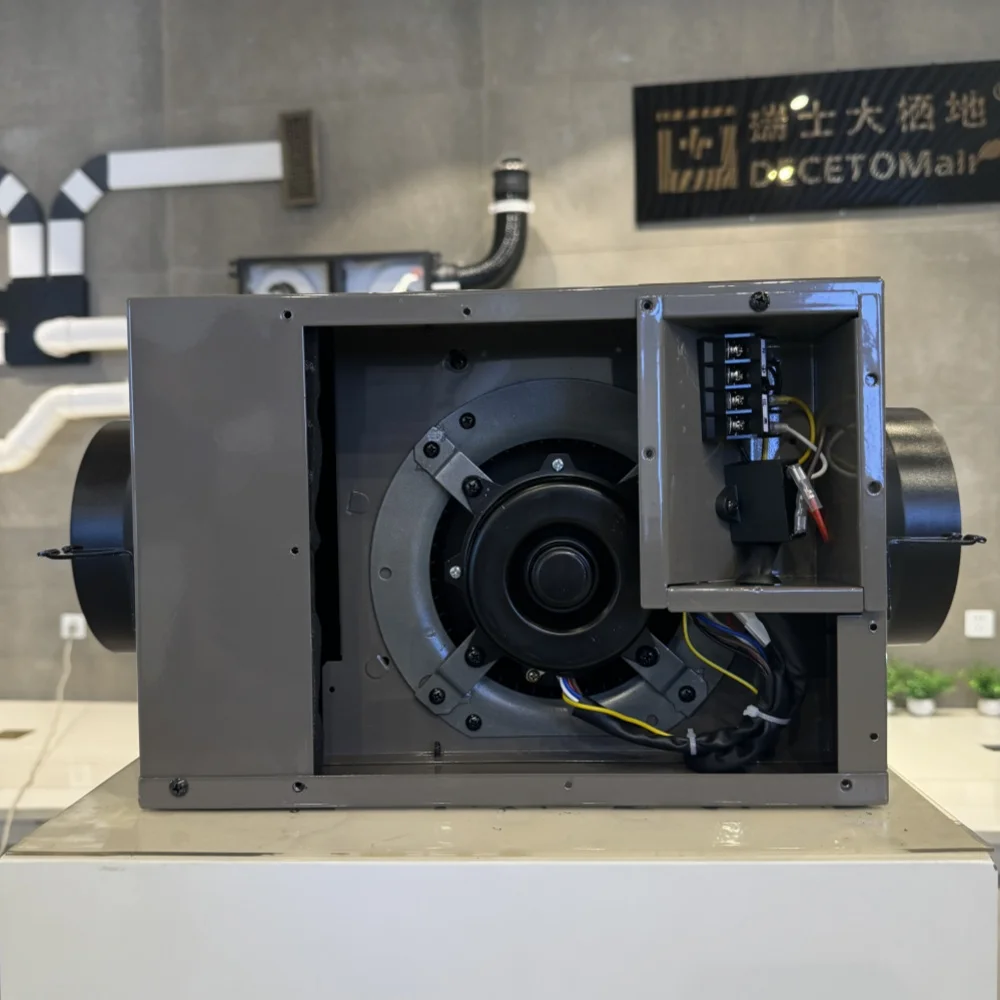

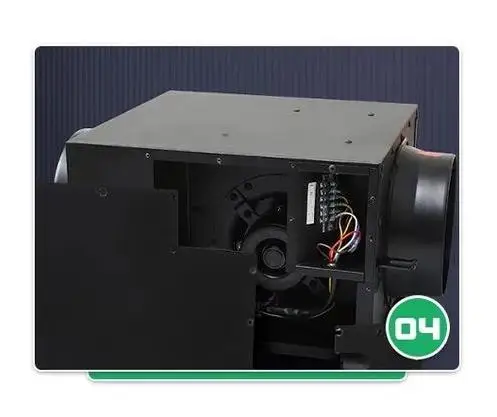

Open black blower cabinet showing its motor and wiring.
.
....INSTALLATION MODE....

Apartment floor plan with fresh-air and exhaust-air flow arrows.
FORWARD INSTALLATION: POSITIVE PRESSURE AIR SUPPLY The super quiet fan is installed in the forward direction, and the filtered outdoor fresh air is introduced, which can make the indoor space have a positive pressure environment, and the indoor dirty air is discharged from the door crack or the specified ventilation outlet, so as to avoid the outdoor haze and dust air flowing back into the room

REVERSEINSTALLATION:NEGATIVE PRESSURE EXHAUST :

The ultra-silent fan is installed in reverse to eliminate the indoor dirty air, so that the indoor space has a negative pressure environment, and the outdoor fresh air enters the indoor supply through the door crack or the specified ventilation port
Apartment floor plan with fresh-air and exhaust-air flow arrows.
Apartment ventilation layout with blue and purple duct routes.

FORWARD INSTALLATION +REVERSE INSTALLATION

In the same indoor space, the ultra-silent
fan is installed in the forward and reverse respectively which introduces the outdoor fresh air and exhausts the indoor dirty air
at the same time to achieve the indoor balanced air exchange
Line drawings of indoor suspension and outdoor support-mounting arrangements.
Apartment ventilation layout and a separate duct-connection schematic.

....PRODUCT APPLICATION....

Living room, bedroom, mall, kitchen, recreation room and internet-cafe interiors.

Wenzhou Daqidi Technology Co., Ltd. is based in Wenzhou, Zhejiang, China. The factory has a floor area of 12,000 square metres, 58 employees and three assembly lines. The team has 20 years of industry experience in residential and commercial fresh-air ventilation.


The company has a factory floor area of 12,000 square meters, 58 employees, three assembly lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. Drawing on 20+ years of industry experience, the team has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.

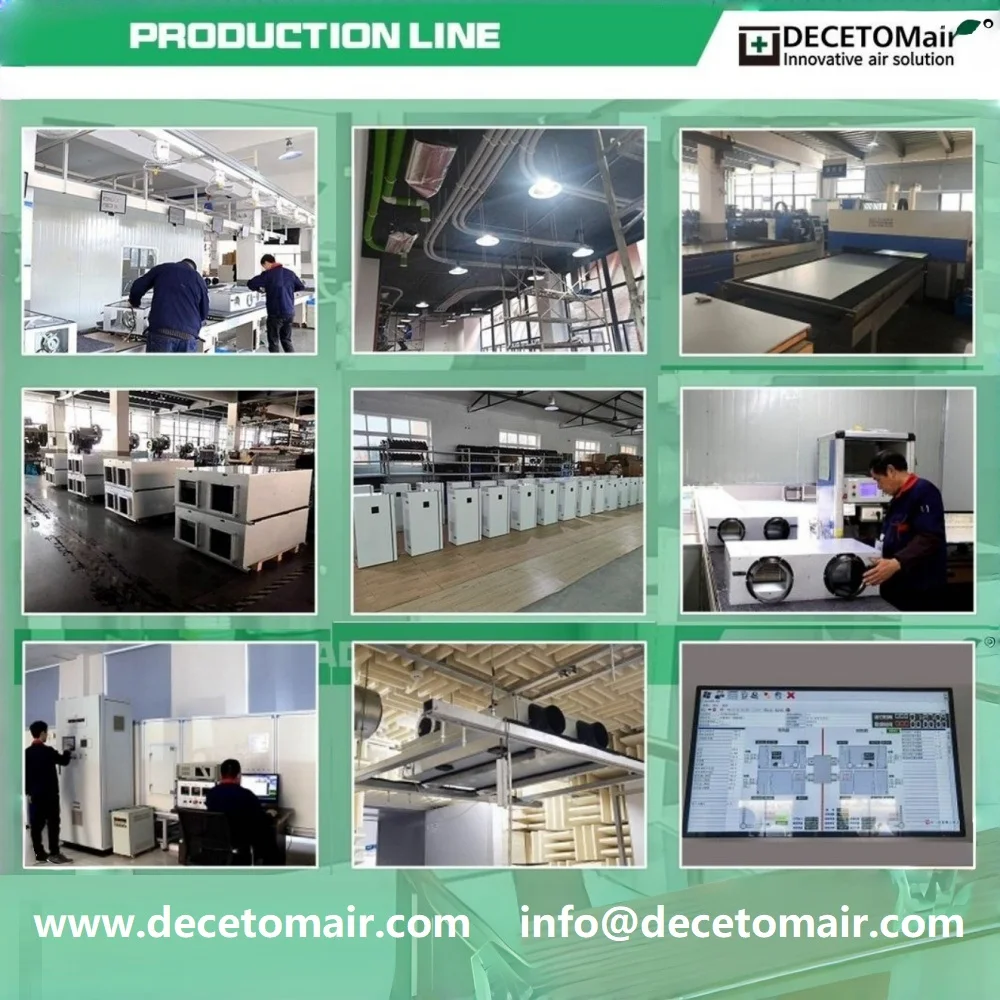

Ventilation equipment production, assembly and inspection photographs.
