Smart Ductless Wall-mounted HRV Fresh Air System Filter Tuya Wifi

Short Description:

Smart Ductless Wall-mounted Erv

Details

A ductless wall-mounted ERV for bedrooms, living rooms and offices.

ABT-701 product detail image 1
ABT-701 product detail image 2

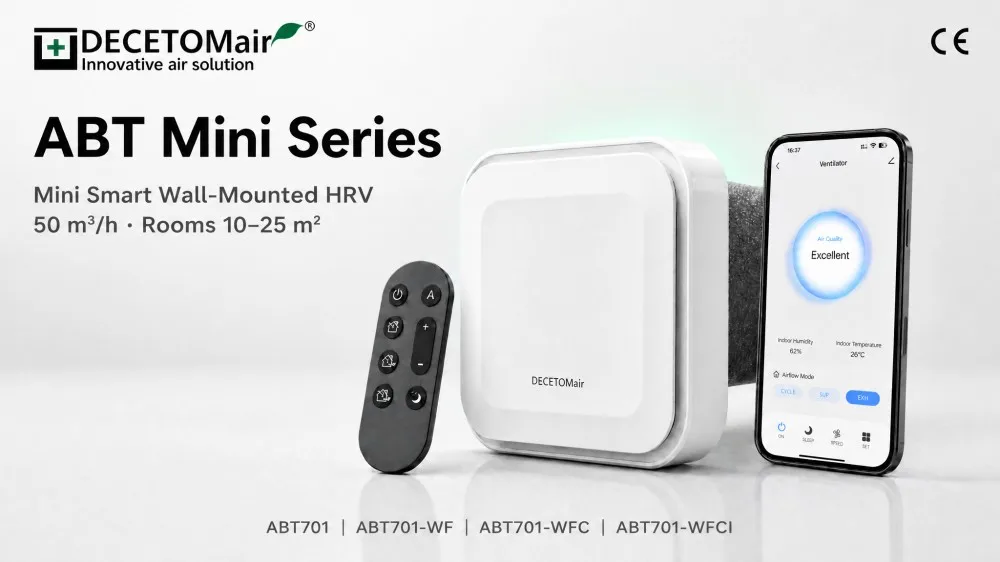

ABT-701 product detail image 3
ABT-701 product detail image 4

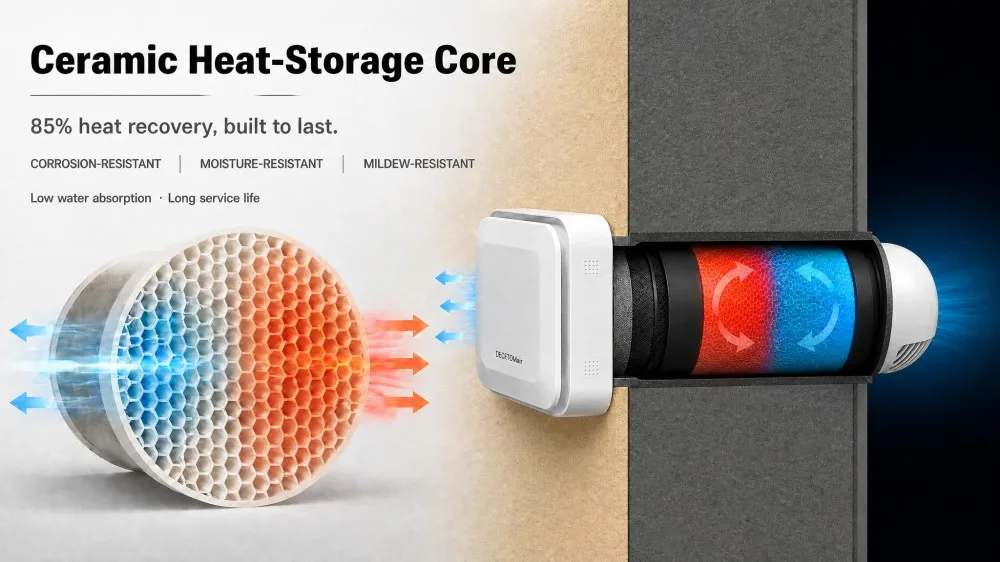

ABT-701 product detail image 5

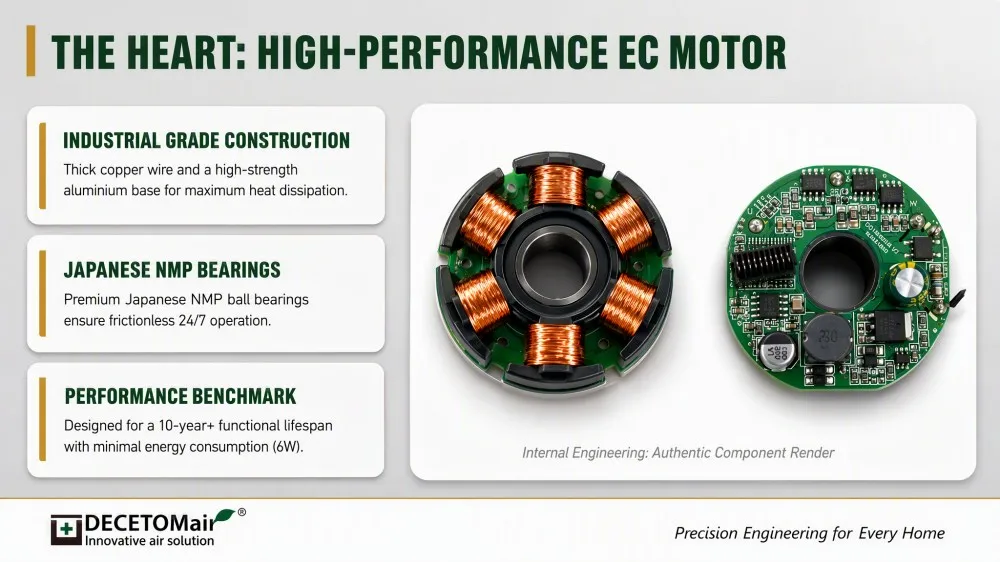

ABT-701 product detail image 6
ABT-701 product detail image 7
ABT-701 product detail image 8
ABT-701 product detail image 9

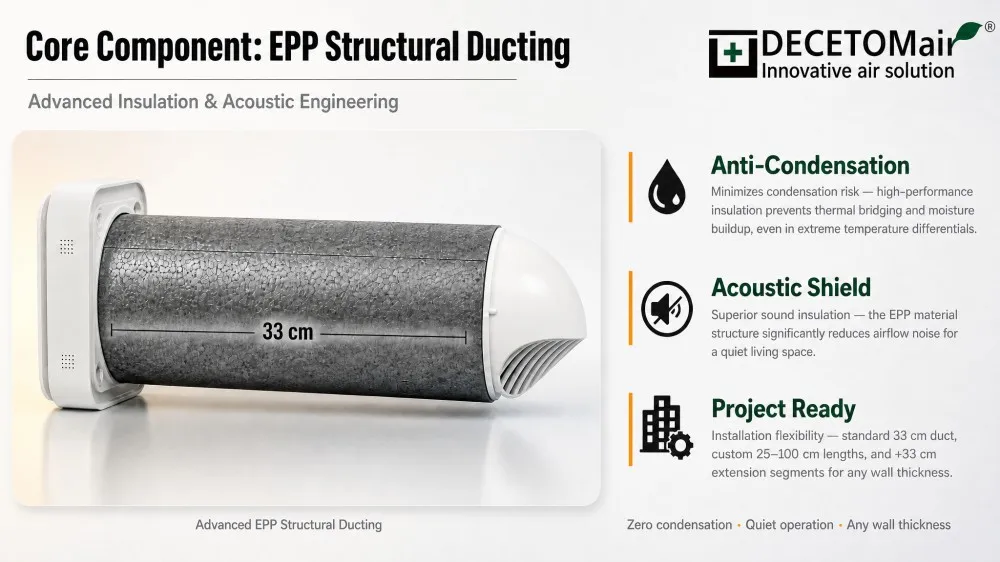

ABT-701 product detail image 10

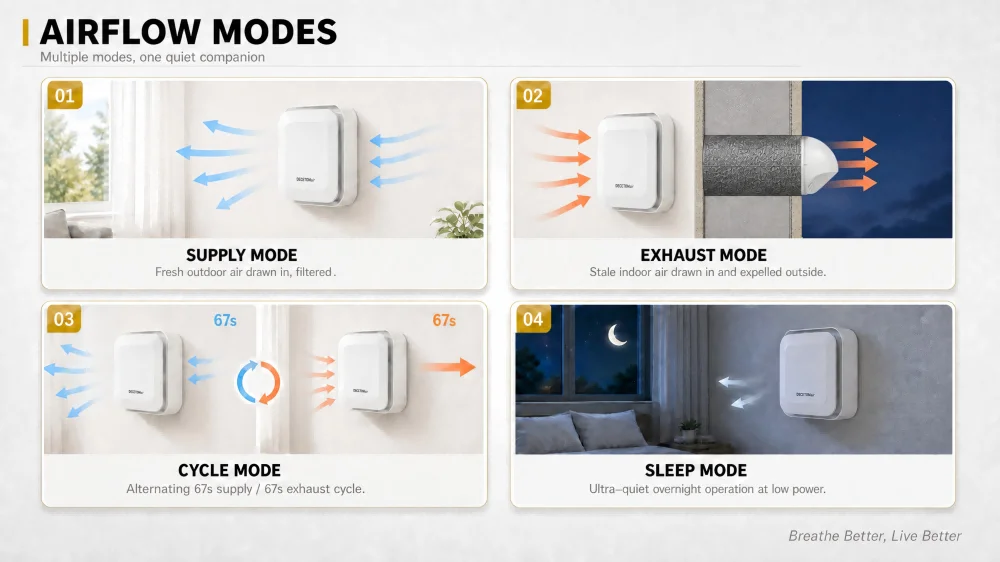

ABT-701 product detail image 11

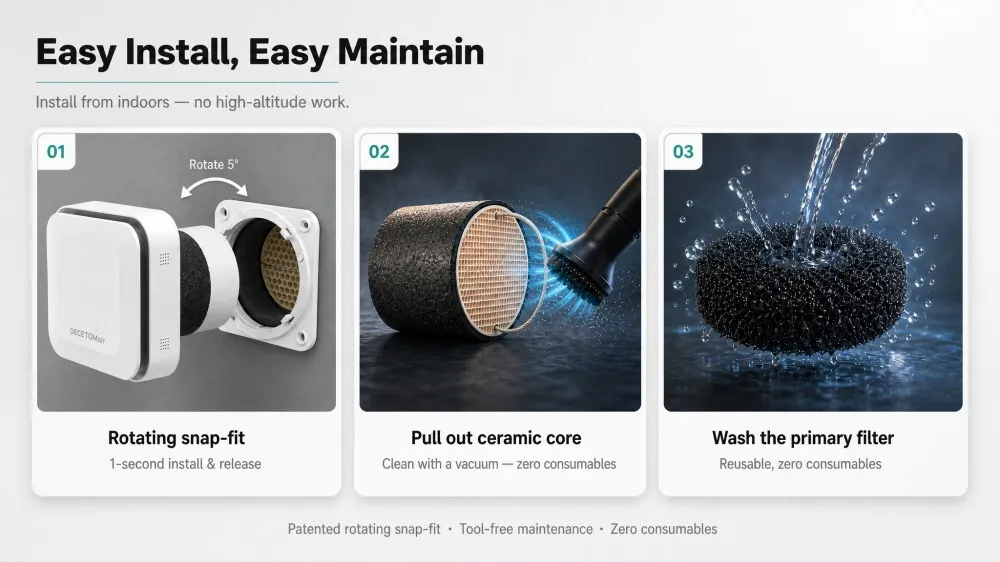

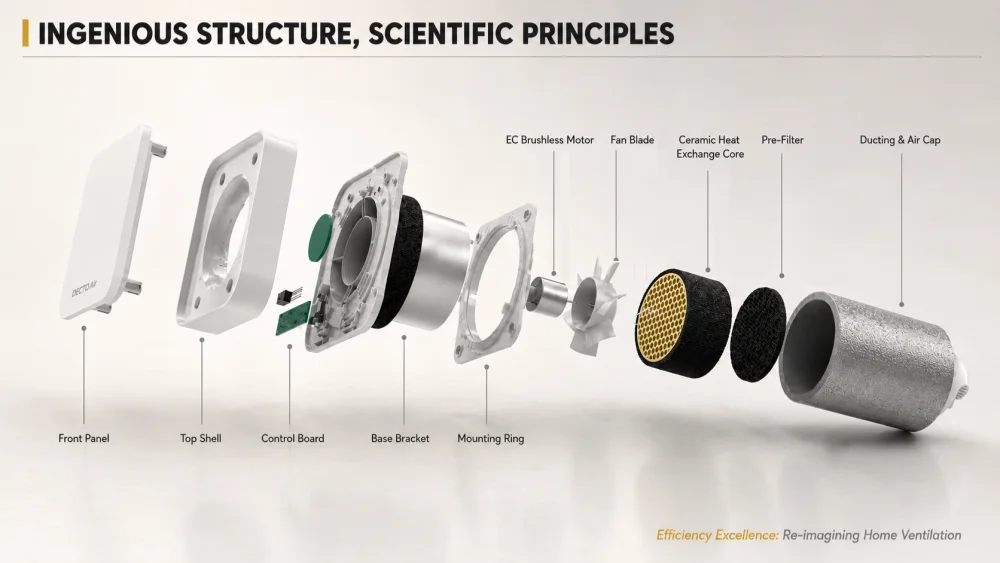

ABT-701 product detail image 12
ABT-701 product detail image 13

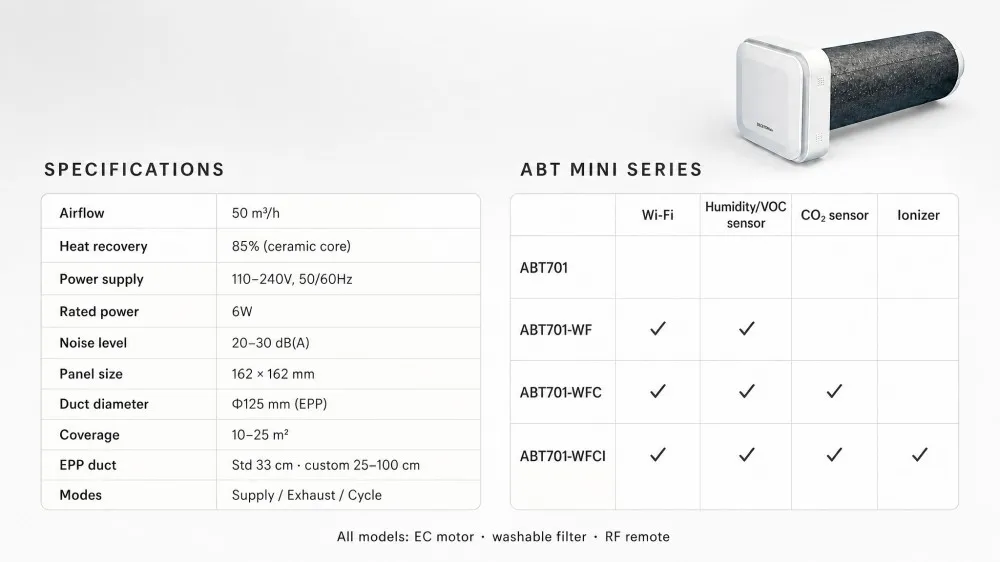

Product Parameters

Model ABT701 ABT701-WF
Airflow
(m³/h)		 50 50
Power Supply
(V/Hz)		 110-240
(50/60)		 110-240
(50/60)
Rated Power
(W)		 5 6
Heat Recovery Efficiency
(%)		 85 85
Noise
dB(A)		 35 35
Dimensions
(mm)		 Panel size
162X162X50		 Panel size
162X162X50
Duct Diameter
(mm)		 125 125
Weight
(kg)		 1.15 1.2
Coverage (m²) 10-25 10-25
EPP duct length Standard 33 cm; custom 25-100 cm Standard 33 cm; custom 25-100 cm
Modes Supply / Exhaust / Cycle Supply / Exhaust / Cycle

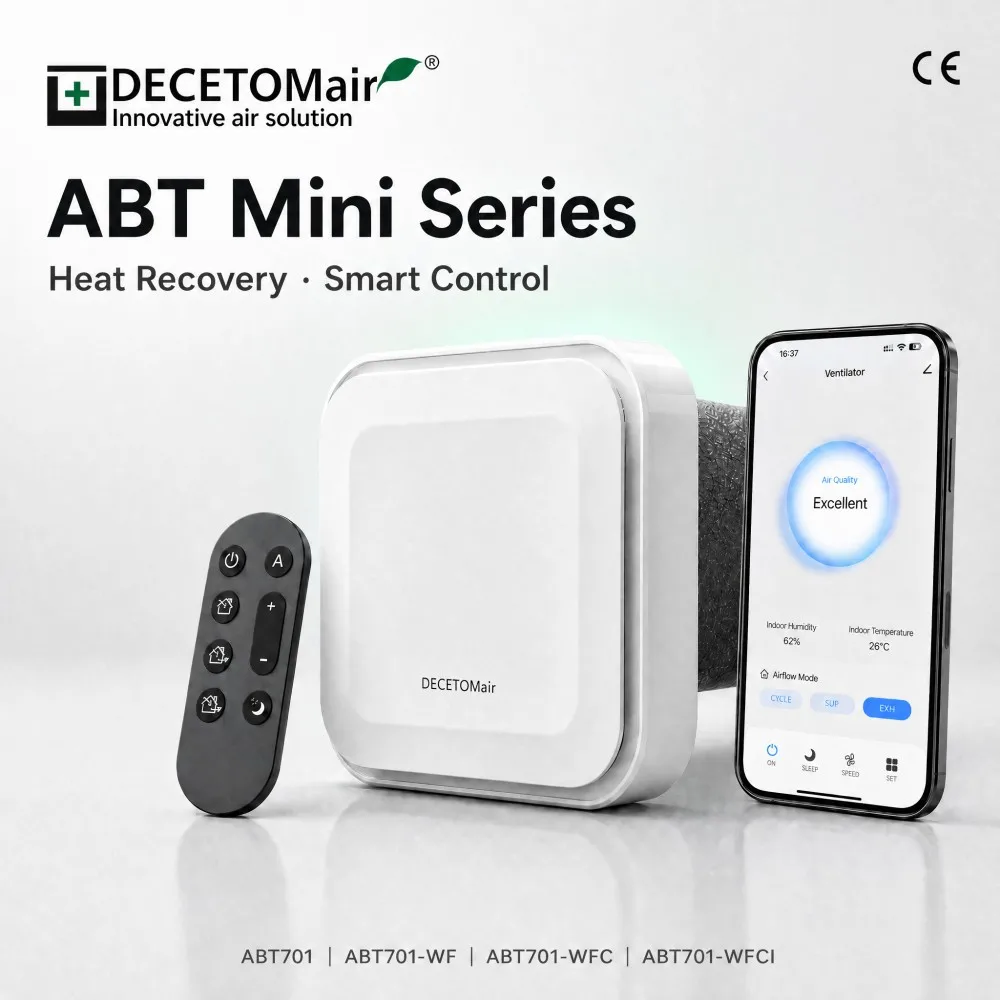

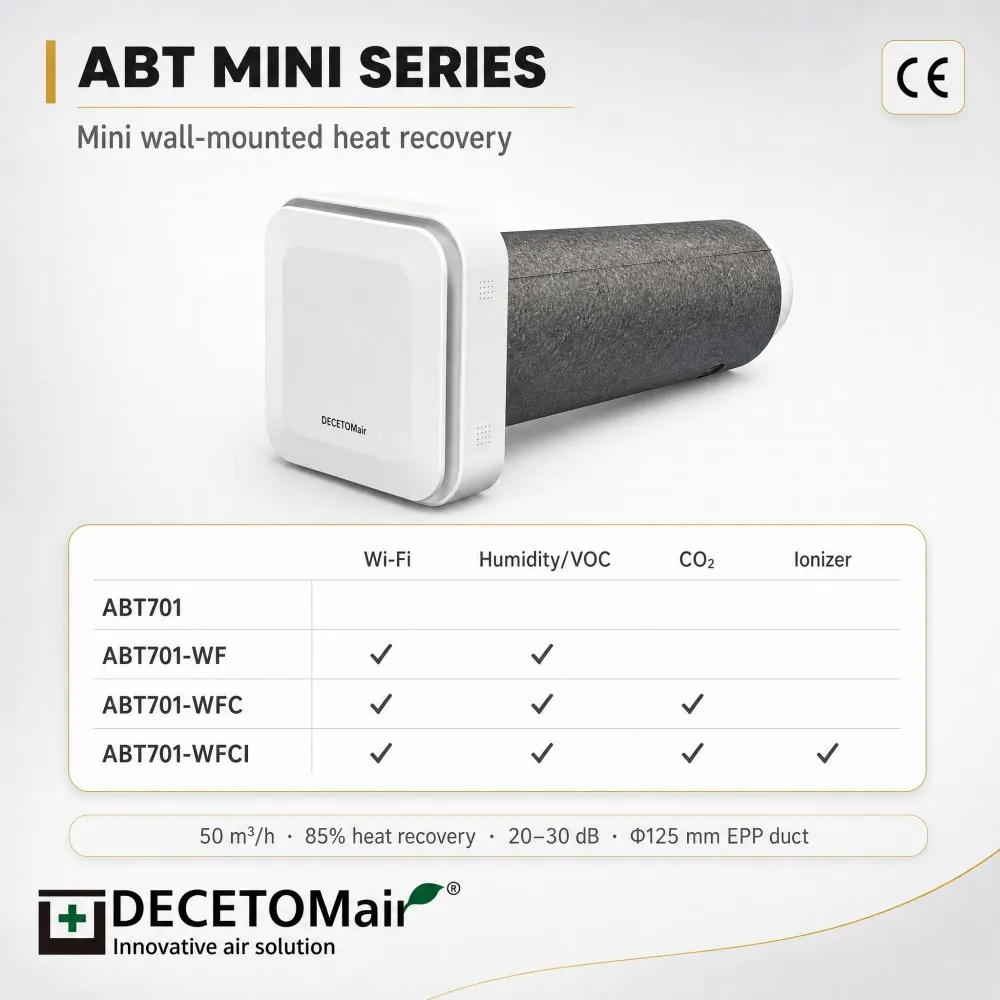

ABT MINI SERIES

Model Wi-Fi Humidity/VOC sensor CO₂ sensor Ionizer
ABT701 — — — —
ABT701-WF ✓ ✓ — —
ABT701-WFC ✓ ✓ ✓ —
ABT701-WFCI ✓ ✓ ✓ ✓

All models: EC motor · washable filter · RF remote

ABT-701 product detail image 15
