ANQR Premium Villa Series Smart Energy Recovery Ventilator (Side Access)
  • ANQR Premium Villa Series Smart Energy Recovery Ventilator (Side Access)
  • ANQR Premium Villa Series Smart Energy Recovery Ventilator (Side Access)
  • ANQR Premium Villa Series Smart Energy Recovery Ventilator (Side Access)

ANQR Premium Villa Series Smart Energy Recovery Ventilator (Side Access)

Short Description:

Premium Villa Series Smart Energy Recovery Ventilator (Side Access).
DC variable-speed motor
Smart controller included
Pre-filter + medium-efficiency filter + H12 HEPA
PM2.5 / VOC / temperature and humidity sensors
Bypass / 3-speed control / App control
High static pressure, suitable for underfloor air distribution

Details

Model
Air Volume
(m3/h)
Power Supply
(V/Hz)
Rated Power
(W)
Maximum Static Pressure'
(Pa)
Heat Recovery Rate
(%)
Noise db(A)
Purification Rate
(%)
ANQR-380
380
220/50
180
285
82
31
>99
ANQR-520
520
220/50
205
310
82
34
>99
Product-introduction graphic showing a black ventilation unit against a house exterior.
24 hours continuous supply of fresh air and exhaust of dirty air to create a comfortable and healthy office and home environment
Grid of ventilation, filtration, airflow and control feature icons.

INTELLIGENT CONTROLLER

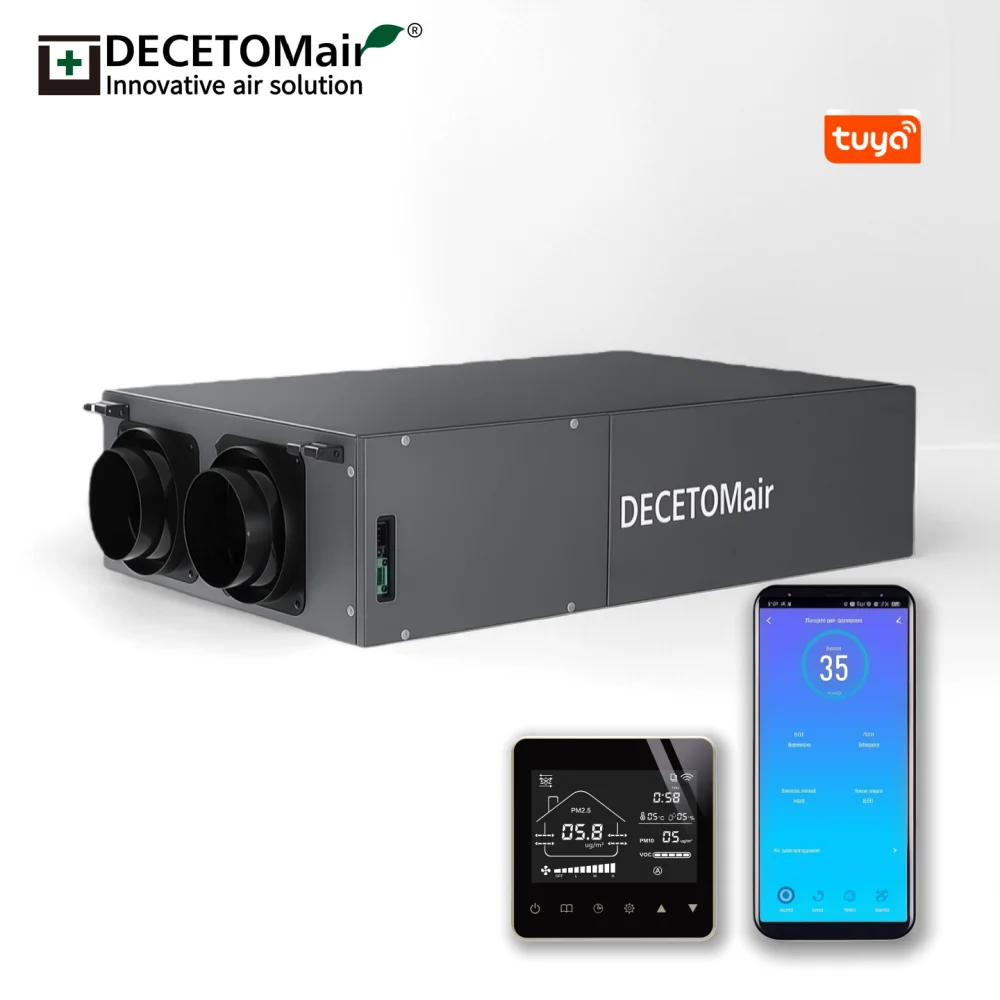

Ventilation controller pictured beside a smartphone app screen.

* PM2.5 Detection * VOC detection * Temperature and humidity detection * Intelligent adjustment * Three speed regulation * Timing switch * Filter reminder * APP control

Intelligent controller section heading.
THE ENERGY RECOVERY EFFICIENCY OF HEAT EXCHANGE CORE IS HIGH
Function in winter
Features in summer
House diagrams comparing heat-recovery ventilation in heating and cooling conditions.

FORMULA FOR HEAT EXCHANGE

WINTER: indoor air temperature=(indoor temperature-

outdoor temperature) X heat exchange

efficiency+outdoor temperature

EXAMPLE:(2O°C-O°C)×7O%+O°C=14°C

FORMULA FOR HEAT EXCHANGE

SUMMER:

indoor air temperature=(indoor temperature- outdoor temperature) X heat exchange efficiency +outdoor temperature EXAMPLE:35°C-(35°C-26°C)×70%=28.7°C
Plan, side and end dimension drawings of a rectangular ventilation unit.
Model Exterior Dimensions (L × W × H, mm) Duct Diameter (mm)
ANQR-380 1065 × 605 × 245 Φ150
ANQR-520 1065 × 605 × 245 Φ150

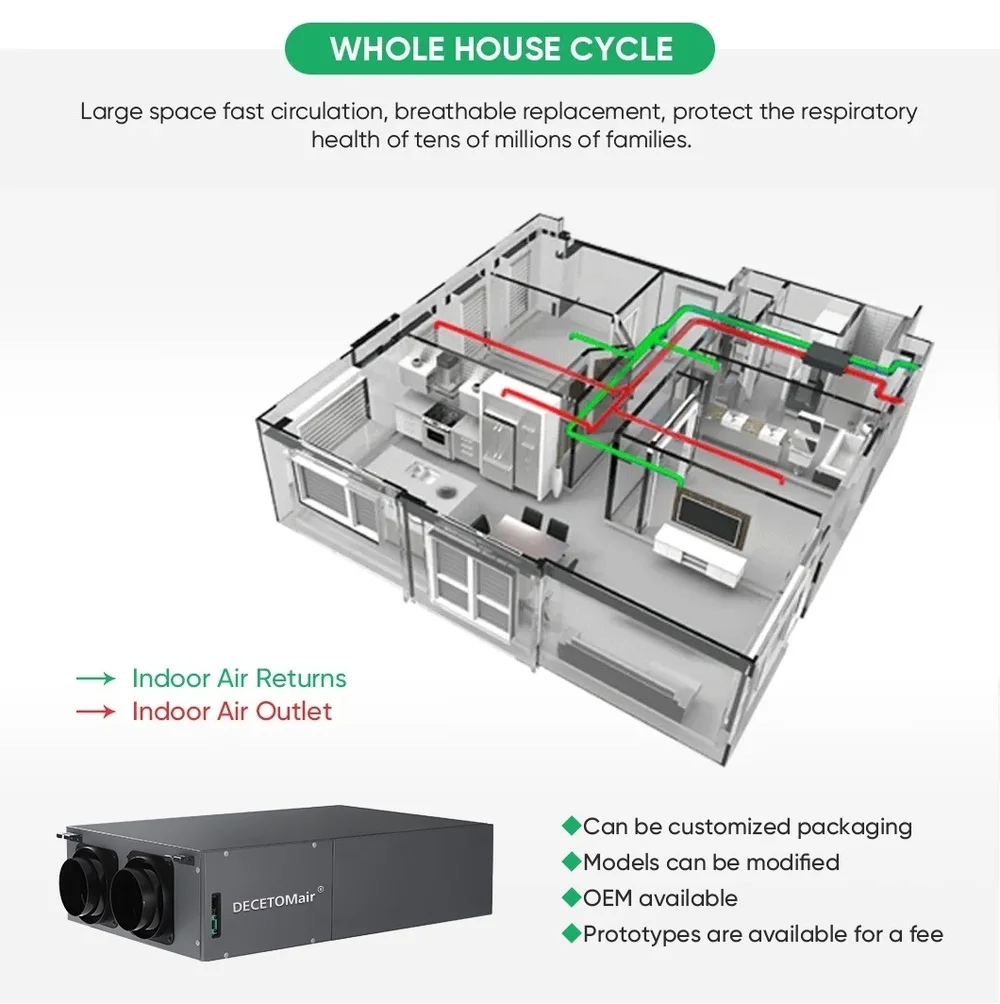

WHOLE HOUSE CYCLE
Large space fast circulation, breathable replacement, protect the respiratory
health of tens of millions of families.
Building ventilation layout with red and green duct routes.
Black rectangular ventilation unit with round duct connections.

·Can be customized packaging

·Models can be modified
·OEM available ·Prototypes are available for a fee
Exploded illustration of electric motor components.



Brand DC motor

Can run smoothly for a long time.environmental protection and energy saving, long life

Intelligent induction

Real-time monitoring of indoor
TVOC、PM2.5、PM10,
temperature and humidity
display
A circuit-board module in a transparent housing.
Three rectangular filter panels shown in an exploded arrangement.



Triple filtration


Two-way G4 primary filter, F9 medium filter, H12 high efficiency filter

High efficiency

heat exchange

Imported antibacterial nano
paper film,resin frame efficient
solution to energy loss

Hexagonal component with a white panel and dark frame.

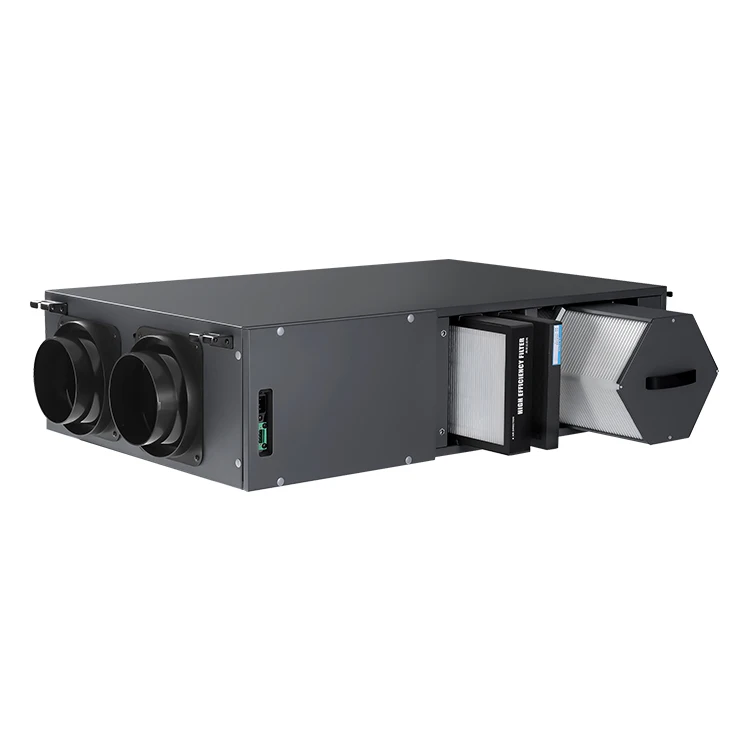

Open ventilation unit with filter panels and a core displayed outside the cabinet.
Modular maintenance
The motor, heat exchange core, filter screen, air valve and other modules can be pulled on the same side for maintenance and maintenance


UV efficient

sterilization

The outdoor air into the room
to do UV efficient sterilization
treatment sterilization rate of
99.99%, medical grade is safer
Blue tubular lamp assembly in a black housing.

PRODUCT APPLICATION
Residential buildings and an apartment interior shown as ventilation application examples.

Wenzhou Daqidi Technology Co., Ltd. is based in Wenzhou, Zhejiang, China. The factory has a floor area of 12,000 square metres, 58 employees and three assembly lines. The team has 20 years of industry experience in residential and commercial fresh-air ventilation.


The company has a factory floor area of 12,000 square meters, 58 employees, three assembly lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. Drawing on 20+ years of industry experience, the team has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.

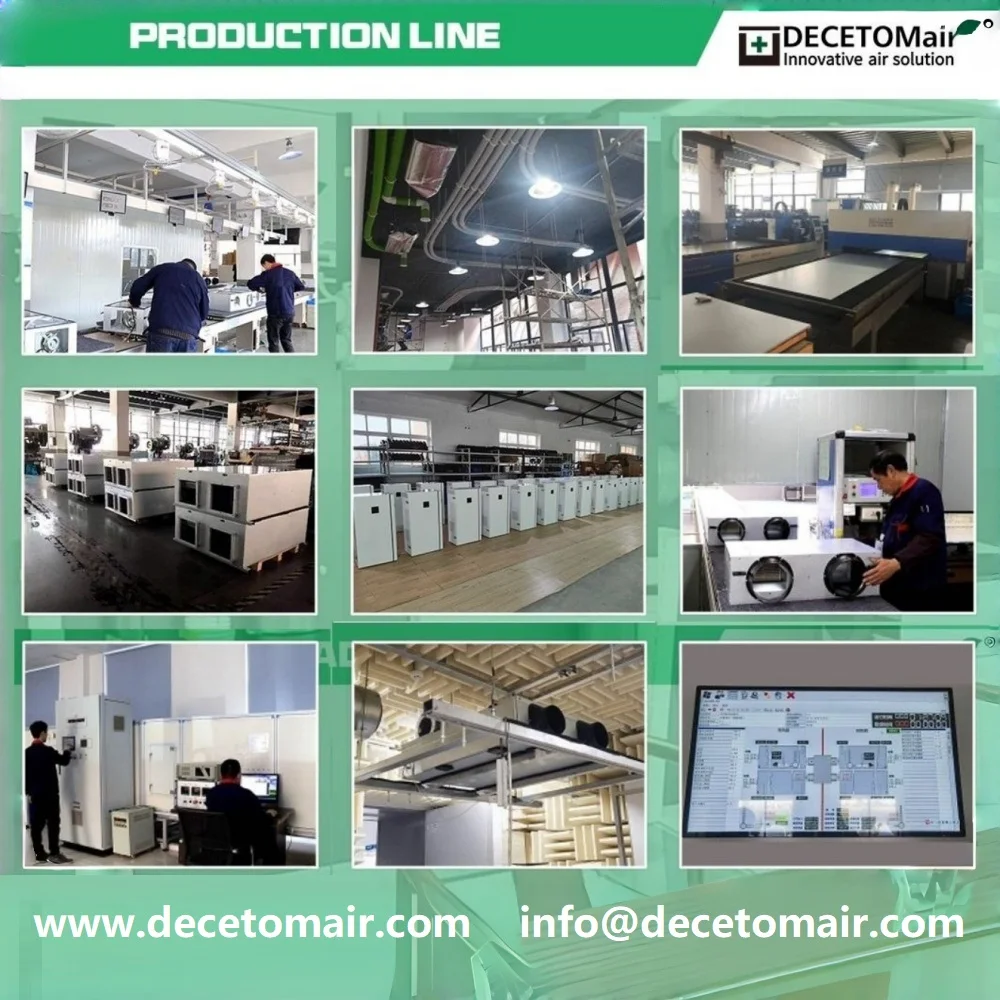

Ventilation equipment production, assembly and inspection photographs.
Cartons, pallets and container loading for ventilation equipment shipments.
DECETOMair exhibition booths and team photographs.
Collage of certificates and test-report documents.
Logos displayed in the Partner Brands graphic.
DECETOMair service and support overview
Illustrated overview of consultation, design, installation and training services.
DECETOMair OEM and ODM process: request, design, samples, production and shipping

Q: What is your MOQ?

A: Generally the MOQ is 10 sets for regular products, 50 sets for customised products. But MOQ bases on different models, and you will see detailed MOQ in our quotation. Or you can contact us for a quick answer by Alibaba TradeMessenger /e-mail/ whatsApp or telephone.

Q: How can I get a sample to check your quality.
A: After the price is confirmed, you can ask for samples to check our quality. If you ask for samples, we will collect sample fees(Some model is free). But the difference in price of the samples will be refunded to you after the order is officially placed.

Q: Can you do the design for us? A: Yes, your design is also welcome. Please send your design idea or drawing to us, and we customize it for you.

Q: What is the payment terms?
A: T/T 30% as deposit before production, T/T 70% as balance before shipment.

Q: What is your delivery time?
A:Retail delivery: in 7 days Sample delivery: in 7-20days Wholesale delivery:15-50 days The exact delivery time is determined by the model, quantity and time of placing the order.

Q: What is the quality assurance?
A: The central fresh-air unit is covered by a three-year warranty, and its controller is covered for one year. Both warranty periods start on the date the product leaves our factory. For quality-related issues covered by the warranty, we supply replacement parts at our expense; shipping costs are borne by the customer.

Q: How will you arrange the shipment?
A: For small samples,we send by DHL/FedEx/UPS/TNT express, and mass production will ship by sea. Sometimes, if you have cargo to go from other Chinese factories,we also can help you arrange consolidation shipment.

Online Inquiry

Product Inquiry & Selection Support

How can I confirm the right model?

Send us your required airflow, installation type, application, voltage and project location. Our team will help review the suitable configuration.

Can I request technical documents or a quotation?

Yes. Use CHAT NOW or the inquiry form and include your target quantity and delivery country.

Do you support customized or OEM requirements?

Please share the required specifications, branding and certification needs. Feasibility and commercial terms will be confirmed for each project.
