DECETOMair / Heat Exchangers
Recover temperature. Keep the air paths distinct.

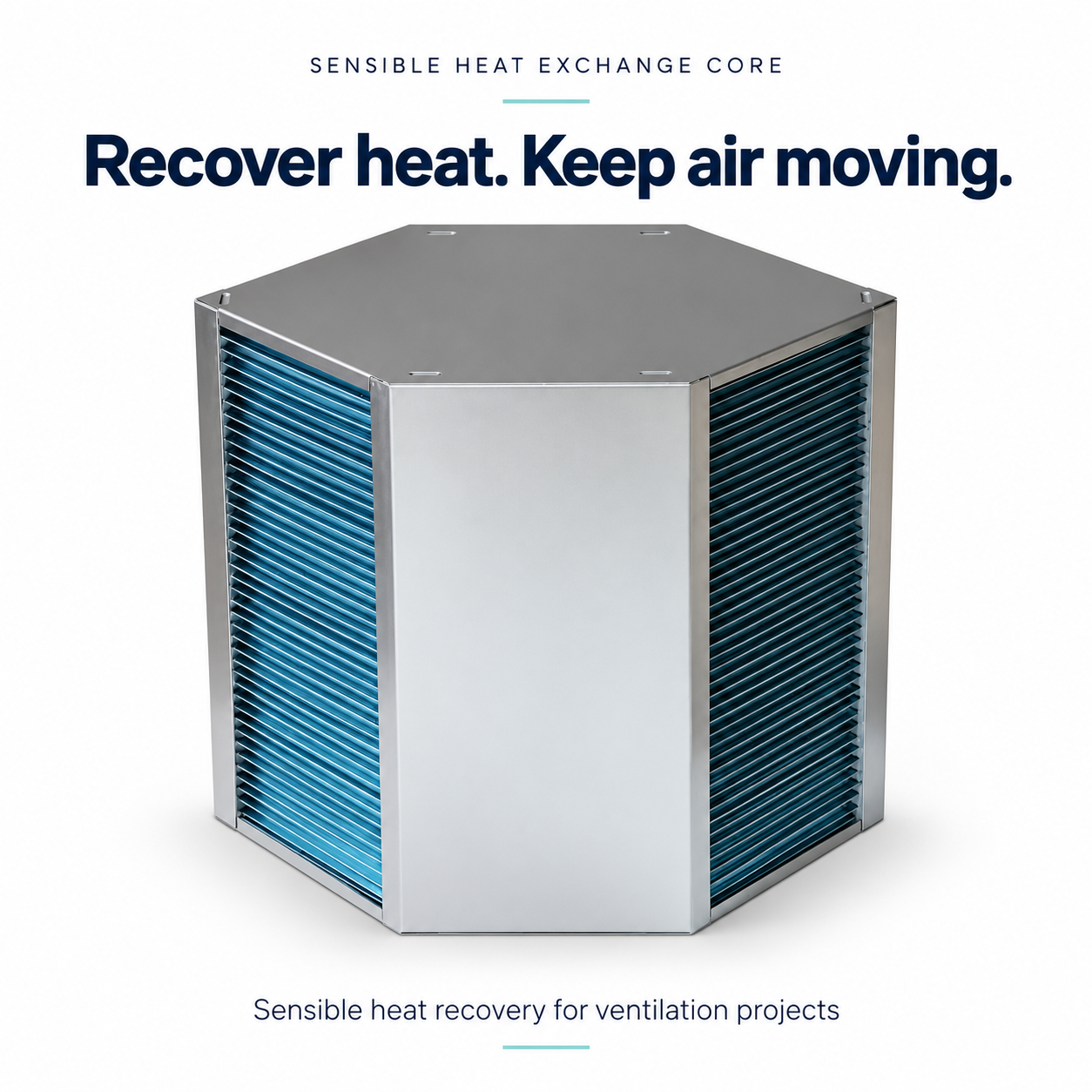

A sensible heat exchange core transfers heat between the supply and exhaust airstreams in a compatible heat-recovery ventilator. It is intended for temperature recovery rather than intentional moisture transfer. The selected core must be matched to the ventilation unit and project conditions.

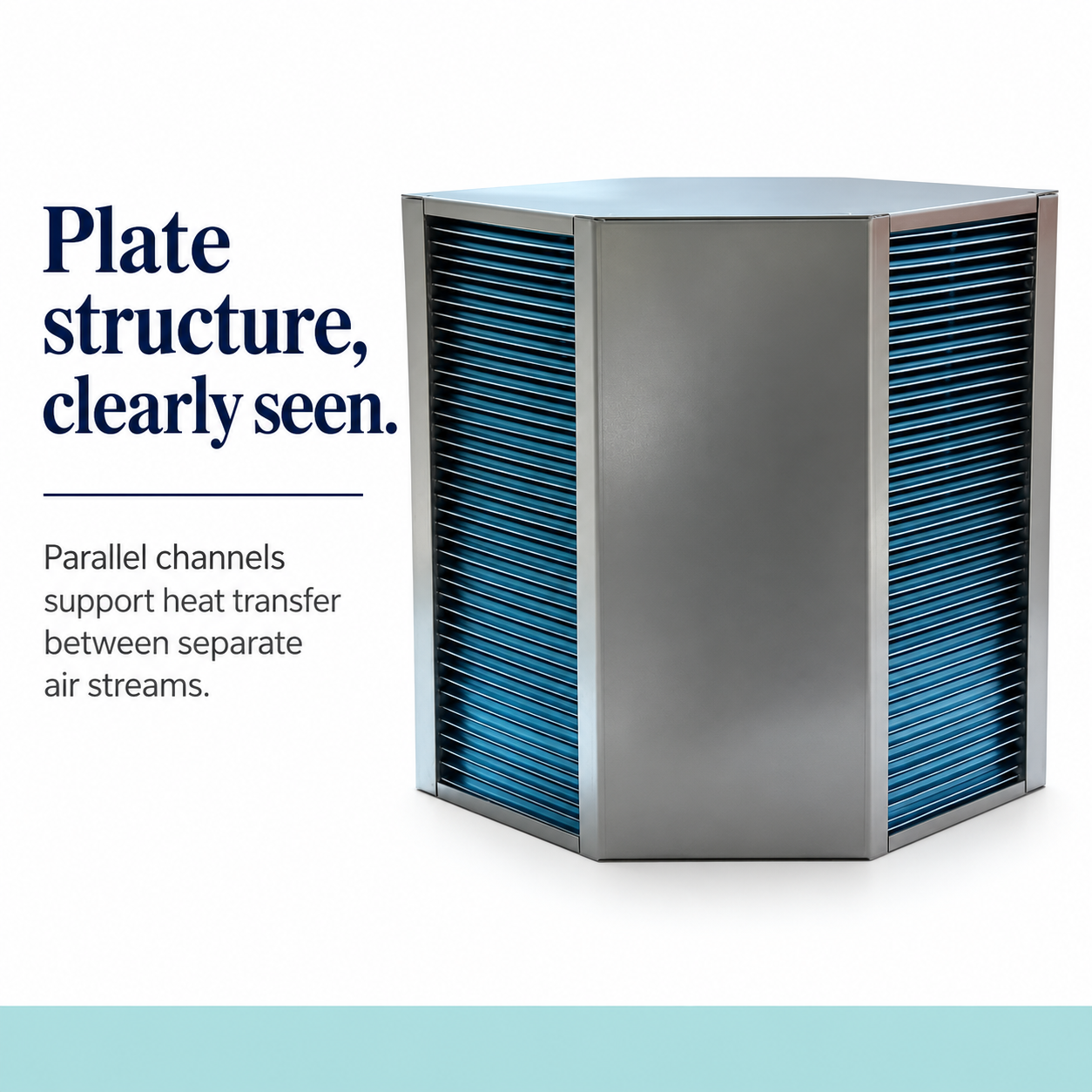

A clear view of the visible plate-channel faces.
01 / Sensible recovery
Heat moves across a separating surface.
When incoming and outgoing air are at different temperatures, the heat-transfer surface allows energy to move from the warmer side toward the cooler side. The ventilation system is designed to keep the two air paths separate.
02 / Humidity behavior
Temperature recovery without a moisture-transfer membrane.
A sensible heat core is selected when temperature exchange is required without intentional water-vapor transfer between airstreams. Condensation and frost management remain system-design considerations under relevant operating conditions.
Project fit
Built around your equipment.
Start with the available installation envelope, the design airflow and the allowable pressure drop. The final core specification should be confirmed against the selected ventilation unit and operating conditions.

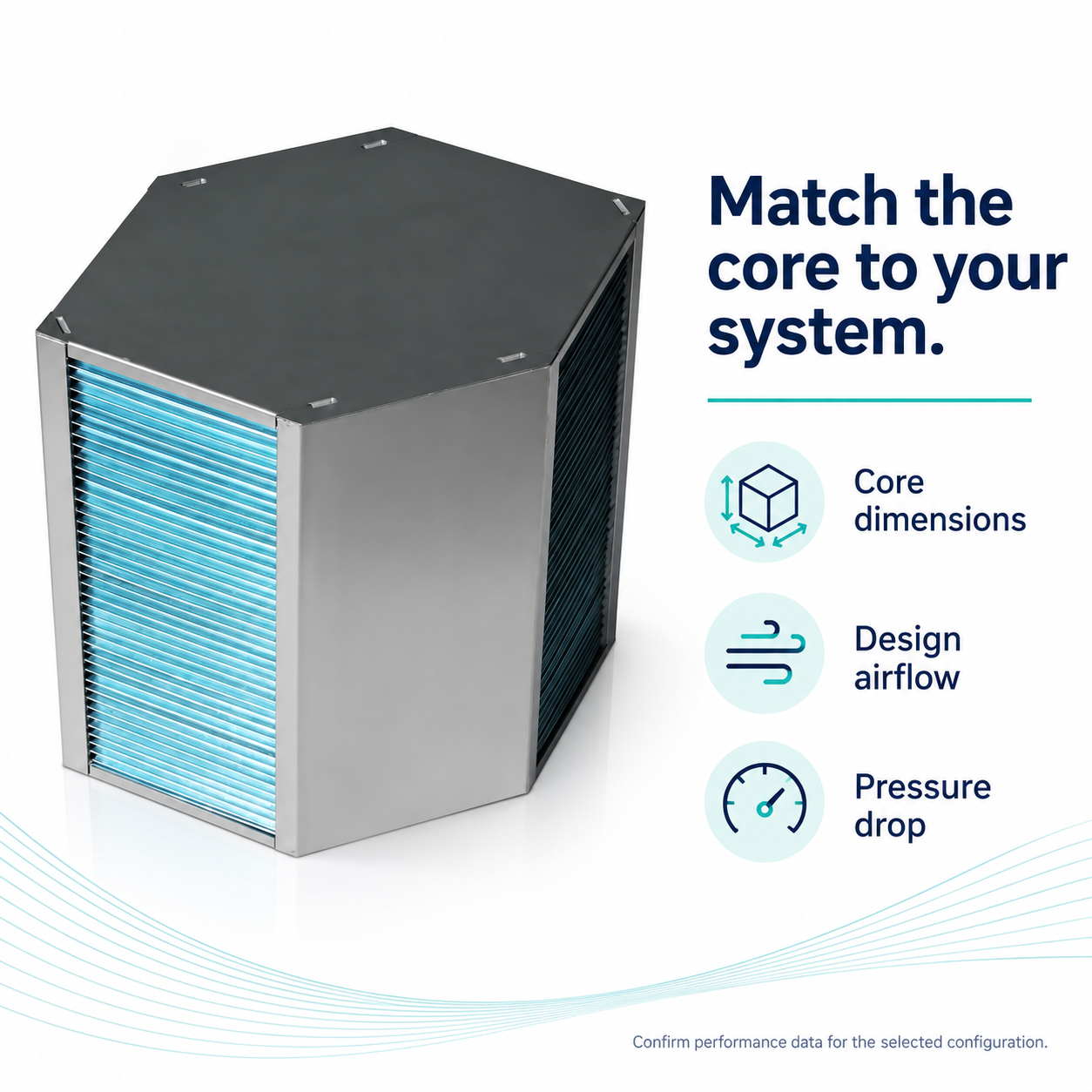

Match the core to the unit
Core construction and sizing depend on the host equipment. To review a suitable option, share the unit model or equipment drawing, available core envelope, supply and exhaust airflow, allowable pressure drop, operating temperatures and any cleaning or corrosion requirements.
| Selection item |
Information to confirm |
| Core size and form |
Unit opening, orientation and installation clearance |
| Airflow |
Supply and exhaust design flow rates |
| Performance |
Model-specific sensible effectiveness and pressure drop |
| Construction |
Material, frame, drainage and service requirements for the selected model |

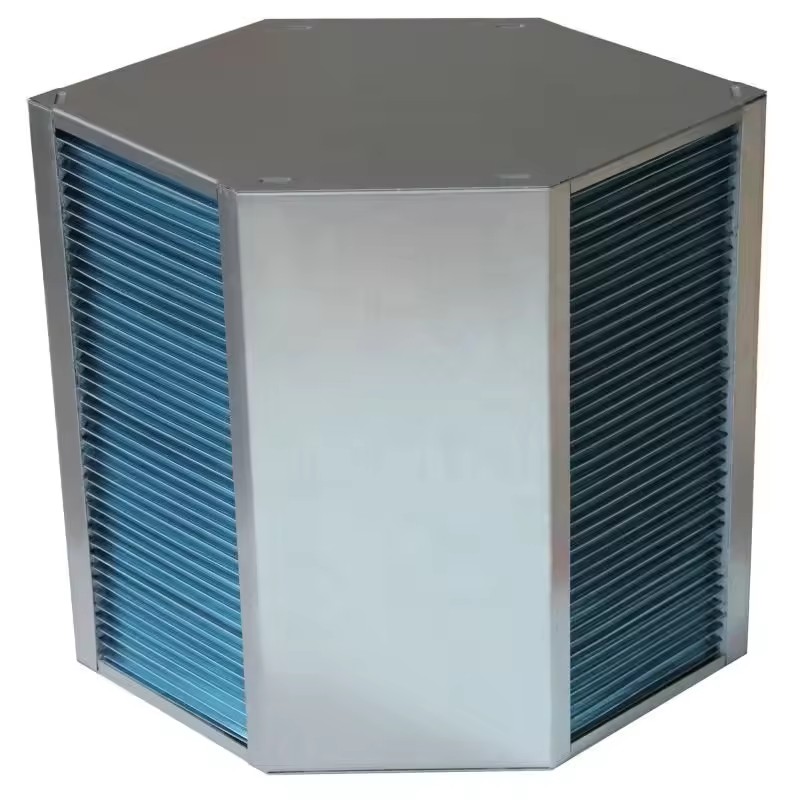

Product reference
See the supplied product image.
The source image is included for a direct view of the visible core form and plate faces. The gallery images above are presentation visuals. Confirm the exact construction and dimensional drawing for your selected configuration.
Planning an HRV project?
Send us your equipment drawing and design conditions. We will review the applicable core specification and provide the corresponding technical details.
