Energy exchange in a compact, serviceable core
This resin-frame air-to-air heat exchange core is designed for compatible heat- and energy-recovery ventilation equipment. Its layered fibrous-paper media provides a large exchange surface within a compact body, while the cross-flow arrangement brings two air streams past the media so energy can transfer between them. The supplied photos show a teal top cover, resin-framed media faces and a carry handle for handling the core during installation or replacement.

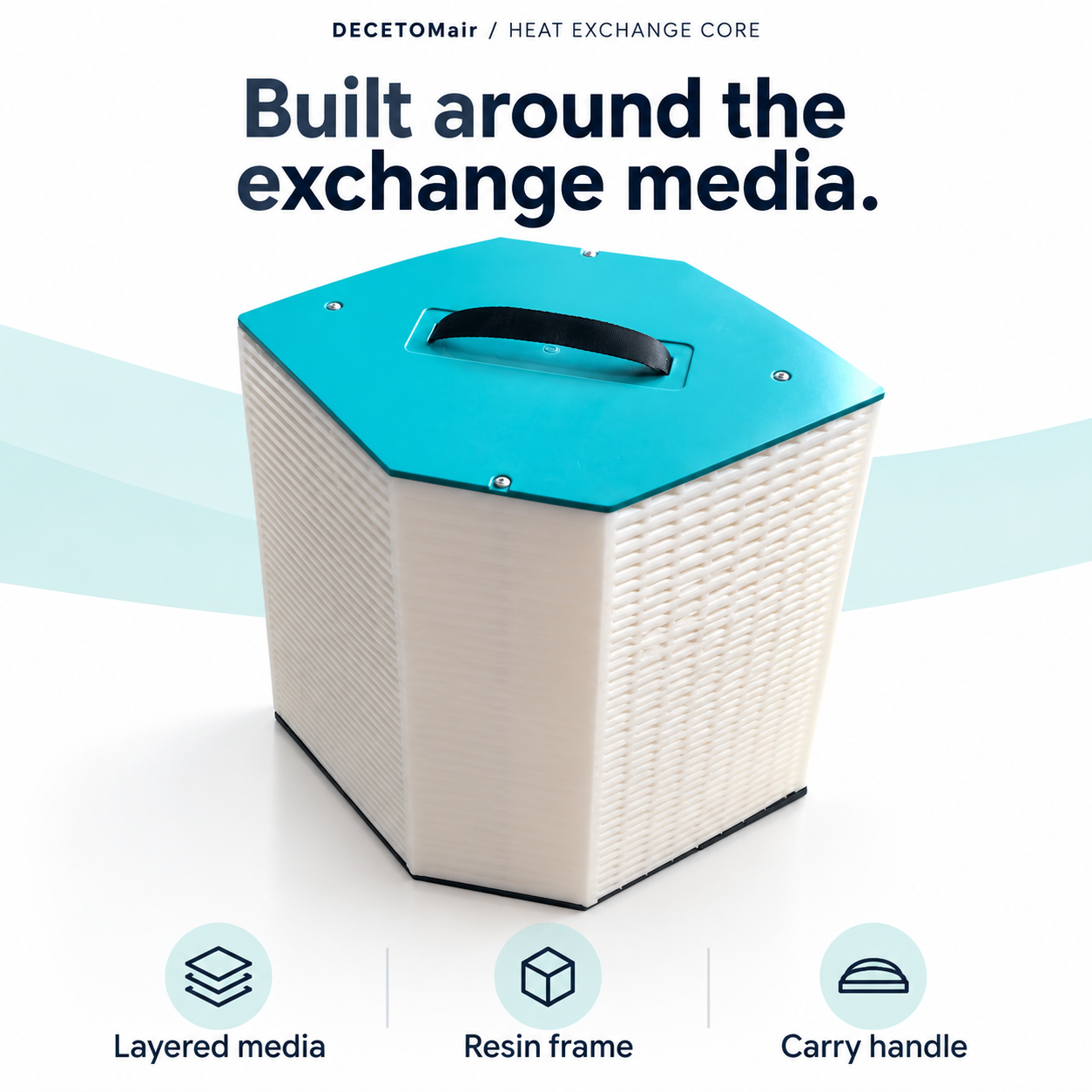

What the construction brings to your project
- Layered exchange media: closely spaced paper channels create an exchange surface in a compact footprint.
- Resin-frame construction: the supplied product brief specifies an ABS framework around the fibrous media.
- Cross-flow layout: intended for air-to-air energy exchange in a compatible ventilator.
- No moving parts inside the core: the core itself is a passive component of the ventilation system.

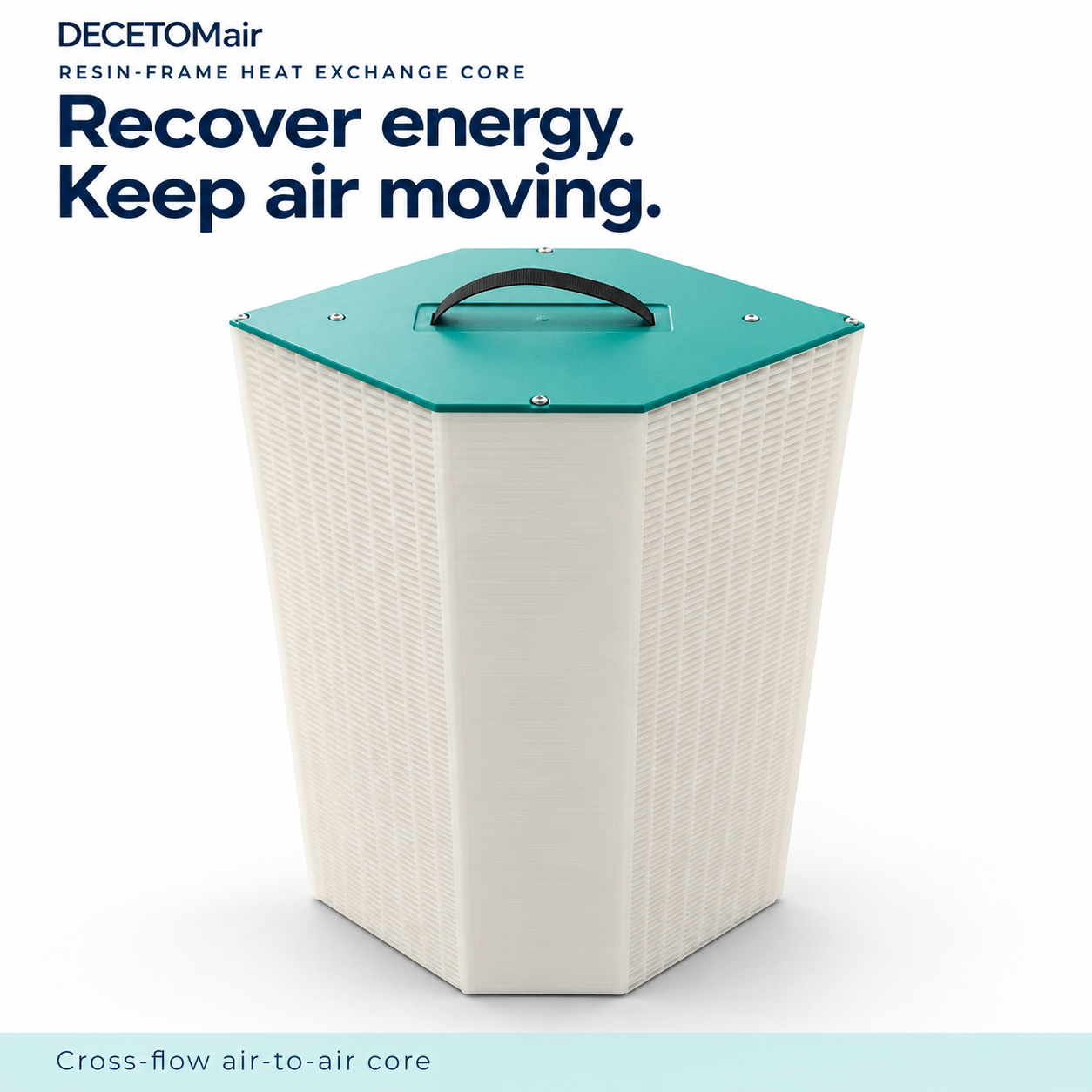

Presentation rendering based on the supplied product photographs. Confirm the ordered version before use.
How it supports heat and moisture recovery
In a compatible ERV, outgoing indoor air and incoming outdoor air pass through separate flow paths around the exchange media. The supplied product brief describes heat and moisture exchange through its special fibrous paper. Actual recovery performance depends on core size, airflow, operating conditions and the test method; request the specification and test basis for the exact configuration you need.
Choose the core that fits your ventilator
Core selection starts with the actual equipment, not a generic efficiency number. Please send the ventilator model, existing core dimensions and photos of the installed core and its airflow orientation. Our team can then check the required shape, media, frame and replacement fit.

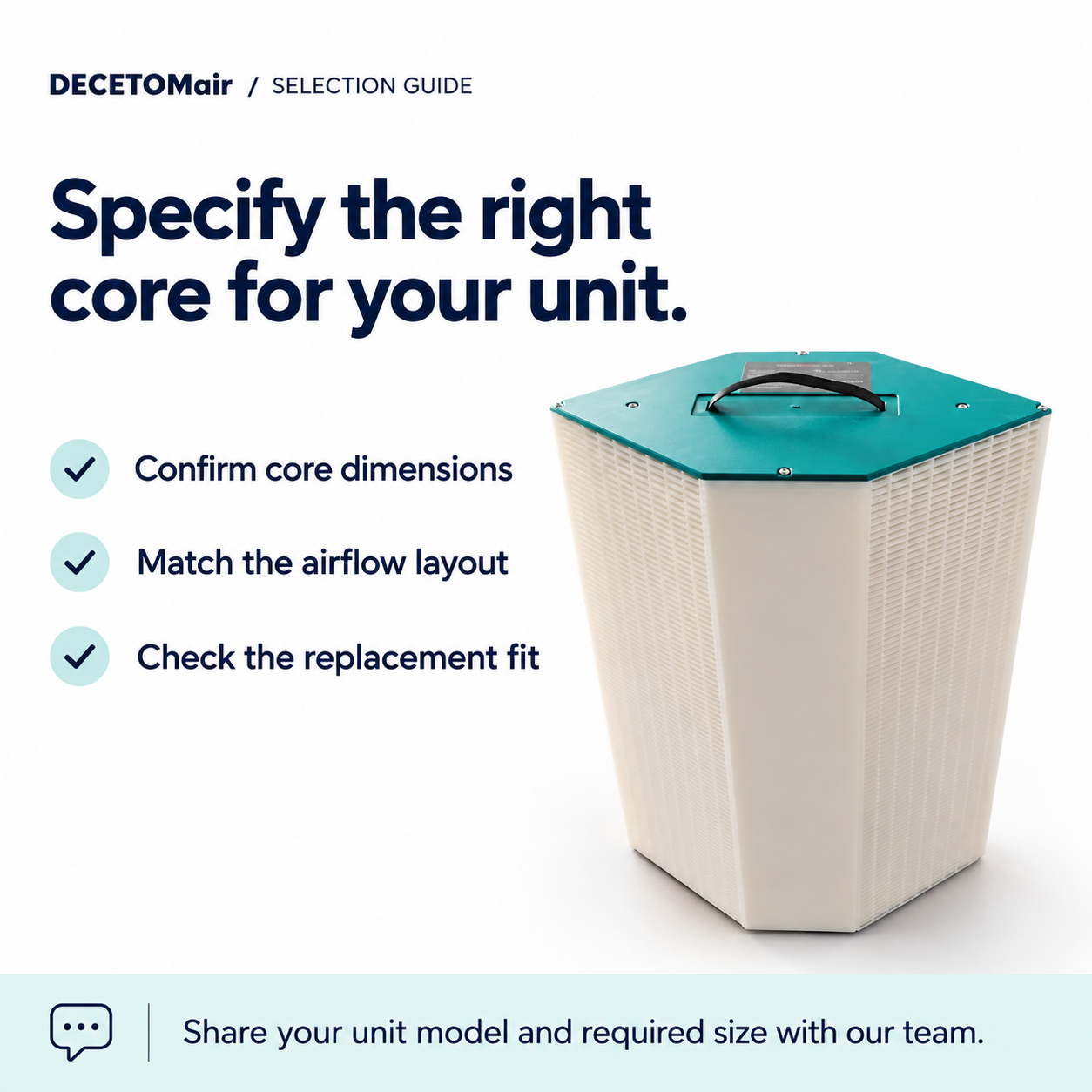

Selection guide. The product image is a presentation rendering; dimensions are not to scale.

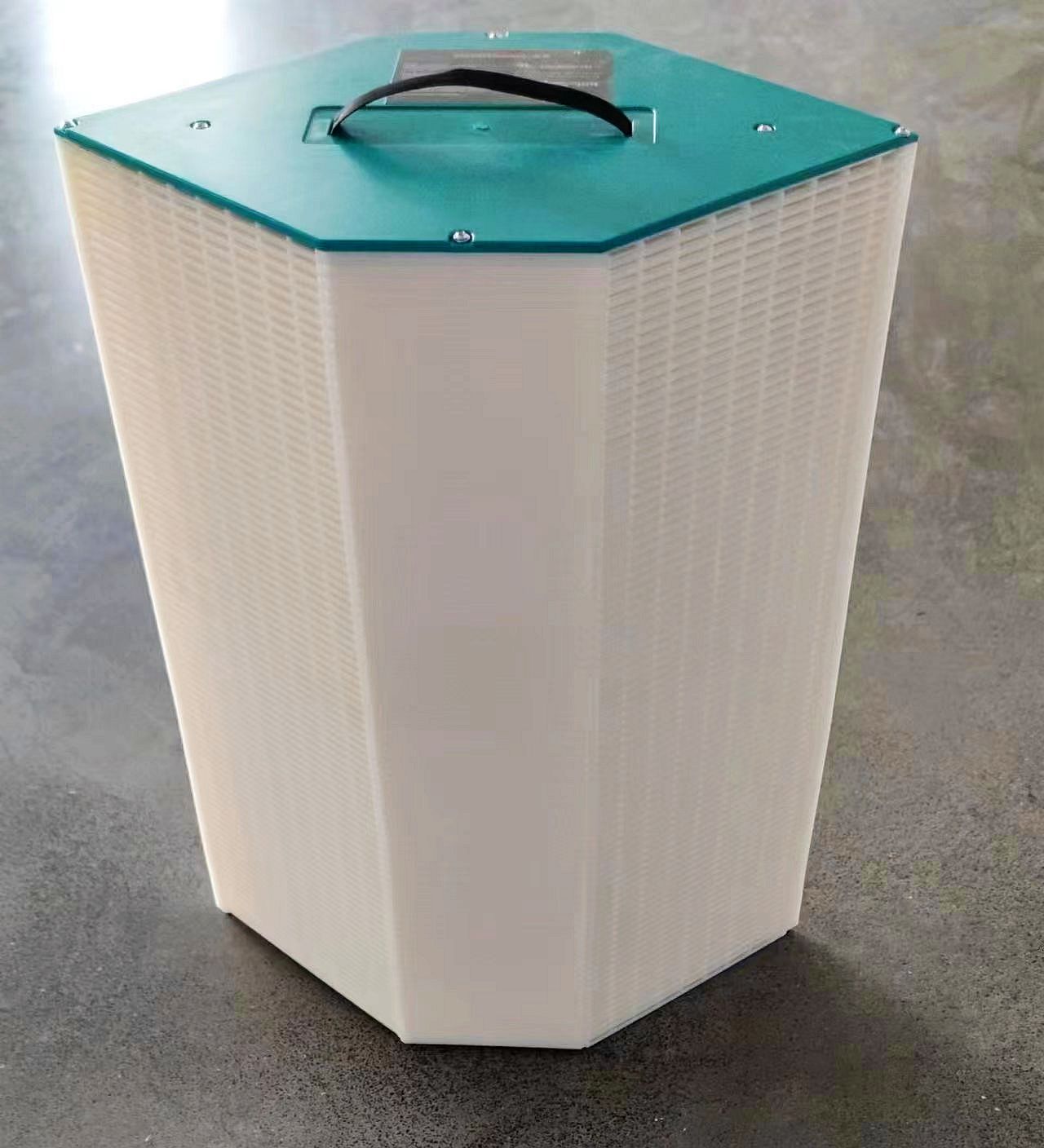

Original supplied product photograph.
ACTUAL PRODUCT PHOTO
Review the real core before specifying
The original photo lets you inspect the teal top cover, handle, overall shape and visible media faces. The styled gallery images are presentation renderings based on the supplied photos.
For replacement enquiries
Share clear photos of the old core from the top and both media sides, plus measured overall dimensions. This helps verify fit without relying on appearance alone.
Product information
| Item |
Supplier information and selection note |
| Product type |
Air-to-air heat / energy exchange core for compatible ventilation equipment |
| Exchange media |
Special fibrous paper, as stated in the supplied product brief |
| Frame |
Resin framework; the supplied brief describes an ABS framework |
| Flow arrangement |
Cross-flow, according to the supplied brief |
| Core size and performance |
Confirm for the selected unit and operating conditions before ordering |
Frequently asked questions
Can this core replace the one in my ERV?
Possibly, but replacement fit must be checked against your unit model, measured core dimensions, shape, airflow orientation and frame details. Send us photos and measurements for review.
How is recovery performance specified?
The supplier brief lists a general efficiency range without a specific test condition. Ask for version-specific performance data and its test basis for your project.
How should the core be maintained?
Follow the ventilation unit manufacturer's maintenance instructions. The supplied brief mentions removing dust and foreign matter, but cleaning methods should be confirmed for the exact media and core version.
Discuss your core requirement
Send DECETOMair your ventilator model, quantity, destination market, measured core size and a photo of the existing core. We will help identify the appropriate resin-frame configuration. Request a compatibility check.在在在
