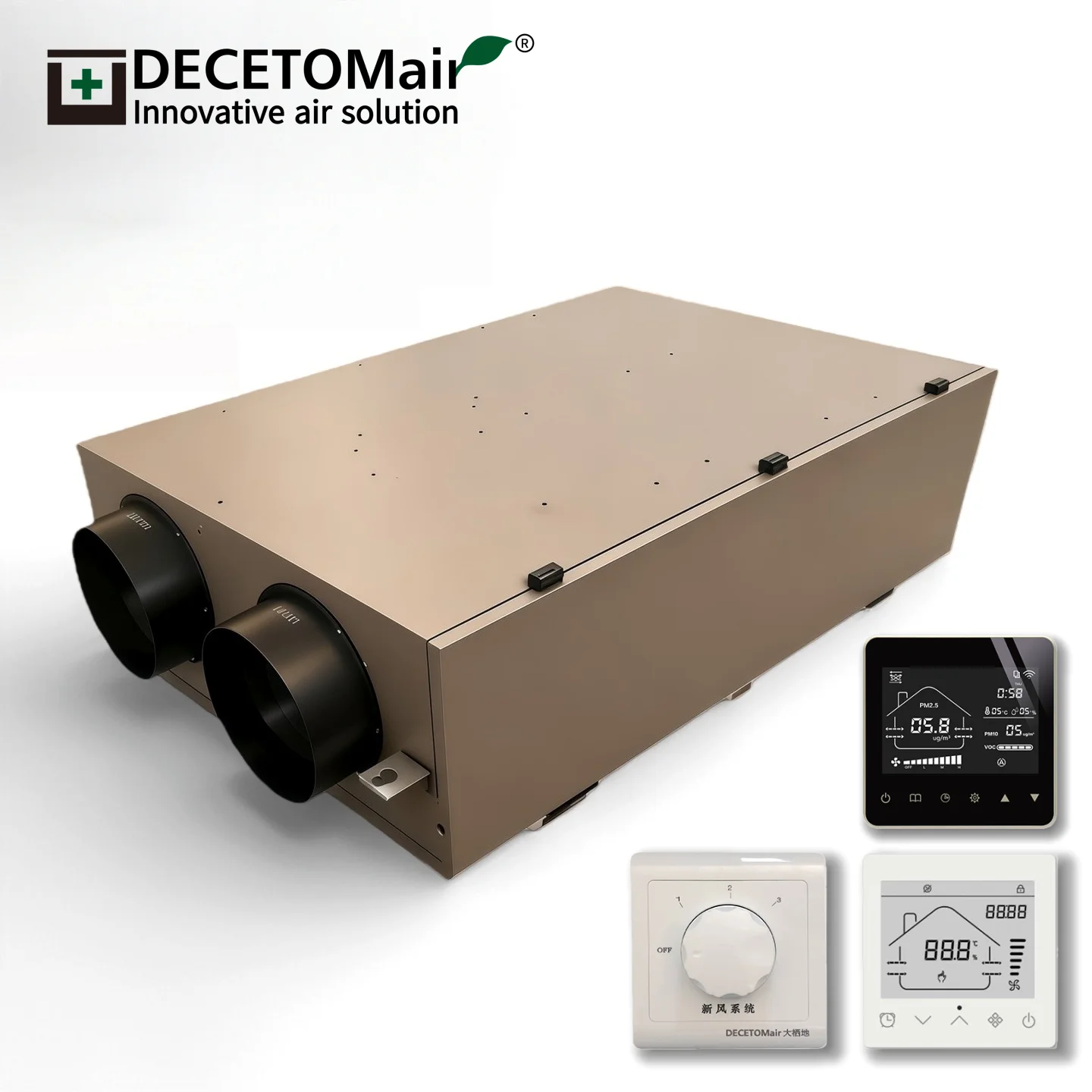

Mvhr Energy Recovery Ventilation System Hrv Recuperator 1500m3/h Hepa Tuya Agqr-1500 Decetomair Hvac Systems Bedroom Outdoor-heat recovery ventilation

  • Mvhr Energy Recovery Ventilation System Hrv Recuperator 1500m3/h Hepa Tuya Agqr-1500 Decetomair Hvac Systems Bedroom Outdoor-heat recovery ventilation
Mvhr Energy Recovery Ventilation System Hrv Recuperator 1500m3/h Hepa Tuya Agqr-1500 Decetomair Hvac Systems Bedroom Outdoor
  • Mvhr Energy Recovery Ventilation System Hrv Recuperator 1500m3/h Hepa Tuya Agqr-1500 Decetomair Hvac Systems Bedroom Outdoor
  • Mvhr Energy Recovery Ventilation System Hrv Recuperator 1500m3/h Hepa Tuya Agqr-1500 Decetomair Hvac Systems Bedroom Outdoor
  • Mvhr Energy Recovery Ventilation System Hrv Recuperator 1500m3/h Hepa Tuya Agqr-1500 Decetomair Hvac Systems Bedroom Outdoor
  • Mvhr Energy Recovery Ventilation System Hrv Recuperator 1500m3/h Hepa Tuya Agqr-1500 Decetomair Hvac Systems Bedroom Outdoor
  • Mvhr Energy Recovery Ventilation System Hrv Recuperator 1500m3/h Hepa Tuya Agqr-1500 Decetomair Hvac Systems Bedroom Outdoor
  • Mvhr Energy Recovery Ventilation System Hrv Recuperator 1500m3/h Hepa Tuya Agqr-1500 Decetomair Hvac Systems Bedroom Outdoor

Mvhr Energy Recovery Ventilation System Hrv Recuperator 1500m3/h Hepa Tuya Agqr-1500 Decetomair Hvac Systems Bedroom Outdoor

Short Description:

Model / Series: AGQR-1500

Details

Model
Air volume
Power Supply
Rated power
Max static pressure
Energy Recovery Rate
Noise
(m³/h)
(V/Hz)
(W)
(Pa)
(%)
dB(A)
AGQR-150
150
220/50
73
127
78
22
AGQR-250
250
220/50
88
150
78
24
AGQR-350
350
220/50
150
158
78
27
AGQR-500
500
220/50
170
190
78
30
AGQR-600
600
220/50
205
280
78
31
AGQR-800
800
220/50
245
288
78
35
AGQR-1000
1000
220/50
380
310
75
37
AGQR-1200
1200
220/50
460
340
75
39
AGQR-1500
1500
220/50
810
450
75
40
AGQR-1800
1800
220/50
900
485
75
42
24 hours continuous supply of fresh air and exhaust of dirty air to create
a comfortable and healthy office and home environment

CONTROLLER OPTIONAL
Intelligent LCD Controller/DM-900A

Timing function,

3.5-inch color screen controller
Temperature and humidity,
PM2.5, PM10 and TVOC sensors
Mobile phone APp function,
Tmall Genie voice control
Optional CO2 detection, RS485 port

Standard LCD Controller/DM-A50

Timing Function
Indoor Temperature Display
Three-speed contro!
Filter Replacement Reminder
RS485 communication interface
Remote Control LCD Controller/DM500A
Timing Function
Indoor Temperature
Display
Remote control is optional
Three-speed Speed Control
Filter Alarm
FINCTION IN WINTER
Heat exchange calculation formula: indoor air supply temperature =(indoor temperature - outdoor temperature) x heat exchange rate + outdoor temperature
FINCTION IN SUMMER
Heat exchange calculation formula: indoor air supply temperature = outdoor temperature - (outdoor temperature -indoor temperature) x heat exchange rate
Model
A
B
C
E
F
G
H
K
Φd
AGQR-150
588
440
197
624
384
461
232
726
150
AGQR-250
588
440
197
624
384
461
232
726
150
AGQR-350
820
570
260
857
509
591
232
958
150
AGQR-500
820
570
260
857
509
591
232
958
150
AGQR-600
950
685
320
1014
618
704
282
1092
200
AGQR-800
950
685
320
1014
618
704
282
1092
200
AGQR-1000
1090
745
306
1155
680
765
295
1255
250
AGQR-1200
1090
745
306
1155
680
765
295
1255
250
AGQR-1500
1105
830
410
1169
765
851
332
1270
250
AGQR-1800
1105
830
410
1169
765
851
332
1270
250

WHOLE HOUSE CYCLE
Large space fast circulation, breathable replacement, protect the respiratory
health of tens of millions of families.
* Can be customized packaging


* Models can be modifed

* OEM available

* Prototypes are available for a fee

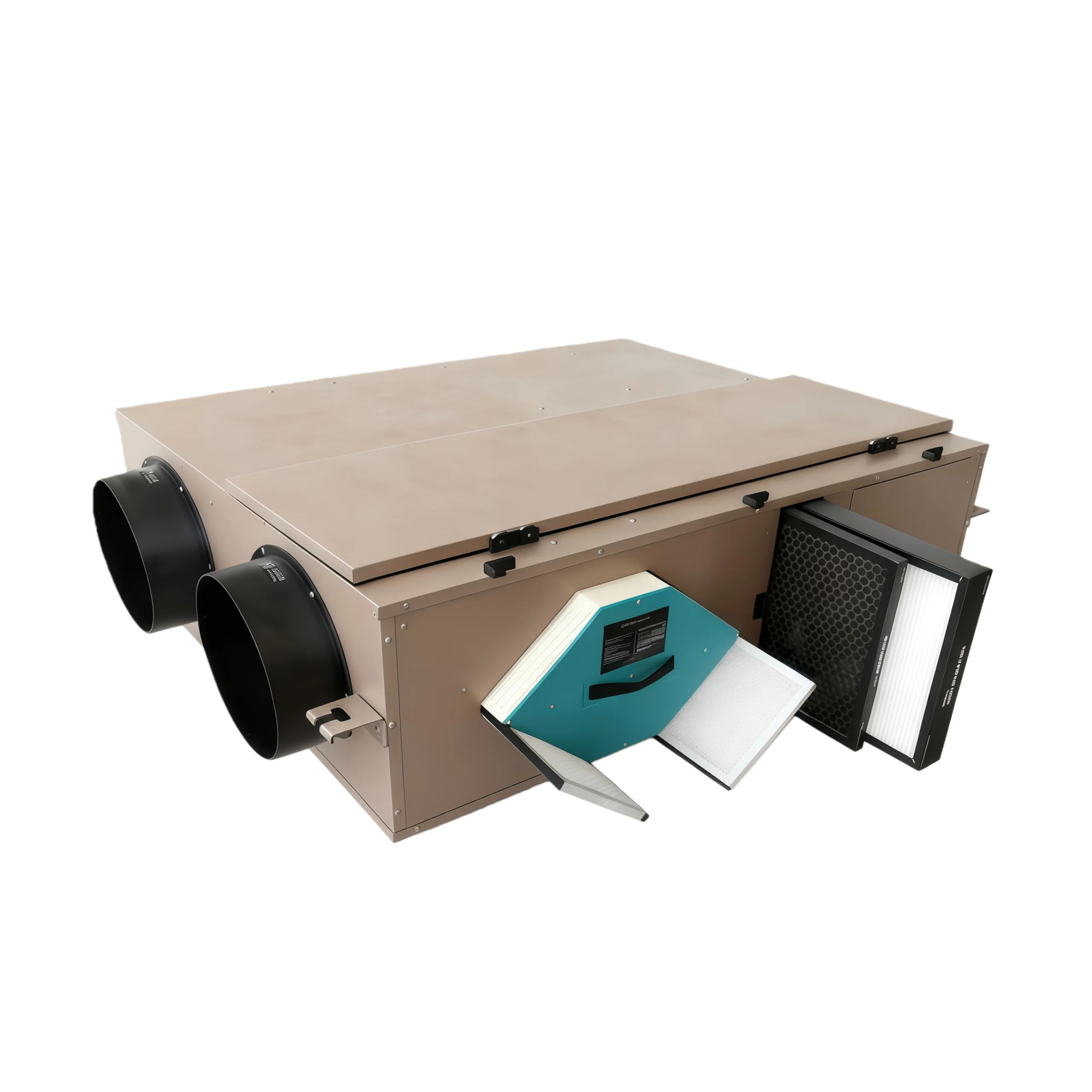

LONG-ACTING FILTRATION

High quality AC motor

Can sun smoothly for a long time,
environmental protection and
energy saving, long life

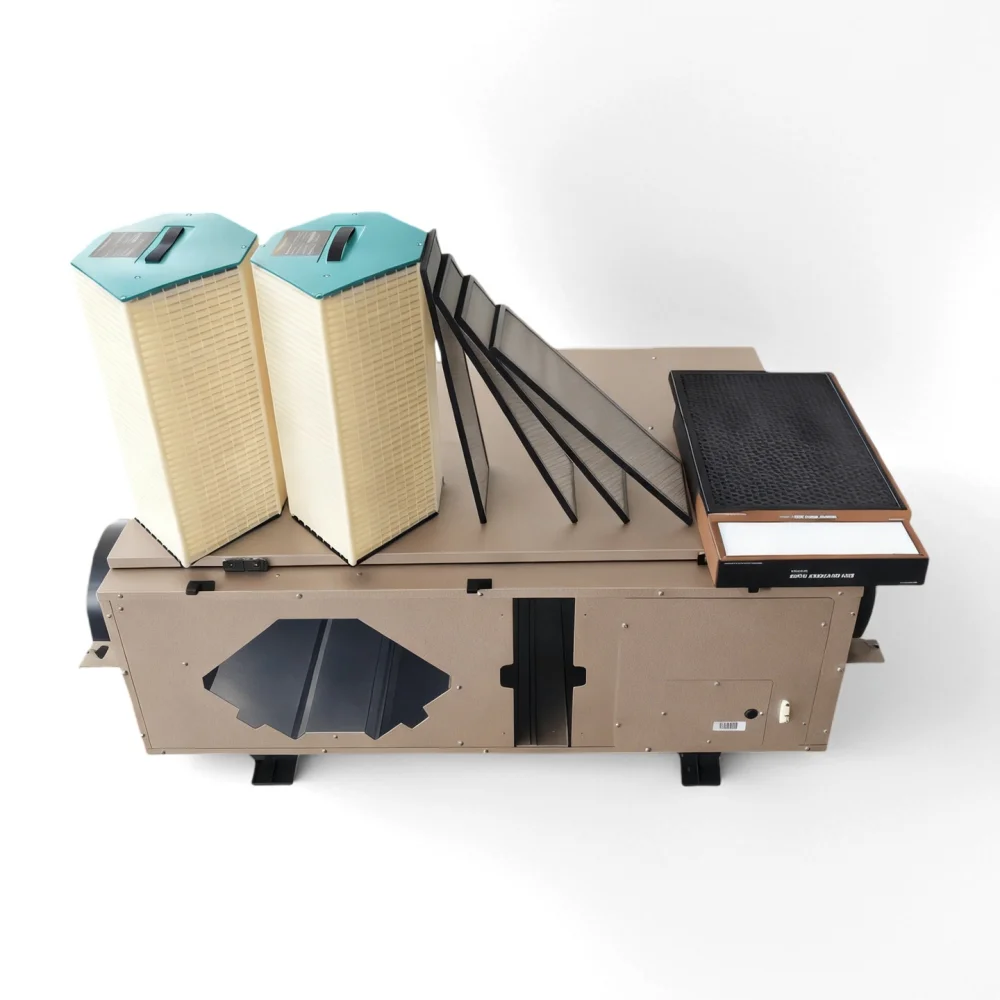

High efficiency
heat exchange

Imported antibacterial nano
paper film,resin frame efficient
solution to energy loss


Better performance

The delivery rate of higher pressure
air volume is more than 78%;
Motor service life is 18%% higher
than the industry average.

Ultra-thin body,easy

maintenance

Ultra-thin body design,
230mm height,
flexible installation to save
space,Bayonet type access door,
easy to access

UV efficient

sterilization

The outdoor air into the room
to do UV efficient sterilization
treatment sterilization rate of
99.99%, medical grade is safer

PRODUCT APPLICATION
Wenzhou Daqidi Technology Co., Ltd is headquartered in Wenzhou, Zhejiang Province, China, We have several production bases in Zhejiang, Shandong and Guangdong. specializing in the research and development, production and sales of various types of home and commercial air system products, water purify products and new energy sources products.

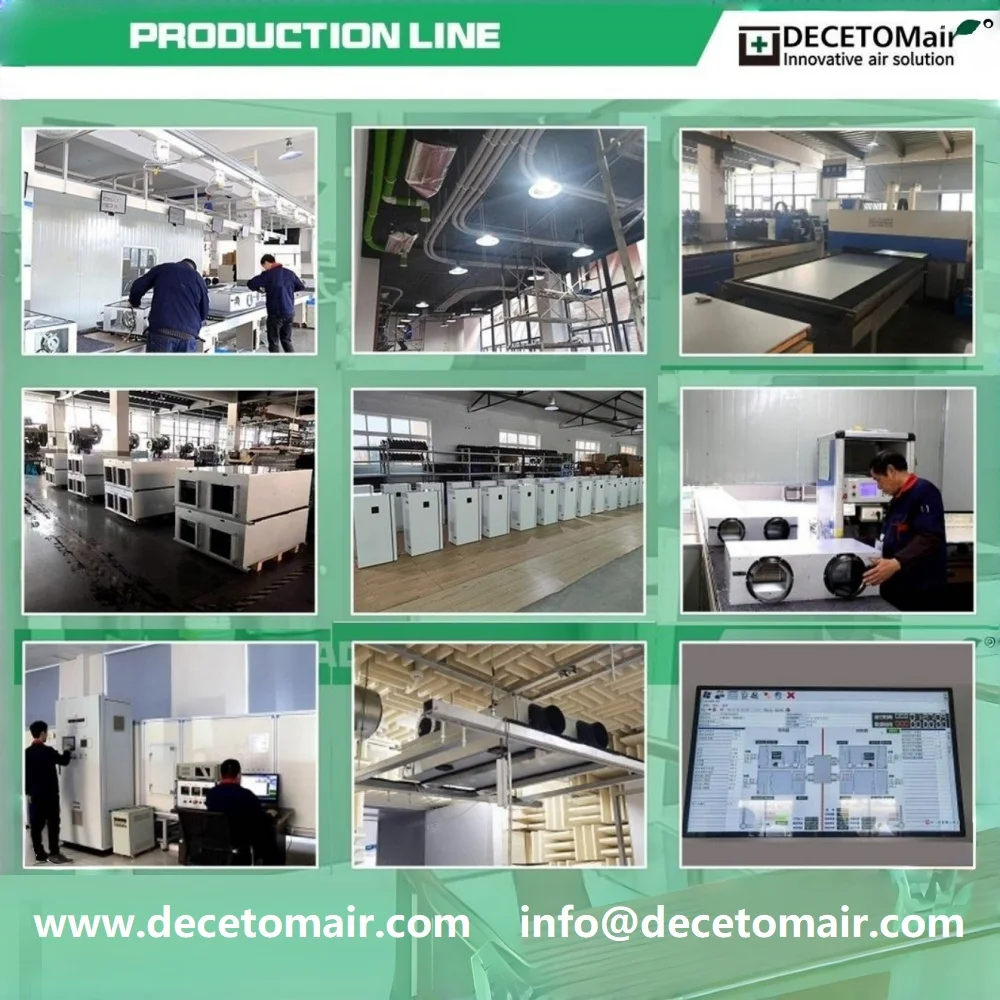

The company has a production area of nearly 35,000 square meters, more than 500 employees, multiple production lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. After more than 10 years of cultivation, the company has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.
Q: What is your MOQ?
A: Generally the MOQ is 10 sets for regular products, 50 sets for customised products. But MOQ bases on different models, and you will see detailed MOQ in our quotation. Or you can contact us for a quick answer by Alibaba TradeMessenger /e-mail/ whatsApp or telephone.

Q: How can I get a sample to check your quality.
A: After the price is confirmed, you can ask for samples to check our quality. If you ask for samples, we will collect sample fees(Some model is free). But the difference in price of the samples will be refunded to you after the order is officially placed.

Q: Can you do the design for us?
A: Yes, your design is also welcome. Please send your design idea or drawing to us, and we customize it for you.

Q: What is the payment terms?
A: T/T 30% as deposit before production, T/T 70% as balance before shipment.

Q: What is your delivery time?
A:Retail delivery: in 7 days Sample delivery: in 7-20days Wholesale delivery:15-50 days The exact delivery time is determined by the model, quantity and time of placing the order.

Q: What is the quality assurance?
A: One year guarantee for the complete machine, three-year guarantee for motor and lifelong paid maintenance service. But warranty times will vary from product to product, depending on the product you choose.

Q: How will you arrange the shipment?
A: For small samples,we send by DHL/FedEx/UPS/TNT express, and mass production will ship by sea. Sometimes, if you have cargo to go from other Chinese factories,we also can help you arrange consolidation shipment.

Online Inquiry

Product Inquiry & Selection Support

How can I confirm the right model?

Send us your required airflow, installation type, application, voltage and project location. Our team will help review the suitable configuration.

Can I request technical documents or a quotation?

Yes. Use CHAT NOW or the inquiry form and include your target quantity and delivery country.

Do you support customized or OEM requirements?

Please share the required specifications, branding and certification needs. Feasibility and commercial terms will be confirmed for each project.
