AXG Mixed-Flow Inline Duct Fan

Short Description:

Mixed-Flow Inline Duct Fan.
Single-speed motor
Switch not included
1-year warranty

Details

Model
Air volume
Power Supply
Rated power
Max static pressure
Noise
Exterior dimension
Interface Size
((m³/h)
(V/Hz)
(W)
(Pa)
dB(A)
(mm)
(mm)
AXG-75 (3 inch)
220
220/50
35
150
31
220X170X150
Φ75
AXG-100 (4 inch)
310
220/50
40
180
34
300X215X185
Φ100
AXG-125 (5 inch)
310
220/50
40
180
34
295X215X185
Φ125
AXG-150 (6 inch)
540
220/50
75
300
38
310X230X220
Φ150
AXG-200 (8 inch)
900
220/50
130
380
43
305X240X250
Φ200
AXG-250 (10 inch)
1450
220/50
225
488
50
390X300X280
Φ250
AXG-315 (12 inch)
2900
220/50
320
630
69
445X400X345
Φ315
Tubular inline exhaust fan shown in a kitchen-themed product graphic and two product views.
Green panel with icons for ventilation-related features.

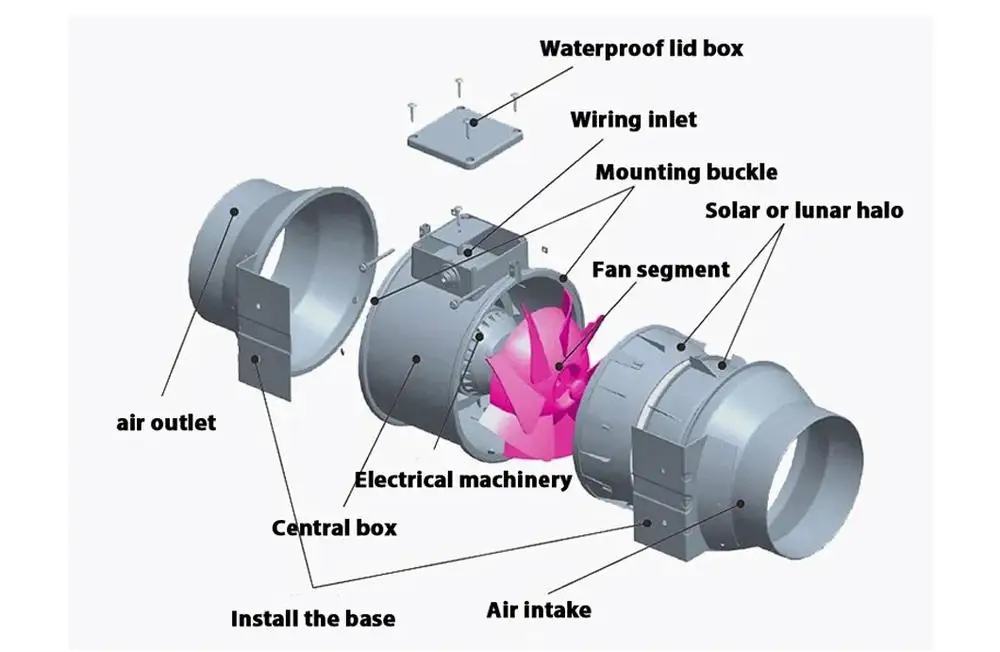

MACHINE DECOMPOSITION DIAGRAM
Exploded inline-fan diagram showing housing sections, motor, impeller and wiring cover.

PRODUCT ADVANTAGE

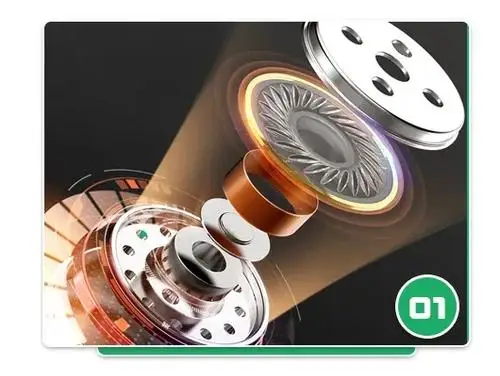

Exploded illustration of a fan motor and rotating components.

PURE COPPER MOTOR

Using all copper external rotor
brushless motor,temperature rise
low speed fast power, high speed,
stable operation, long service life

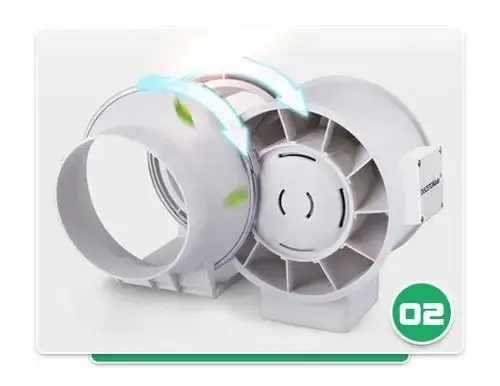

THE BODY IS

INDIVIDUALLY
REMOVABLE The main body can bed etachable
humanized design, easy to install
more convenient later cleaning

and maintenance

White inline fan with cylindrical duct connections and an illustrated airflow effect.

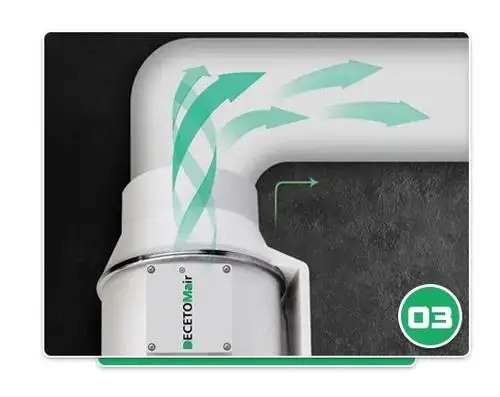

Inline fan connected to an elbow duct with green airflow arrows.


OBLIOUE FLOW SUPER CHARGING

Oblique flow duct around the air,

the principle of air science

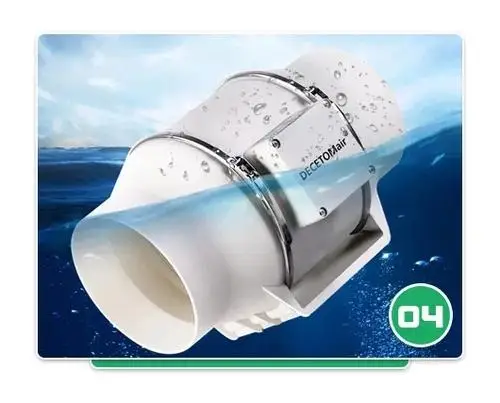

IXP2 WATERPROOF

RATING

Moisture-proof water-proof,

dust-proof.stable operation

in harsh environments

Metal inline fan illustrated with water droplets against a blue background.
INSTALLATION MODE

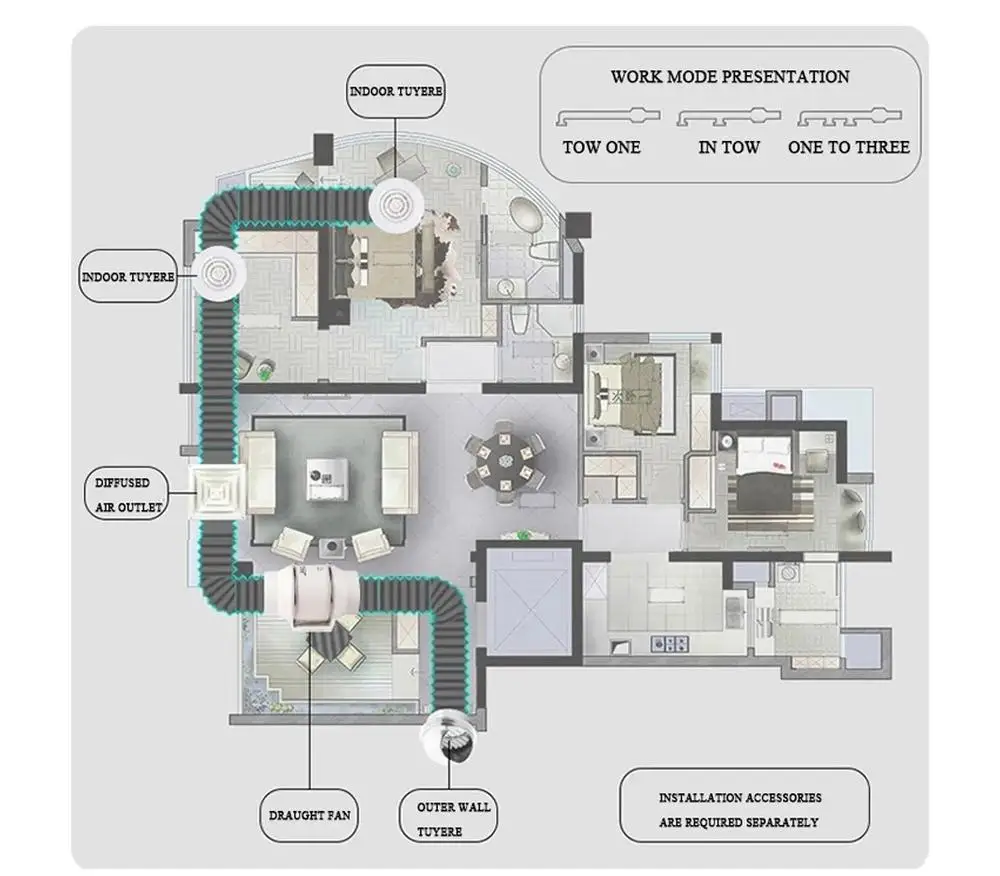

Apartment duct-routing plan showing an inline fan and wall terminals.

PRODUCT DETAILS DISPLAY


Unique
mounting bracket
Simple installation,
fixed firmly not afraid of shock
PRECISION INTEGRATION
FORMING AIR VENT

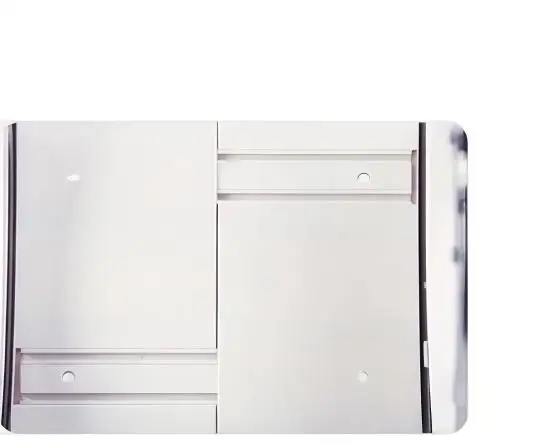

Close-up of a metal ventilation housing and mounting rails.

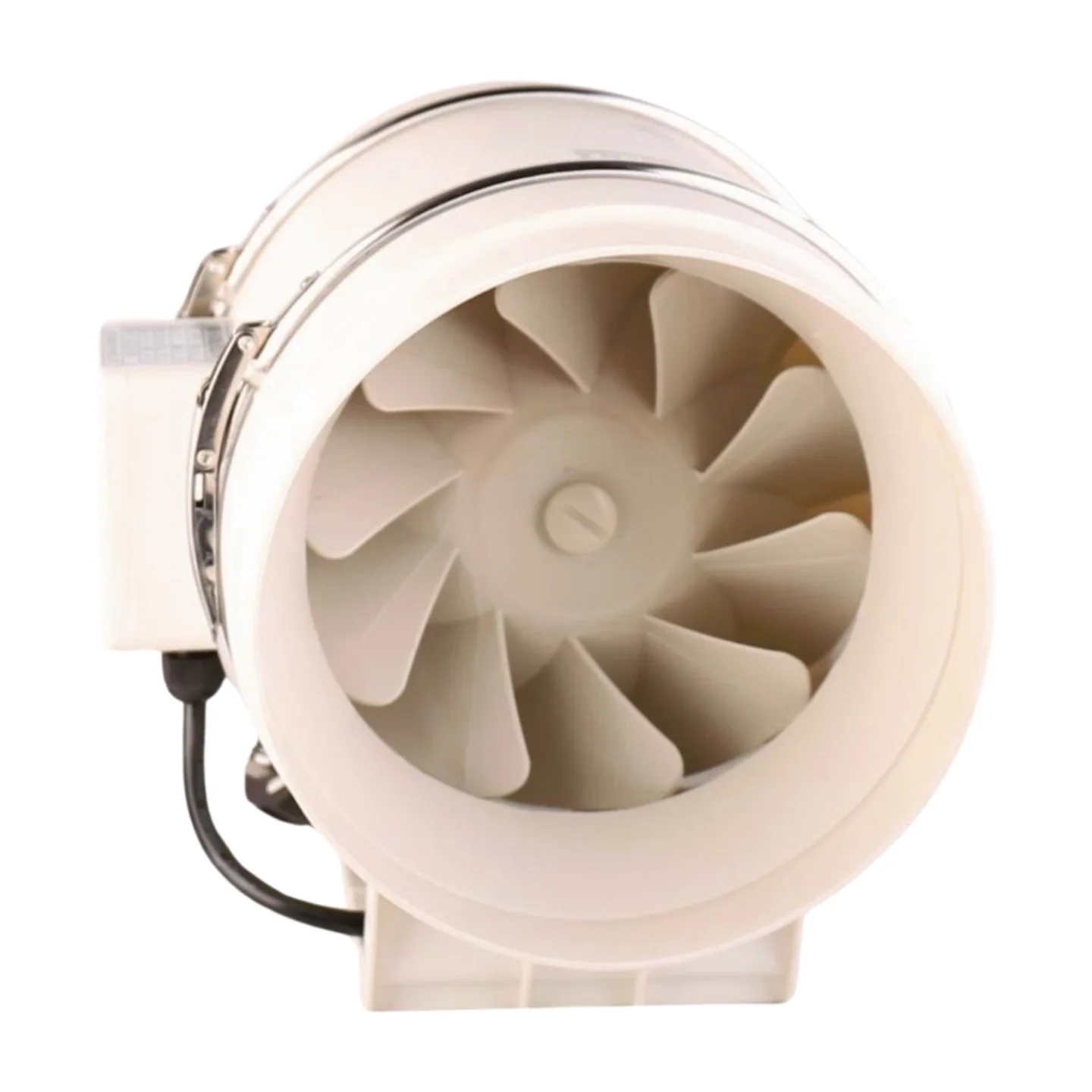

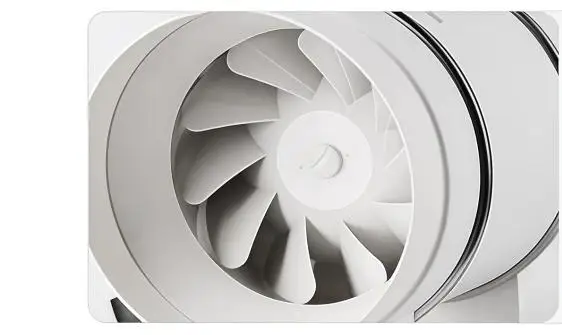

Close-up of a white inline fan's impeller blades.

Oblique flow booster fan

ABS material, high wind and low noise

PRECISION INTEGRATION FORMING AR VENT

Convenient and
removable

Not easy to deform, no shrinkage, high strength,

high strength

PRECISION INTEGRATION
FORMING AIR VENT

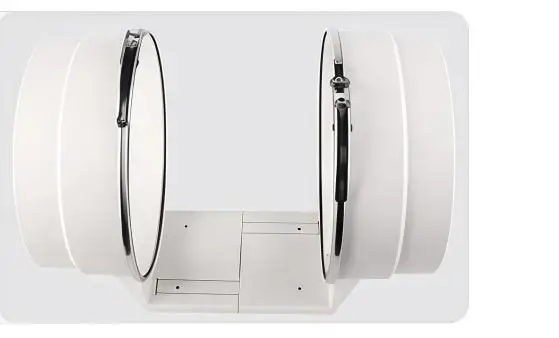

White inline-fan housing with its central assembly removed.
Equipment wrapped in an inflatable protective packaging sleeve.

Shipping package

Multiple packaging, shock-proof, safe delivery

PRECISION INTEGRATION
FORMING AIR VENT
.....PRODUCT APPLICATION.....
Living room, bedroom, mall, kitchen, recreation room and internet-cafe interiors.

Wenzhou Daqidi Technology Co., Ltd. is based in Wenzhou, Zhejiang, China. The factory has a floor area of 12,000 square metres, 58 employees and three assembly lines. The team has 20 years of industry experience in residential and commercial fresh-air ventilation.


The company has a factory floor area of 12,000 square meters, 58 employees, three assembly lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. Drawing on 20+ years of industry experience, the team has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.

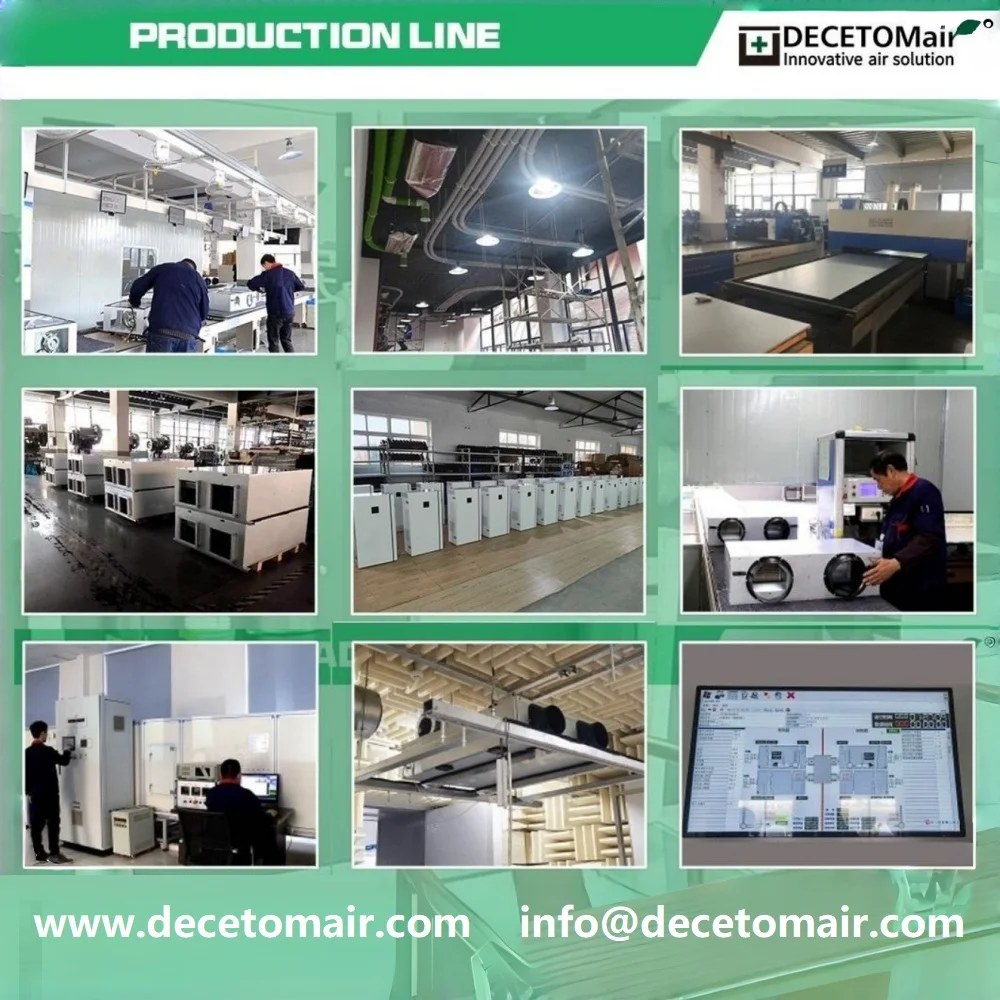

Ventilation equipment production, assembly and inspection photographs.
Cartons, pallets and container loading for ventilation equipment shipments.
DECETOMair exhibition booths and team photographs.
Collage of certificates and test-report documents.
Logos displayed in the Partner Brands graphic.
DECETOMair service and support overview
Illustrated overview of consultation, design, installation and training services.
DECETOMair OEM and ODM process: request, design, samples, production and shipping

Q: What is your MOQ?

A: Generally the MOQ is 10 sets for regular products, 50 sets for customised products. But MOQ bases on different models, and you will see detailed MOQ in our quotation. Or you can contact us for a quick answer by made-in-china TradeMessenger /e-mail/ whatsApp or telephone.

Q: How can I get a sample to check your quality.
A: After the price is confirmed, you can ask for samples to check our quality. If you ask for samples, we will collect sample fees(Some model is free). But the difference in price of the samples will be refunded to you after the order is officially placed.

Q: Can you do the design for us?
A: Yes, your design is also welcome. Please send your design idea or drawing to us, and we customize it for you.

Q: What is the payment terms?
A: T/T 30% as deposit before production, T/T 70% as balance before shipment.

Q: What is your delivery time?
A:Retail delivery: in 7 days Sample delivery: in 7-20days Wholesale delivery:15-50 days The exact delivery time is determined by the model, quantity and time of placing the order.

Q: What is the quality assurance?
A: This product is covered by a one-year warranty from the date it leaves our factory. For quality-related issues covered by the warranty, we supply replacement parts at our expense; shipping costs are borne by the customer.

Q: How will you arrange the shipment?
A: For small samples,we send by DHL/FedEx/UPS/TNT express, and mass production will ship by sea. Sometimes, if you have cargo to go from other Chinese factories,we also can help you arrange consolidation shipment.
