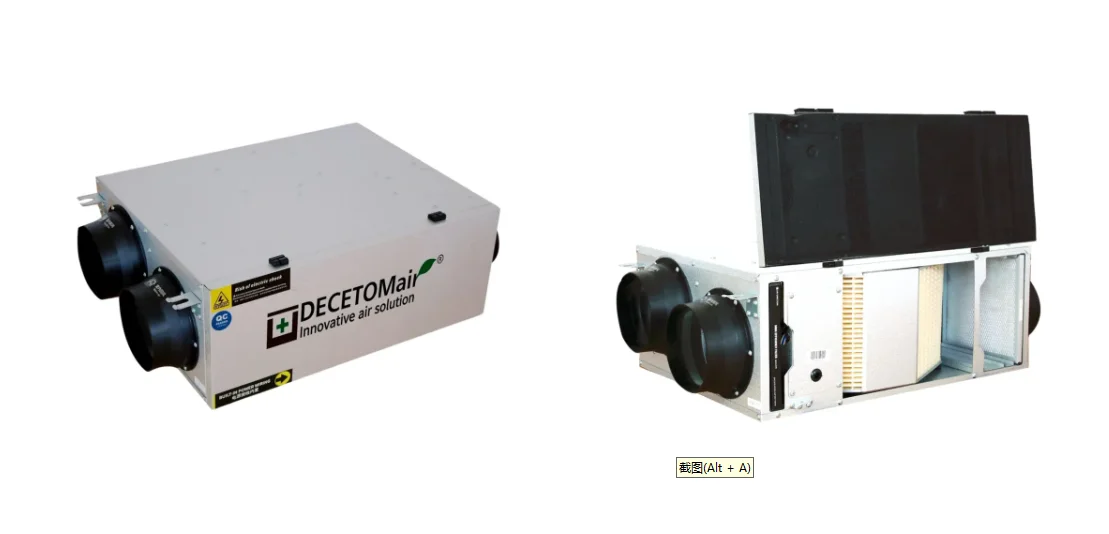

Decetomair Hvac Systems Energy Recovery Ventilator Erv Recuperator Fresh Bathroom Apartment Ceiling Diffuser Outdoor Bedroom
  • Decetomair Hvac Systems Energy Recovery Ventilator Erv Recuperator Fresh Bathroom Apartment Ceiling Diffuser Outdoor Bedroom
  • Decetomair Hvac Systems Energy Recovery Ventilator Erv Recuperator Fresh Bathroom Apartment Ceiling Diffuser Outdoor Bedroom
  • Decetomair Hvac Systems Energy Recovery Ventilator Erv Recuperator Fresh Bathroom Apartment Ceiling Diffuser Outdoor Bedroom
  • Decetomair Hvac Systems Energy Recovery Ventilator Erv Recuperator Fresh Bathroom Apartment Ceiling Diffuser Outdoor Bedroom
  • Decetomair Hvac Systems Energy Recovery Ventilator Erv Recuperator Fresh Bathroom Apartment Ceiling Diffuser Outdoor Bedroom
  • Decetomair Hvac Systems Energy Recovery Ventilator Erv Recuperator Fresh Bathroom Apartment Ceiling Diffuser Outdoor Bedroom

Decetomair Hvac Systems Energy Recovery Ventilator Erv Recuperator Fresh Bathroom Apartment Ceiling Diffuser Outdoor Bedroom

Short Description:

Decetomair Hvac Systems Energy R

Details

Model
Air volume
Power Supply
Rated power
Max static pressure
Energy Recovery Rate
Noise
(m³/h)
(V/Hz)
(W)
(Pa)
(%)
dB(A)
AQR-150
150
220/50
63
125
78
22
AQR-250
250
220/50
72
131
78
24
AQR-350
350
220/50
115
158
78
27
AQR-500
500
220/50
155
195
78
31
AQR-600
600
220/50
192
215
78
33
AQR-800
800
220/50
215
288
78
35
AQR-1000
1000
220/50
295
297
78
37
AQR-1200
1200
220/50
410
330
75
39
AQR-1500
1500
220/50
480
350
75
40
AQR-1800
1800
220/50
850
385
75
42
AQR-2000
2000
220/50
915
395
75
43

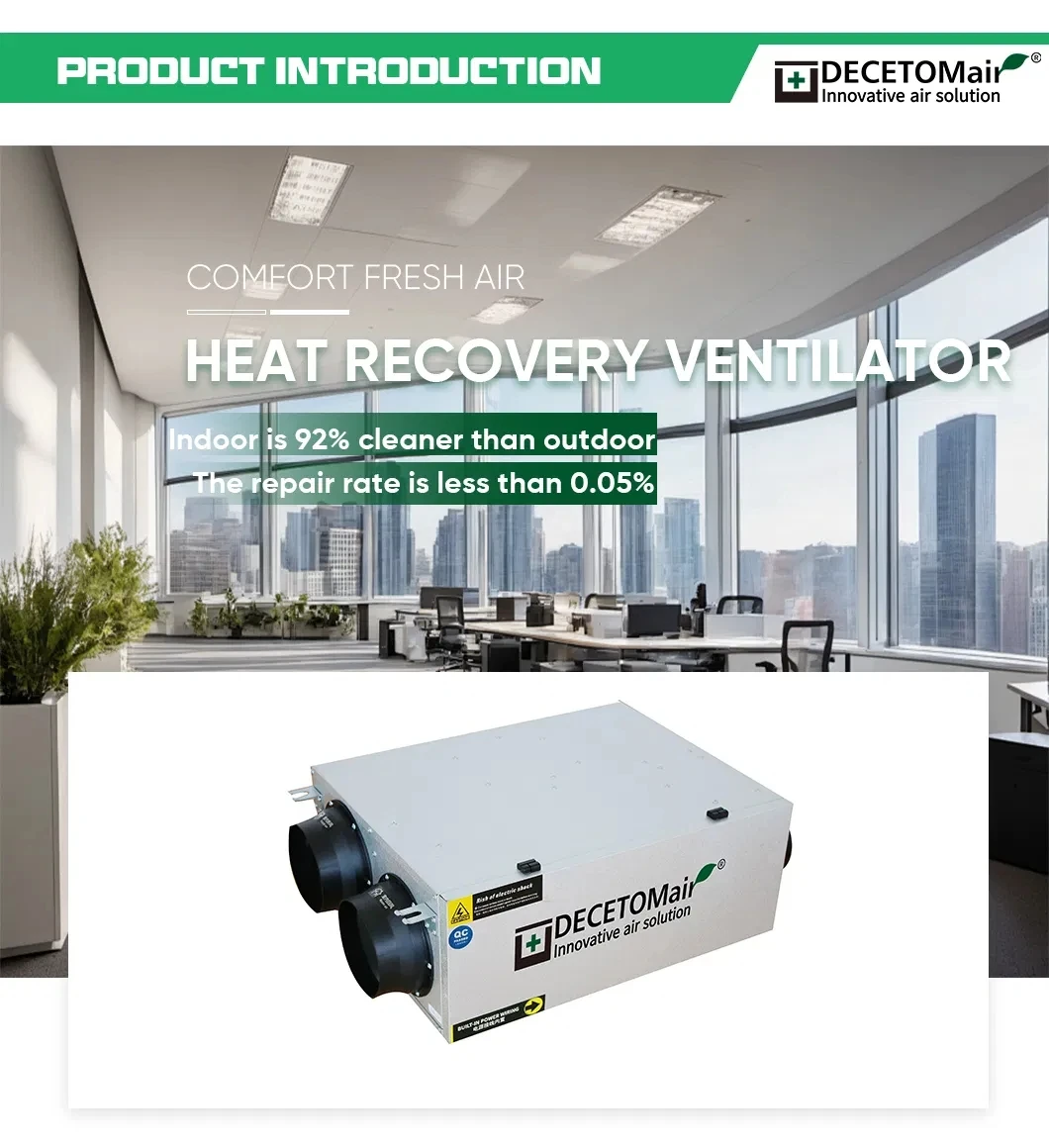

24 hours continuous supply of fresh air and exhaust of dirty air to create
a comfortable and healthy office and home environment

CONTROLLER OPTIONAL

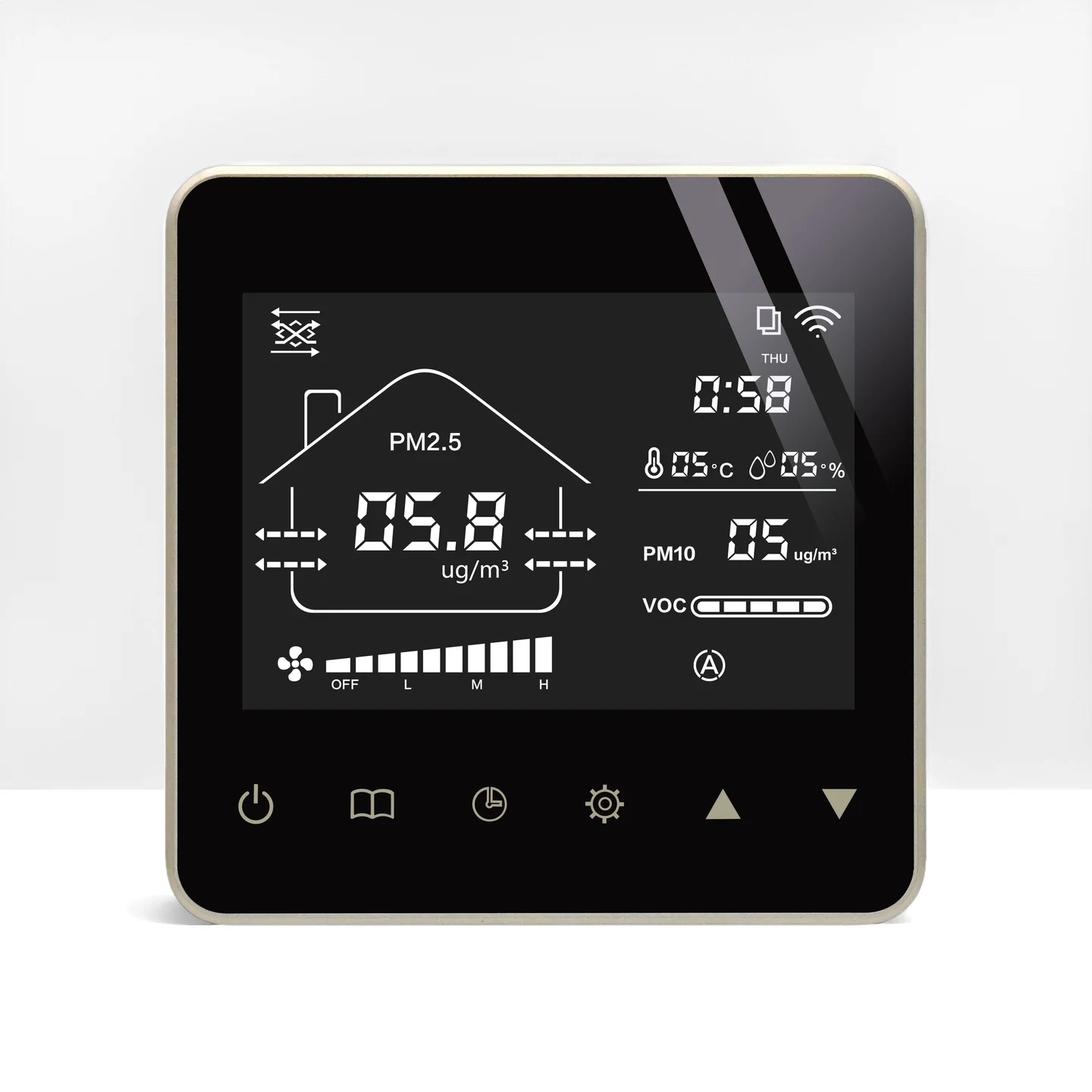

Intelligent LCD Controller/DM-900A



Timing function,



3.5-inch color screen controller
Temperature and humidity,
PM2.5, PM10 and TVOC sensors
Mobile phone APp function,
Tmall Genie voice control
Optional CO2 detection, RS485 port

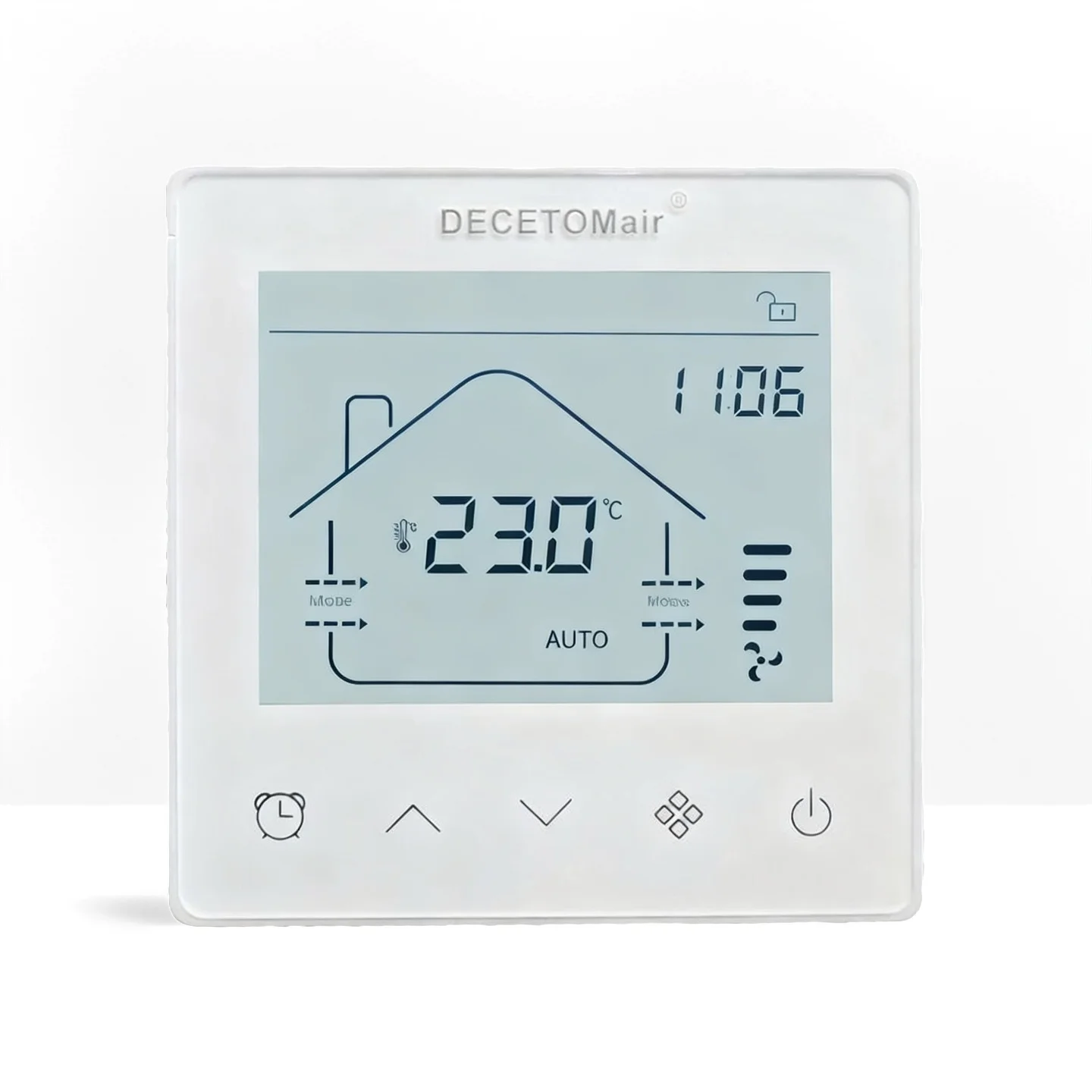

Standard LCD Controller/DM-A50



Timing Function
Indoor Temperature Display
Three-speed contro!
Filter Replacement Reminder
RS485 communication interface

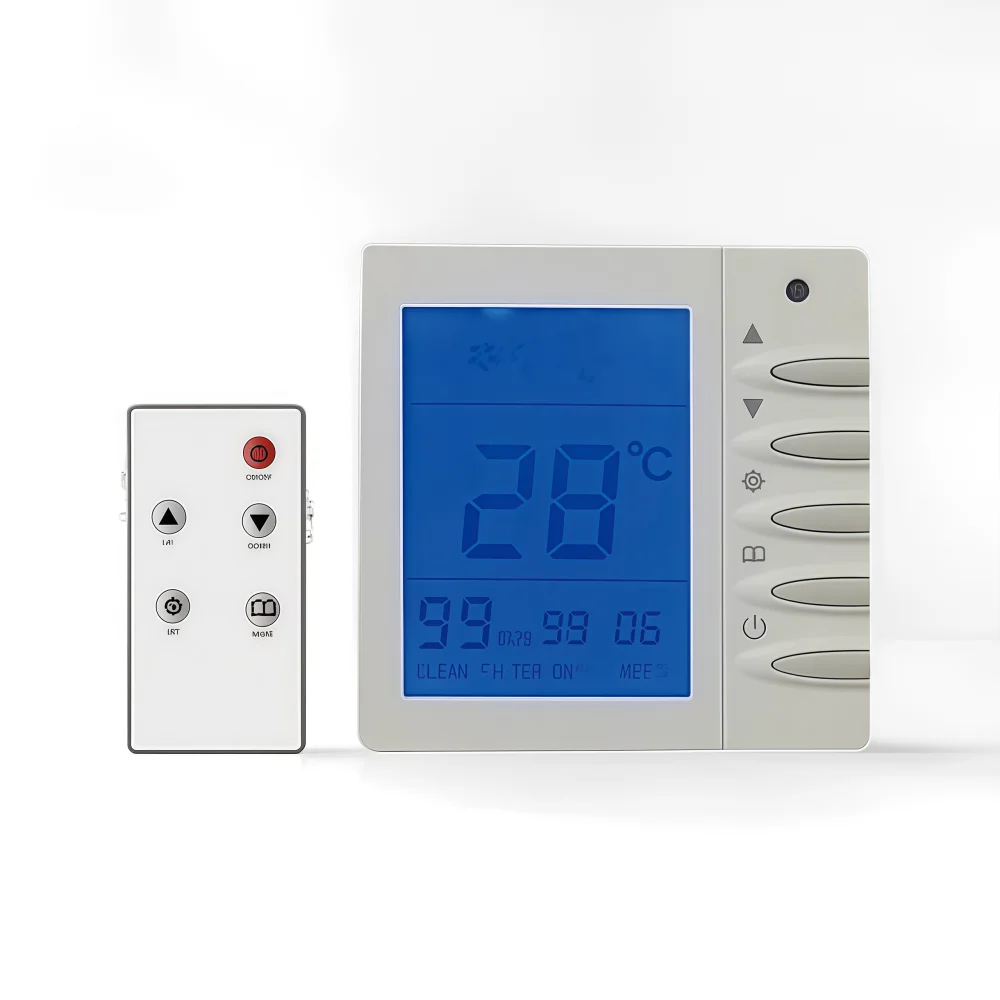

Remote Control LCD Controller/DM500A
Timing Function
Indoor Temperature
Display
Remote control is optional
Three-speed Speed Control
Filter Alarm

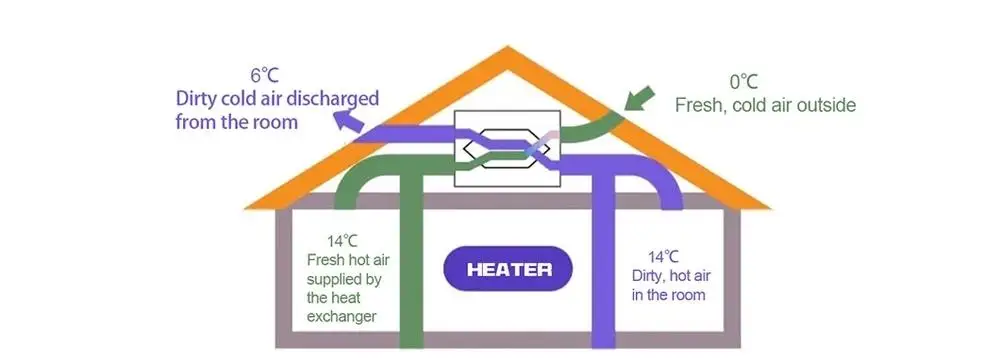

FINCTION IN WINTER
Heat exchange calculation formula: indoor air supply temperature =(indoor temperature - outdoor temperature) x heat exchange rate + outdoor temperature

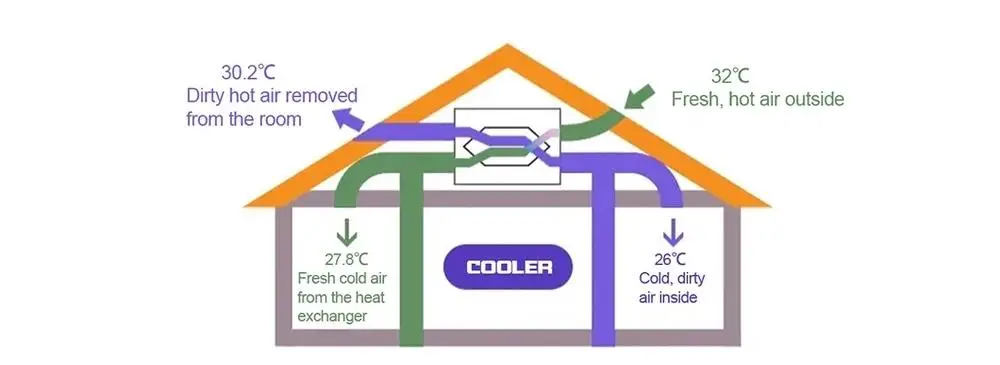

FINCTION IN SUMMER
Heat exchange calculation formula: indoor air supply temperature = outdoor temperature - (outdoor temperature -indoor temperature) x heat exchange rate

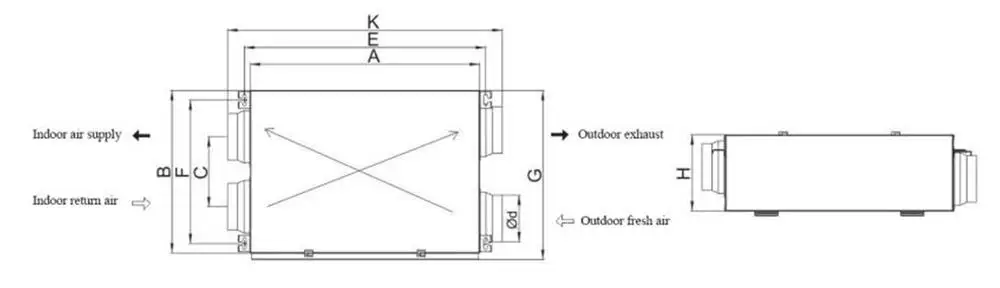

Model
A
B
C
E
F
G
H
K
Φd
AQR-150
588
420
230
523
520
440
230
720
150
AQR-250
590
420
230
523
520
440
230
720
150
AQR-350
700
515
210
735
438
535
230
835
150
AQR-500
750
515
245
785
465
535
240
885
150
AQR-600
750
515
245
785
465
705
240
885
150
AQR-800
950
685
320
1015
620
705
280
1090
200
AQR-1000
950
685
320
1015
620
765
280
1090
200
AQR-1200
1092
748
305
1155
680
765
297
1257
250
AQR-1500
1092
748
305
1155
680
765
297
1257
250
AQR-1800
1100
833
410
1170
766
850
330
1270
250
AQR-2000
1100
833
410
1170
766
850
330
1270
250

WHOLE HOUSE CYCLE
Large space fast circulation, breathable replacement, protect the respiratory
health of tens of millions of families.
* Can be customized packaging







* Models can be modifed

* OEM available

* Prototypes are available for a fee

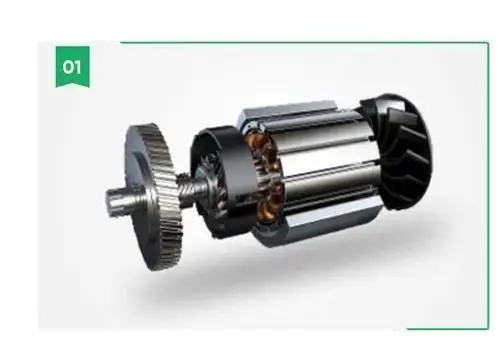

High quality AC motor

Can sun smoothly for a long time,
environmental protection and
energy saving, long life

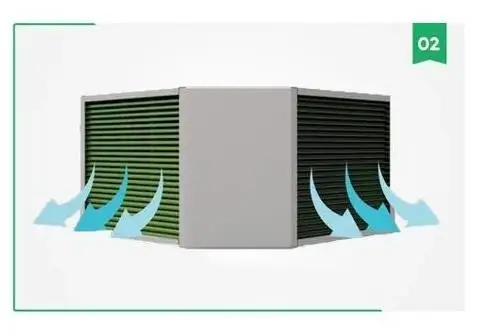

High efficiency

heat exchange

Imported antibacterial nano
paper film,resin frame efficient
solution to energy loss



Better performance

The delivery rate of higher pressure
air volume is more than 78%;
Motor service life is 18%% higher
than the industry average.

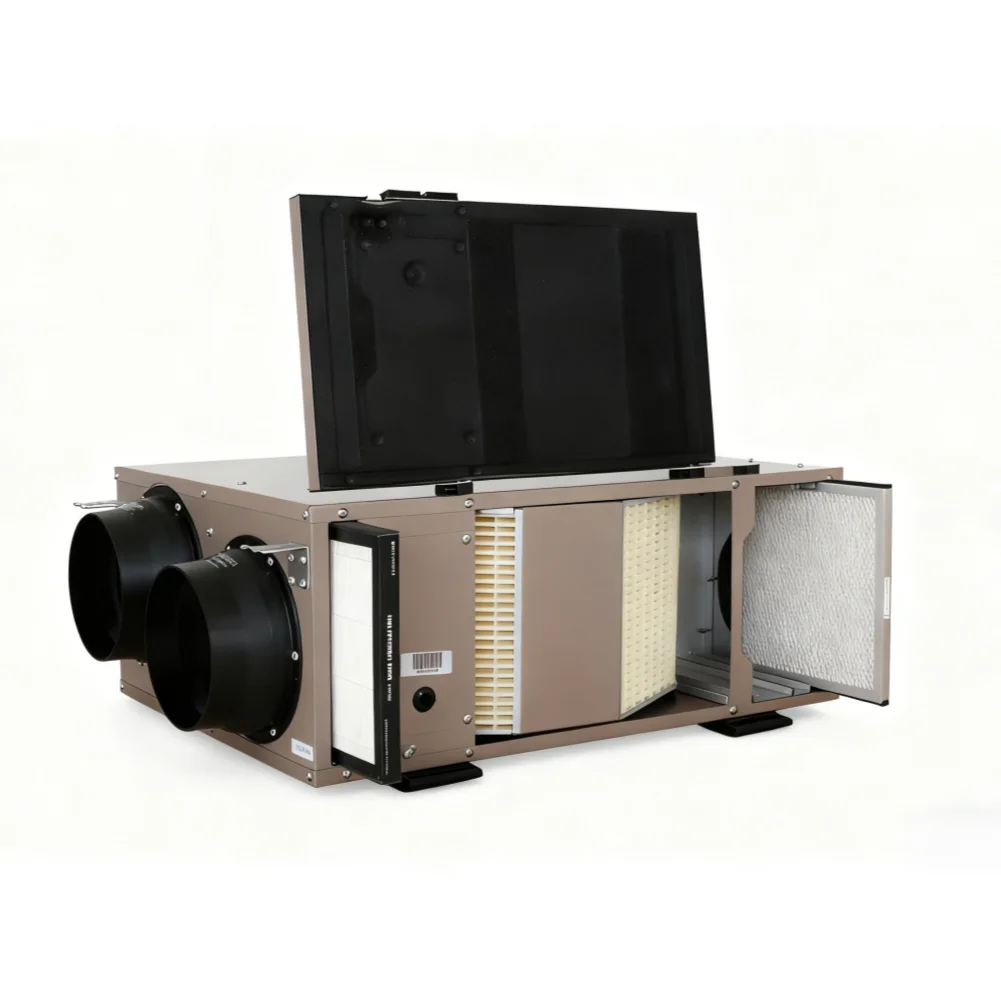

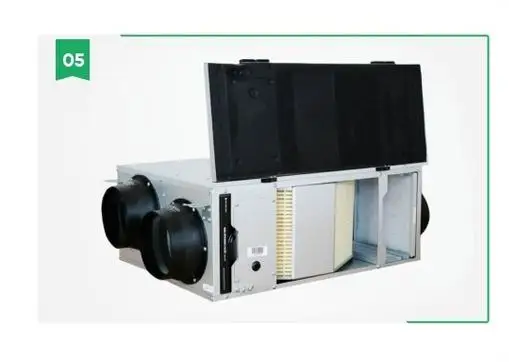

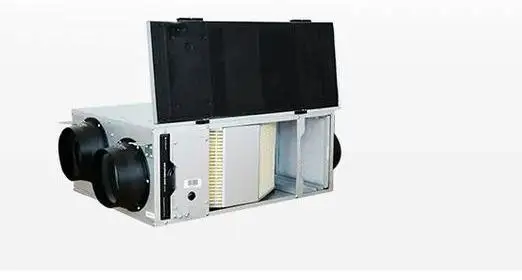

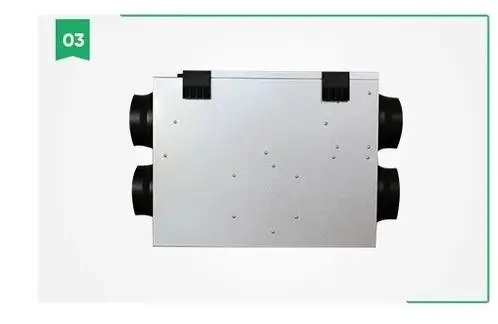

Ultra-thin body,easy

maintenance


Ultra-thin body design,
230mm height,
flexible installation to save
space,Bayonet type access door,
easy to access

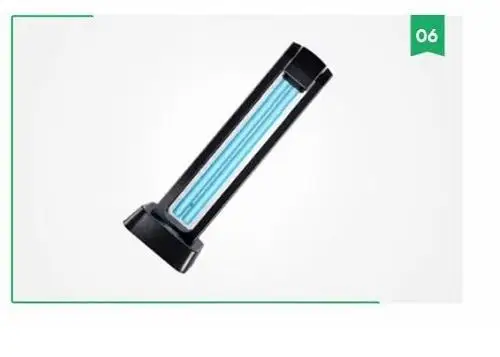

UV efficient

sterilization

The outdoor air into the room
to do UV efficient sterilization
treatment sterilization rate of
99.99%, medical grade is safer

PRODUCT APPLICATION

Wenzhou Daqidi Technology Co., Ltd is headquartered in Wenzhou, Zhejiang Province, China, We have several production bases in Zhejiang, Shandong and Guangdong. specializing in the research and development, production and sales of various types of home and commercial air system products, water purify products and new energy sources products.

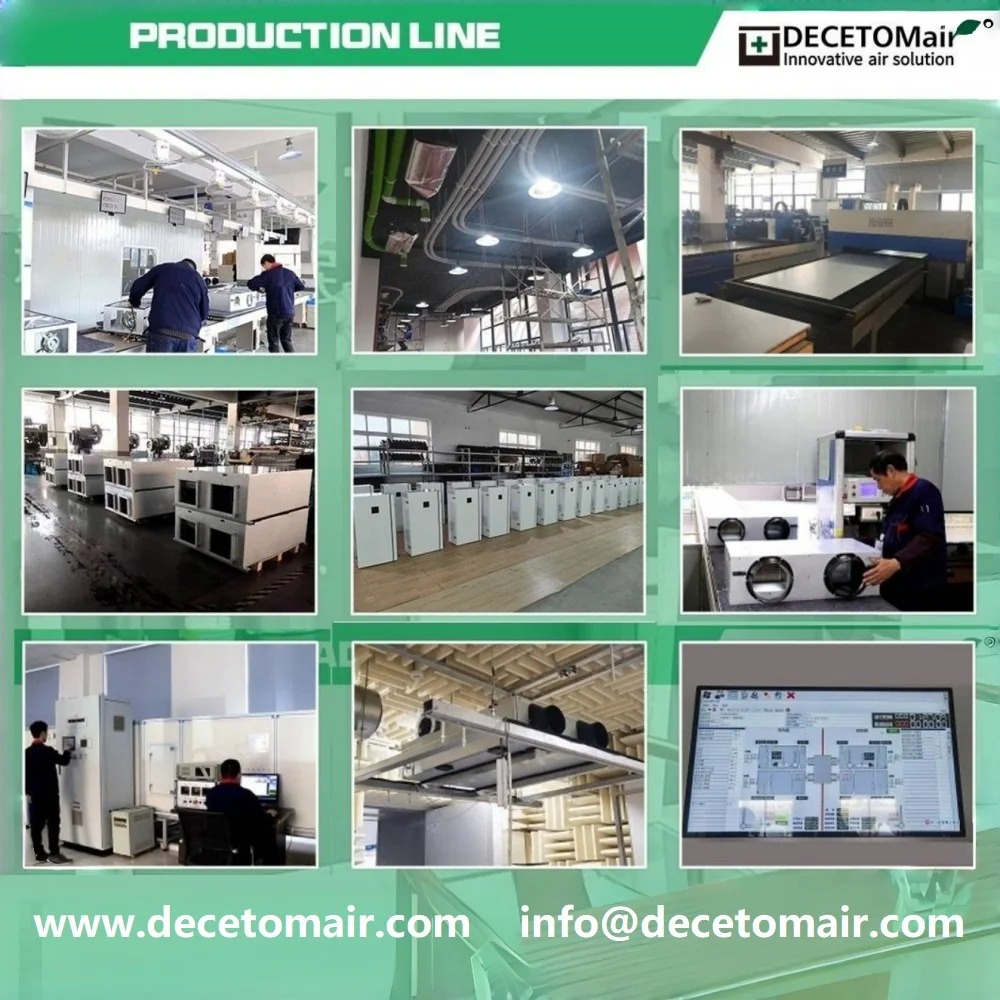

The company has a production area of nearly 35,000 square meters, more than 500 employees, multiple production lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. After more than 10 years of cultivation, the company has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.

Q: What is your MOQ?

A: Generally the MOQ is 10 sets for regular products, 50 sets for customised products. But MOQ bases on different models, and you will see detailed MOQ in our quotation. Or you can contact us for a quick answer by Alibaba TradeMessenger /e-mail/ whatsApp or telephone.

Q: How can I get a sample to check your quality.
A: After the price is confirmed, you can ask for samples to check our quality. If you ask for samples, we will collect sample fees(Some model is free). But the difference in price of the samples will be refunded to you after the order is officially placed.

Q: Can you do the design for us?
A: Yes, your design is also welcome. Please send your design idea or drawing to us, and we customize it for you.

Q: What is the payment terms?
A: T/T 30% as deposit before production, T/T 70% as balance before shipment.

Q: What is your delivery time?
A:Retail delivery: in 7 days Sample delivery: in 7-20days Wholesale delivery:15-50 days The exact delivery time is determined by the model, quantity and time of placing the order.

Q: What is the quality assurance?
A: One year guarantee for the complete machine, three-year guarantee for motor and lifelong paid maintenance service. But warranty times will vary from product to product, depending on the product you choose.

Q: How will you arrange the shipment?
A: For small samples,we send by DHL/FedEx/UPS/TNT express, and mass production will ship by sea. Sometimes, if you have cargo to go from other Chinese factories,we also can help you arrange consolidation shipment.
