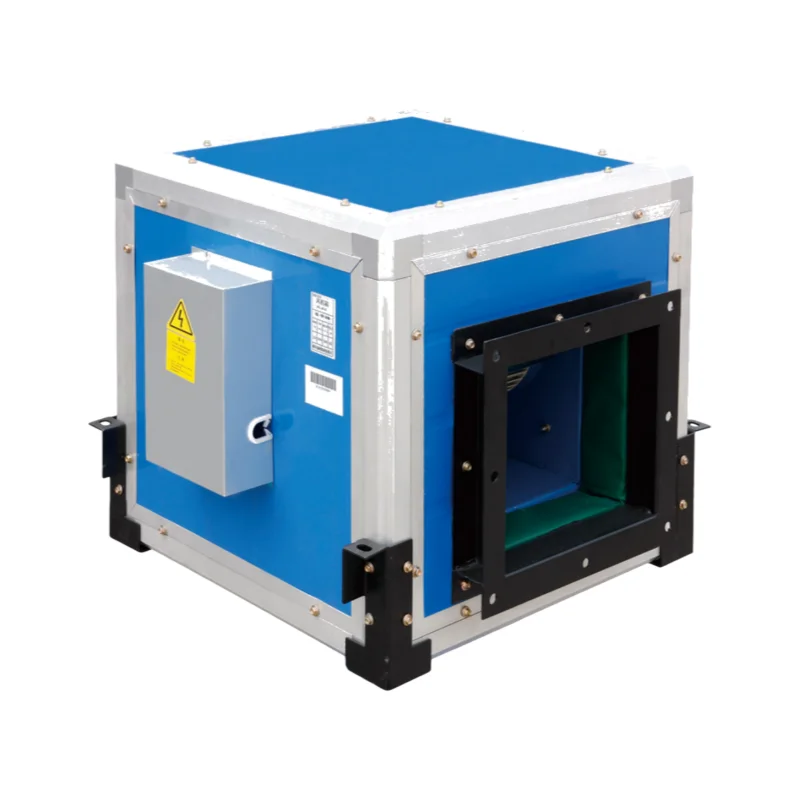

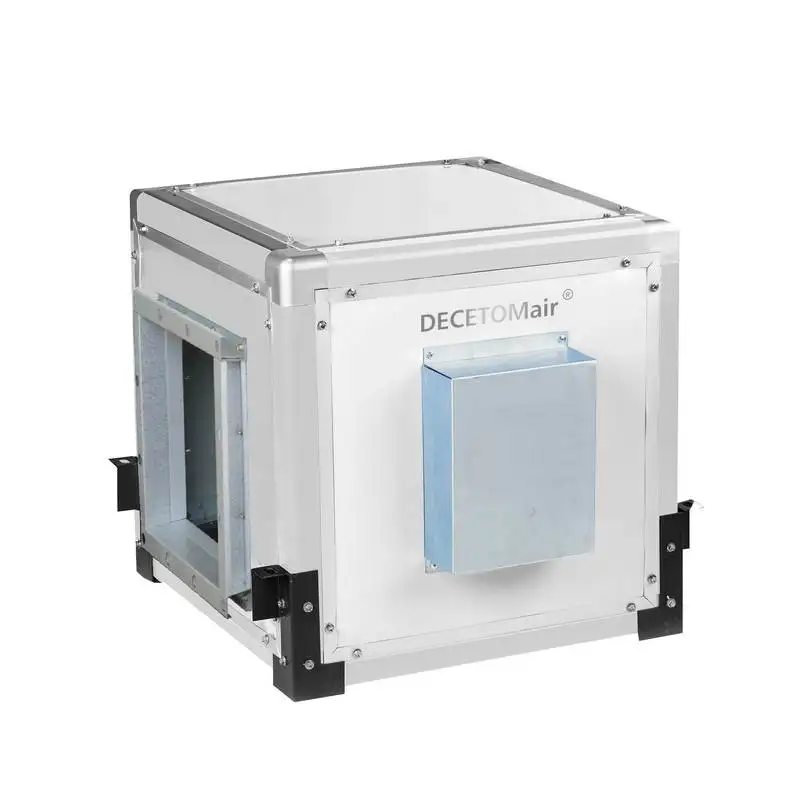

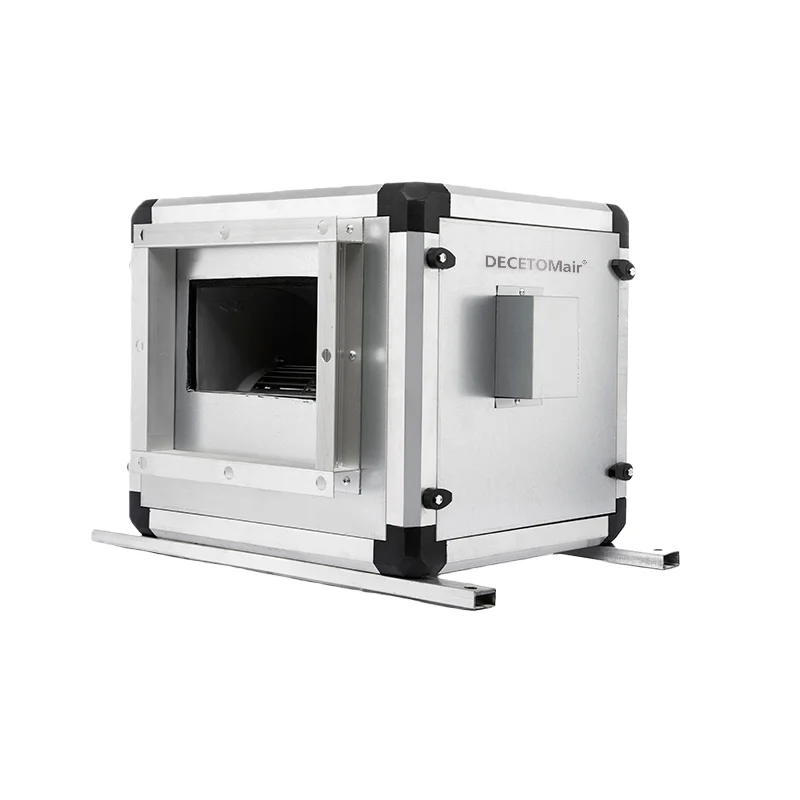

ADX Centrifugal Fan Cabinet Color-Coated Steel Series
  • ADX Centrifugal Fan Cabinet Color-Coated Steel Series
  • ADX Centrifugal Fan Cabinet Color-Coated Steel Series
  • ADX Centrifugal Fan Cabinet Color-Coated Steel Series
  • ADX Centrifugal Fan Cabinet Color-Coated Steel Series
  • ADX Centrifugal Fan Cabinet Color-Coated Steel Series
  • ADX Centrifugal Fan Cabinet Color-Coated Steel Series

ADX Centrifugal Fan Cabinet Color-Coated Steel Series

Short Description:

Centrifugal Fan Cabinet Color-Coated Steel Series.
220 V models use a 3-speed motor
Switch not included by default
Models from 8,000 m³/h use 3-phase power

Details

Model
Air volume
Power Supply
Rated power
Max static pressure
Noise
Exterior dimension
Interface Size
((m³/h)
(V/Hz)
(W)
(Pa)
dB(A)
(mm)
(mm)
ADX-3000
3000
220/50
550
490
45
650X610X500
260X210
ADX-4000
4000
220/50
750
520
47
650X630X500
300X260
ADX-5000
5000
220/50
950
560
49
650X630X500
300X260
ADX-6000
6000
220/50
1200
620
51
800X890X600
330X300
ADX-8000
8000
380/50
1800
650
58
900X990X800
375X375
ADX-10000
10000
380/50
2200
680
62
1000X1290X1000
500X400

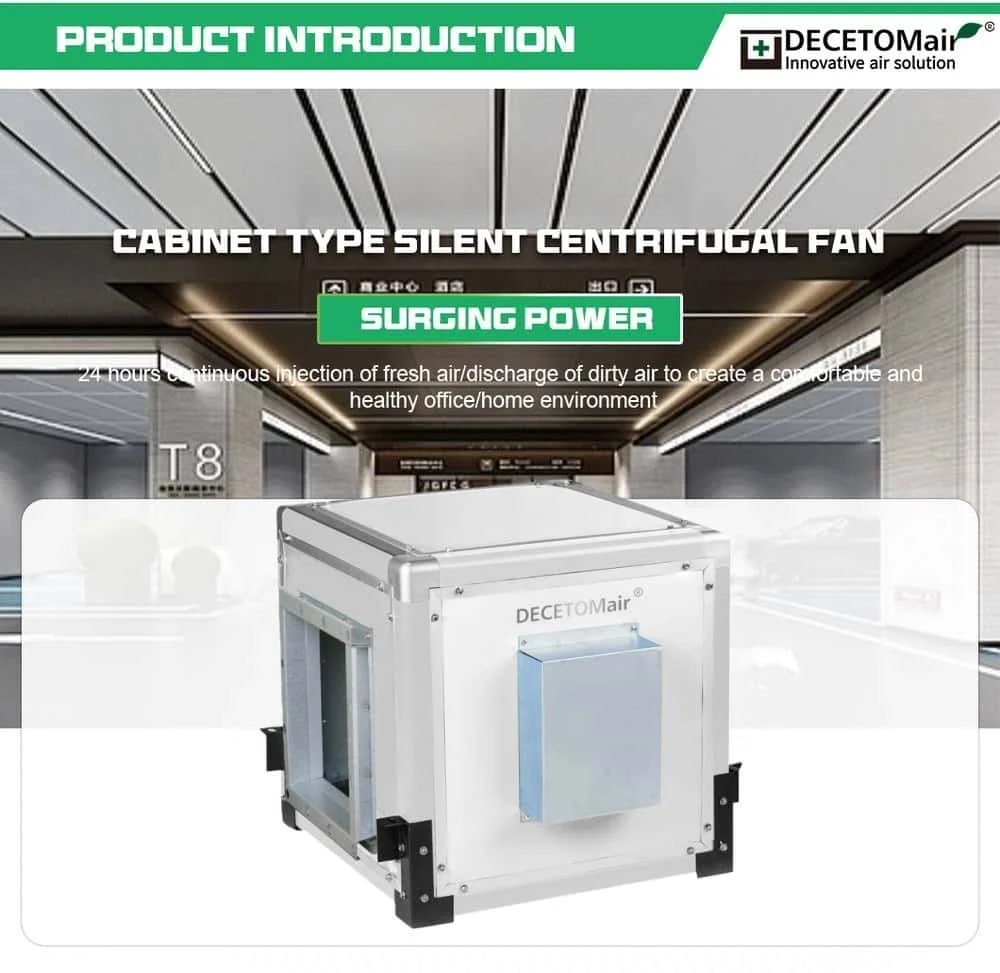

Cabinet centrifugal-fan unit pictured against an office interior.
No need to open Windows to isolate noise 24 hours continuous injection of freshair/discharge of dirty air to create a comfortable and healthy office/home environmentSilent operation does not disturb as low as 21.8 decibels, quiet learning.
Feature panel illustrating wiring terminals, speed control and service-panel access.
Icons depicting a controller, airflow, ventilation ducts and sound.
...........Small size....................High air volume.............High static pressure.................Low noise
Line drawing of a horizontally suspended duct fan and ceiling-hung bolts.

PRODUCT ADVANTAGE

Illustration of an electric motor and shaft.


HIGH STATIC

PRESSURE FAN
High static pressure fan, suitable
for all kinds of commercial places
longer pipe line, greater static
pressure greater air volume,
24 hours uninterrupted operation


WIND WHEEL

OF METAL
Newly upgraded all-metal wind
wheel,comprehensive optimization,
stable air supply suitable for long-
distance air supply and exhaust
needs
Cylindrical pleated filter cartridge.

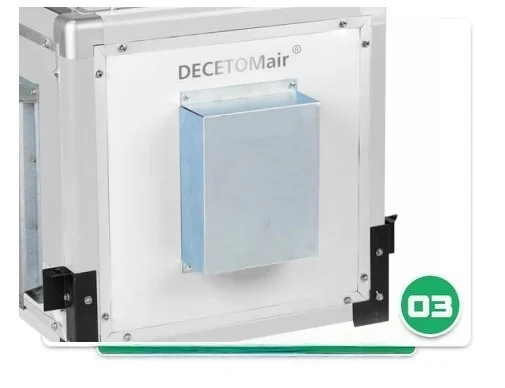

Close-up of a white fan cabinet and its rectangular electrical cover.


EASY MAINTENANCE

New type fan case has built-in terminals,two side door panels for maintenance three speed regulation,door buckle design simple and full of design sense modeling and takes care of the fresh air of the whole house


CONVENIENT

VENT CONNECTION

The new fan box adopts full fluted
tuyere design, which makes
the nozzle more convenient

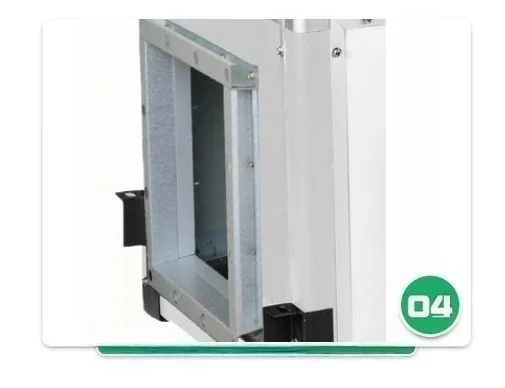

Close-up of a rectangular flanged opening on a fan cabinet.
.
INSTALLATION MODE

Apartment floor plan with fresh-air and exhaust-air flow arrows.
FORWARD INSTALLATION: POSITIVE PRESSURE AIR SUPPLY The super quiet fan is installed in the forward direction, and the filtered outdoor fresh air is introduced, which can make the indoor space have a positive pressure environment, and the indoor dirty air is discharged from the door crack or the specified ventilation outlet, so as to avoid the outdoor haze and dust air flowing back into the room

REVERSEINSTALLATION:NEGATIVE PRESSURE EXHAUST :

The ultra-silent fan is installed in reverse to eliminate the indoor dirty air, so that the indoor space has a negative pressure environment, and the outdoor fresh air enters the indoor supply through the door crack or the specified ventilation port
Apartment floor plan with fresh-air and exhaust-air flow arrows.
Apartment ventilation layout with blue and purple duct routes.

FORWARD INSTALLATION +REVERSE INSTALLATION

In the same indoor space, the ultra-silent
fan is installed in the forward and reverse respectively which introduces the outdoor fresh air and exhausts the indoor dirty air
at the same time to achieve the indoor balanced air exchange
Line drawings of indoor suspension and outdoor support-mounting arrangements.

.....PRODUCT APPLICATION.....

Restaurant, internet cafe, hotel and factory shown as ventilation application examples.
Wenzhou Daqidi Technology Co., Ltd. is headquartered in Wenzhou, Zhejiang Province, China, We have several production bases in Zhejiang, Shandong and Guangdong. We specialize in the research, development, production and sale of residential and commercial fresh air ventilation products.
The company has a factory floor area of 12,000 square meters, 58 employees, three assembly lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.
The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. Drawing on 20+ years of industry experience, the team has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.

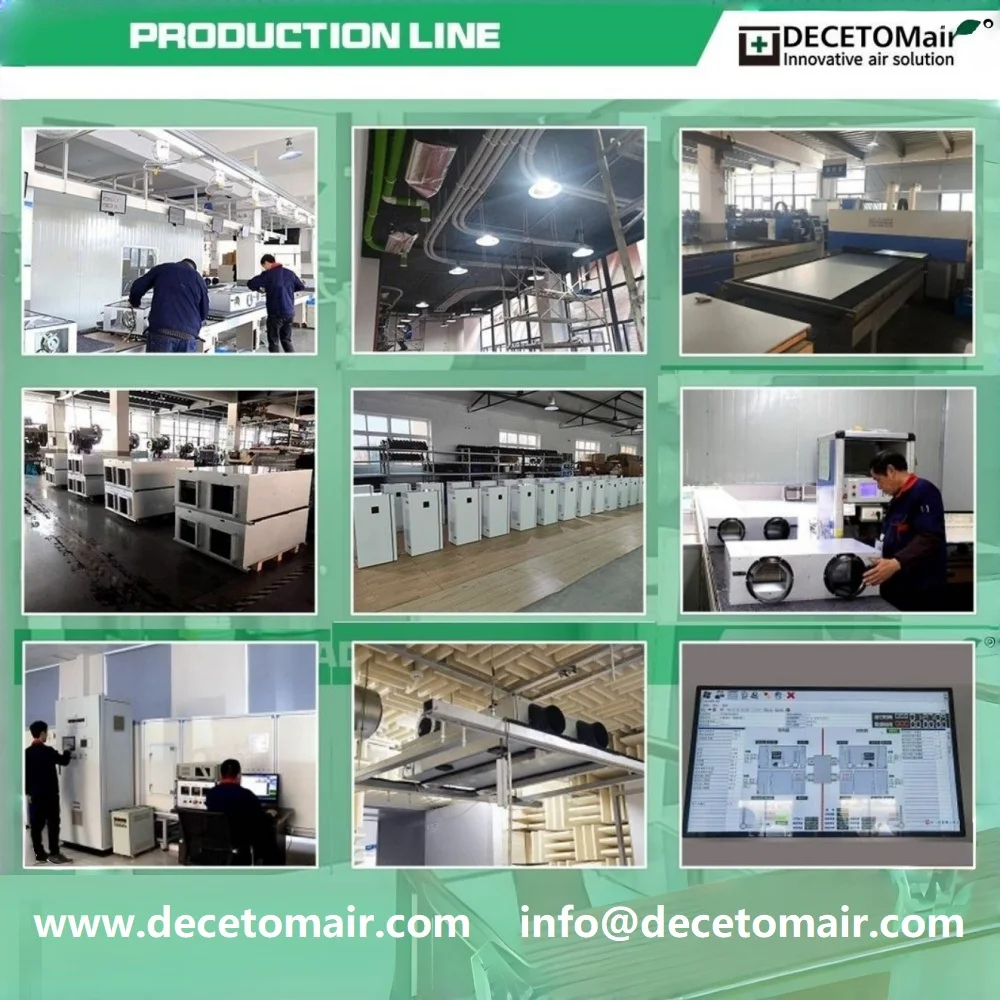

Ventilation equipment production, assembly and inspection photographs.
Cartons, pallets and container loading for ventilation equipment shipments.
DECETOMair exhibition booths and team photographs.
Collage of certificates and test-report documents.
Logos displayed in the Partner Brands graphic.
DECETOMair service and support overview
Illustrated overview of consultation, design, installation and training services.
DECETOMair OEM and ODM process: request, design, samples, production and shipping
Q: What is your MOQ? A: Generally the MOQ is 10 sets for regular products, 50 sets for customised products. But MOQ bases on different models, and you will see detailed MOQ in our quotation. Or you can contact us for a quick answer by Alibaba TradeMessenger /e-mail/ whatsApp or telephone.Q: How can I get a sample to check your quality. A: After the price is confirmed, you can ask for samples to check our quality. If you ask for samples, we will collect sample fees(Some model is free). But the difference in price of the samples will be refunded to you after the order is officially placed. Q: Can you do the design for us? A: Yes, your design is also welcome. Please send your design idea or drawing to us, and we customize it for you. Q: What is the payment terms? A: T/T 30% as deposit before production, T/T 70% as balance before shipment. Q: What is your delivery time? A: Retail delivery: in 7 days Sample delivery: in 7-20days Wholesale delivery:15-50 days The exact delivery time is determined by the model, quantity and time of placing the order. Q: What is the quality assurance? A: This product is covered by a one-year warranty from the date it leaves our factory. For quality-related issues covered by the warranty, we supply replacement parts at our expense; shipping costs are borne by the customer. Q: How will you arrange the shipment? A: For small samples,we send by DHL/FedEx/UPS/TNT express, and mass production will ship by sea. Sometimes, if you have cargo to go from other Chinese factories,we also can help you arrange consolidation shipment.
