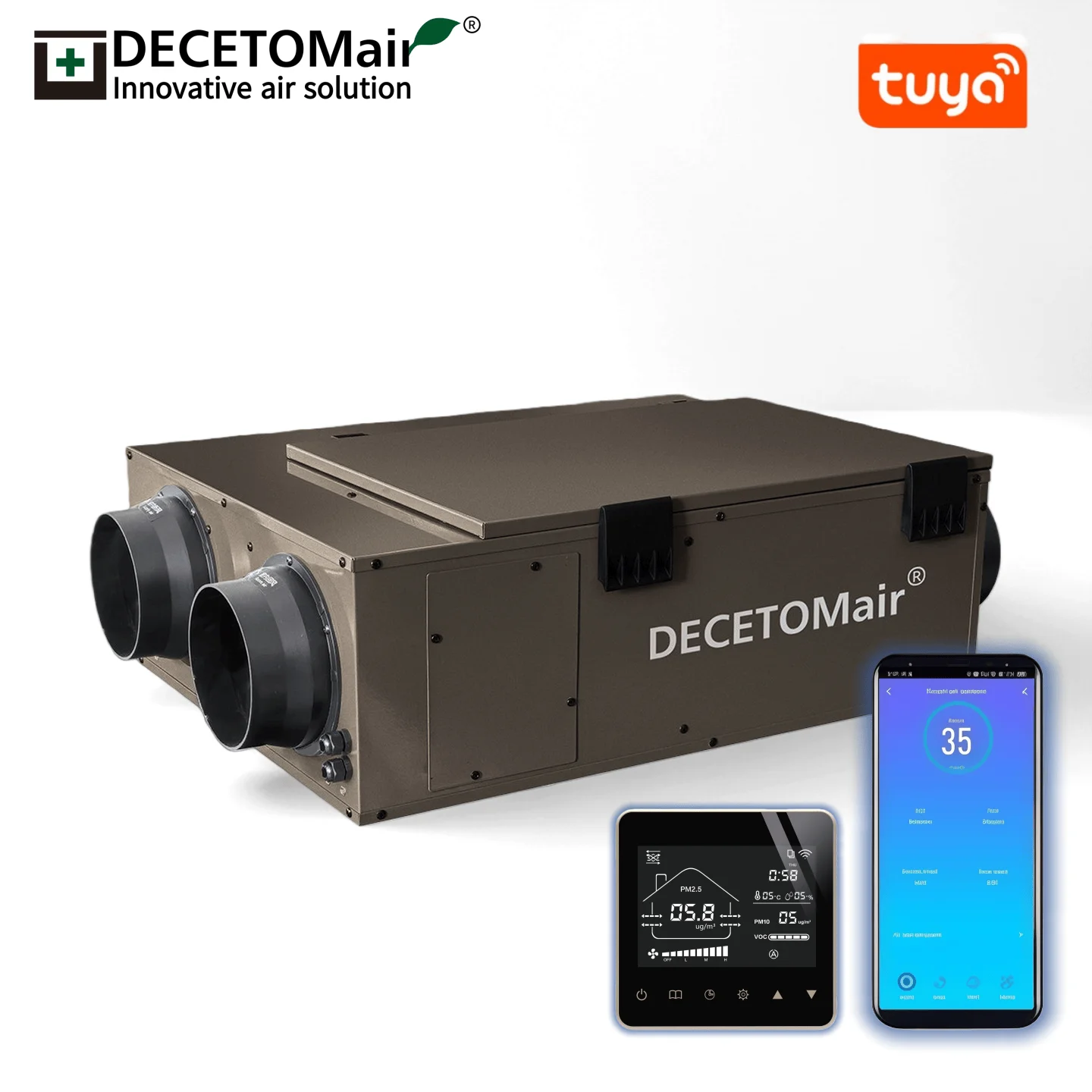

Decetomair Erv Ventilation System Total Heat Exchanger High Efficiency High Purification Modern Design Hotel Hospital Use-heat recovery ventilation

  • Decetomair Erv Ventilation System Total Heat Exchanger High Efficiency High Purification Modern Design Hotel Hospital Use-heat recovery ventilation
Decetomair Erv Ventilation System Total Heat Exchanger High Efficiency High Purification Modern Design Hotel Hospital Use
  • Decetomair Erv Ventilation System Total Heat Exchanger High Efficiency High Purification Modern Design Hotel Hospital Use
  • Decetomair Erv Ventilation System Total Heat Exchanger High Efficiency High Purification Modern Design Hotel Hospital Use
  • Decetomair Erv Ventilation System Total Heat Exchanger High Efficiency High Purification Modern Design Hotel Hospital Use
  • Decetomair Erv Ventilation System Total Heat Exchanger High Efficiency High Purification Modern Design Hotel Hospital Use
  • Decetomair Erv Ventilation System Total Heat Exchanger High Efficiency High Purification Modern Design Hotel Hospital Use
  • Decetomair Erv Ventilation System Total Heat Exchanger High Efficiency High Purification Modern Design Hotel Hospital Use

Decetomair Erv Ventilation System Total Heat Exchanger High Efficiency High Purification Modern Design Hotel Hospital Use

Short Description:

Decetomair Erv Ventilation Syste

Details

Model
Air Volume
(m³/h)
Power Supply
(V/Hz)
Power
(W)
Static Pressure
(Pa)
Heat Exchange Rate(%)
Noise
dB(A)
Wind Outlet Size
(mm)
Applicable Area
(m²)
AZQR-280X
280
220/50
75
205
78
25
150
70-110
AZQR-380X
380
220/50
110
275
78
26
150
120-160
AZQR-550X
550
220/50
145
345
78
29
200
170-200
24 hours continuous supply of fresh air and exhaust of dirty air to create a comfortable and healthy office and home environment

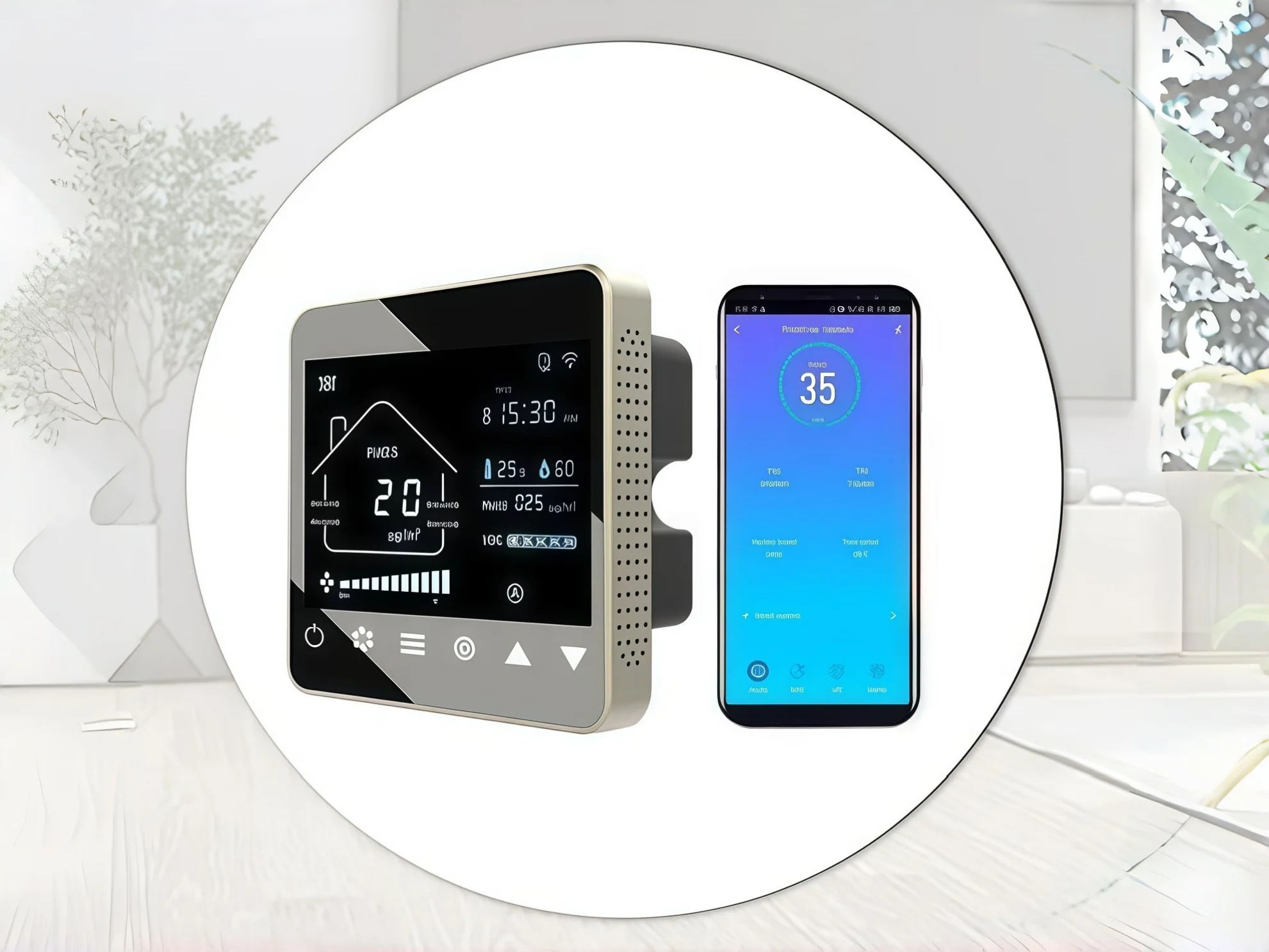

INTELLIGENT CONTROLLER




* PM2.5 Detection
* VOC detection
* Temperature and humidity detection
* Intelligent adjustment
* Three speed regulation
* Timing switch
* Filter reminder
* APP control

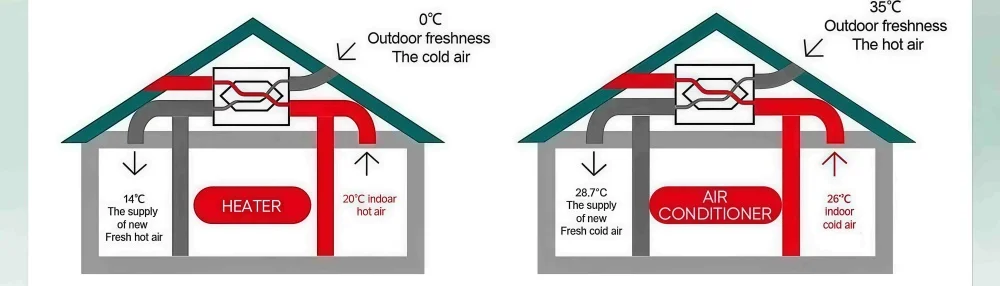

THE ENERGY RECOVERY EFFICIENCY OF HEAT EXCHANGE CORE IS HIGH
Function in winter
Features in summer

FORMULA FOR HEAT EXCHANGE

WINTER:
indoor air temperature=(indoor temperature-
outdoor temperature) X heat exchange

efficiency+outdoor temperature

EXAMPLE:(2O°C-O°C)×7O%+O°C=14°C

FORMULA FOR HEAT EXCHANGE

SUMMER:

indoor air temperature=(indoor temperature-
outdoor temperature) X heat exchange efficiency
+outdoor temperature
EXAMPLE:35°C-(35°C-26°C)×70%=28.7°C

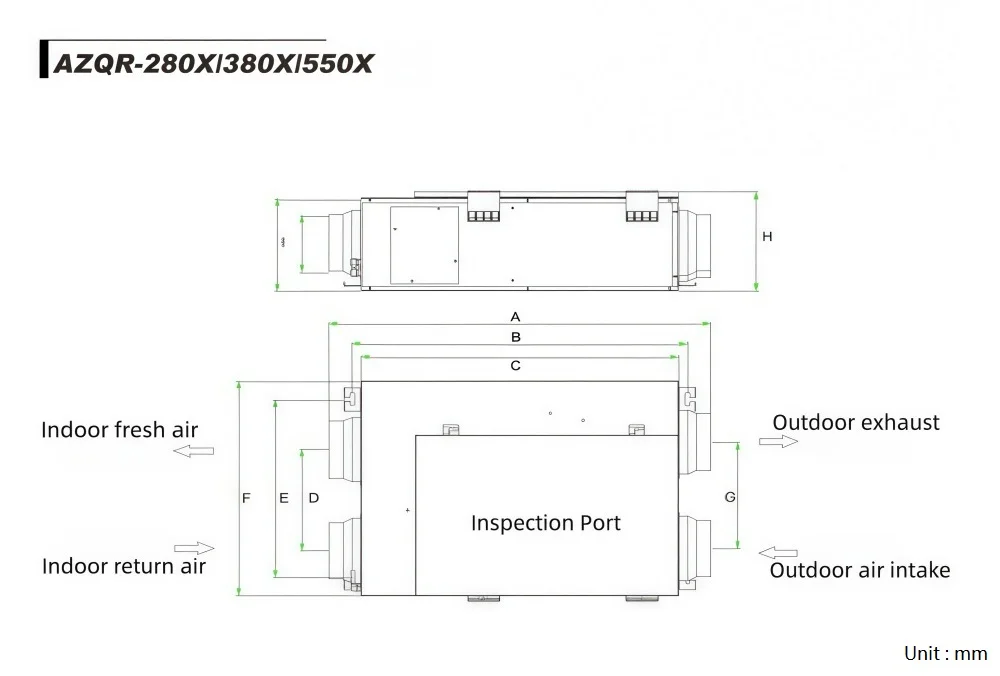

Model
A
B
C
D
E
F
G
H
∅d
AZQR-280B
840
738
700
252
443
535
265
248
150
AZQR-380B
840
738
700
252
443
535
265
248
150
AZQR-550B
945
839
800
285
540
620
285
272
200

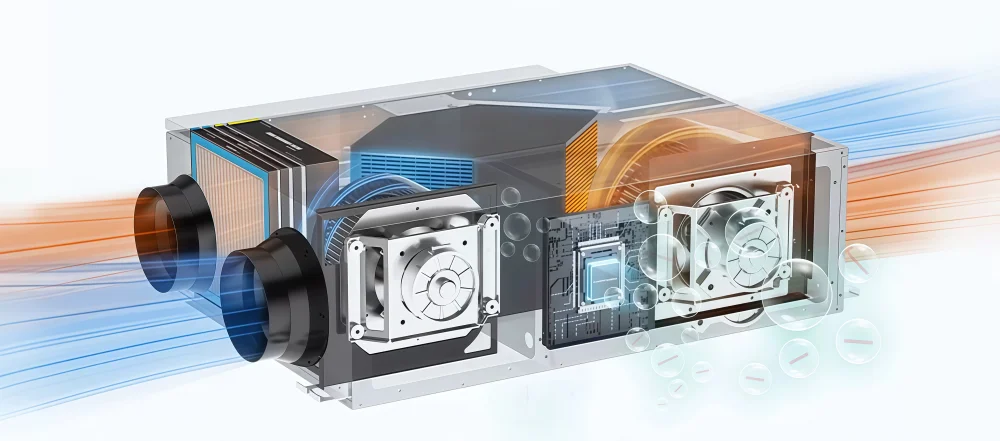

WHOLE HOUSE CYCLE
Large space fast circulation, breathable replacement, protect the respiratory
health of tens of millions of families.

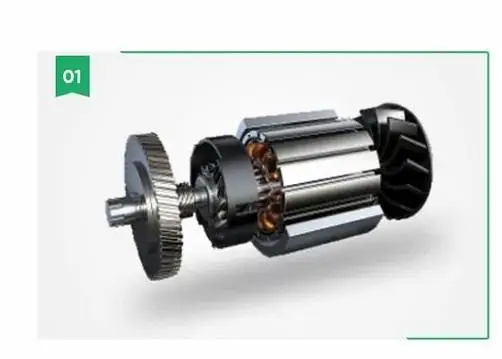

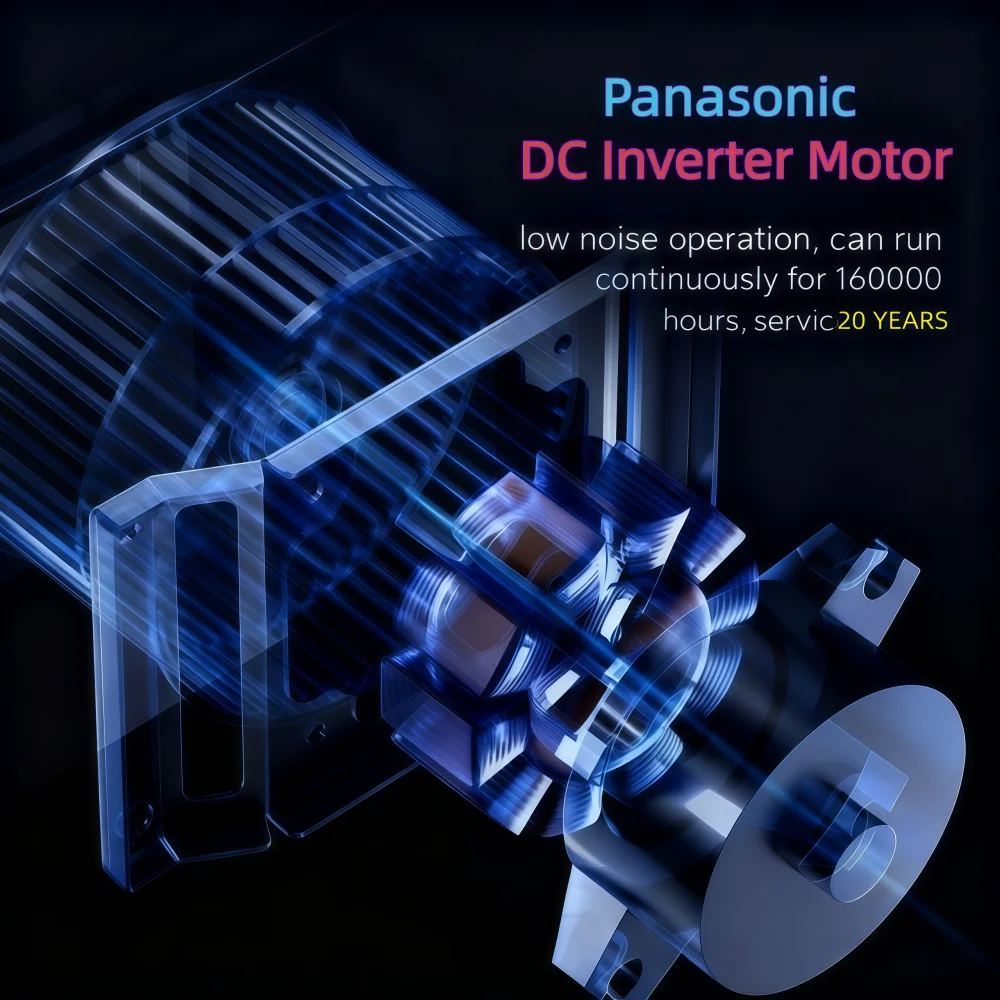

Panasonic DC motor

Can run smoothly for a long time.environmental protection and energy saving, long life

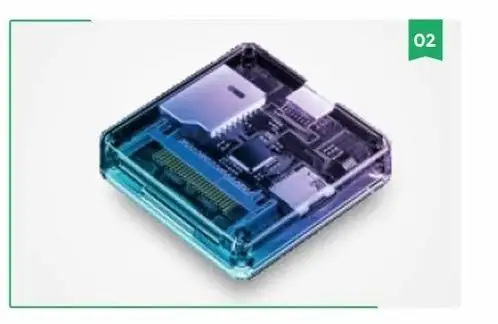

Intelligent induction

Real-time monitoring of indoor
TVOC、PM2.5、PM10,
temperature and humidity
display

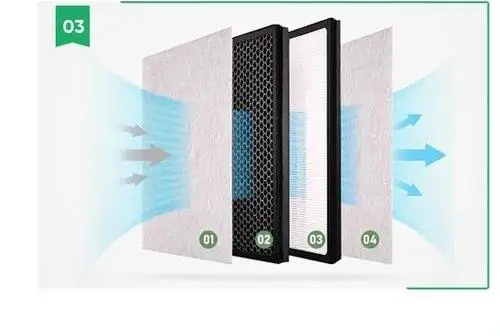

Multiple filtration

The initial effect of G4 filter can filter large particles of dust, coconut shell activated carbon filter can remove odor toluene and other pollutants,H12 HEPA filter PM2.5 purification rate of 99%

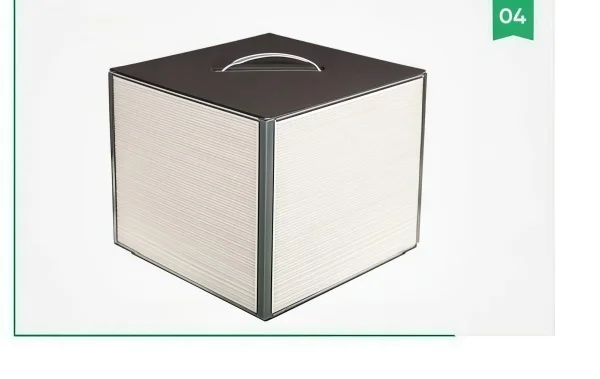

Graphene heat

exchange core



Washable graphene

heat exchange core with
higher heat exchange
efficiency and easier
maintenance

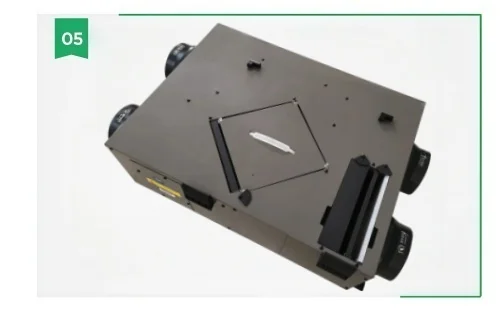

Ultra-thin body, easy maintenance

Ultra-thin body design,
Bottom Access Door Design
flexible installation to save space.Bayonet type access door, easy to access.


Built-in anion module


Anions can purify air, assist in
inhibiting bacteria, and improve

environmental comfort.


PRODUCT APPLICATION

Wenzhou Daqidi Technology Co., Ltd is headquartered in Wenzhou, Zhejiang Province, China, We have several production bases in Zhejiang, Shandong and Guangdong. specializing in the research and development, production and sales of various types of home and commercial air system products, water purify products and new energy sources products.

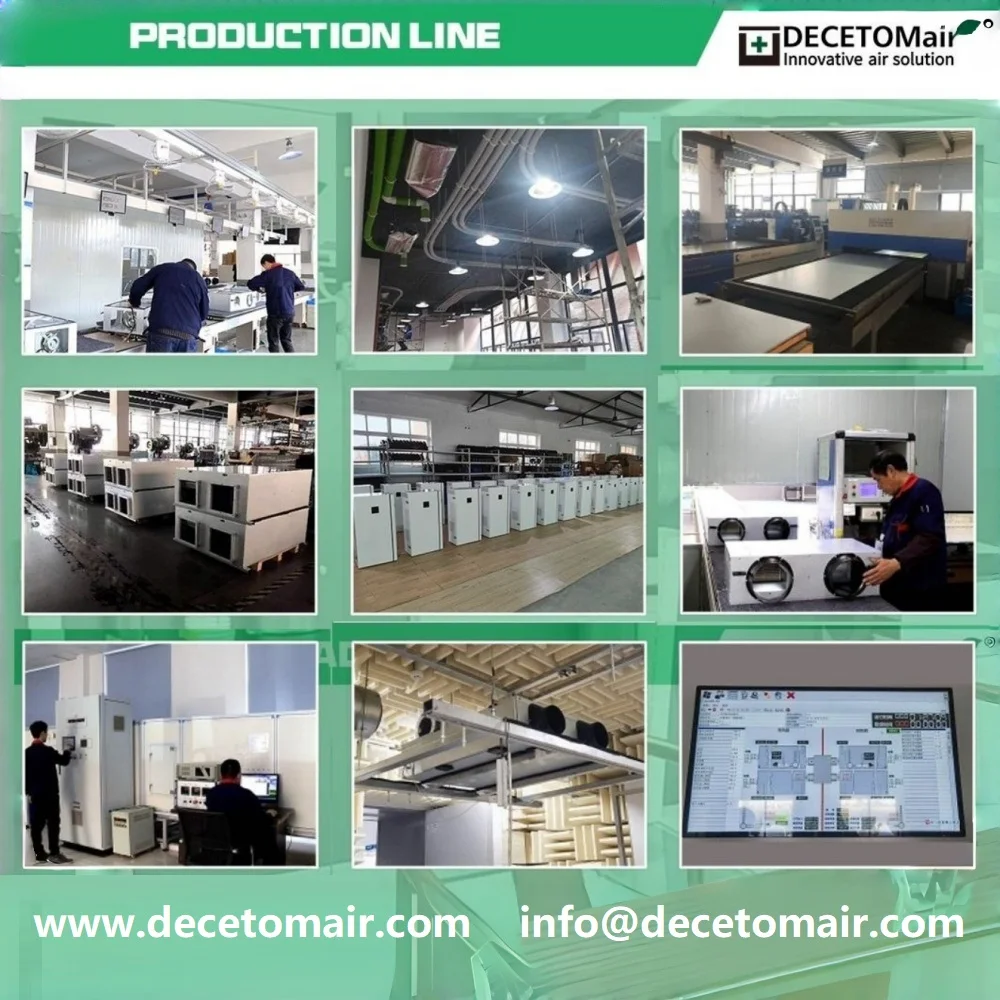

The company has a production area of nearly 35,000 square meters, more than 500 employees, multiple production lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.
