AZQR Smart Residential Energy Recovery Ventilator (Side Access)

Short Description:

Smart Residential Energy Recovery Ventilator (Side Access).
Panasonic DC variable-speed motor
Smart controller included
Pre-filter + activated carbon + H12 HEPA
PM2.5 / VOC / temperature and humidity sensors
App control / Tmall Genie voice control
High static pressure, suitable for underfloor air distribution

Details

Model
Air Volume
(m³/h)
Power Supply
(V/Hz)
Power
(W)
Static Pressure
(Pa)
Heat Exchange Rate(%)
Noise
dB(A)
Wind Outlet Size
(mm)
Applicable Area
(m²)
AZQR-280B
280
220/50
80
190
78
27
150
70-110
AZQR-380B
380
220/50
120
290
78
29
150
120-160
AZQR-550B
550
220/50
155
335
78
31
200
170-200

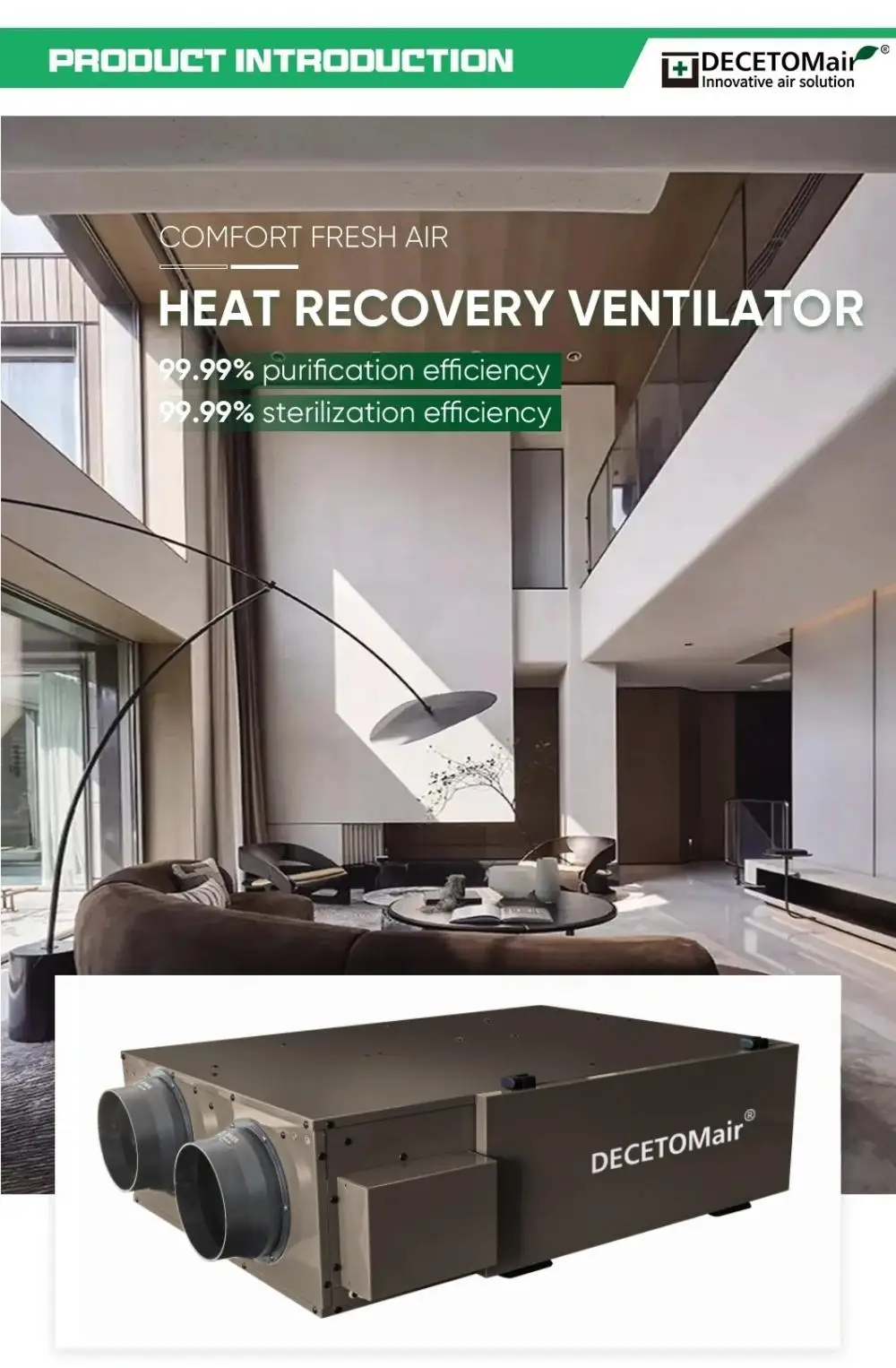

Product-introduction graphic showing a brown ventilation unit against a house interior.
24 hours continuous supply of fresh air and exhaust of dirty air to create a comfortable and healthy office and home environment
Grid of ventilation, filtration, airflow and control feature icons.
.....INTELLIGENT CONTROLLER.....

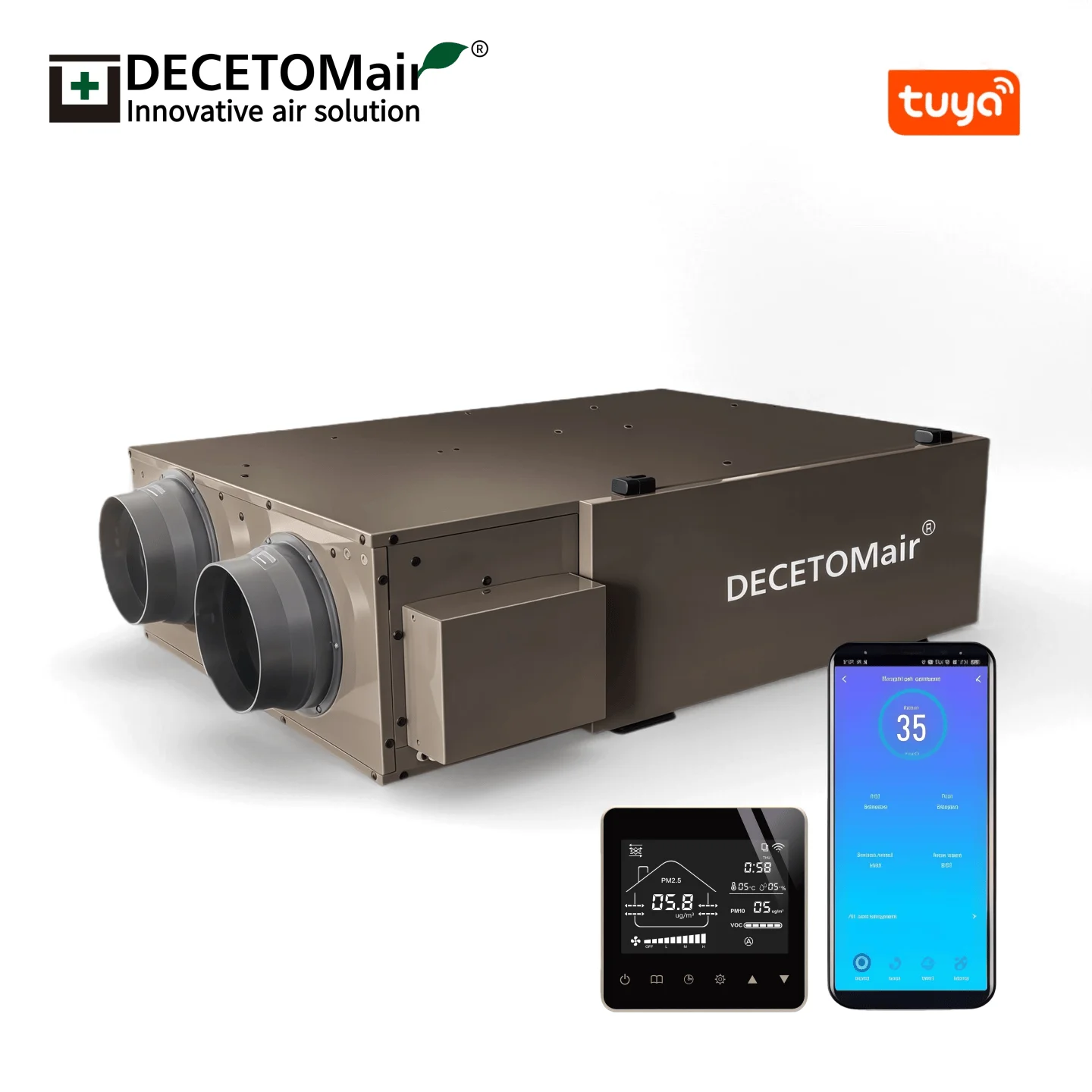

Ventilation controller pictured beside a smartphone app screen.


* PM2.5 Detection
* VOC detection
* Temperature and humidity detection
* Intelligent adjustment
* Three speed regulation
* Timing switch
* Filter reminder
* APP control

Intelligent controller section heading.
THE ENERGY RECOVERY EFFICIENCY OF HEAT EXCHANGE CORE IS HIGH
Function in winter
Features in summer
House diagrams comparing heat-recovery ventilation in heating and cooling conditions.
FORMULA FOR HEAT EXCHANGE
WINTER:
indoor air temperature=(indoor temperature-

outdoor temperature) X heat exchange

efficiency+outdoor temperature

EXAMPLE:(2O°C-O°C)×7O%+O°C=14°C

FORMULA FOR HEAT EXCHANGE

SUMMER:

indoor air temperature=(indoor temperature-
outdoor temperature) X heat exchange efficiency
+outdoor temperature
EXAMPLE:35°C-(35°C-26°C)×70%=28.7°C

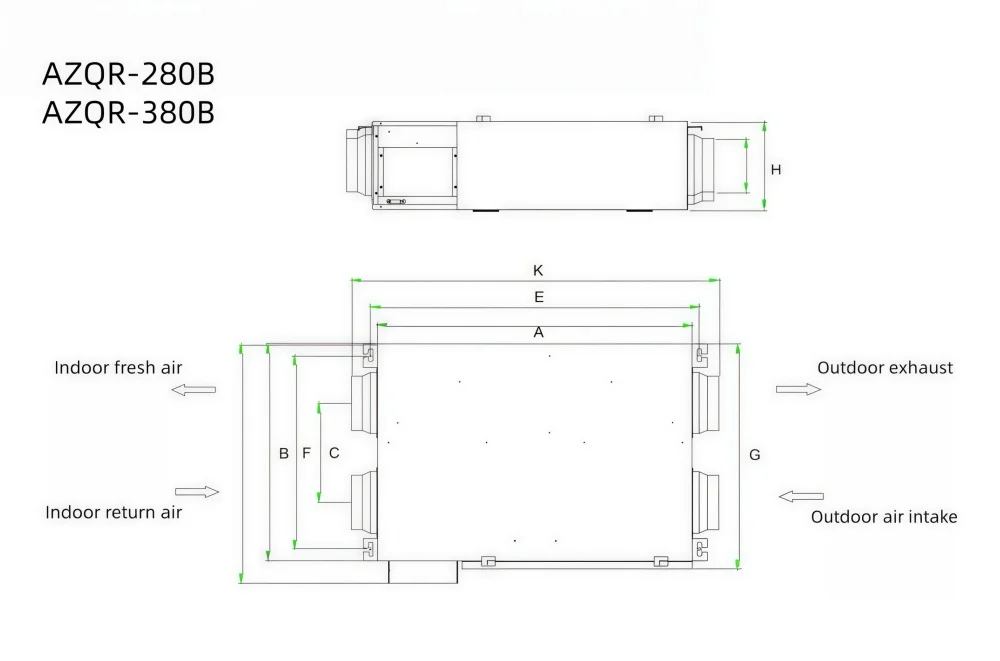

Top and side dimension drawings of a ducted ventilation unit.

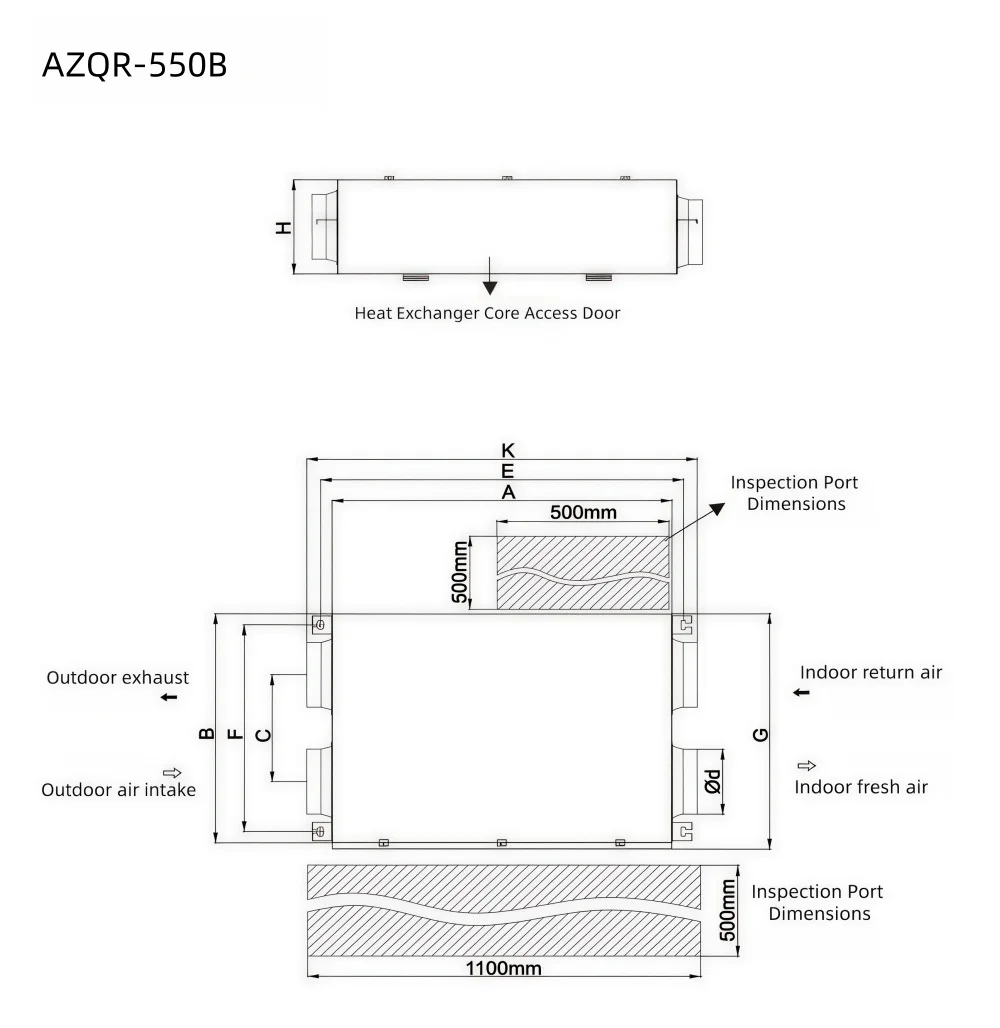

Dimension drawing showing ventilation duct ports and service-access openings.
Unit: mm
Model
A
B
C
D
E
F
G
H
∅d
AZQR-280B
820
570
260
266
857
509
591
232
150
AZQR-380B
820
570
260
266
857
509
591
232
150
AZQR-550B
920
688
320
277
1014
618
705
280
200

.....WHOLE HOUSE CYCLE.....
Large space fast circulation, breathable replacement, protect the respiratory



health of tens of millions of families.



Building ventilation layout with red and green duct routes.
Exploded illustration of electric motor components.






Panasonic DC motor

Can run smoothly for a long time.environmental protection and energy saving, long life

Intelligent induction

Real-time monitoring of indoor
TVOC、PM2.5、PM10,
temperature and humidity
display
A circuit-board module in a transparent housing.
Exploded illustration of four air-filter layers.

Multiple filtration

The initial effect of G4 filter can filter large particles of dust, coconut shell activated carbon filter can remove odor toluene and other pollutants,H12 HEPA filter PM2.5 purification rate of 99%



High efficiency

heat exchange

Imported antibacterial nano
paper film,resin frame efficient
solution to energy loss

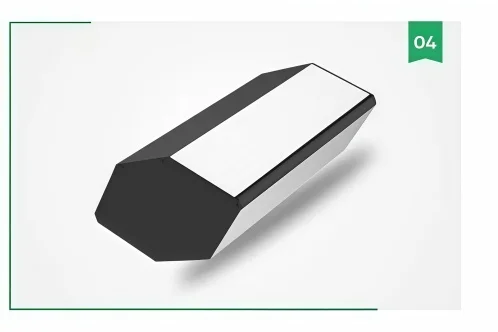

Hexagonal component with a white panel and dark frame.

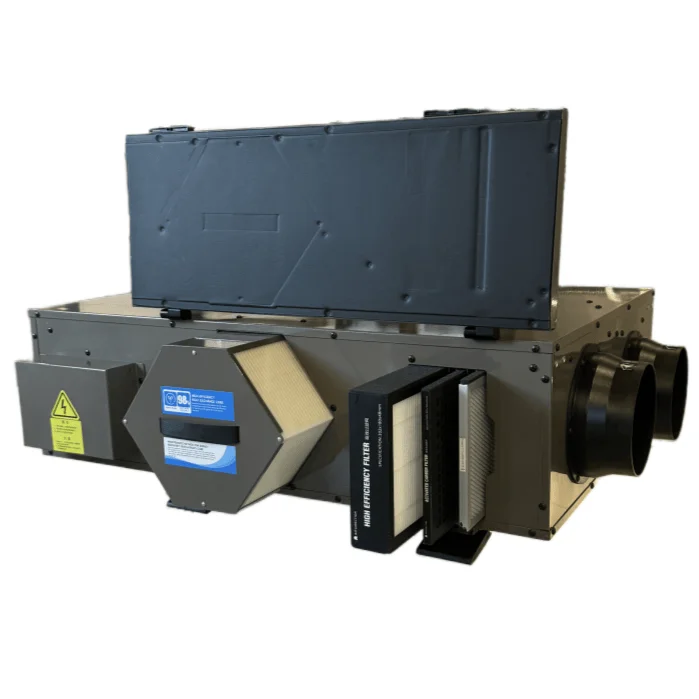

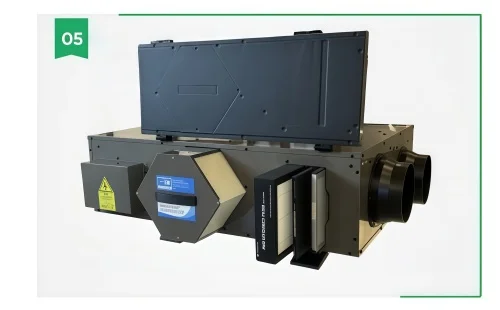

Open ventilation cabinet with its core and filter panels partly removed.

Ultra-thin body, easy maintenance

Ultra-thin body design,

232mm height,
flexible installation to save space.Bayonet type access door, easy to access.


UV efficient

sterilization(Optional)

The outdoor air into the room
to do UV efficient sterilization
treatment sterilization rate of
99.99%, medical grade is safer
Blue tubular lamp assembly in a black housing.
.....PRODUCT APPLICATION.....
Residential buildings and an apartment interior shown as ventilation application examples.

Wenzhou Daqidi Technology Co., Ltd. is based in Wenzhou, Zhejiang, China. The factory has a floor area of 12,000 square metres, 58 employees and three assembly lines. The team has 20 years of industry experience in residential and commercial fresh-air ventilation.


The company has a factory floor area of 12,000 square meters, 58 employees, three assembly lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. Drawing on 20+ years of industry experience, the team has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.

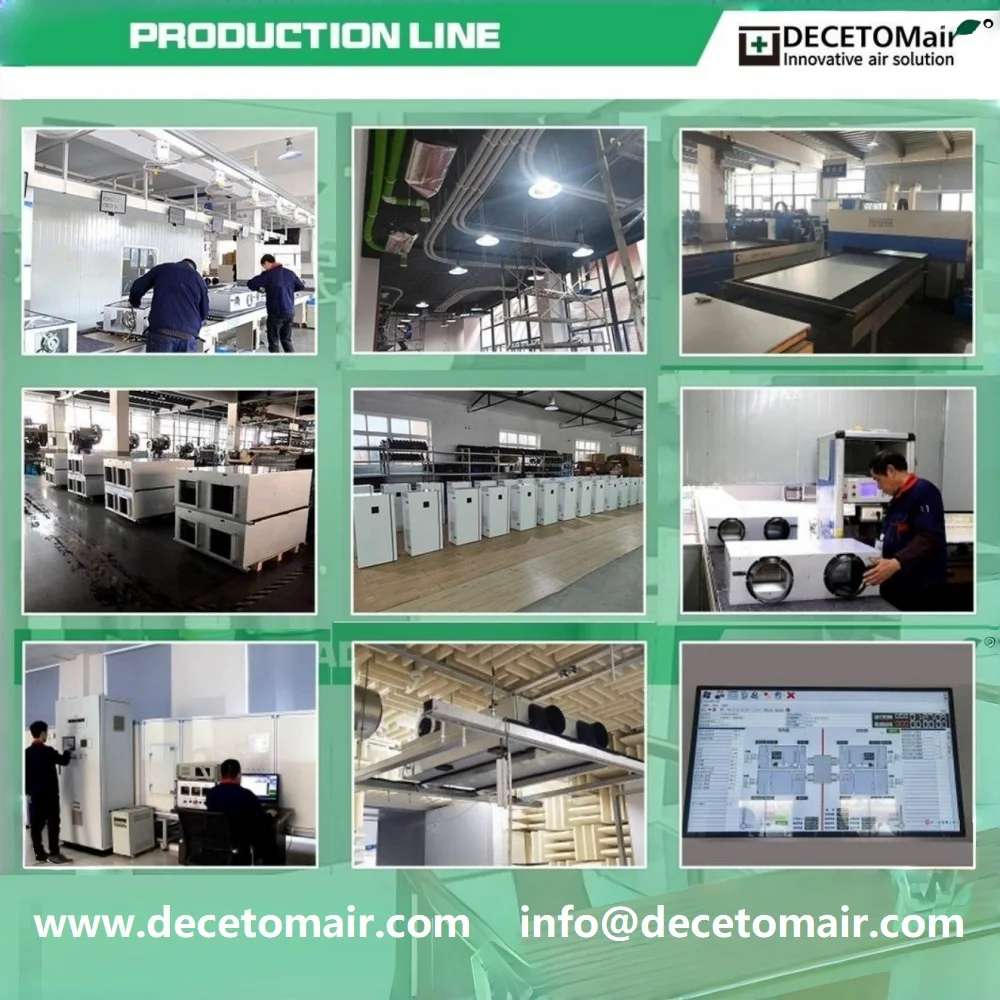

Ventilation equipment production, assembly and inspection photographs.
