ASX Balanced Ventilation Unit

Short Description:

Balanced Ventilation Unit.
2-speed motor
2-speed switch included

Details

Model
Air volume
Power Supply
Rated power
Max static Pressure
Noise
Interface Size
(m3/h)
(V/Hz)
(W)
(Pa)
dB(A)
(mm)
ASX-200
200
220/50
36
103
21
Φ100
ASX-400
400
220/50
65
115
24
Φ150
ASX-600
600
220/50
75
118
26
Φ150
ASX-800
800
220/50
145
190
28
Φ200
ASX-1000
1000
220/50
225
210
33
Φ200
ASX-1200
1200
220/50
380
290
37
Φ200
ASX-1700
1700
220/50
420
320
39
Φ250
ASX-1900
1900
220/50
588
430
40
Φ250
ASX-2200
2200
220/50
625
465
42
Φ250

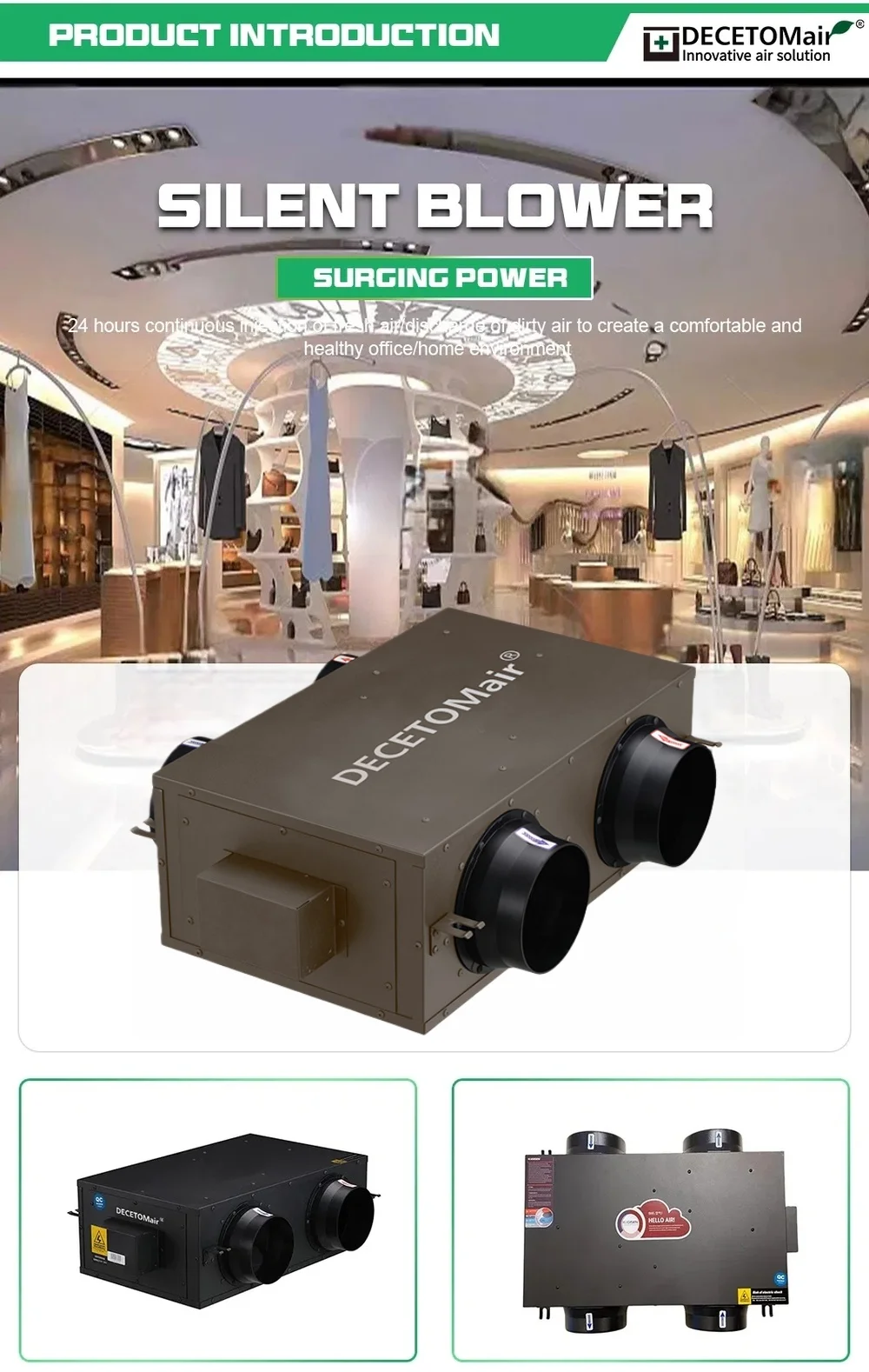

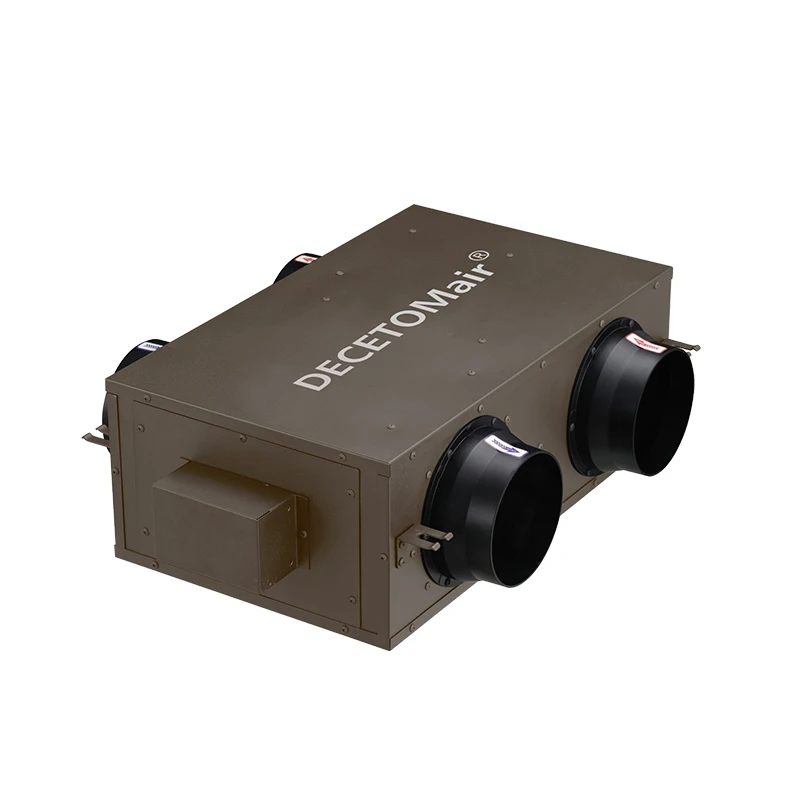

Brown ducted blower shown in a product-introduction graphic and additional product views.
No need to open Windows to isolate noise 24 hours continuous injection of freshair/discharge of
dirty air to create a comfortable and healthy office/home environmentSilent operation does not
disturb as low as 21.8 decibels, quiet learning.
Icons depicting a controller, airflow, ventilation ducts and sound.
...............Small size..........................High air volume...................High static pressure.......................Low noise

CONTROLLER OPTIONAL

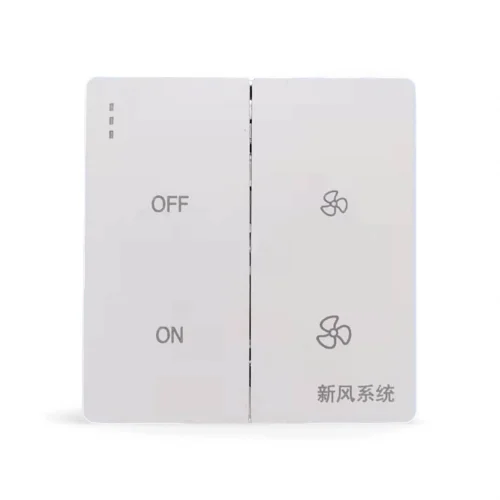

White ventilation wall switch with on, off and fan-control buttons.
Fresh Air 2-Speed Controllor
ABS Mechanical
Easy to operate,
high-low speed fresh air control
White ventilation controller with an LCD display and touch controls.
Standard LCD Controller/DM-A50
Timing Function
Indoor Temperature Display
Three-speed contro!
Filter Alarm
RS485 communication interface
Blue-display ventilation controller pictured with a separate remote control.
Remote Control LCD Controller/DM500A
Timing Function
Indoor Temperature Display
Remote control is optional
Three-speed Speed Control
Filter Alarm

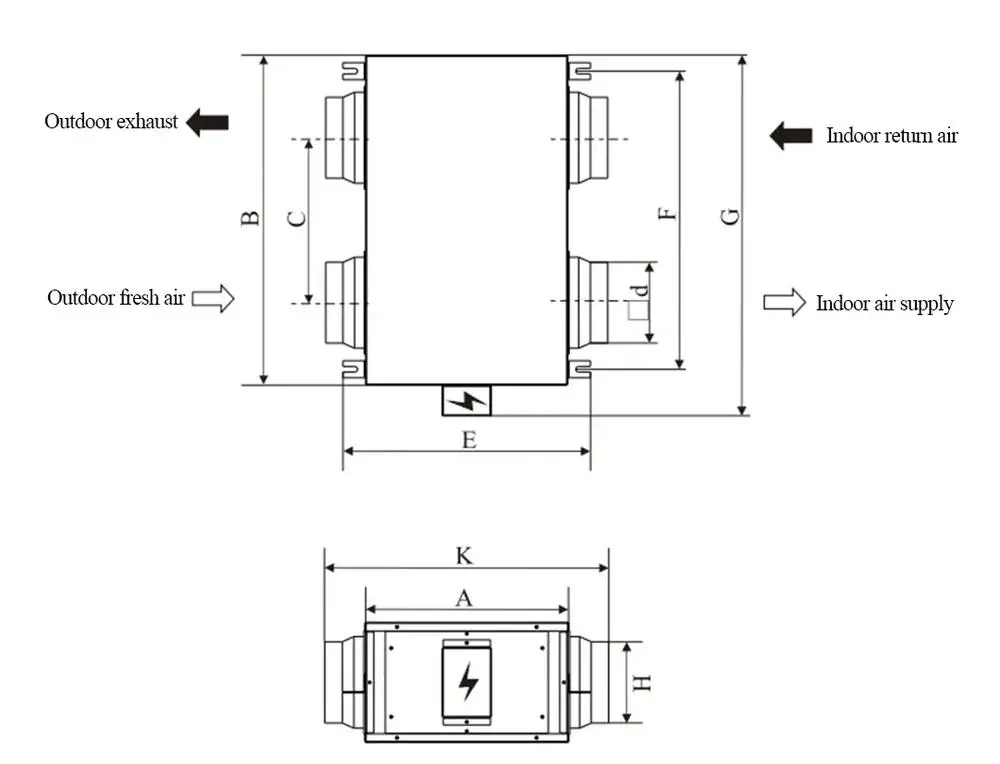

Dimension drawings showing ventilation duct ports and an electrical compartment.
Unit: mm
Model
A
B
E
F
H
K
Φd
ASX-200
302
582
293
350
535
405
100
ASX-400
350
580
293
350
535
405
150
ASX-600
352
582
275
400
535
495
150
ASX-800
402
762
385
450
720
545
200
ASX-1000
504
762
385
552
720
647
200
ASX-1200
552
902
452
615
835
702
200
ASX-1700
472
937
480
530
875
640
250
ASX-1900
502
982
490
555
925
670
250
ASX-2200
502
982
490
555
925
670
250

PRODUCT ADVANTAGE

Illustration of an electric motor and shaft.


HIGH STATIC

PRESSURE FAN
High static pressure fan, suitable forall kinds of commercial places longer pipe line, greater static pressure greater air volume, 24 hours uninterrupted operation


ACCURATE IMPELLER STRUCTURE

Newly upgraded ABS / metal wind wheel, comprehensive optimization, stable air supply suitable for long-distance air supply and exhaust needs
Cylindrical pleated filter cartridge.
Centrifugal fan housing with illustrated airflow arrows.


METAL CASE

Our new air volute uses an all-metal design, scientific air duct, higher quality, longer experiment time, more durable.


EASY MAINTENANCE

Careful maintenance door design
multi-point positioning screws
the air tightness is still the same
after maintenance, more worry
and effort saving during
maintenance

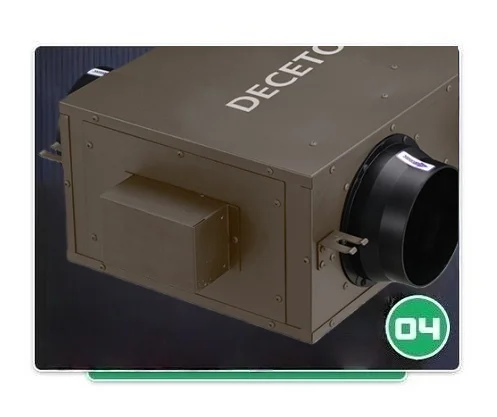

Close-up of a brown blower cabinet and round duct connector.

Indoor fresh air installation indication

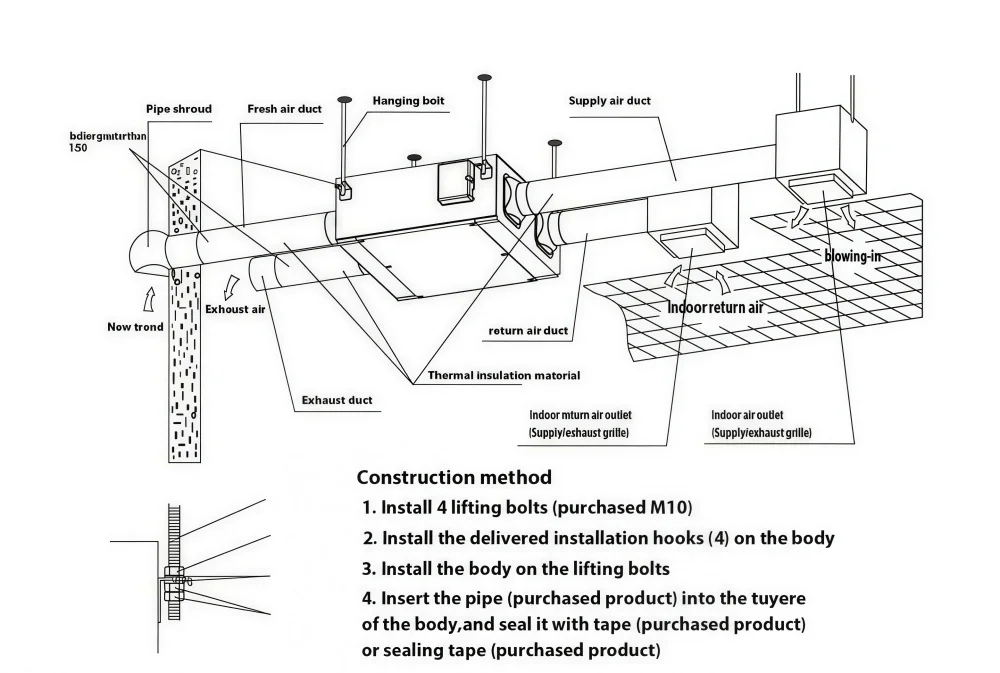

Ceiling installation schematic showing suspension bolts, ventilation ducts and air terminals.

.....WHOLE HOUSE CYCLE.....
Large space fast circulation, breathable replacement, protect the respiratory
health of tens of millions of families.
Building ventilation layout with red and green duct routes.

.....PRODUCT APPLICATION.....

Living room, bedroom, mall, kitchen, recreation room and internet-cafe interiors.

Wenzhou Daqidi Technology Co., Ltd. is based in Wenzhou, Zhejiang, China. The factory has a floor area of 12,000 square metres, 58 employees and three assembly lines. The team has 20 years of industry experience in residential and commercial fresh-air ventilation.


The company has a factory floor area of 12,000 square meters, 58 employees, three assembly lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. Drawing on 20+ years of industry experience, the team has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.

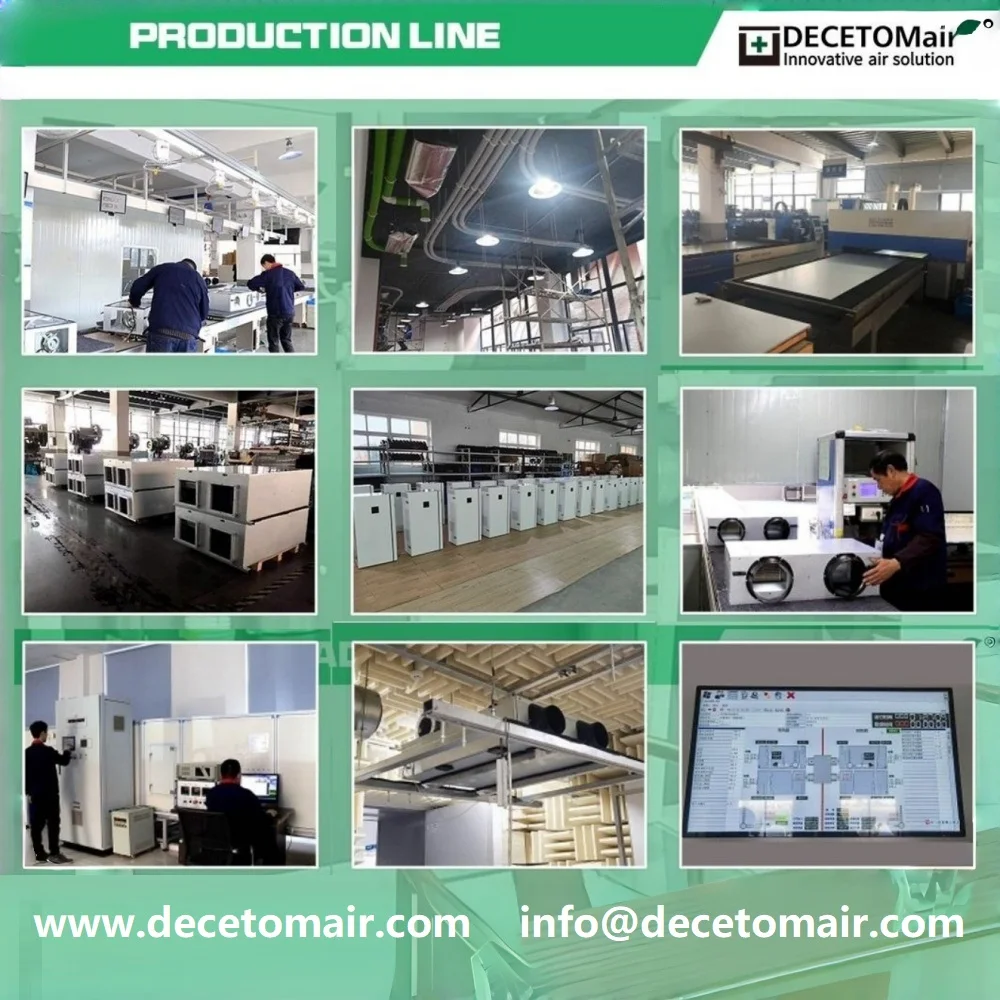

Ventilation equipment production, assembly and inspection photographs.
