ADX-S Centrifugal Fan Cabinet Galvanized Sheet-Metal Series

Short Description:

Centrifugal Fan Cabinet Galvanized Sheet-Metal Series.
3-speed motor
Switch not included by default

Details

Model
Airflow
(m3/h)
Power Supply
(V/Hz)
Rated Power
(W)
Max static pressure
(Pa)
Noise
dB(A)
ADX-260S
2600
220/50
480
480
45
ADX-300S
3000
220/50
550
490
47
ADX-400S
4000
220/50
750
520
50
ADX-500S
5000
220/50
950
560
52
ADX-600S
6000
220/50
1100
620
55

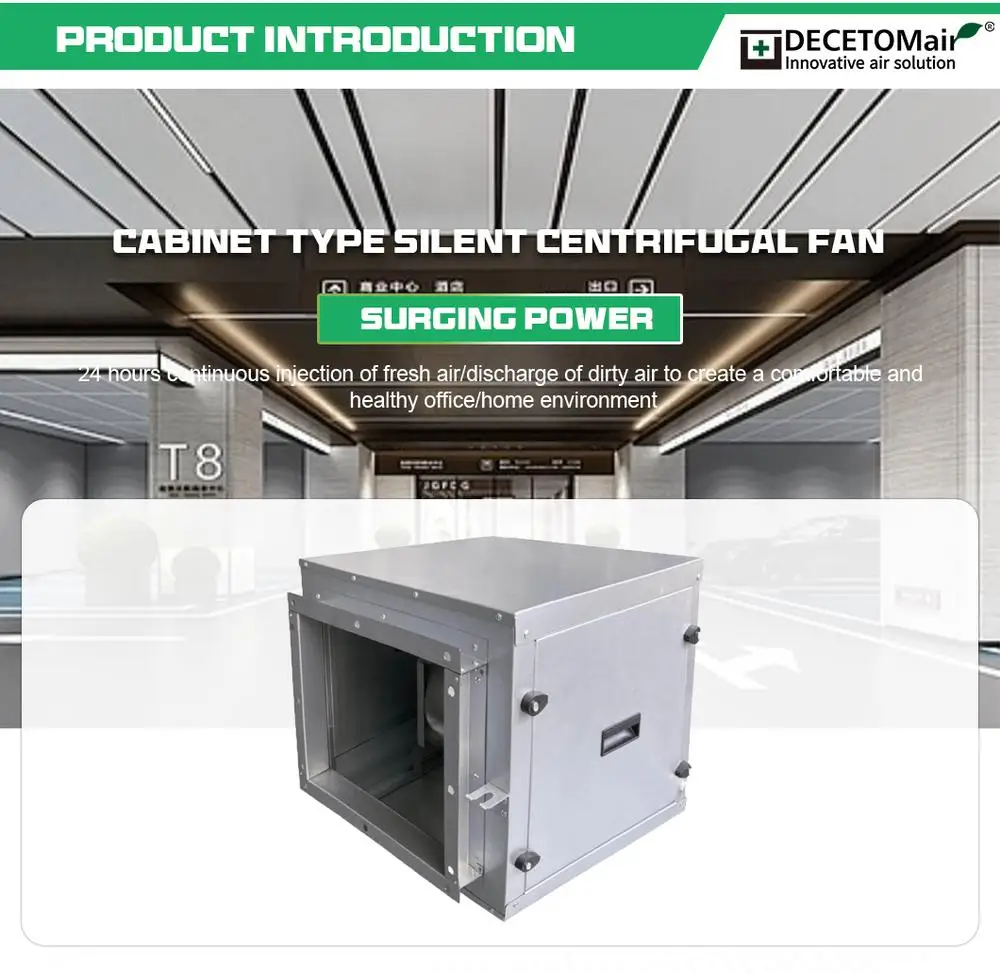

Metal cabinet fan pictured against an office interior.
No need to open Windows to isolate noise 24 hours continuous injection of freshair/discharge of dirty air to create a comfortable and healthy office/home environmentSilent operation does not disturb as low as 21.8 decibels, quiet learning.
Feature panel illustrating wiring terminals, speed control and service-panel access.

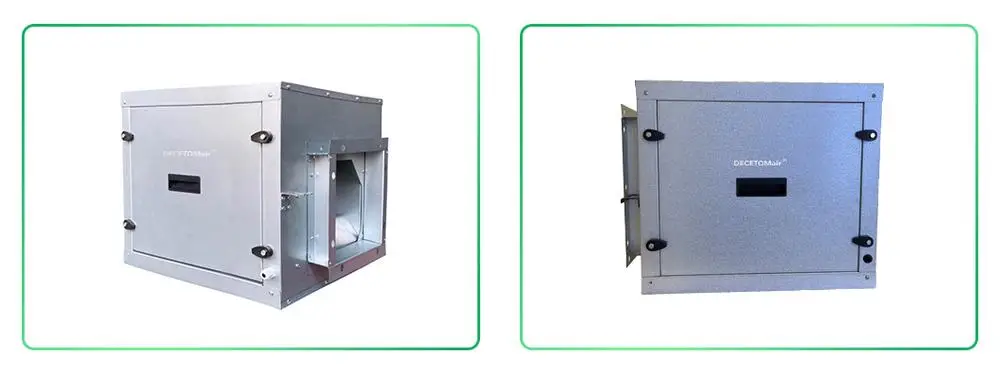

Two views of a rectangular metal fan cabinet with a service door.
Icons depicting a controller, airflow, ventilation ducts and sound.
...........Small size....................High air volume.............High static pressure.................Low noise

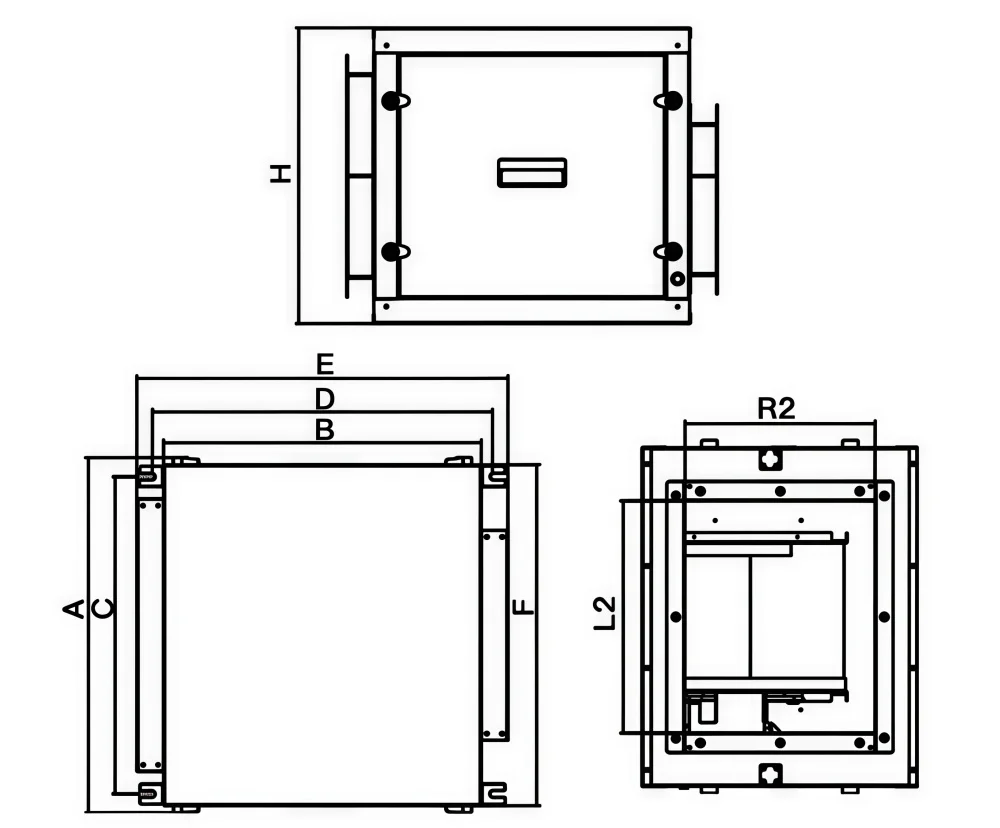

Orthographic dimension drawings of a cabinet fan.

Model
Size  (mm)
A
B
C
D
E
F
H
L1*R1
L2*R2
ADX-260S
520
520
483
557
607
520
450
260*230
355*310
ADX-300S
520
520
483
557
607
520
450
260*230
355*310
ADX-400S
550
550
513
587
637
550
450
230*260
385*310
ADX-500S
550
550
513
587
637
550
450
300*260
385*310
ADX-600S
600
600
563
637
687
600
520
330*310
435*375

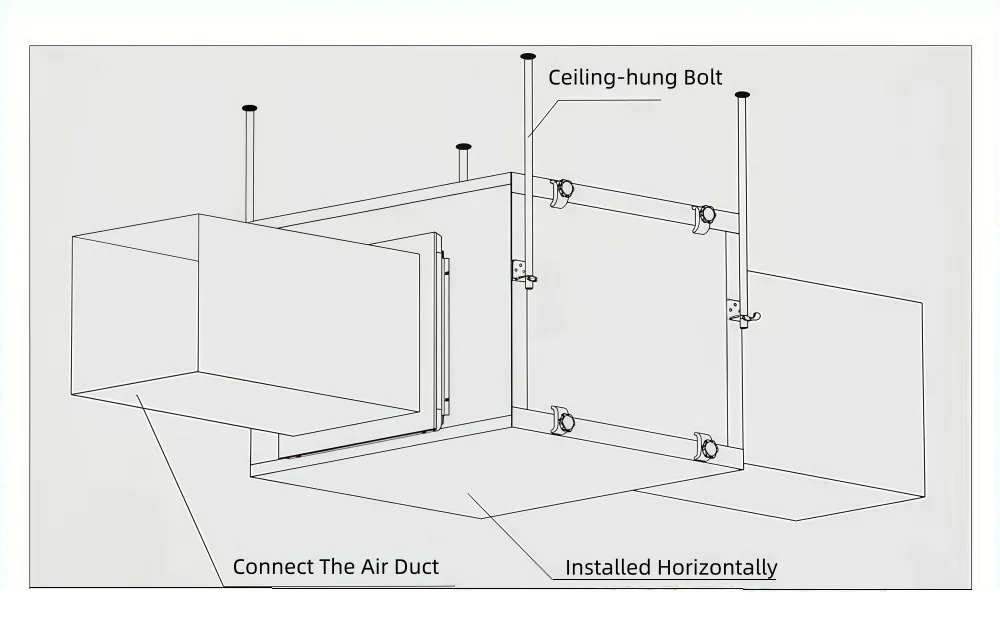

Line drawing of a horizontally suspended duct fan and ceiling-hung bolts.

PRODUCT ADVANTAGE

Illustration of an electric motor and shaft.


HIGH STATIC

PRESSURE FAN
High static pressure fan, suitable
for all kinds of commercial places
longer pipe line, greater static
pressure greater air volume,
24 hours uninterrupted operation


WIND WHEEL

OF METAL
Newly upgraded all-metal wind
wheel,comprehensive optimization,
stable air supply suitable for long-
distance air supply and exhaust
needs
Cylindrical pleated filter cartridge.

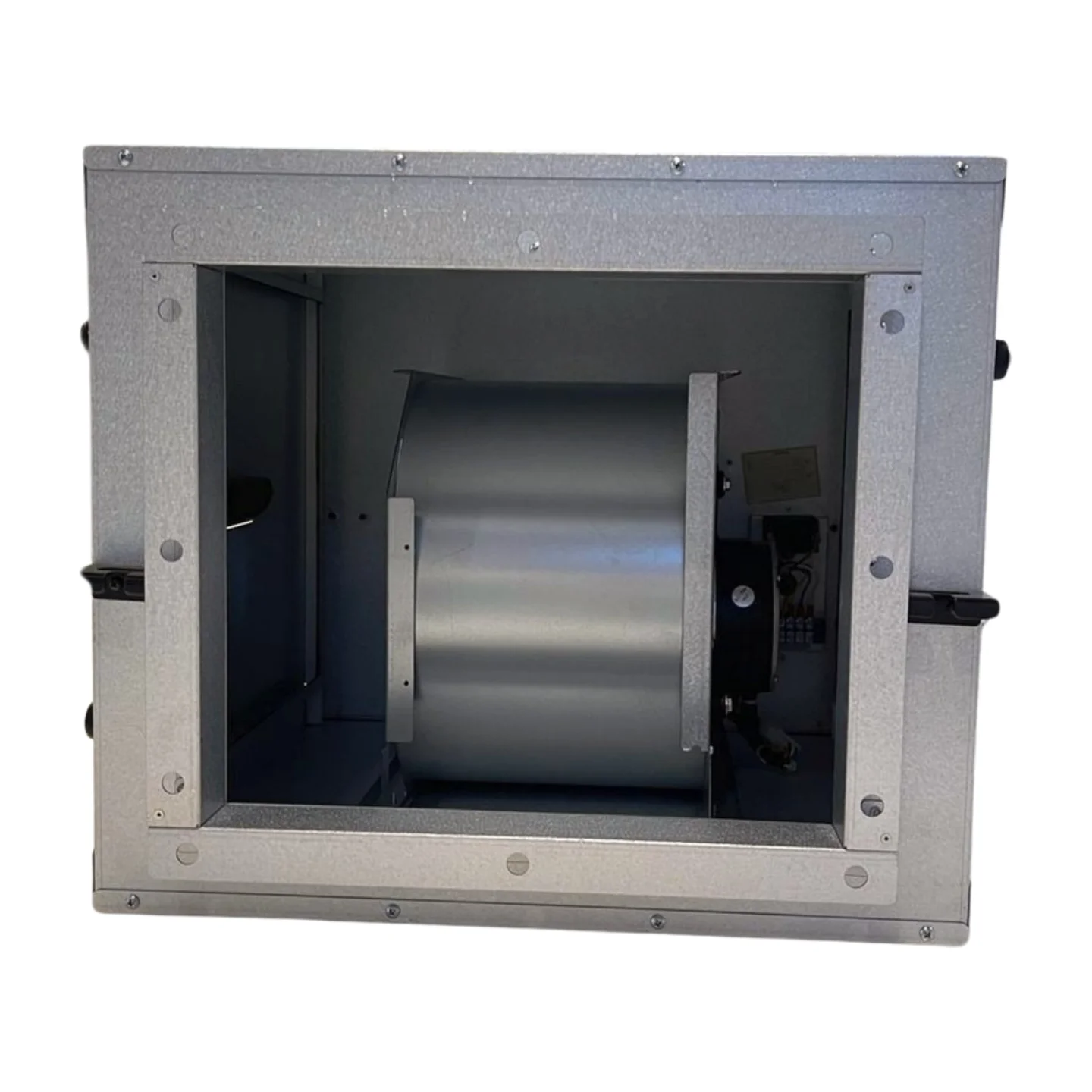

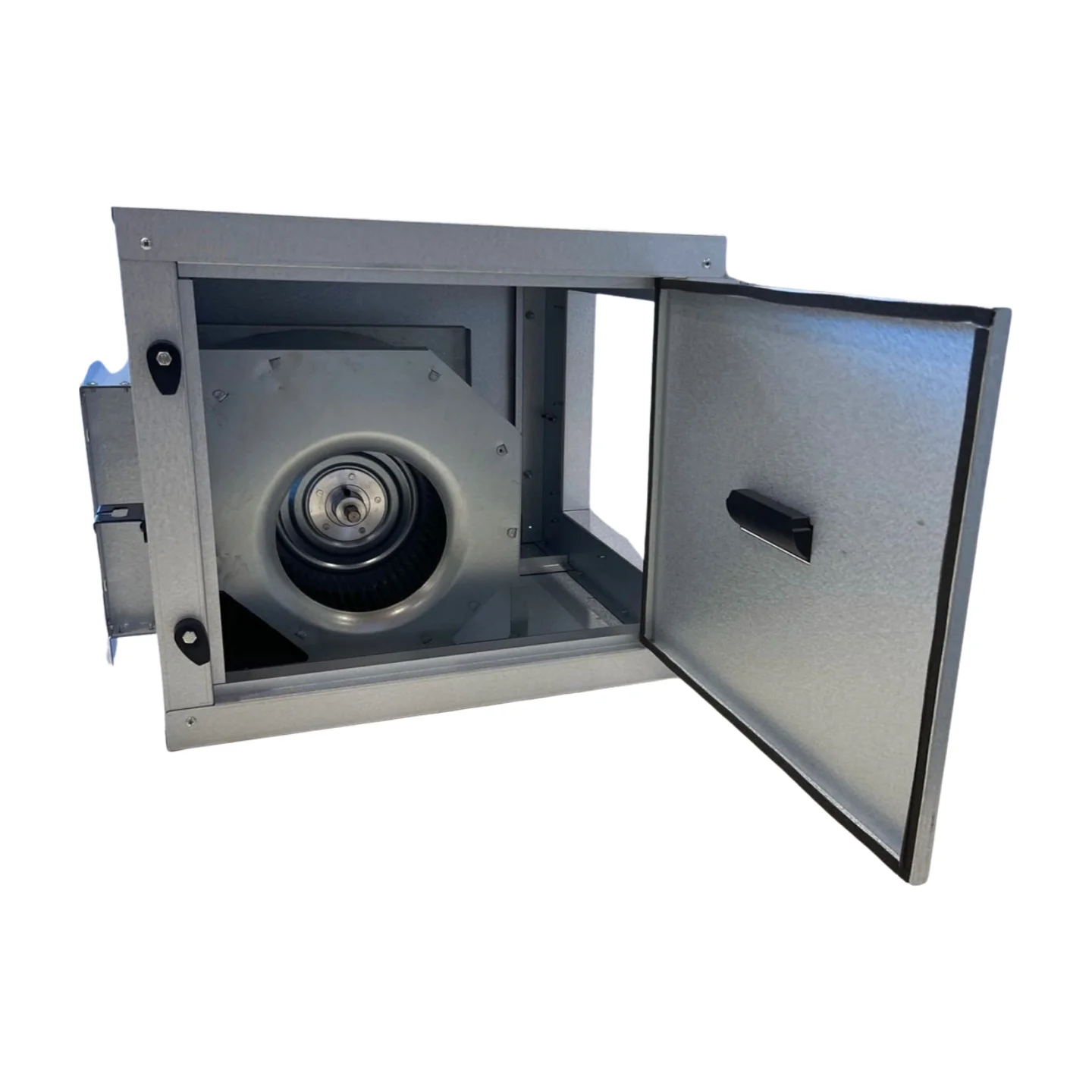

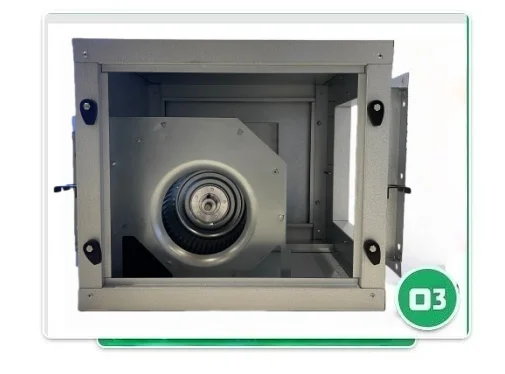

View into an open fan cabinet showing the impeller assembly.


EASY MAINTENANCE

New type fan case has built-in terminals,two side door panels for maintenance three speed regulation,door buckle design simple and full of design sense modeling and takes care of the fresh air of the whole house


CONVENIENT

VENT CONNECTION

The new fan box adopts full fluted
tuyere design, which makes
the nozzle more convenient

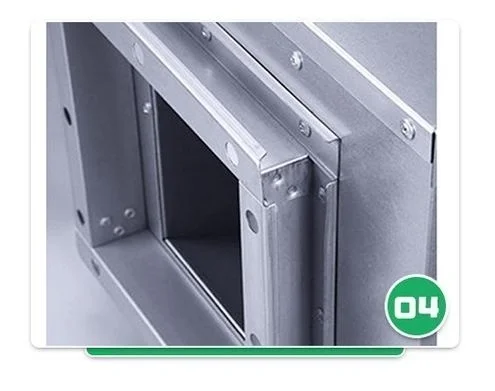

Close-up of a metal cabinet's bolted duct flange.

INSTALLATION MODE

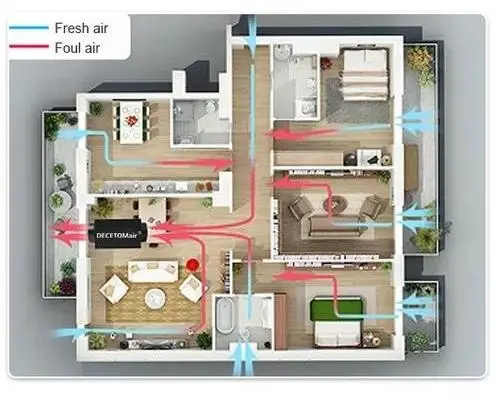

Apartment floor plan with fresh-air and exhaust-air flow arrows.
FORWARD INSTALLATION: POSITIVE PRESSURE AIR SUPPLY The super quiet fan is installed in the forward direction, and the filtered outdoor fresh air is introduced, which can make the indoor space have a positive pressure environment, and the indoor dirty air is discharged from the door crack or the specified ventilation outlet, so as to avoid the outdoor haze and dust air flowing back into the room

REVERSEINSTALLATION:NEGATIVE PRESSURE EXHAUST :

The ultra-silent fan is installed in reverse to eliminate the indoor dirty air, so that the indoor space has a negative pressure environment, and the outdoor fresh air enters the indoor supply through the door crack or the specified ventilation port

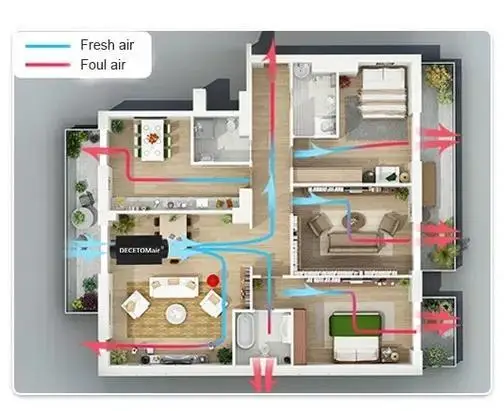

Apartment floor plan with fresh-air and exhaust-air flow arrows.

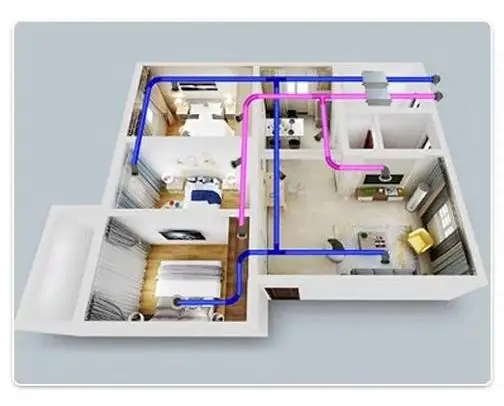

Apartment ventilation layout with blue and purple duct routes.

FORWARD INSTALLATION +REVERSE INSTALLATION

In the same indoor space, the ultra-silent
fan is installed in the forward and reverse respectively which introduces the outdoor fresh air and exhausts the indoor dirty air
at the same time to achieve the indoor balanced air exchange

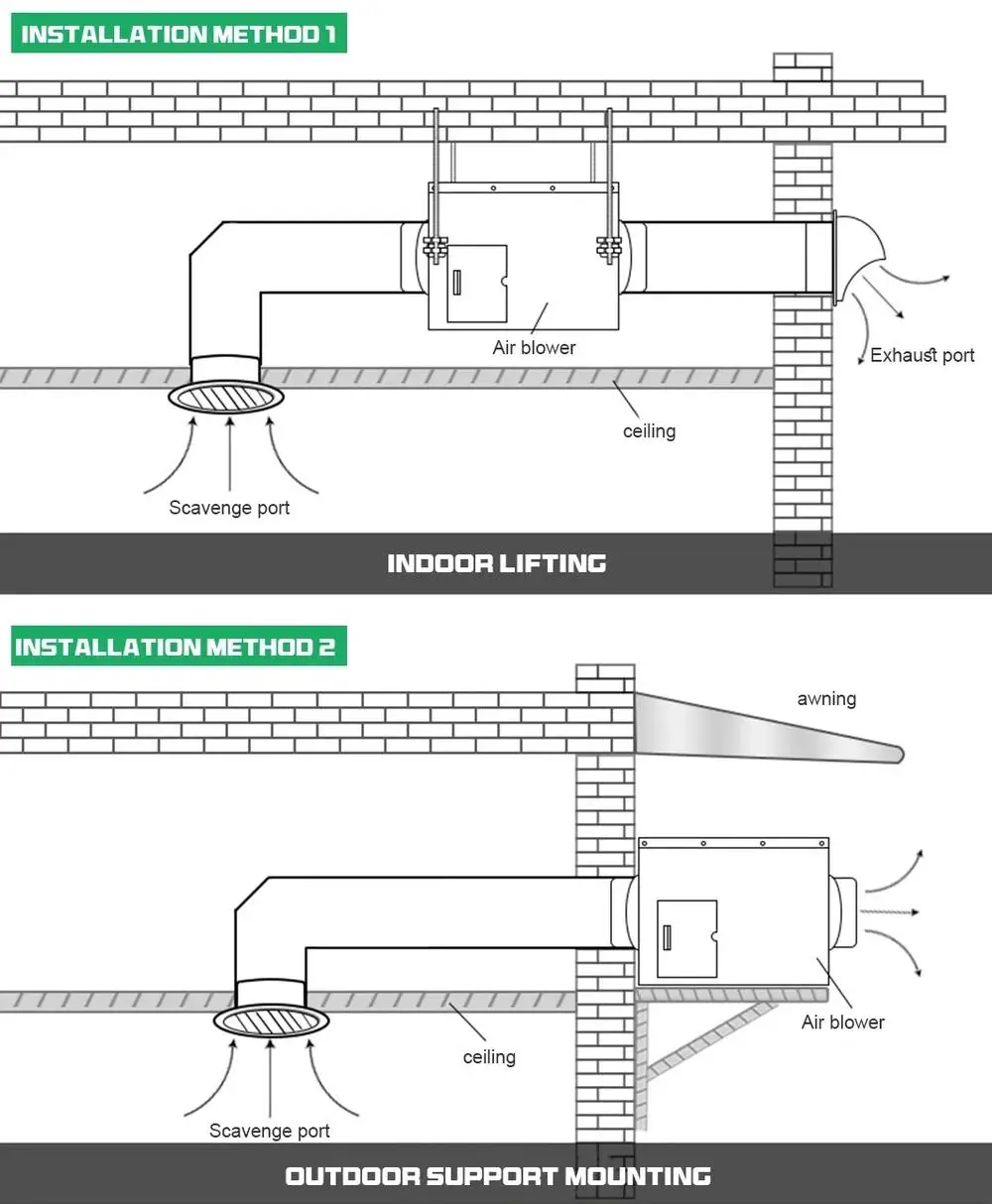

Line drawings of indoor suspension and outdoor support-mounting arrangements.

PRODUCT APPLICATION

Restaurant, internet cafe, hotel and factory shown as ventilation application examples.

Wenzhou Daqidi Technology Co., Ltd. is based in Wenzhou, Zhejiang, China. The factory has a floor area of 12,000 square metres, 58 employees and three assembly lines. The team has 20 years of industry experience in residential and commercial fresh-air ventilation.


The company has a factory floor area of 12,000 square meters, 58 employees, three assembly lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. Drawing on 20+ years of industry experience, the team has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.

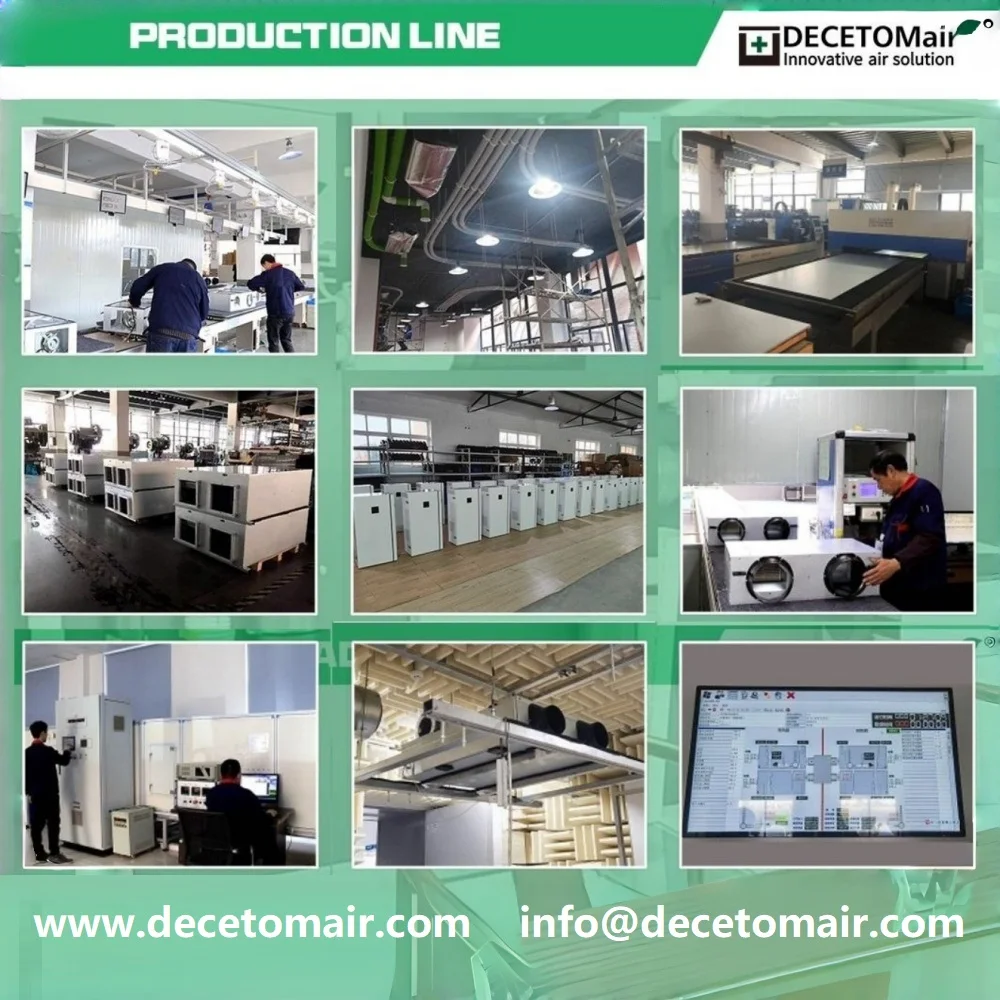

Ventilation equipment production, assembly and inspection photographs.
