AGSX PM2.5-Filtered Balanced Ventilation Unit

Short Description:

PM2.5-Filtered Balanced Ventilation Unit.
Pre-filter + activated carbon + H12 HEPA
2-speed motor
2-speed switch included

Details

Model
Air volume
Power Supply
Rated power
Max static pressure
Noise
Interface Size
(m3/h)
(V/Hz)
(W)
(Pa)
dB(A)
(mm)
AGSX-250
250
220/50
48
98
27
Φ150
AGSX-350
350
220/50
65
107
29
Φ150
AGSX-500
500
220/50
120
178
32
Φ150
AGSX-800
800
220/50
195
197
35
Φ200
AGSX-1000
1000
220/50
270
270
39
Φ250
AGSX-1200
1200
220/50
385
310
41
Φ250
AGSX-1500
1500
220/50
570
430
45
Φ250
AGSX-1700
1700
220/50
690
435
47
Φ250

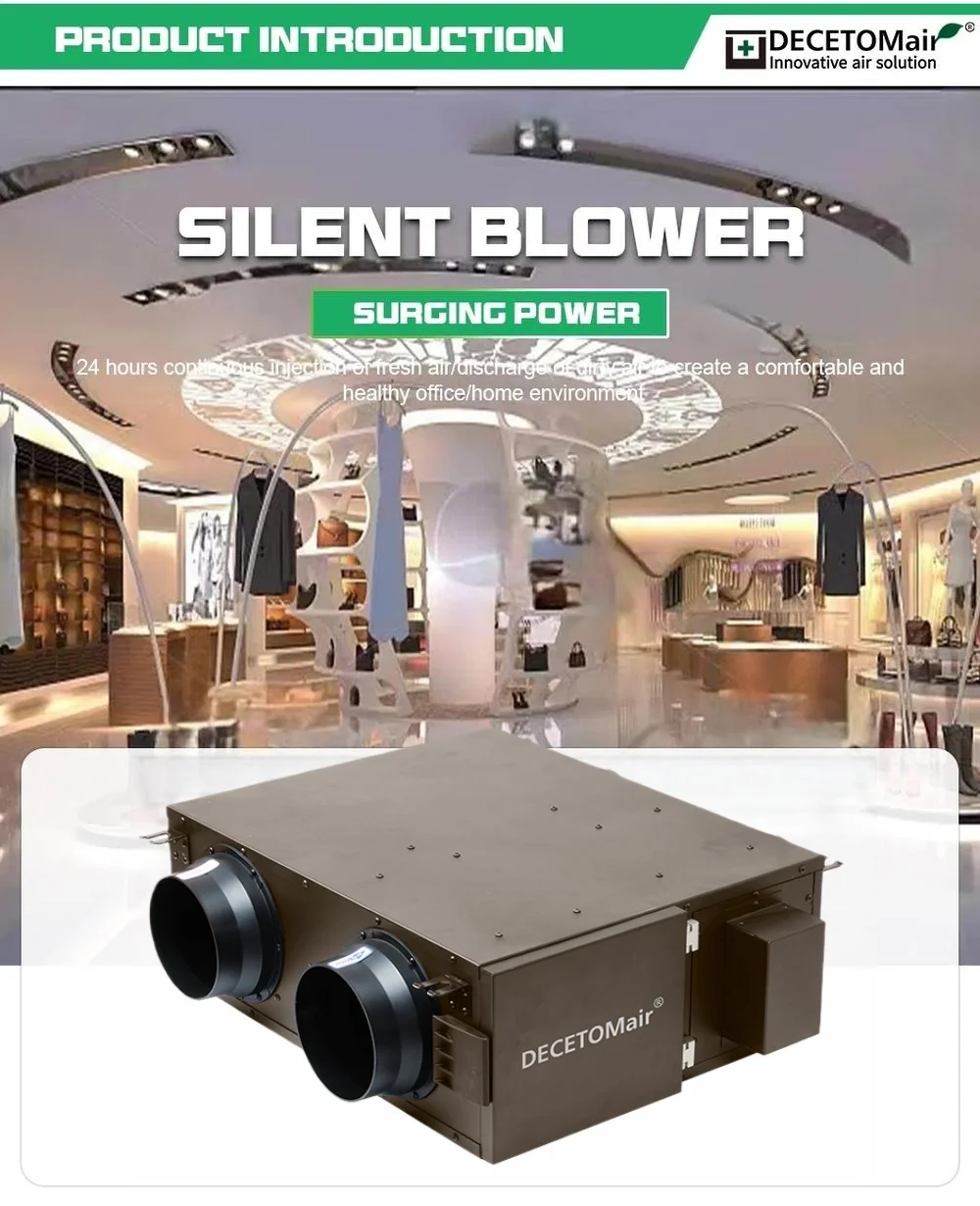

Brown ducted blower unit pictured against a public-building interior.
Primary filter (G4), activated carbon filter, high efficiency HEPA (H12) filter Purification efficiency of
up to 99.99%, think of healthy breathing; Optional 485 communication interface, central interation, remote
control Real-time monitoring of indoor air quality(PM2.5,TVOC, CO2, etc.)Suitable for shopping malls,
hotels, villas,restaurants,office buildings and other adult traffic places,providing sufficient fresh air volume;

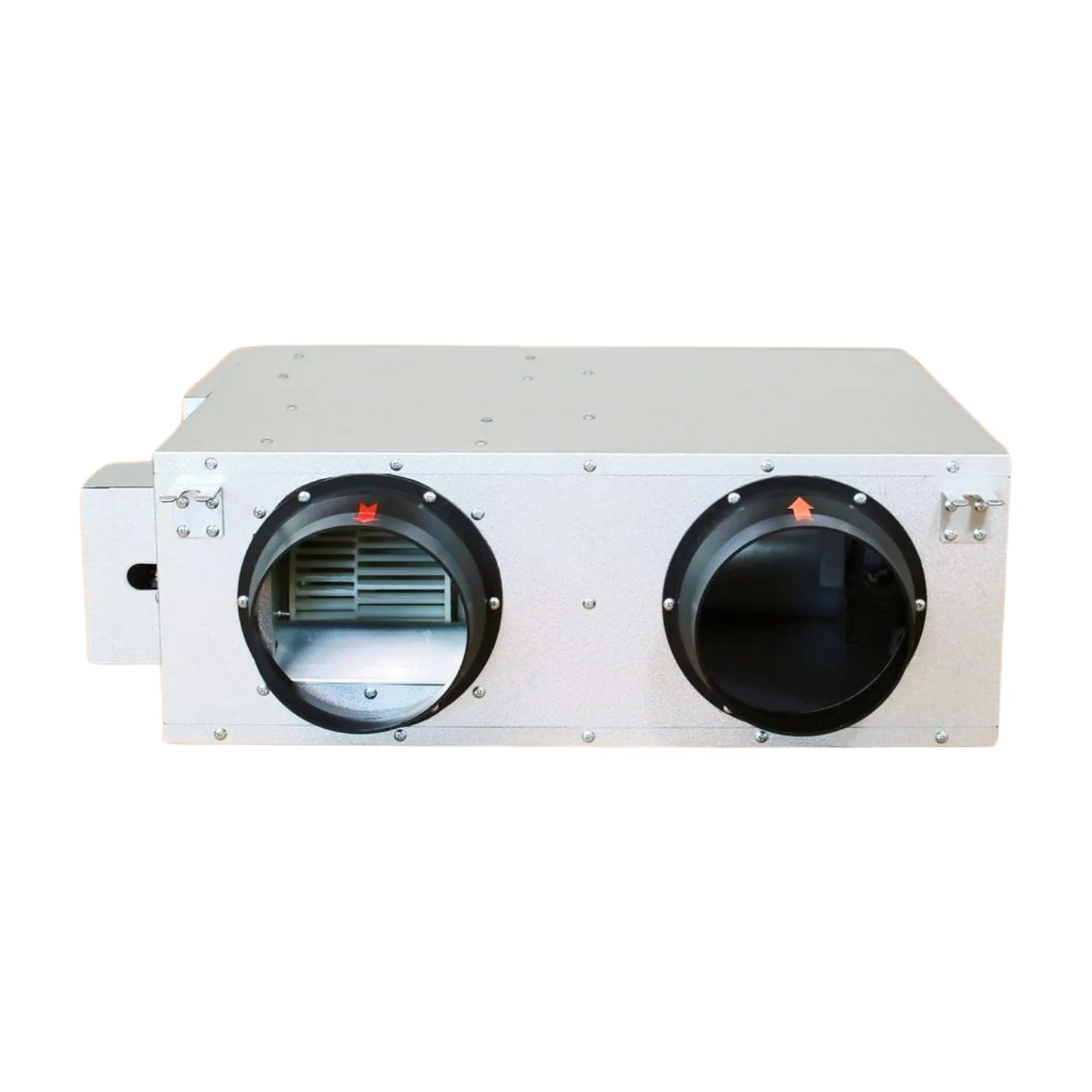

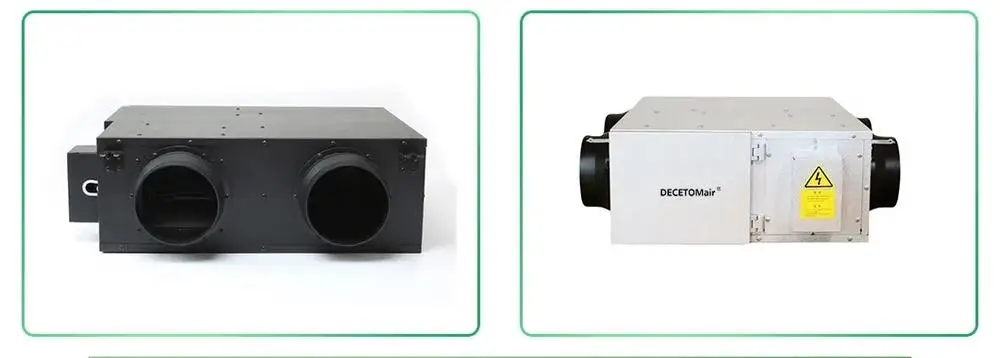

Two views of a rectangular ventilation unit with round duct connections.
24 hours continuous supply of fresh air and exhaust of dirty air to create a comfortable and healthy office and home environment
Icons depicting equipment size, airflow, pressure and sound.

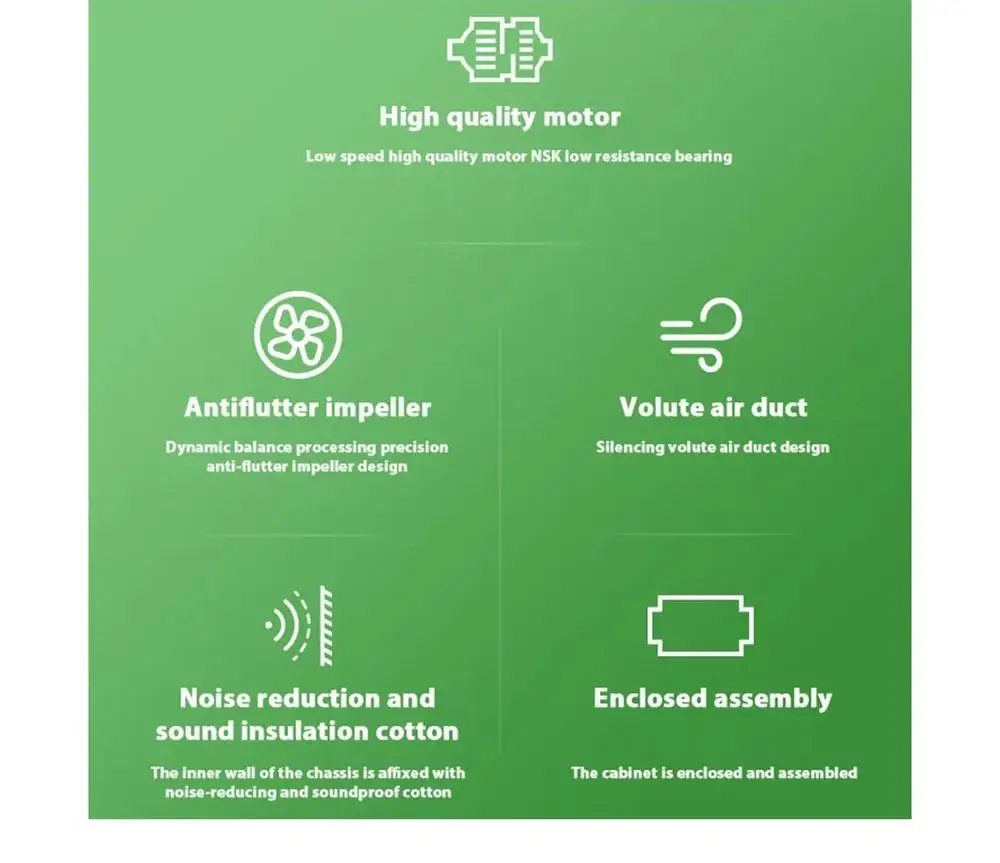

Green feature panel illustrating motor, impeller, duct and housing details.
.....CONTROLLER OPTIONAL.....
Black touch controller displaying air-quality and fan indicators.
Intelligent LCD Controller/
DM-900A



Timing function,



3.5-inch color screen controller
Temperature and humidity,
PM2.5, PM10 and TVOC sensors
Mobile phone APp function,
Tmall Genie voice control
Optional CO2 detection, RS485 port
White ventilation controller with an LCD display and touch controls.



Standard LCD Controller
/DM-A50



Timing Function
Indoor Temperature Display
Three-speed control
Filter Alarm
RS485 communication interface
Blue-display ventilation controller pictured with a separate remote control.



Remote Control LCD Controller/DM500A



Timing Function
Indoor Temperature Display



Remote control is optional
Three-speed Speed Control
Filter Alarm

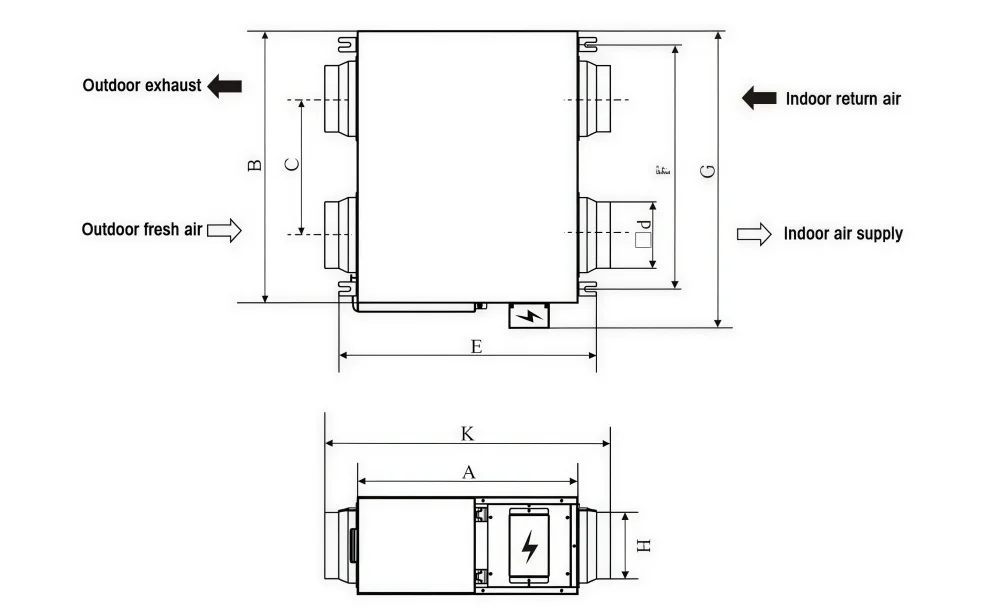

Dimension drawings showing a ventilation unit's duct ports and electrical compartment.
Unit: mm
Model
A
B
C
E
F
G
H
K
Φd
AGSX-250
470
580
275
510
530
600
205
610
150
AGSX-350
470
580
275
510
530
600
205
610
150
AGSX-500
520
760
385
560
720
770
230
670
200
AGSX-800
624
762
385
662
730
780
255
772
200
AGSX-1000
592
937
480
630
905
955
299
740
250
AGSX-1200
592
937
480
630
905
955
299
740
250
AGSX-1500
622
982
490
660
930
1000
335
770
250
AGSX-1700
622
982
490
660
930
1000
335
770
250

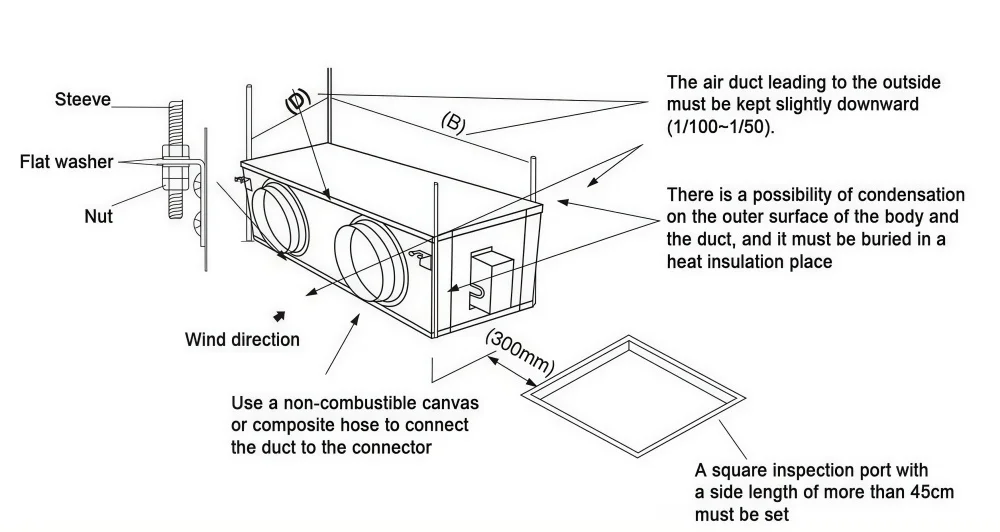

Installation schematic showing a suspended ducted unit and an inspection opening.

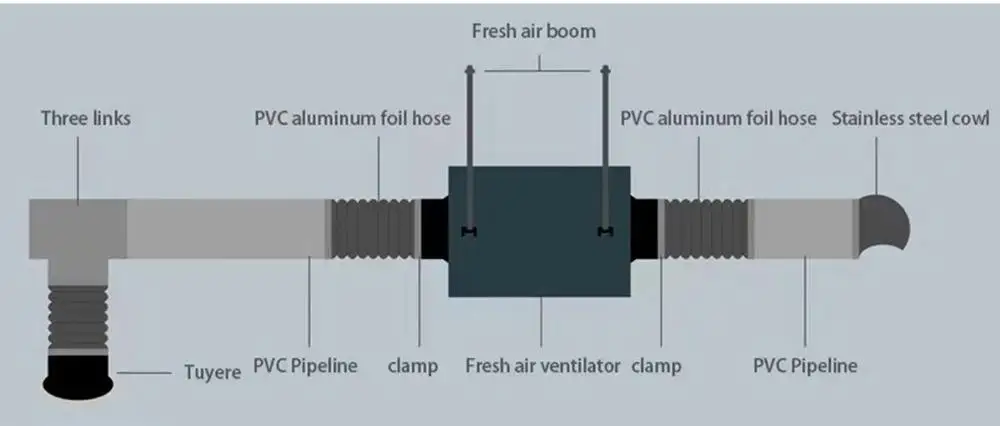

Duct-connection schematic showing flexible hoses, clamps and an exterior hood.

.....WHOLE HOUSE CYCLE.....
Large space fast circulation, breathable replacement, protect the respiratory
health of tens of millions of families.
Building ventilation layout with red and green duct routes.

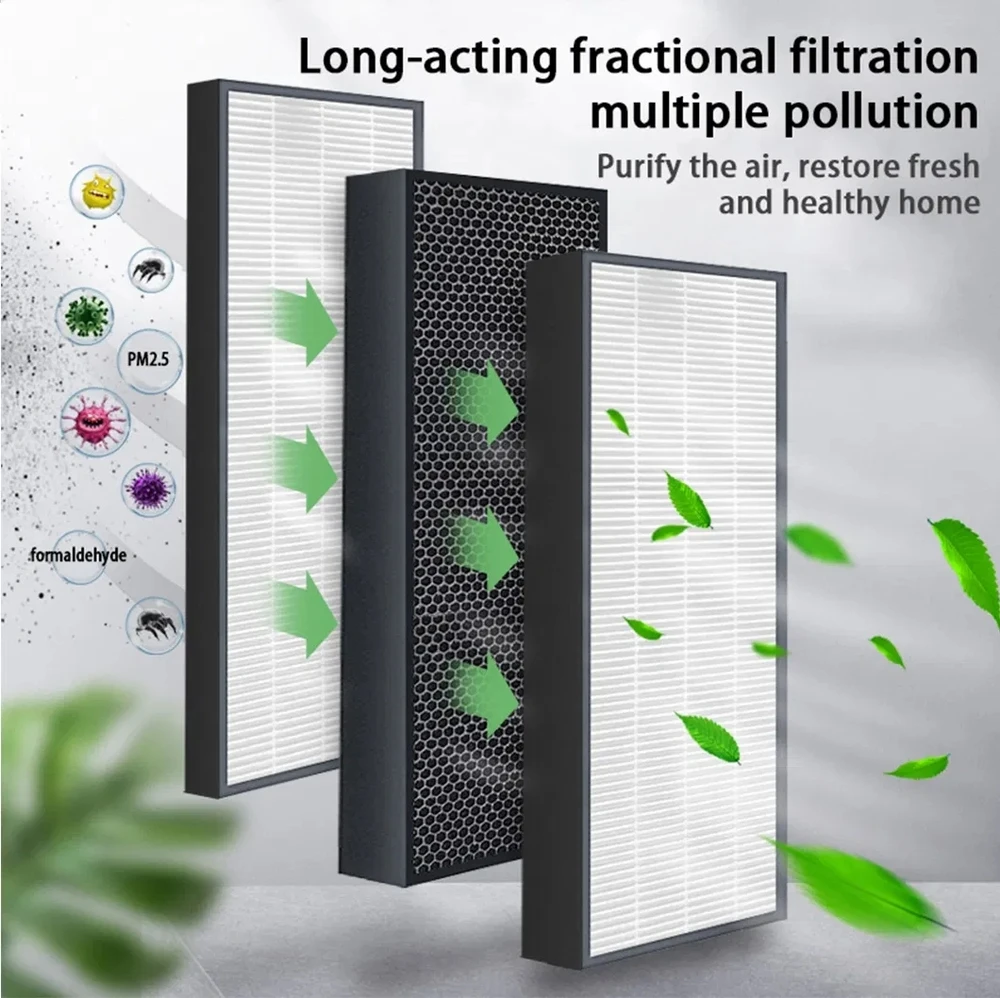

Layered rectangular filter panels illustrated with airflow arrows.

PRODUCT ADVANTAGE

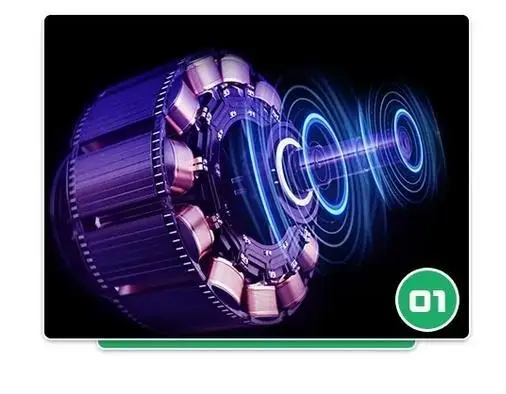

Illustration of an electric motor and shaft.


HIGH STATIC

PRESSURE FAN
High static pressure fan, suitable
for all kinds of commercial places
longer pipe line, greater static
pressure greater air volume,
24 hours uninterrupted operation


ACCURATE IMPELLER STRUCTURE

Newly upgraded ABS / metal wind wheel, comprehensive optimization, stable air supply suitable for long-distance air supply and exhaust needs

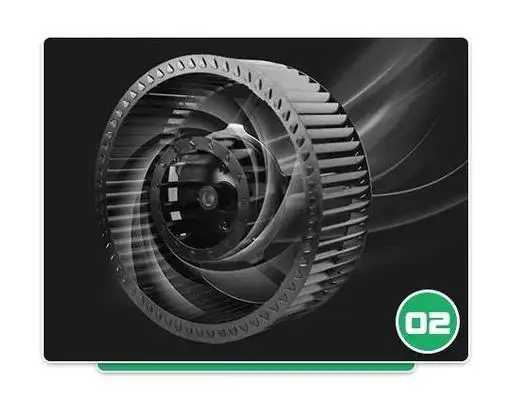

Centrifugal fan impeller with curved blades.

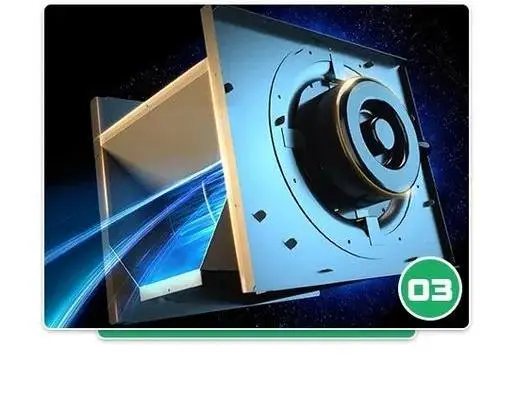

Centrifugal fan housing with illustrated airflow arrows.


METAL CASE

Our new air volute uses an all-metal design, scientific air duct, higher
quality, longer experiment time,
more durable.


MULTIPLE

FILTRATION
Primary filter,
Activated carbon filter
H12 HEPA filter
Filter pollutants
like dust, odors and smog.
effective filtration rate of
up to 99.97%

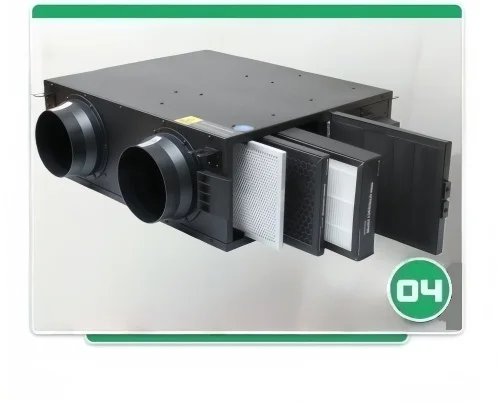

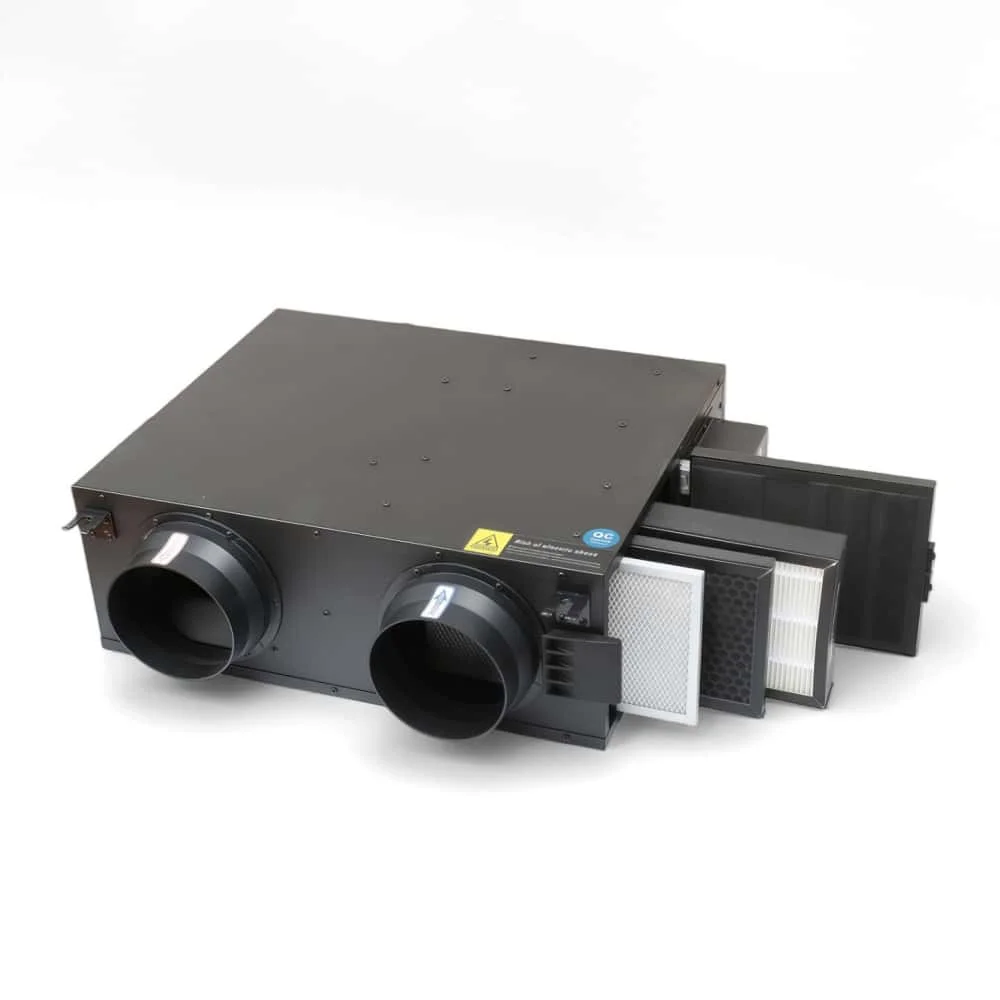

Ducted blower unit with filter panels partly pulled out.
Living room, bedroom, mall, kitchen, recreation room and internet-cafe interiors.

Wenzhou Daqidi Technology Co., Ltd. is based in Wenzhou, Zhejiang, China. The factory has a floor area of 12,000 square metres, 58 employees and three assembly lines. The team has 20 years of industry experience in residential and commercial fresh-air ventilation.


The company has a factory floor area of 12,000 square meters, 58 employees, three assembly lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. Drawing on 20+ years of industry experience, the team has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.

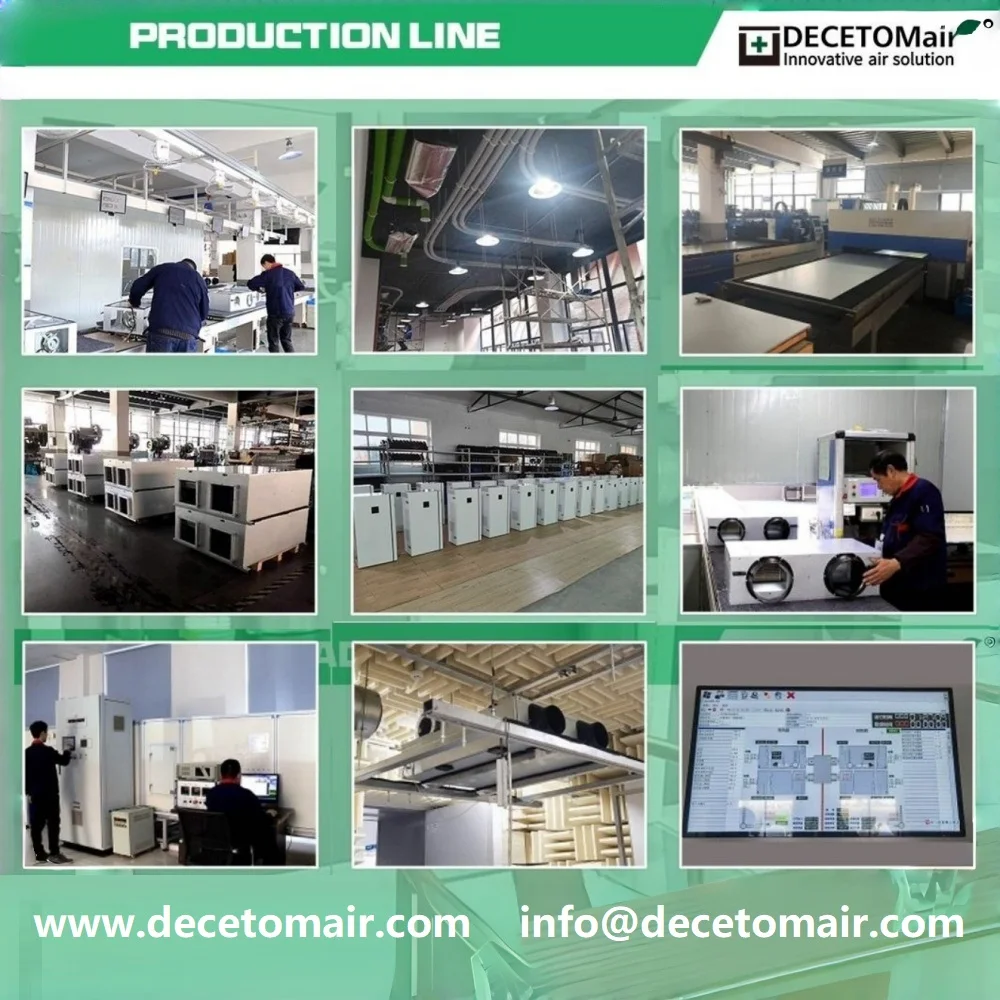

Ventilation equipment production, assembly and inspection photographs.
