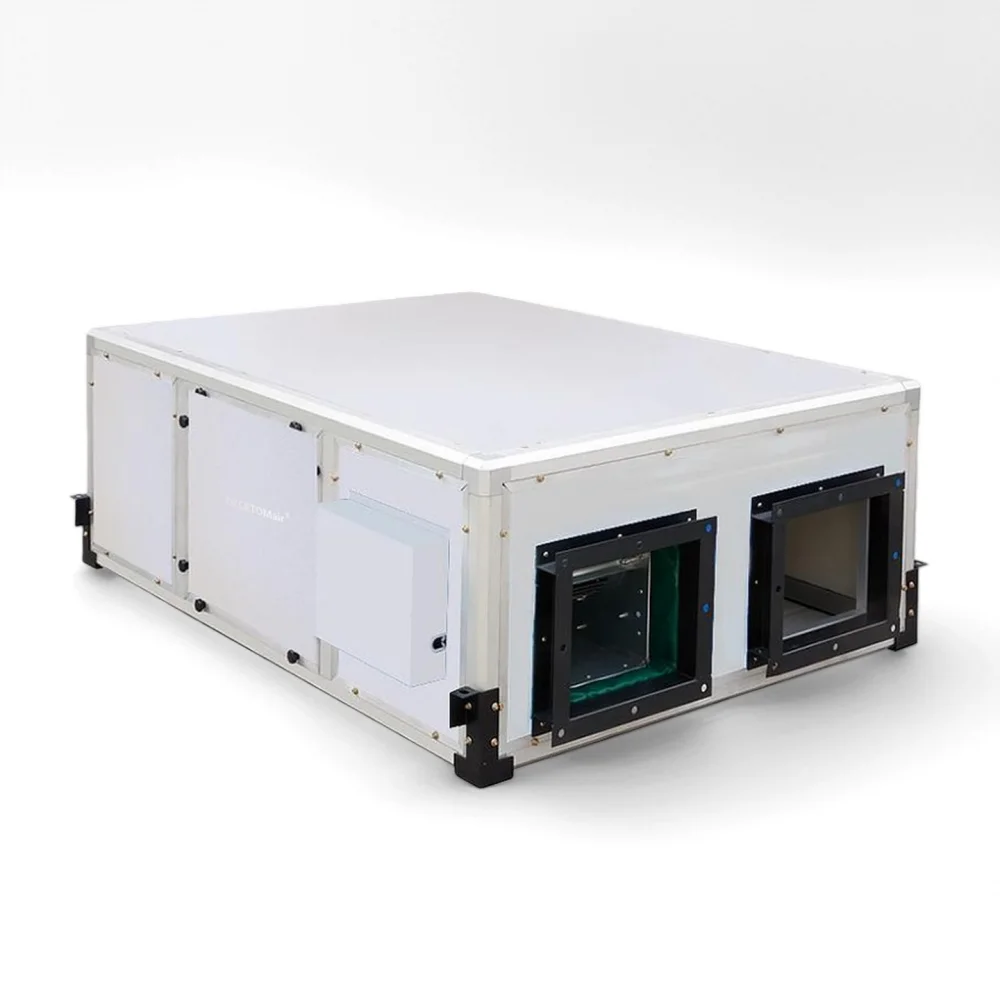

AQR Energy Recovery Ventilator Color-Coated Steel Series
  • AQR Energy Recovery Ventilator Color-Coated Steel Series
  • AQR Energy Recovery Ventilator Color-Coated Steel Series
  • AQR Energy Recovery Ventilator Color-Coated Steel Series

AQR Energy Recovery Ventilator Color-Coated Steel Series

Short Description:

Energy Recovery Ventilator Color-Coated Steel Series.
220 V models include a 3-speed switch
380 V models use 3-phase power & not include a switch
Vertical configuration available from 6,000 m³/h

Details

Model
Air volume
Power Supply
Rated power
Max static pressure
Energy Recovery Rate
Noise
(m³/h)
(V/Hz)
(W)
(Pa)
(%)
dB(A)
AQR-2500
2500
220/50
1400
410
73
43
AQR-3000
3000
220/50
2000
420
73
46
AQR-4000
4000
380/50
3200
445
73
52
AQR-5000
5000
380/50
3800
455
73
58
AQR-6000
6000
380/50
4400
475
73
63
AQR-8000
8000
380/50
5100
490
73
65
AQR-10000
10000
380/50
6200
510
73
68

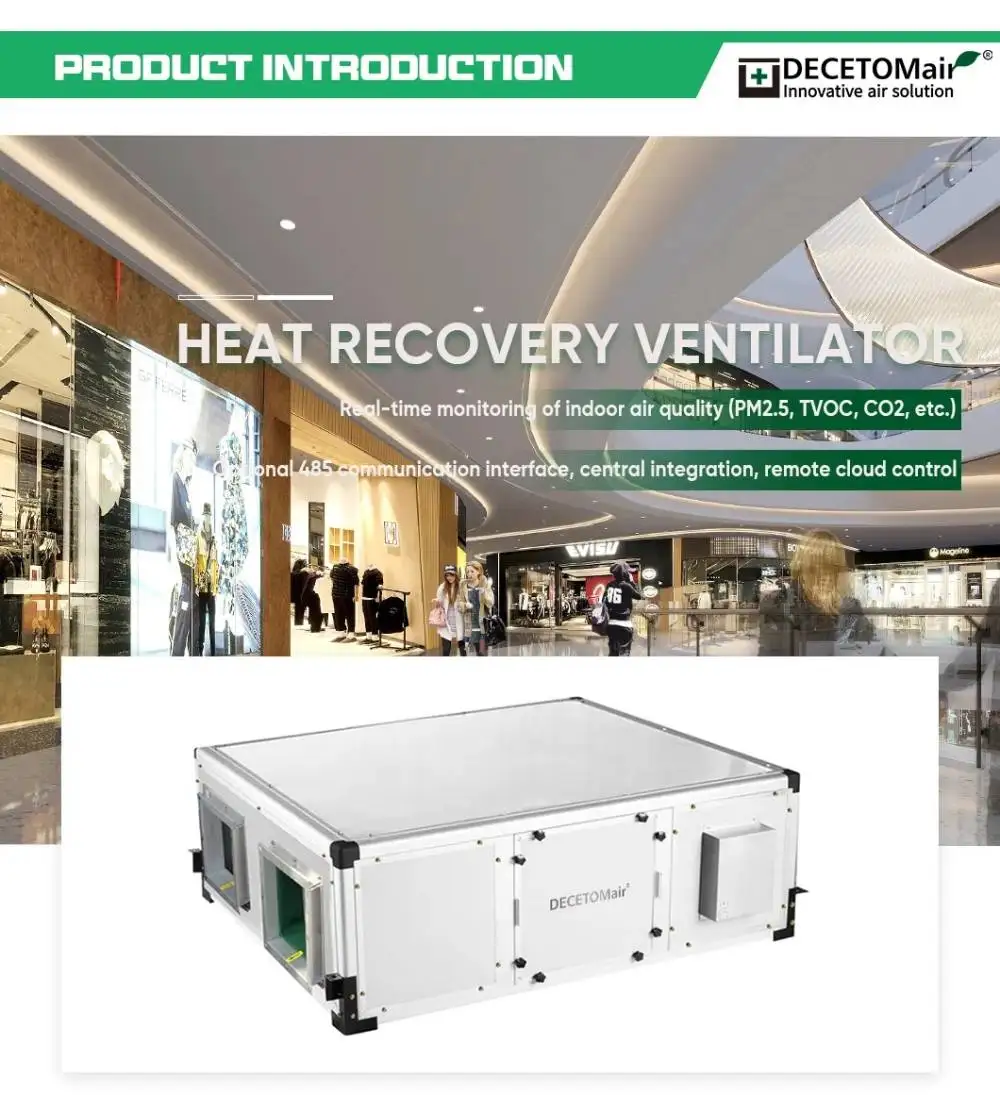

Rectangular ventilation unit pictured against a shopping-mall interior.
24 hours continuous supply of fresh air and exhaust of dirty air to create a comfortable and healthy office and home environment
Grid of ventilation, filtration and optional-control feature icons.
.
.....CONTROLLER OPTIONAL.....
Black touch controller displaying air-quality and fan indicators.
Intelligent LCD Controller/DM-900A
Timing function,
3.5-inch color screen controller
Temperature and humidity,
PM2.5, PM10 and TVOC sensors
Mobile phone APp function,
Tmall Genie voice control
Optional CO2 detection, RS485 port
White ventilation controller with an LCD display and touch controls.
Standard LCD Controller/DM-A50
Timing Function
Indoor Temperature Display
Three-speed contro!
Filter Alarm
RS485 communication interface
Blue-display ventilation controller pictured with a separate remote control.
Remote Control LCD Controller/DM500A
Timing Function
Indoor Temperature Display
Remote control is optional
Three-speed Speed Control
Filter Alarm
Intelligent controller section heading.
THE ENERGY RECOVERY EFFICIENCY OF HEAT EXCHANGE CORE IS HIGH
Function in winter
Features in summer
House diagrams comparing heat-recovery ventilation in heating and cooling conditions.

FORMULA FOR HEAT EXCHANGE

WINTER: indoor air temperature=(indoor temperature-

outdoor temperature) X heat exchange

efficiency+outdoor temperature

EXAMPLE:(2O°C-O°C)×7O%+O°C=14°C

FORMULA FOR HEAT EXCHANGE

SUMMER:

indoor air temperature=(indoor temperature- outdoor temperature) X heat exchange efficiency +outdoor temperature EXAMPLE:35°C-(35°C-26°C)×70%=28.7°C

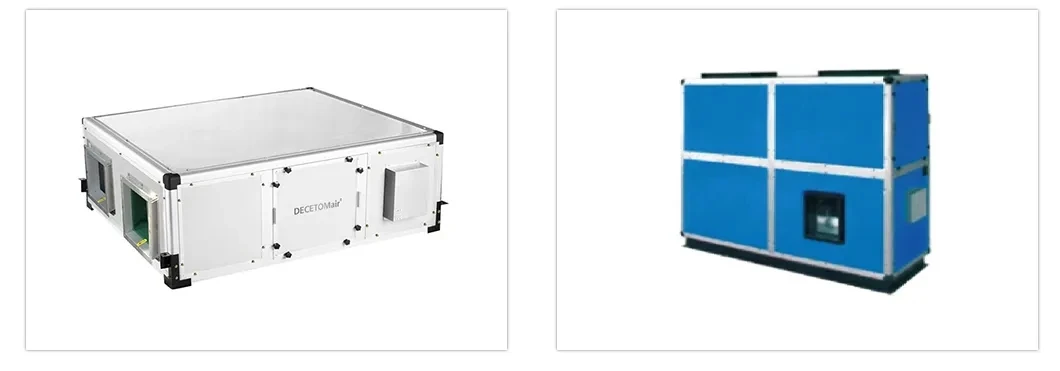

White horizontal and blue cabinet ventilation units shown side by side.

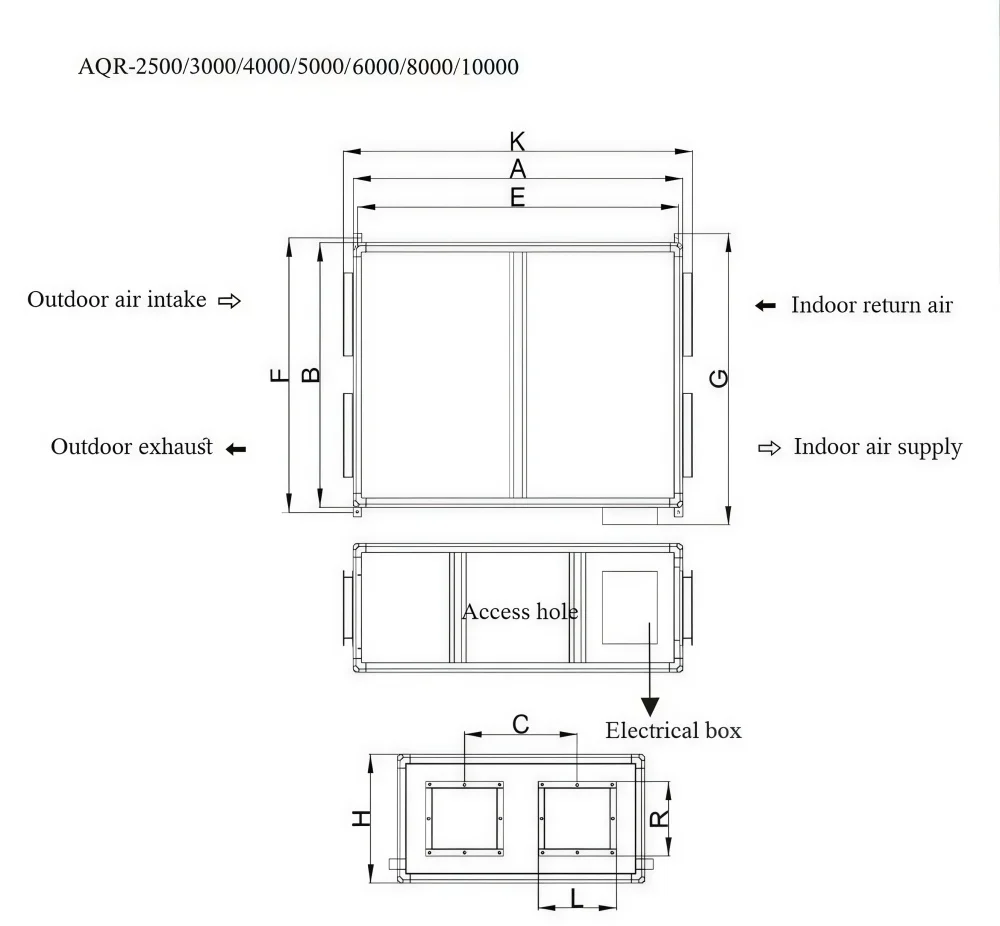

Orthographic dimension drawings of a rectangular ventilation unit.
Unit: mm
Model
A
B
C
D
E
G
H
h
Interface Size
AQR-2500
1480
1080
1120
1440
1580
470
560
400
Φ260X235
AQR-3000
1520
1180
1220
1480
1620
520
560
400
Φ300X258
AQR-4000
1680
1280
1320
1640
1780
570
560
400
Φ330X305
AQR-5000
1680
1480
1520
1640
1780
670
560
400
Φ360X305
AQR-6000
2000
1680
1720
1940
2100
770
840
680
Φ375X380
AQR-8000
2000
1940
1980
1940
2100
900
830
680
Φ500X395
AQR-10000
2000
1940
1980
1940
2100
900
830
680
Φ500X395
Installation schematic showing a suspended ventilation unit, ducts and air terminals.
......WHOLE HOUSE CYCLE......
Large space fast circulation, breathable replacement, protect the respiratory
health of tens of millions of families.
Building ventilation layout with red and green duct routes.
Cutaway illustration of a centrifugal blower housing and impeller.


High-Performance Centrifugal Fan

Galvanized steel volute, large metal impeller, high-quality pure copper motor – low speed, low noise, long-term stable air volume.

Multiple filtration (OPTIONAL)

The initial effect of G4 filter can filter
large particles of dust, coconut shell
activated carbon filter can remove odor
toluene and other pollutants,H12
HEPA filter PM2.5 purification rate of
99%
Exploded illustration of four air-filter layers.

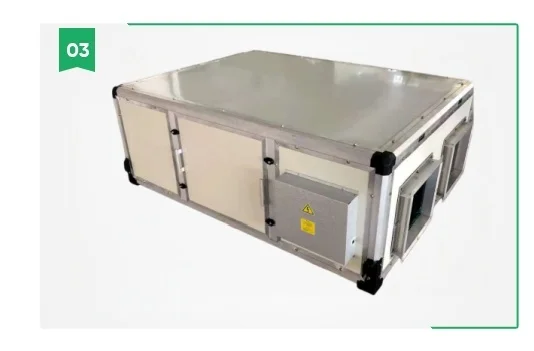

Large rectangular ventilation cabinet with side access panels.

Double-sided color steel plate shell

The shell is made of double-sided

color steel plate with EPS foam inside, offering high insulation, durability and noise reduction. User-friendly maintenance design

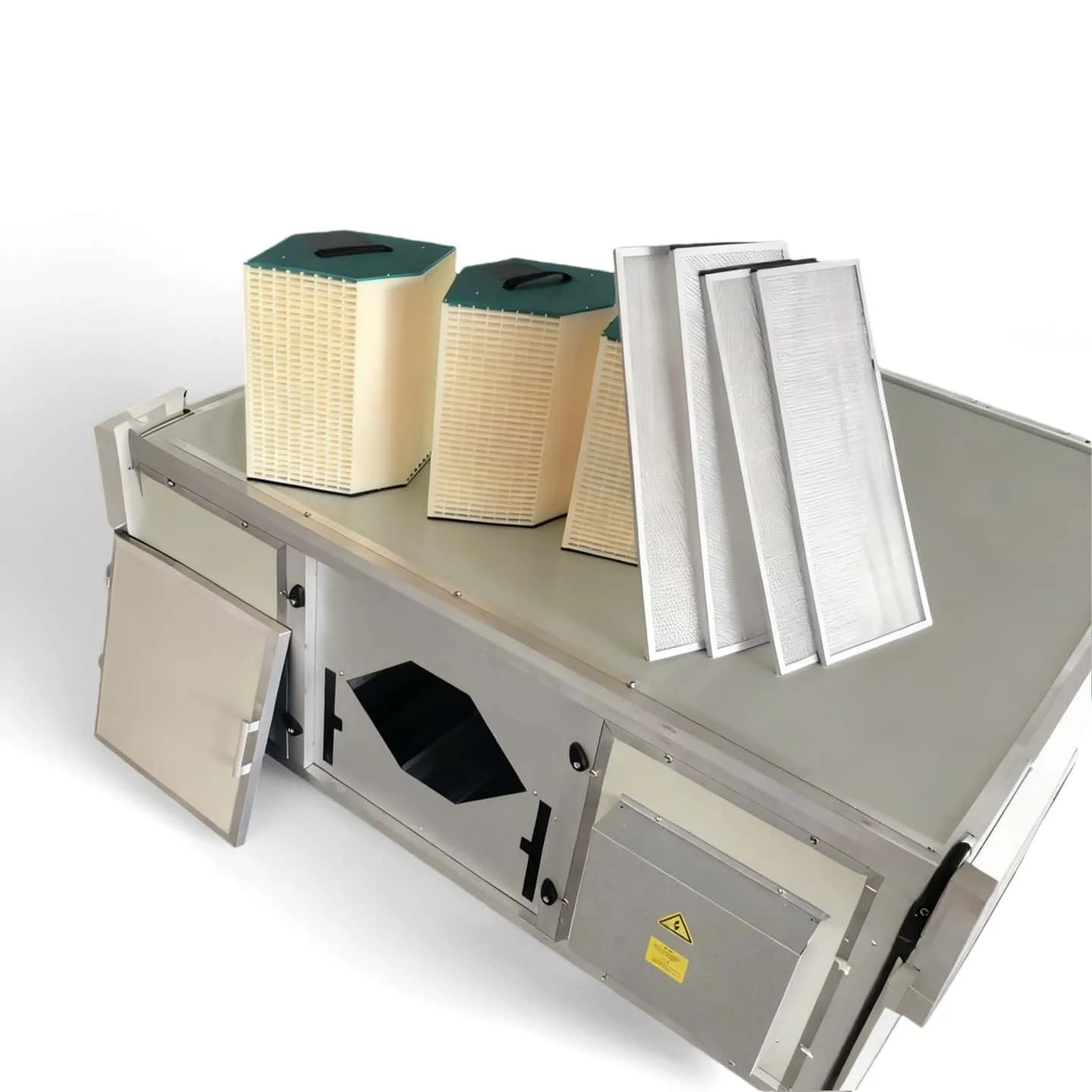

High efficiency

heat exchange

Imported antibacterial nano
paper film,resin frame efficient
solution to energy loss

Hexagonal component with a white panel and dark frame.
.....PRODUCT APPLICATION.....
Hotel, shopping mall and office interiors shown as ventilation application examples.

Wenzhou Daqidi Technology Co., Ltd. is based in Wenzhou, Zhejiang, China. The factory has a floor area of 12,000 square metres, 58 employees and three assembly lines. The team has 20 years of industry experience in residential and commercial fresh-air ventilation.


The company has a factory floor area of 12,000 square meters, 58 employees, three assembly lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. Drawing on 20+ years of industry experience, the team has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.

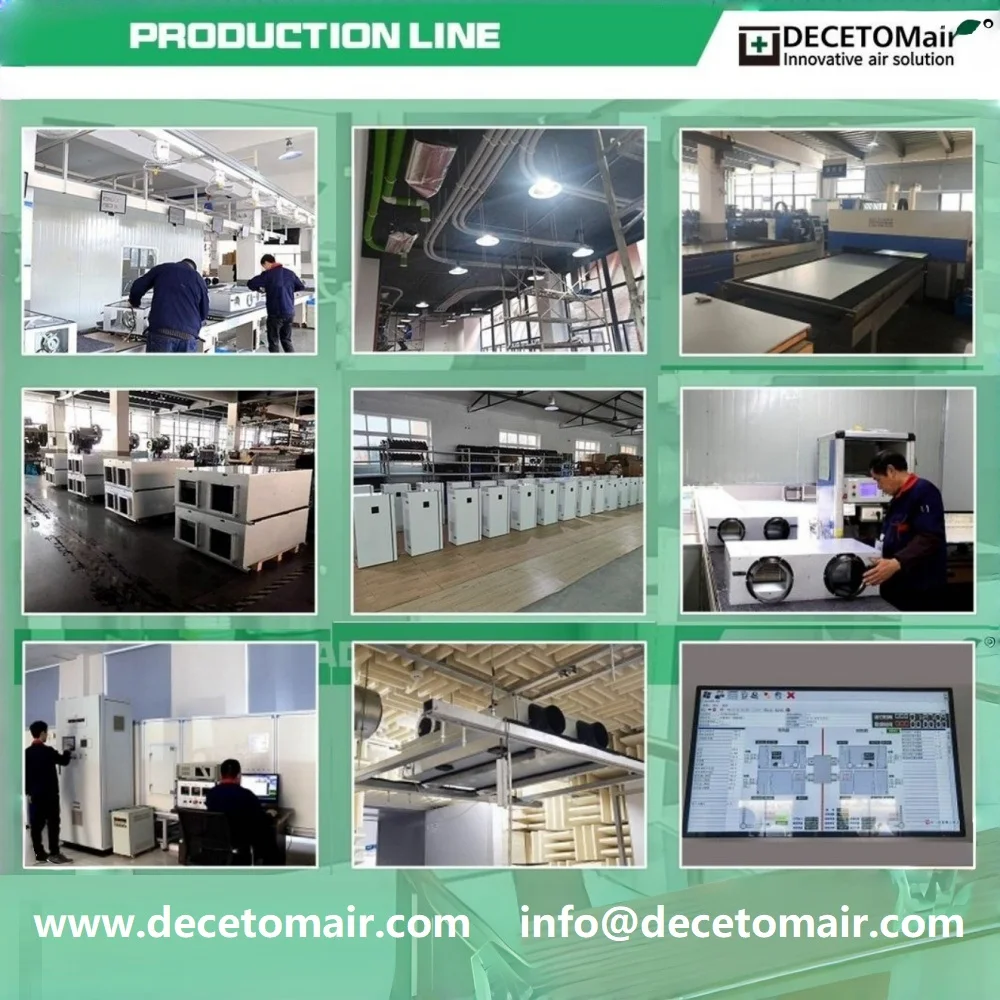

Ventilation equipment production, assembly and inspection photographs.
Cartons, pallets and container loading for ventilation equipment shipments.
DECETOMair exhibition booths and team photographs.
Collage of certificates and test-report documents.
Logos displayed in the Partner Brands graphic.
DECETOMair service and support overview
Illustrated overview of consultation, design, installation and training services.
DECETOMair OEM and ODM process: request, design, samples, production and shipping

Q: What is your MOQ?

A: Generally the MOQ is 10 sets for regular products, 50 sets for customised products. But MOQ bases on different models, and you will see detailed MOQ in our quotation. Or you can contact us for a quick answer by made-in-china TradeMessenger /e-mail/ whatsApp or telephone.

Q: How can I get a sample to check your quality.
A: After the price is confirmed, you can ask for samples to check our quality. If you ask for samples, we will collect sample fees(Some model is free). But the difference in price of the samples will be refunded to you after the order is officially placed.

Q: Can you do the design for us? A: Yes, your design is also welcome. Please send your design idea or drawing to us, and we customize it for you.

Q: What is the payment terms?
A: T/T 30% as deposit before production, T/T 70% as balance before shipment.

Q: What is your delivery time?
A:Retail delivery: in 7 days Sample delivery: in 7-20days Wholesale delivery:15-50 days The exact delivery time is determined by the model, quantity and time of placing the order.

Q: What is the quality assurance?
A: The central fresh-air unit is covered by a three-year warranty, and its controller is covered for one year. Both warranty periods start on the date the product leaves our factory. For quality-related issues covered by the warranty, we supply replacement parts at our expense; shipping costs are borne by the customer.

Q: How will you arrange the shipment?
A: For small samples,we send by DHL/FedEx/UPS/TNT express, and mass production will ship by sea. Sometimes, if you have cargo to go from other Chinese factories,we also can help you arrange consolidation shipment.
