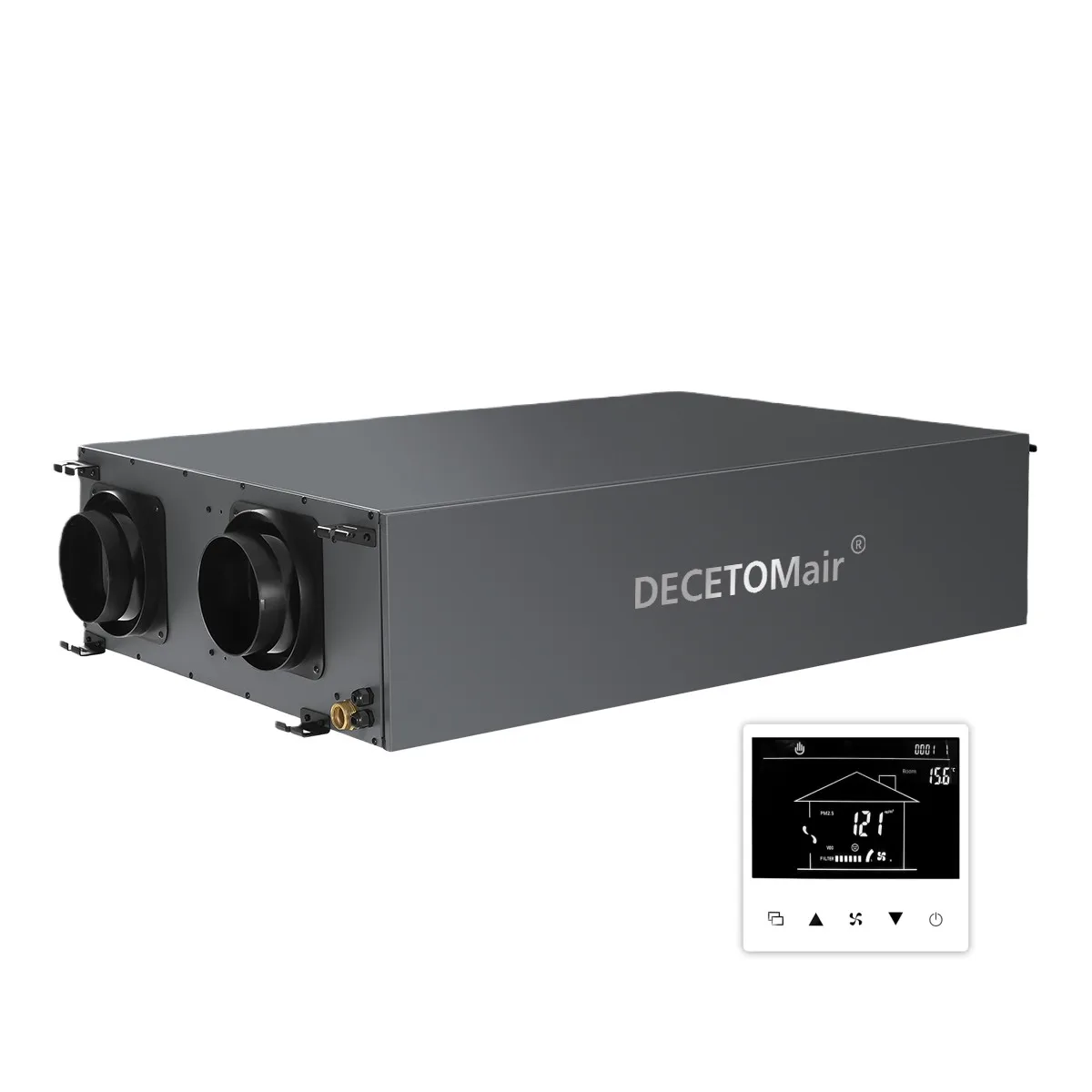

AQCS Fresh Air Dehumidifier with Heat Recovery
Ceiling-mounted ventilation, dehumidification and air purification. Compare AQCS-60 and AQCS-80 below to select the model for your project.
Technical specifications
| Model |
Dehumidification capacity |
Power Supply(V/Hz) |
Power(W) |
Static Pressure(Pa) |
Heat Exchange Rate(%) |
Noise dB(A) |
Fresh air volume(m³/h) |
Applicable Area(m²) |
| AQCS-60 |
60L/D(30ºC RH=80%) |
220/50 |
520 |
230 |
78 |
41 |
450 |
90-120 |
| AQCS-80 |
80L/D(30ºC RH=80%) |
220/50 |
870 |
260 |
78 |
46 |
550 |
130-160 |

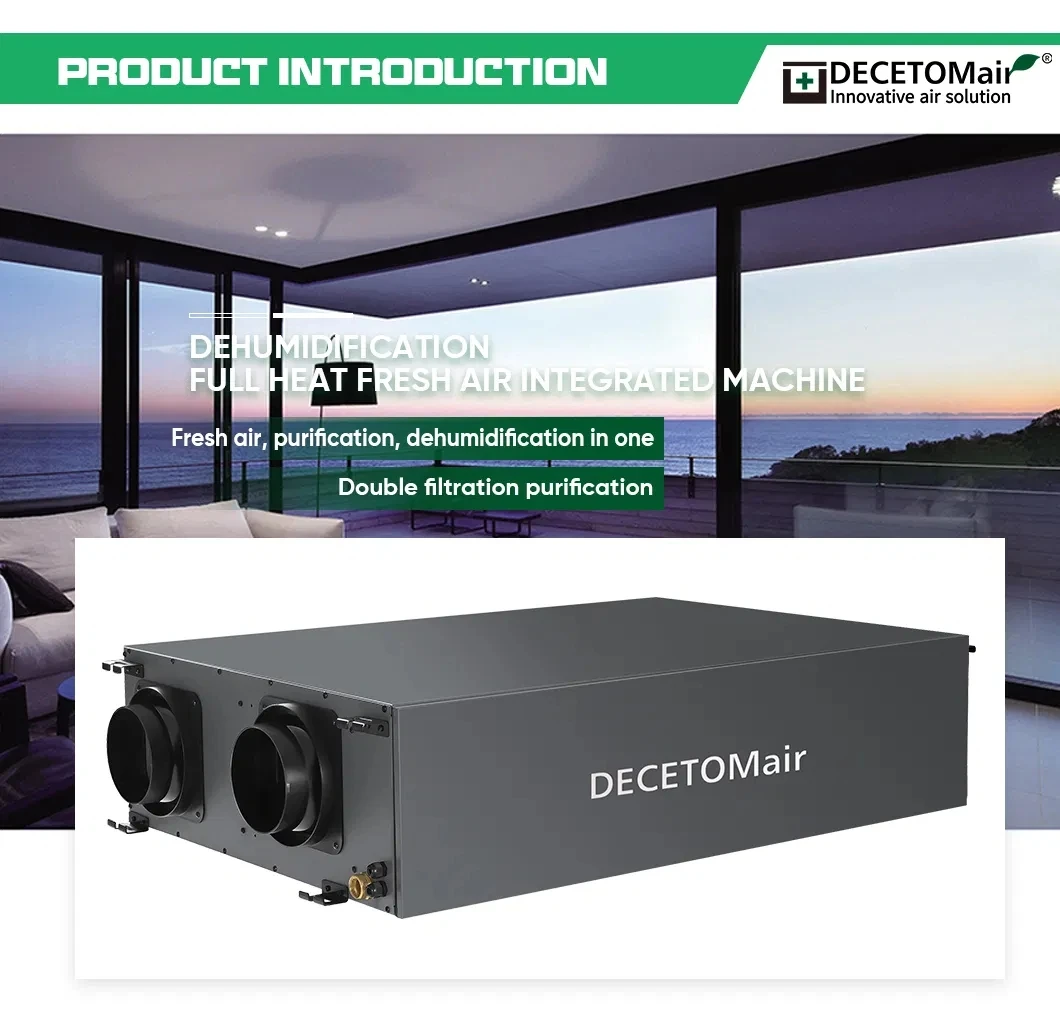

Three functions in one system
Central dehumidification · Heat recovery ventilation · Air purification
Supply air temperature = (indoor temperature − outdoor temperature) × heat exchange rate + outdoor temperature.
Supply air temperature = outdoor temperature − (outdoor temperature − indoor temperature) × heat exchange rate.

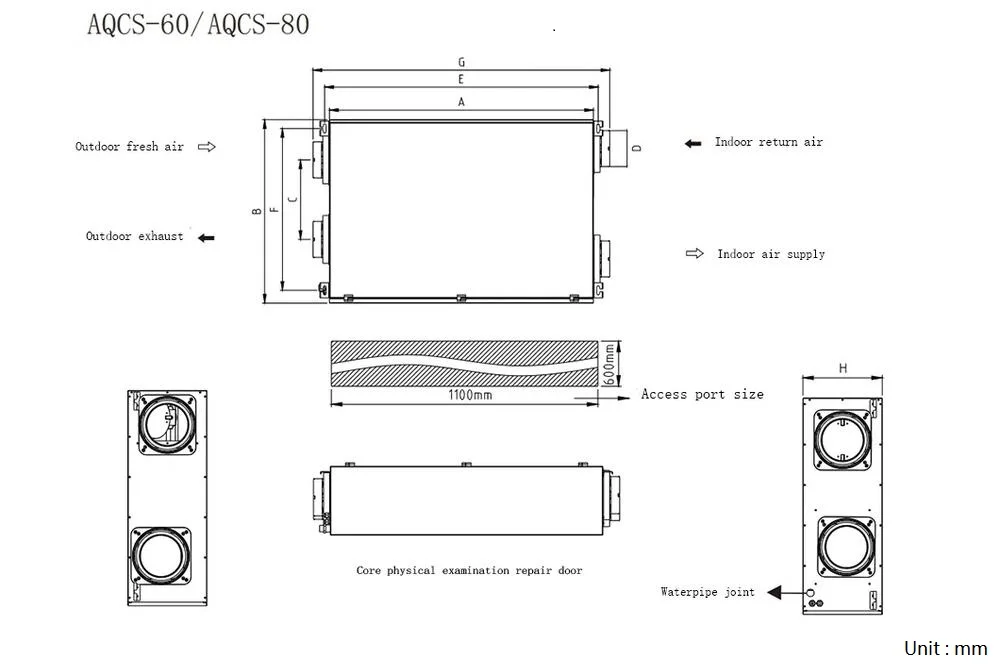

Dimensions — diagram reference
| Model |
A |
B |
C |
D*4 |
E |
F |
G |
H |
| AQCS-60 |
1050 |
730 |
316 |
150 |
1087 |
643 |
1181 |
263 |
| AQCS-80 |
1052 |
731 |
317 |
150 |
1090 |
645 |
1183 |
265 |

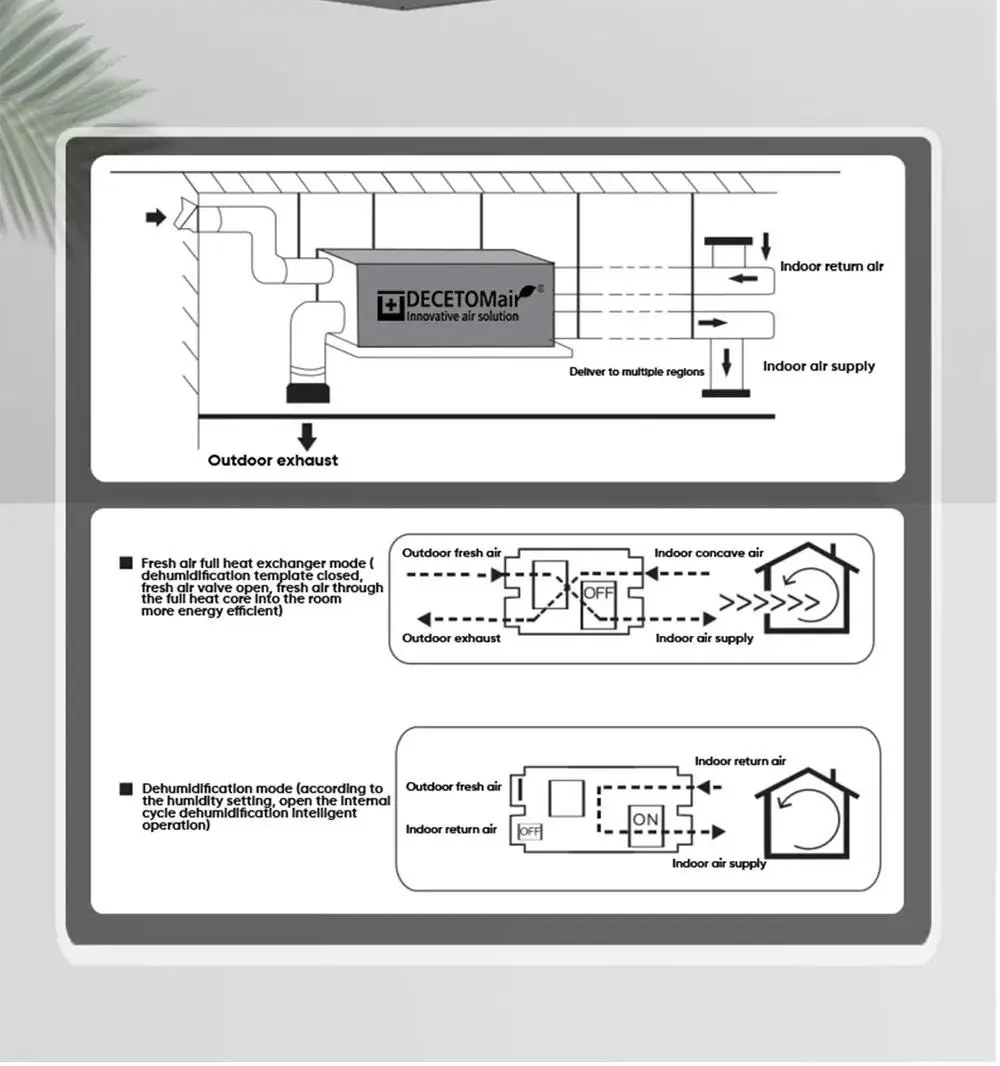

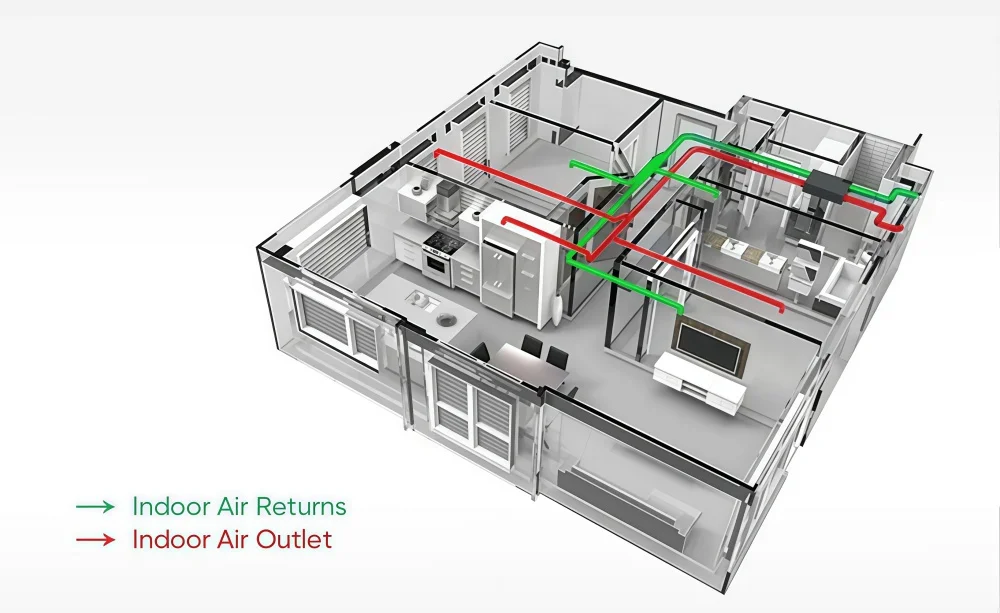

Whole-house air circulation
Fresh air circulation and replacement for indoor spaces.
Intelligent controller: PM2.5 and VOC detection, temperature and humidity monitoring, three-speed regulation, timer, filter reminder and APP control.

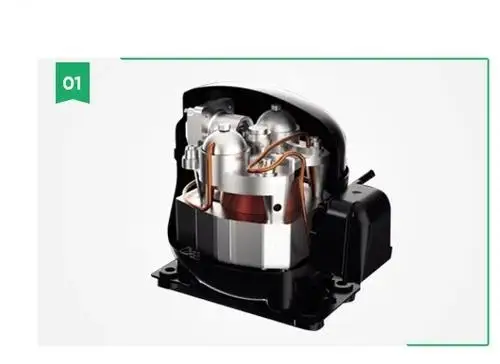

Compressor assembly with an integrated silencing chamber.

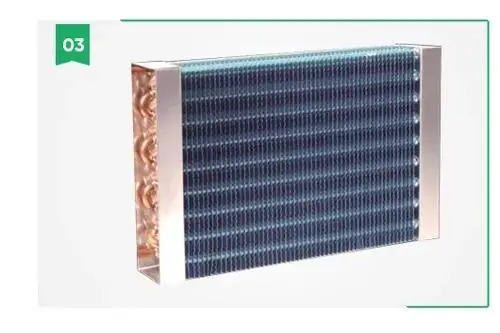

Hydrophilic condenser with a dense fin structure to increase the contact area.

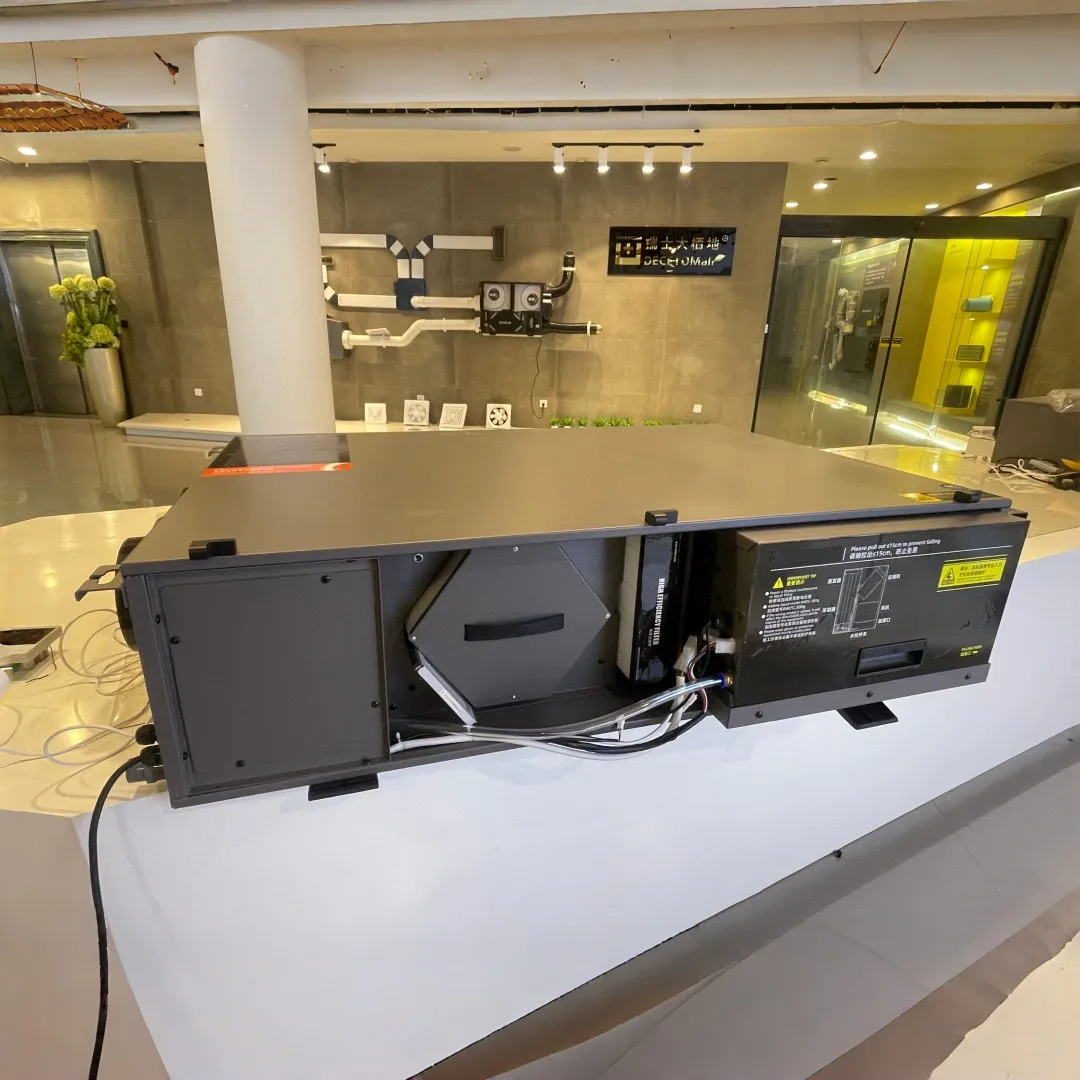

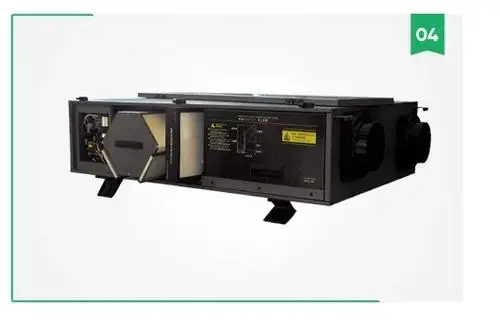

Modular construction and a side-opening service cover provide access for maintenance.
Ventilation, heat recovery and dehumidification
AQCS-60: 60 L/day; AQCS-80: 80 L/day (30°C, RH 80%)
Intelligent controller with APP control
Modular construction with side-opening service cover
