AHE Ceiling-Mounted Heat Recovery Ventilator

Short Description:

AHE ceiling-mounted heat recovery ventilator for fresh-air supply and exhaust in ducted installations. Compare models and request project-specific guidance.

Details

Model
Air Volume (m³/h)
Power Supply (V/Hz)
Rated Power (W)
Maximum Static Pressure (Pa)
Heat Recovery Rate
(%)
Noise
db (A)
Pipe Size (mm)
AHE-15MP
150/100
220/50
50
76
78-85
28/30
150
AHE-20MP
200/150
220/50
76
80
78-85
35/29
150
AHE-25MP
250/230/200
220/50
126
98
78-85
33/31/29
150
AHE-35MP
350/270/200
220/50
163
110
78-85
34/32/30
150
AHE-50MP
500/360/300
220/50
244
175
78-85
36/34/30
200
AHE-60MP
600/500/360
220/50
260
175
78-85
40/36/40
200
AHE-80MP
800/700/620
220/50
330
150
78-85
40/36/33
250
AHE-100MP
1000/780/650
220/50
450
155
78-85
41/36/33
250
AHE-120MP
1200/850/650
220/50
803
160
78-85
41/36/33
250
AHE-150MP
1500/1200/850
220/50
850
200
78-85
41/36/33
250

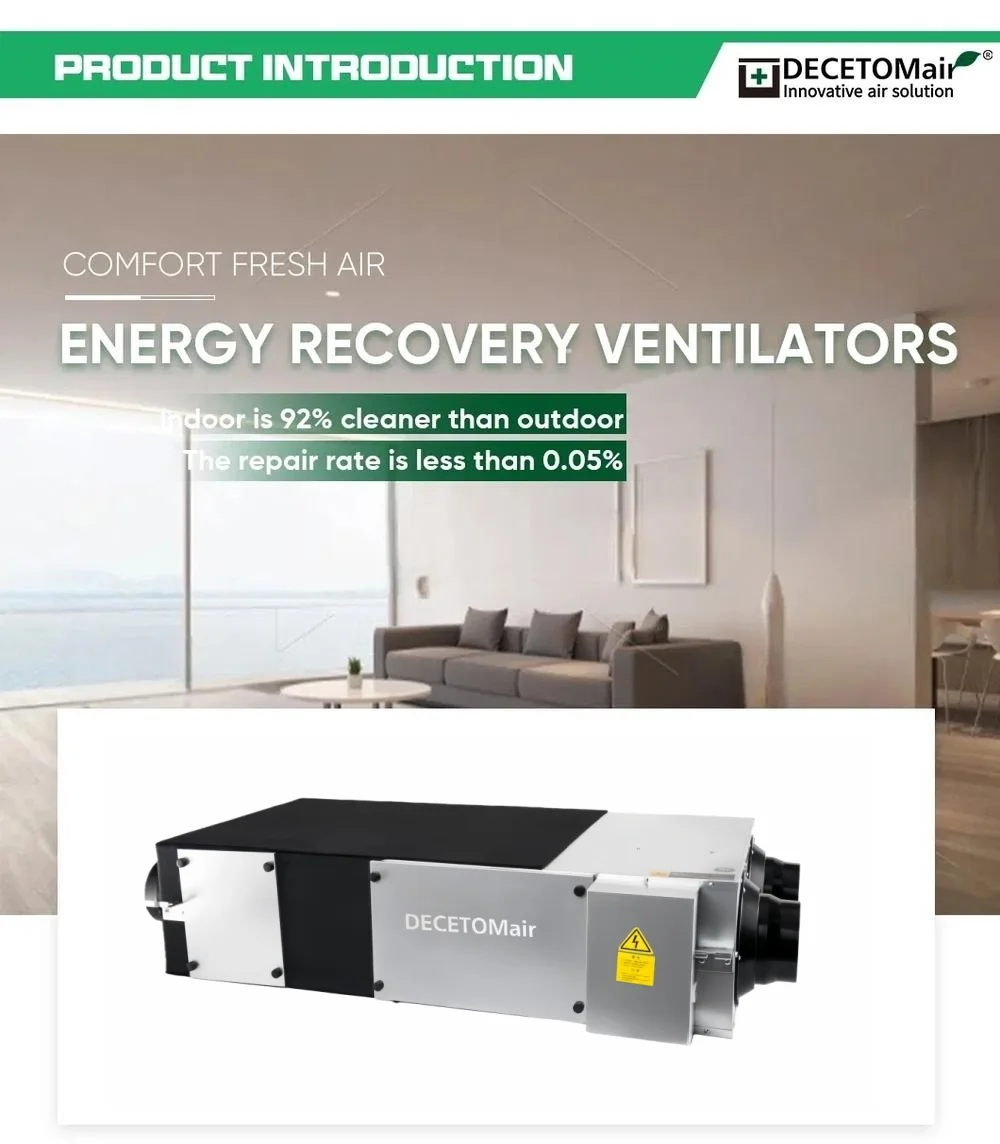

Energy-recovery ventilation unit pictured against a living-room interior.
24 hours continuous supply of fresh air and exhaust of dirty air to create a comfortable and healthy office and home environment
Grid of ventilation, filtration, airflow and control feature icons.
Intelligent controller section heading.
THE ENERGY RECOVERY EFFICIENCY OF HEAT EXCHANGE CORE IS HIGH
Function in winter
Features in summer
House diagrams comparing heat-recovery ventilation in heating and cooling conditions.

FORMULA FOR HEAT EXCHANGE

WINTER: indoor air temperature=(indoor temperature-

outdoor temperature) X heat exchange

efficiency+outdoor temperature

EXAMPLE:(2O°C-O°C)×7O%+O°C=14°C

FORMULA FOR HEAT EXCHANGE

SUMMER:

indoor air temperature=(indoor temperature- outdoor temperature) X heat exchange efficiency +outdoor temperature EXAMPLE:35°C-(35°C-26°C)×70%=28.7°C
.....CONTROLLER OPTIONAL.....
Black touch controller displaying air-quality and fan indicators.
Intelligent LCD Controller/DM-900A
Timing function,
3.5-inch color screen controller
Temperature and humidity,
PM2.5, PM10 and TVOC sensors
Mobile phone APp function,
Tmall Genie voice control
Optional CO2 detection, RS485 port
White ventilation controller with an LCD display and touch controls.
Standard LCD Controller/DM-A50
Timing Function
Indoor Temperature Display
Three-speed contro!
Filter Alarm
RS485 communication interface
Blue-display ventilation controller pictured with a separate remote control.
Remote Control LCD Controller/DM500A
Timing Function
Indoor Temperature Display
Remote control is optional
Three-speed Speed Control
Filter Alarm

.....WHOLE HOUSE CYCLE.....
Large space fast circulation, breathable replacement, protect the respiratory
health of tens of millions of families.
Building ventilation layout with red and green duct routes.

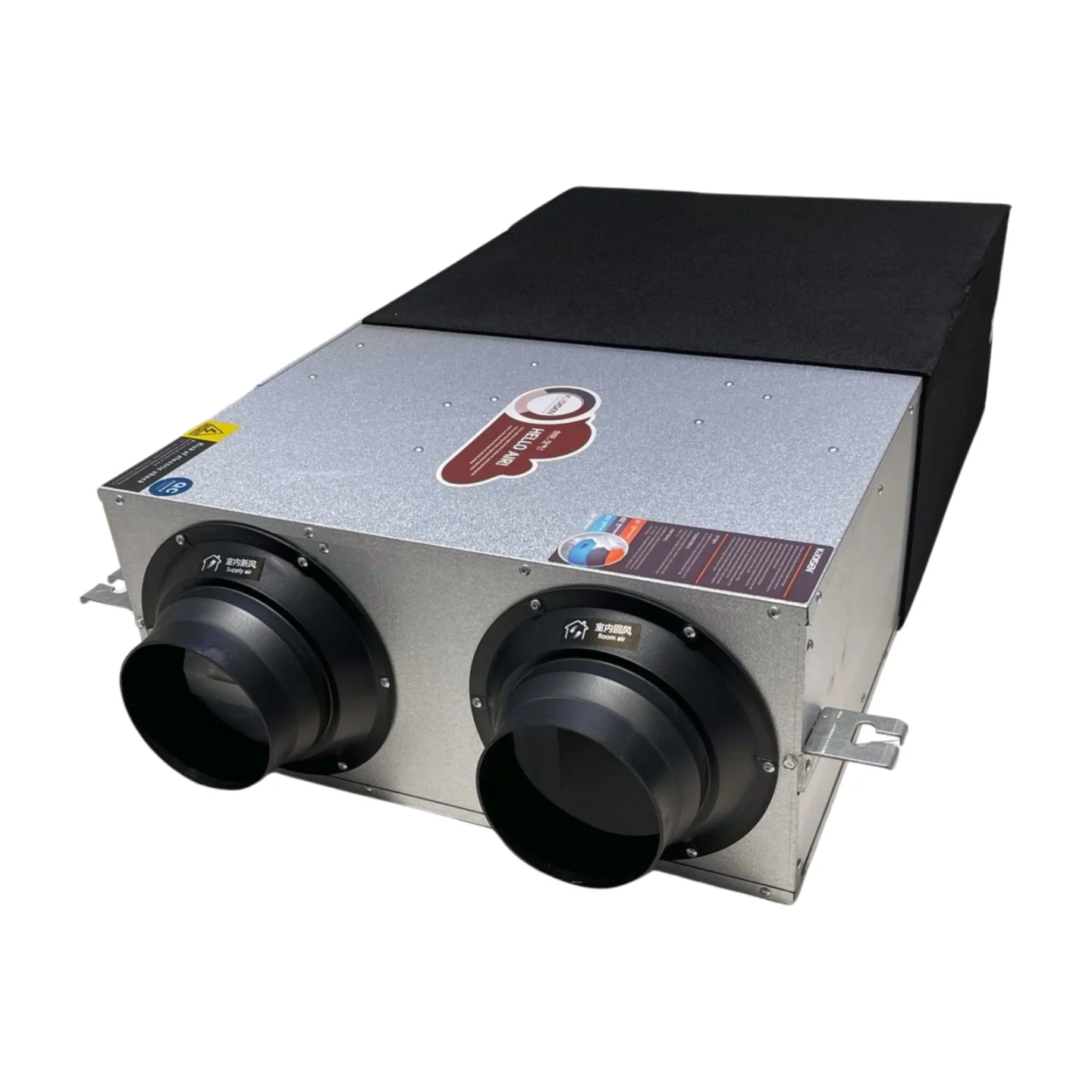

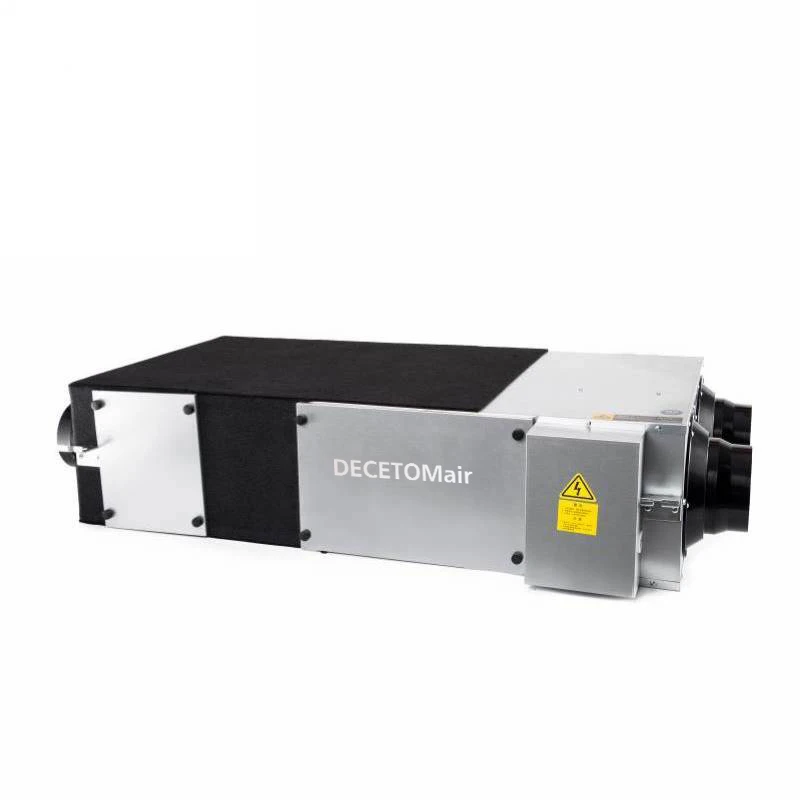

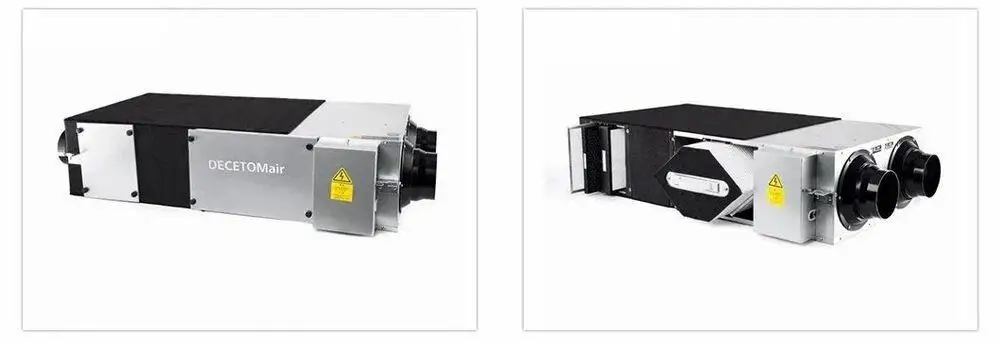

Two views of a black-and-white rectangular ventilation unit.

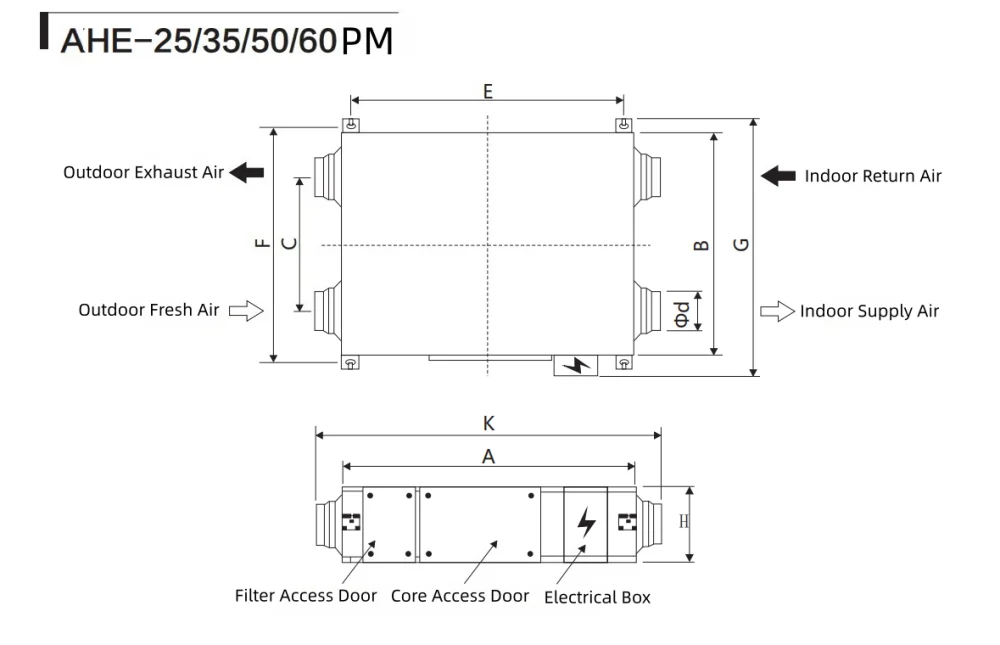

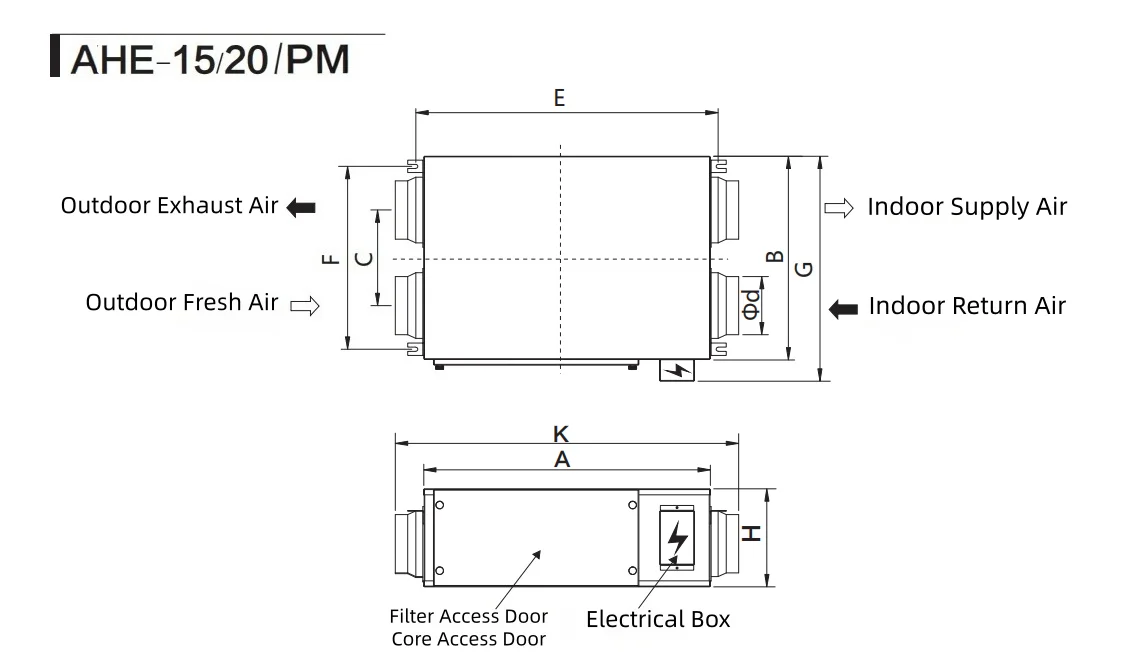

Dimension drawings showing duct ports, filter access and a core access door.

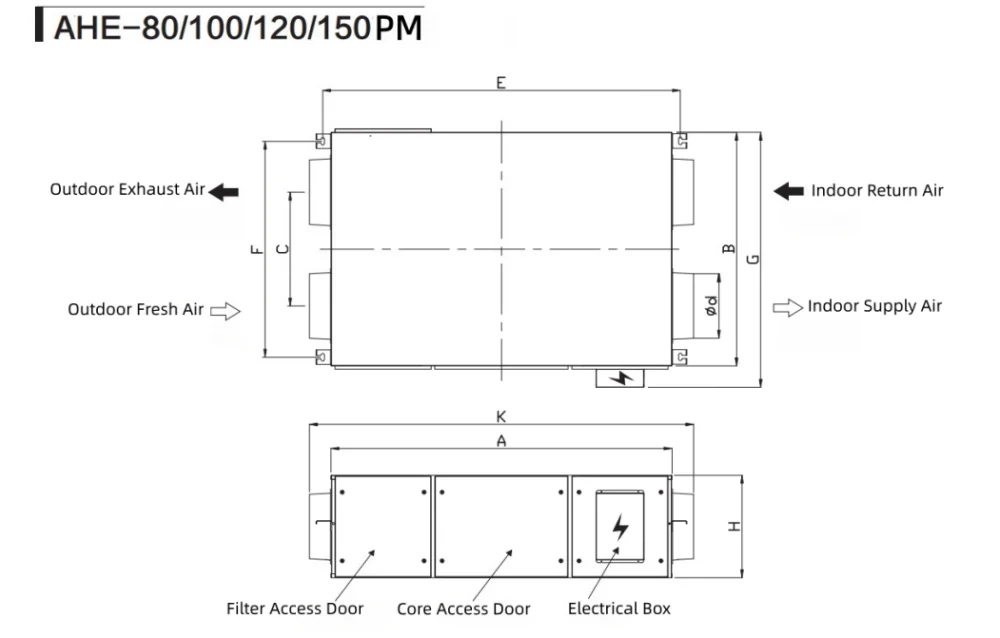

Dimension drawings showing duct ports, service-access doors and an electrical box.
Plan and side dimension drawings of a large ducted ventilation unit.
Unit: mm
Model
A
B
C
E
F
G
H
K
Φd
AHE-15MP
698
495
233
736
445
548
239
836
150
AHE-20MP
698
495
233
736
445
548
239
836
150
AHE-25MP
1135
600
318
1060
660
735
275
1330
150
AHE-35MP
1135
740
458
1060
800
875
275
1330
150
AHE-50MP
1220
900
635
1150
970
1040
320
1370
200
AHE-60MP
1220
900
635
1150
970
1040
320
1370
200
AHE-80MP
1322
885
430
1252
936
1009
335
1492
250
AHE-100MP
1322
1132
681
1252
1186
1256
335
1492
250
AHE-120MP
1322
1132
681
1252
1186
1256
335
1492
250
AHE-150MP
1322
1132
681
1252
1186
1256
335
1492
250

Components Introduction

Exploded illustration of electric motor components.



Brand AC/DC motor

Can run smoothly for a long time.environmental protection and energy saving, long life


PTC electric auxiliary

heating(optional)

In cold weather, turning on the
electric auxiliary heating can warm
the outdoor cold air,
making the breathing
experience more comfortable
on cold days
Close-up of corrugated material in stacked channels.
Exploded illustration of four air-filter layers.

Multiple filtration

The initial effect of G4 filter can filter large particles of dust, coconut shell activated carbon filter can remove odor toluene and other pollutants,H12 HEPA filter PM2.5 purification rate of 99%



High efficiency

heat exchange

Imported antibacterial nano
paper film,resin frame efficient
solution to energy loss

Hexagonal component with a white panel and dark frame.

.....PRODUCT APPLICATION.....
School, hospital and hotel shown as ventilation application examples.

Overview collage of product families and accessories.

Wenzhou Daqidi Technology Co., Ltd. is based in Wenzhou, Zhejiang, China. The factory has a floor area of 12,000 square metres, 58 employees and three assembly lines. The team has 20 years of industry experience in residential and commercial fresh-air ventilation.


The company has a factory floor area of 12,000 square meters, 58 employees, three assembly lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. Drawing on 20+ years of industry experience, the team has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.

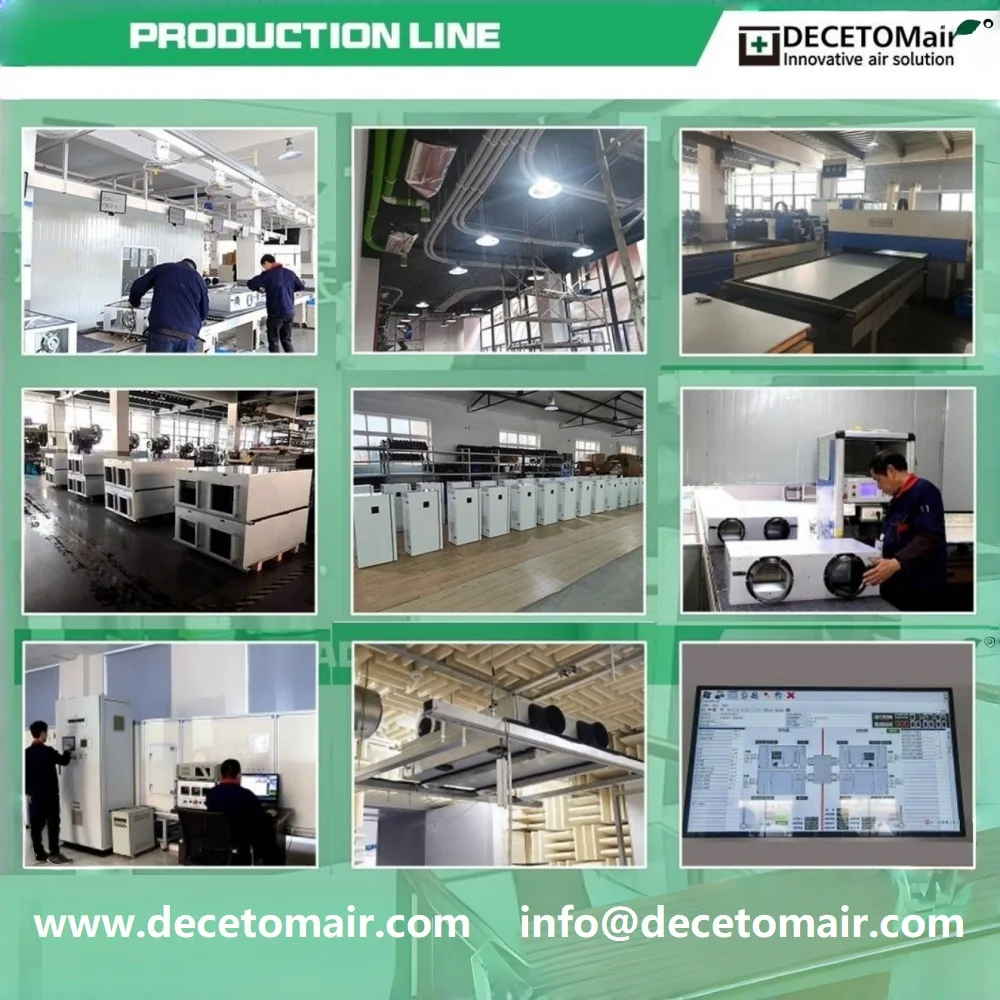

Ventilation equipment production, assembly and inspection photographs.
Cartons, pallets and container loading for ventilation equipment shipments.
DECETOMair exhibition booths and team photographs.
Collage of certificates and test-report documents.
Logos displayed in the Partner Brands graphic.
DECETOMair service and support overview
Illustrated overview of consultation, design, installation and training services.
DECETOMair OEM and ODM process: request, design, samples, production and shipping

Q: What is your MOQ?

A: Generally the MOQ is 10 sets for regular products, 50 sets for customised products. But MOQ bases on different models, and you will see detailed MOQ in our quotation. Or you can contact us for a quick answer by Alibaba TradeMessenger /e-mail/ whatsApp or telephone.

Q: How can I get a sample to check your quality.
A: After the price is confirmed, you can ask for samples to check our quality. If you ask for samples, we will collect sample fees(Some model is free). But the difference in price of the samples will be refunded to you after the order is officially placed.

Q: Can you do the design for us?
A: Yes, your design is also welcome. Please send your design idea or drawing to us, and we customize it for you.

Q: What is the payment terms?
A: T/T 30% as deposit before production, T/T 70% as balance before shipment.

Q: What is your delivery time?
A:Retail delivery: in 7 days Sample delivery: in 7-20days Wholesale delivery:15-50 days The exact delivery time is determined by the model, quantity and time of placing the order.

Q: What is the quality assurance?
A: The central fresh-air unit is covered by a three-year warranty, and its controller is covered for one year. Both warranty periods start on the date the product leaves our factory. For quality-related issues covered by the warranty, we supply replacement parts at our expense; shipping costs are borne by the customer.
