ADCS Ceiling-Mounted Dehumidifier

Short Description:

ADCS Ceiling-Mounted Dehumidifier.

Details

Parameter Item/Model
ADCS-35
ADCS-65
ADCS-100
Dehumid. Cap.(30℃RH80%)
35 L/D
65 L/D
100 L/D
Air Flow
450 m³/h
700 m³/h
890 m³/h
Volt. & Freq.
220/50 V/Hz
220/50 V/Hz
220/50 V/Hz
Rated Power
489 W
990 W
1210 W
Rated Current
2.3 A
4.54 A
5.6 A
Ext. Residual Press.
115 pa
110 pa
105 pa
Refrigerant
R134A
R410A
R22
Dimension
762*403*252mm
895*571*321mm
925*553*373mm
Interface Size
150 mm
200 mm
200 mm
Net Weight
32 KG
45 KG
59 KG
Applicable Area
50-80 ㎡
70-120 ㎡
90-140 ㎡
The central dehumidifier features hidden ceiling-mounted installation and full-house humidity control. Equipped with a primary G4 filter and a built-in humidity sensor, it removes excess indoor moisture, enables intelligent operation by setting the target relative humidity, and delivers air that meets the preset humidity standard to the entire room. Ideal for meeting humidity control needs of both comfortable living and industrial scenarios, it ensures a dry, healthy indoor environment for various applications.
Ducted dehumidifier pictured against a modern house and pool setting.
Room-interior illustrations explaining concealed dehumidifier installation and airflow.
Ceiling-mounted dehumidifier introduction panel.
Four illustrated feature panels for a dehumidifier's motor, compressor, housing and sensor.
Four illustrated panels showing coil, ceiling installation, filter and protection features.
House cross-section illustrating a ceiling-mounted dehumidifier, air inlet, outlet and drain.
Wired dehumidifier control panel with a blue LCD and push buttons.
Labelled diagram of a dehumidifier controller's display and buttons.
Ceiling-mounted ducted dehumidifier illustration above a split room comparison.

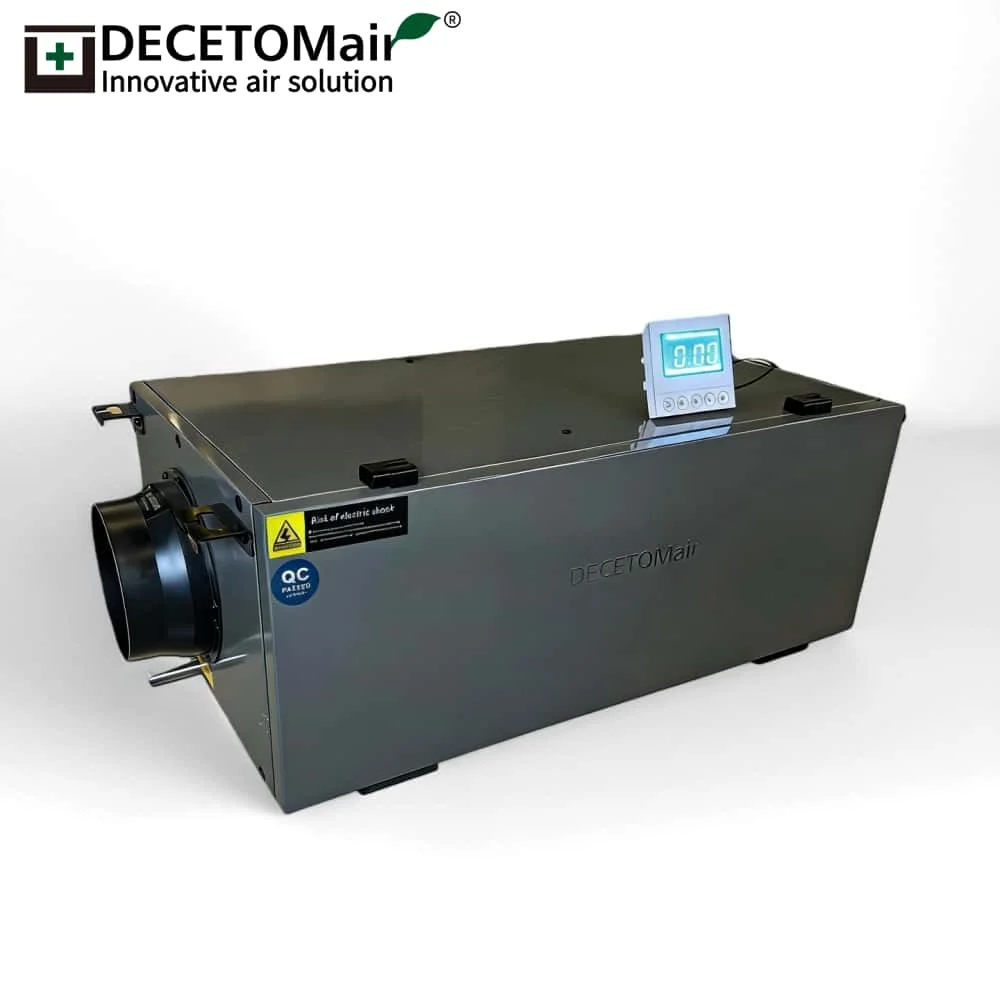

Ducted dehumidifier shown with its cover closed and open.
Orthographic dimension drawings of a ducted dehumidifier.
Unit: mm
Model
A
B
C
D
E
F
H
ADCS-35
620
658
762
320
383
403
252
ADCS-65
750
788
895
490
551
571
321
ADCS-100
780
818
935
470
533
553
373
Cutaway illustration of a compressor assembly.


BRAND COMPRESSOR

Equipped with professional brand compressor,Ensure compressor
life and lasting power,
Built-in muffler to buffer airflow
And low operating noise,

Unleash powerful performance



WATER FILM CONOENSER

Dense thread structure,
effectively increase the
contact area of cold catalyst,
super hydrophilic, durable

large dehumidification efficiency

Finned coil with copper tubing.

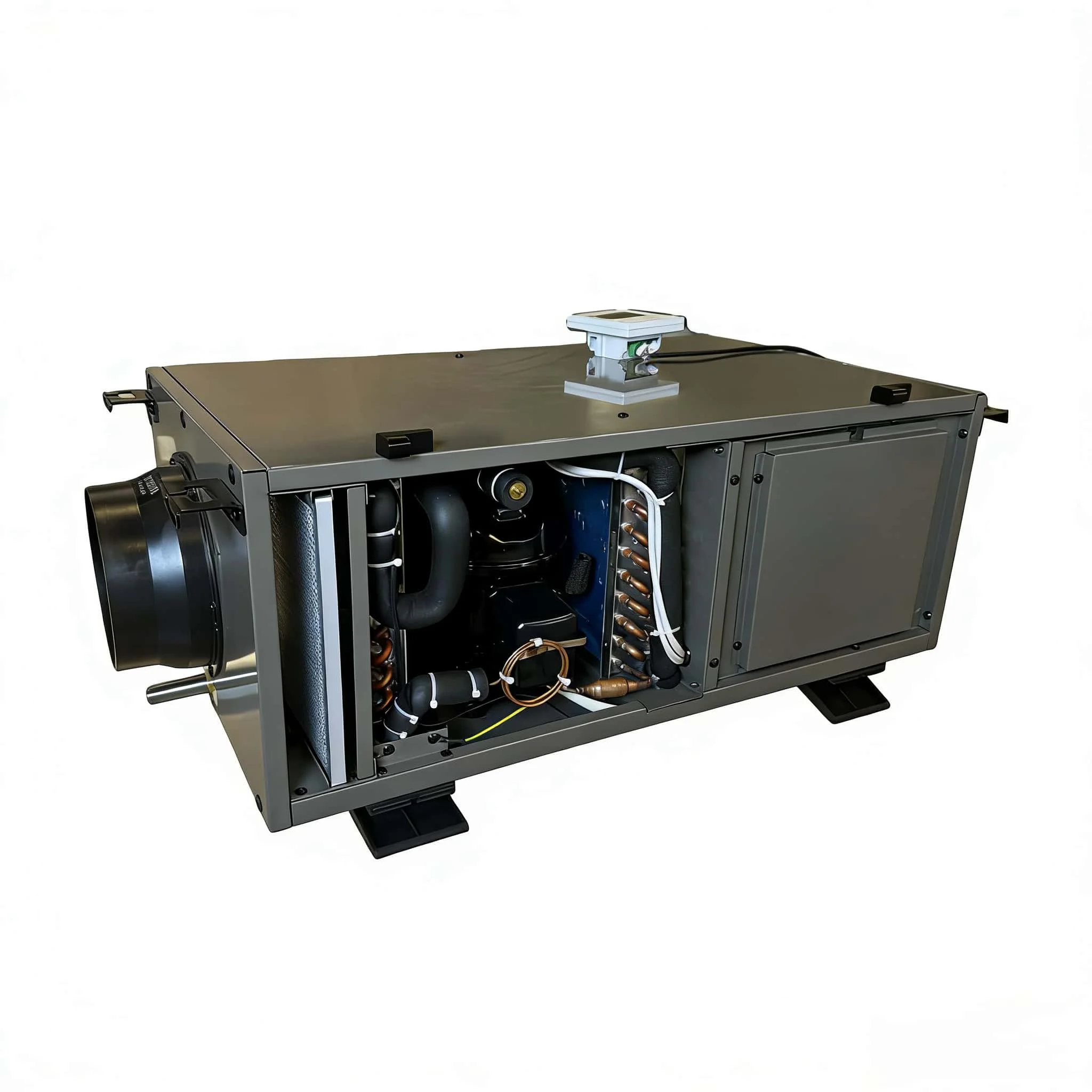

Open dehumidifier cabinet showing internal components and pipework.
EASY MAINTENANCE
Modular design of the whole machine parts can be pulled, easy to repair and maintenance: SPCC high temperature spray body structure is tight strong corrosion resistance

EFFECTIVE

PURIFICATION

G4 primary filter for central

dehumidifiers: Captures large
particles (dust, lint) to keep the
dehumidifier’s internal
components clean and maintain
efficient operation.
White rectangular mesh filter panel.
Exploded illustration of an electric motor rotor and stator.
AC MOTOR

High-quality AC motor with

pure copper core. Powerful
output for heavy loadsHigh
energy efficiency & low power loss.Stable & long-lasting

operation

House-section installation and airflow illustration for a ducted dehumidifier.
Basement, wardrobe, study and office interiors shown as dehumidifier application examples.

Overview collage of ventilation equipment and accessories.

Wenzhou Daqidi Technology Co., Ltd. is based in Wenzhou, Zhejiang, China. The factory has a floor area of 12,000 square metres, 58 employees and three assembly lines. The team has 20 years of industry experience in residential and commercial fresh-air ventilation.


The company has a factory floor area of 12,000 square meters, 58 employees, three assembly lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. Drawing on 20+ years of industry experience, the team has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.

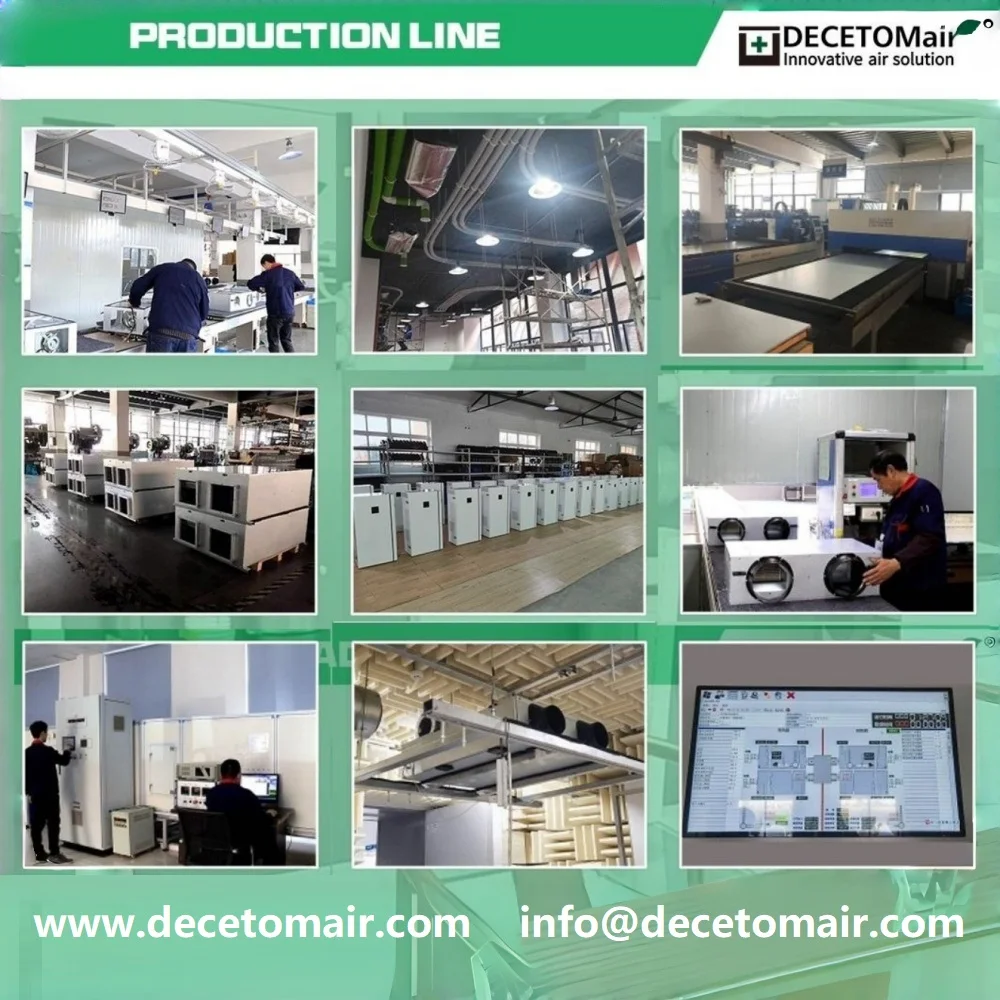

Ventilation equipment production, assembly and inspection photographs.
Cartons, pallets and container loading for ventilation equipment shipments.
DECETOMair exhibition booths and team photographs.
Collage of certificates and test-report documents.
Logos displayed in the Partner Brands graphic.
DECETOMair service and support overview
Illustrated overview of consultation, design, installation and training services.
DECETOMair OEM and ODM process: request, design, samples, production and shipping

Q: What is your MOQ?

A: Generally the MOQ is 10 sets for regular products, 50 sets for customised products. But MOQ bases on different models, and you will see detailed MOQ in our quotation. Or you can contact us for a quick answer by Alibaba TradeMessenger /e-mail/ whatsApp or telephone.

Q: How can I get a sample to check your quality.
A: After the price is confirmed, you can ask for samples to check our quality. If you ask for samples, we will collect sample fees(Some model is free). But the difference in price of the samples will be refunded to you after the order is officially placed.

Q: Can you do the design for us? A: Yes, your design is also welcome. Please send your design idea or drawing to us, and we customize it for you.

Q: What is the payment terms?
A: T/T 30% as deposit before production, T/T 70% as balance before shipment.

Q: What is your delivery time?
A:Retail delivery: in 7 days Sample delivery: in 7-20days Wholesale delivery:15-50 days The exact delivery time is determined by the model, quantity and time of placing the order.

Q: What is the quality assurance?
A: The dehumidifier is covered by a three-year warranty, and its controller is covered for one year. Both warranty periods start on the date the product leaves our factory. For quality-related issues covered by the warranty, we supply replacement parts at our expense; shipping costs are borne by the customer.

Q: How will you arrange the shipment?
A: For small samples,we send by DHL/FedEx/UPS/TNT express, and mass production will ship by sea. Sometimes, if you have cargo to go from other Chinese factories,we also can help you arrange consolidation shipment.
