ABSD-L Ceiling-Mounted Single-Flow Fresh Air Ventilator

Short Description:

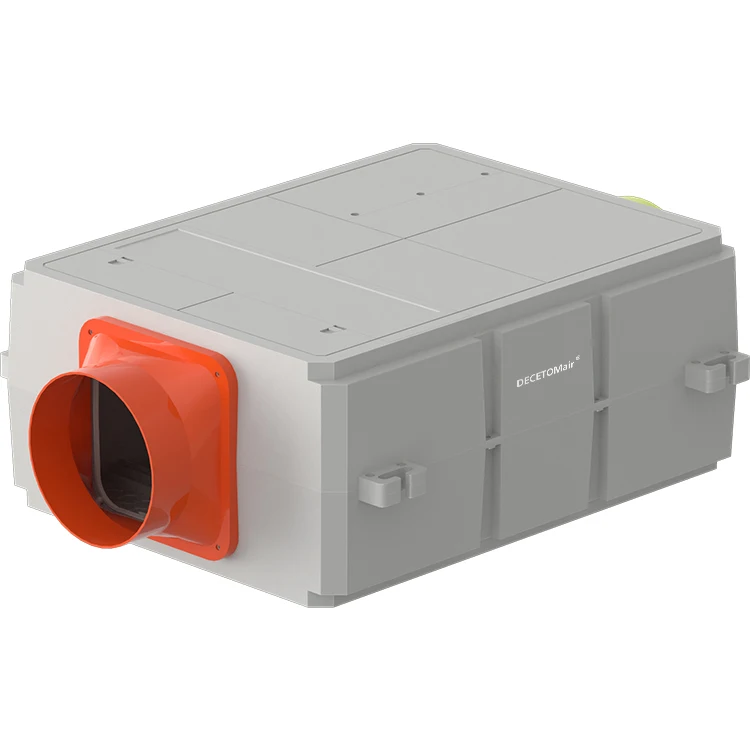

ABSD-L ceiling-mounted single-flow fresh air ventilator for ducted supply air. Review model options and request project-specific selection guidance.

Details

Model
Air volume
Power Supply
Rated power
Max static pressure
Noise
(m³/h)
(V/Hz)
(W)
(Pa)
dB(A)
ABSD-150L
200
220/50
60
85
38
ABSD-250L
400
220/50
80
80
38
ABSD-350L
600
220/50
150
120
40

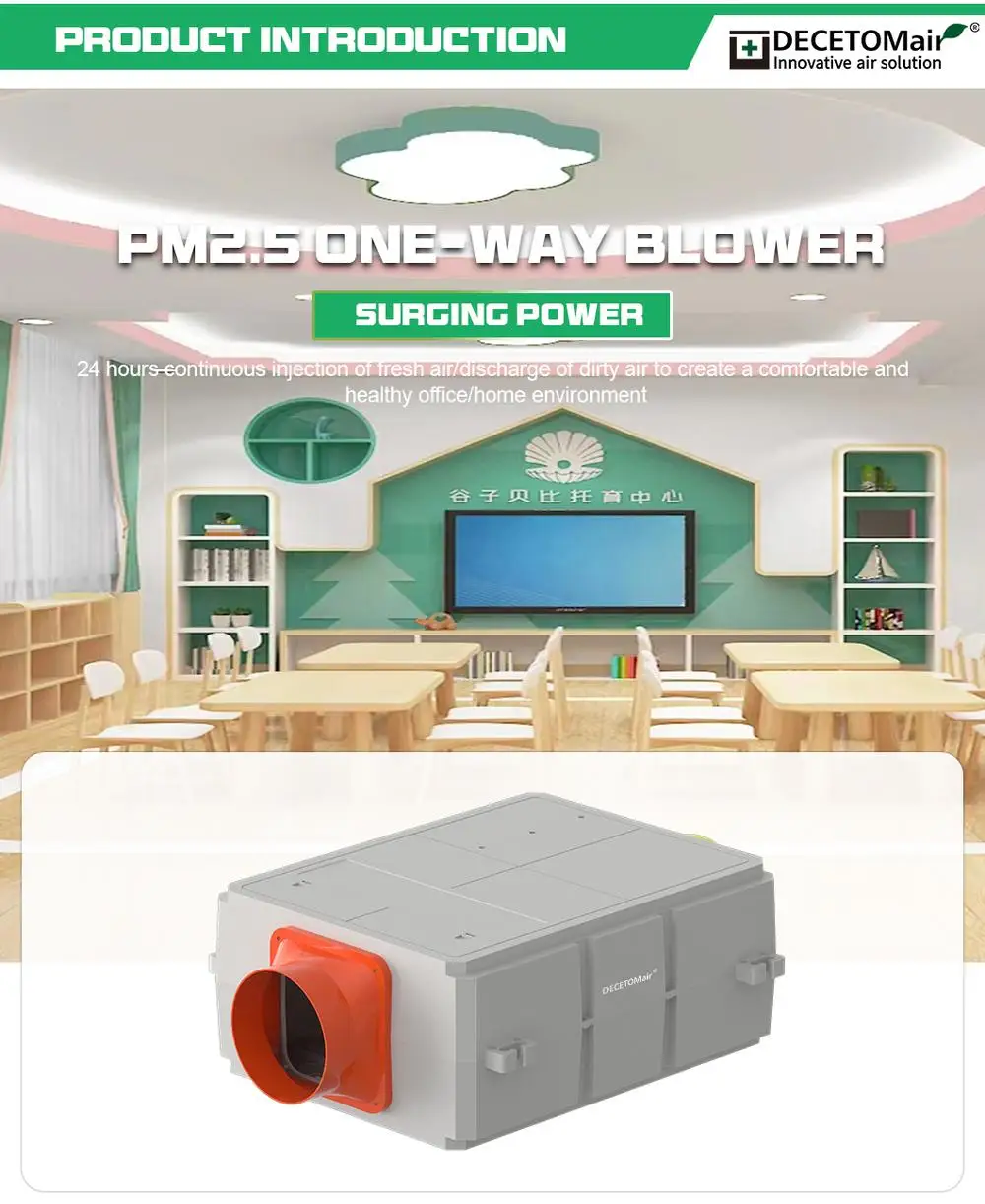

Grey ducted blower unit with an orange port cover pictured against a classroom interior.
Primary filter (G4), high efficiency HEPA (H12) filter Purification efficiency of
up to 99.9%,think of healthy breathing;Suitable for shopping malls, hotels, villas,
restaurants,office buildings and other adult traffic places,providing sufficient fresh air volume.

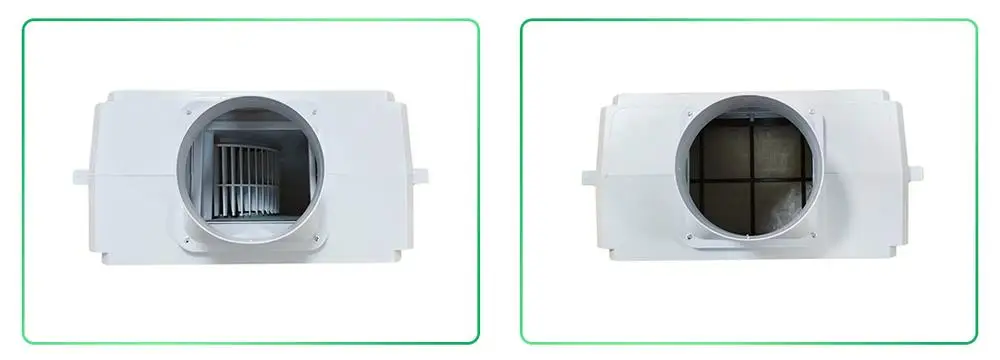

Two end views of a ducted unit showing the fan and filter sides.
Icons depicting equipment size, airflow, pressure and sound.

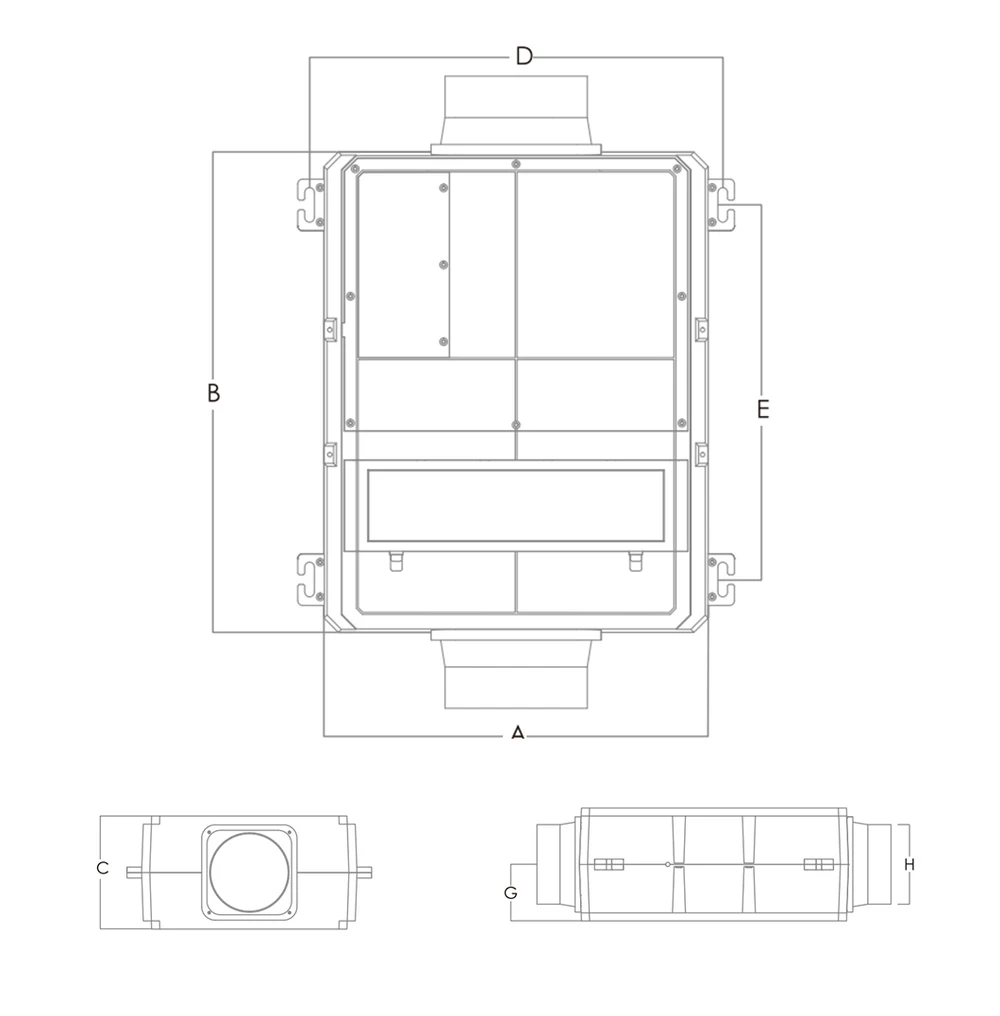

Plan, side and end dimension drawings of a ducted unit.
Unit: mm
Model
A
B
C
D
E
F
G
ABSD-150L
400
500
210
430
390
105
Φ110
ABSD-250L
400
500
210
430
390
105
Φ150
ABSD-350L
400
500
210
430
390
105
Φ150
Line drawing of a duct fan, suspension hardware and an inspection opening.
.....CONTROLLER OPTIONAL.....

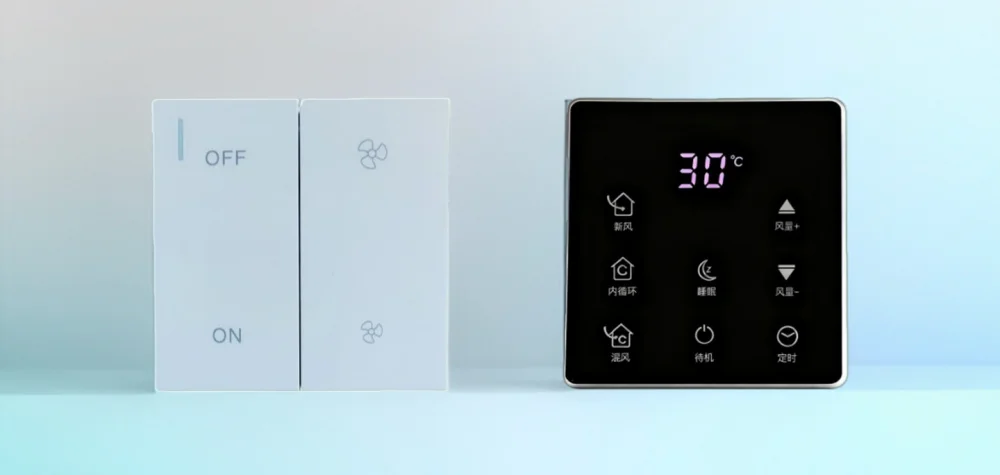

White button switch and black digital ventilation controller shown side by side.

PRODUCT ADVANTAGE
Illustration of an electric motor and shaft.


HIGH STATIC

PRESSURE FAN
High static pressure fan, suitable forall kinds of commercial places longer pipe line, greater static pressure greater air volume, 24 hours
uninterrupted operation

ACCURATE IMPELLER
STRUCTURE


Newly upgraded ABS wind wheel,

comprehensive optimization,

stable air supply suitable for
long-distance air supply and

exhaust needs

Centrifugal fan impeller with curved blades.

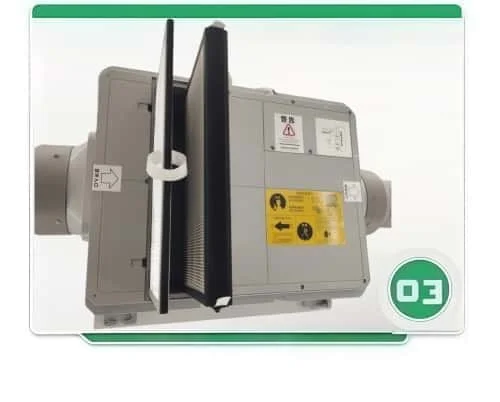

Ducted unit shown with two filter panels pulled up from the housing.


MULTIPLE

FILTRATION
G4 Primary filter,
H12 HEPA filter
Filter pollutants
like dust, odors and smog.
effective filtration rate of
up to 99.9%
.
.....INSTALLATION MODE.....
Apartment ventilation layout and a separate duct-connection schematic.
PRODUCT APPLICATION

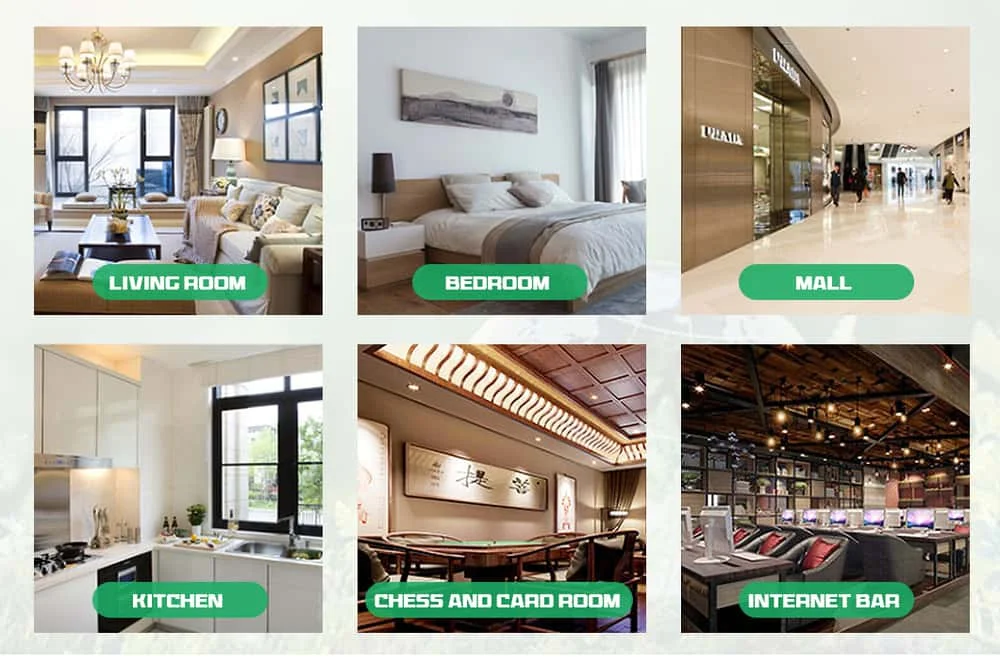

Living room, bedroom, mall, kitchen, recreation room and internet-cafe interiors.

Overview collage of ventilation equipment and accessories.

Wenzhou Daqidi Technology Co., Ltd. is based in Wenzhou, Zhejiang, China. The factory has a floor area of 12,000 square metres, 58 employees and three assembly lines. The team has 20 years of industry experience in residential and commercial fresh-air ventilation.


The company has a factory floor area of 12,000 square meters, 58 employees, three assembly lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. Drawing on 20+ years of industry experience, the team has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.

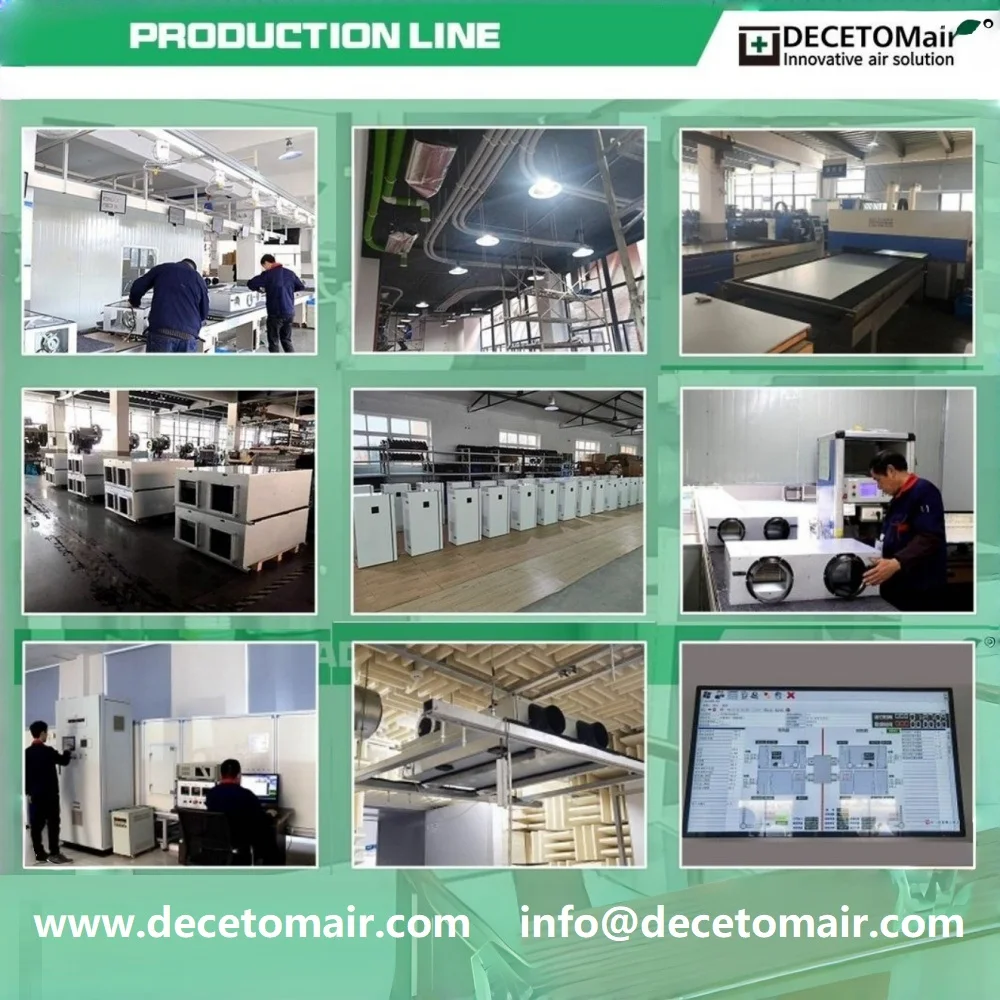

Ventilation equipment production, assembly and inspection photographs.
