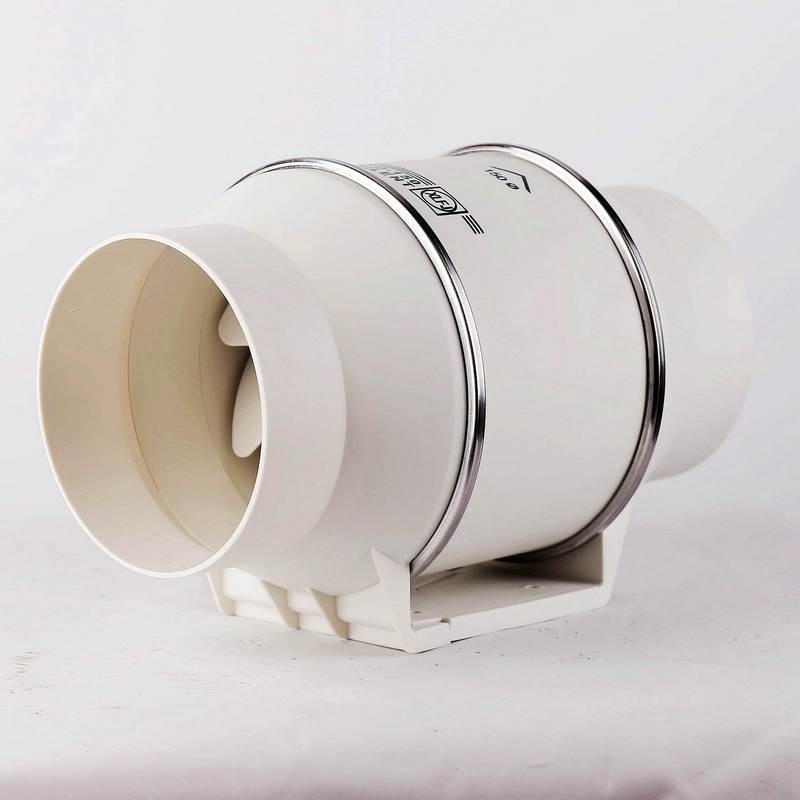

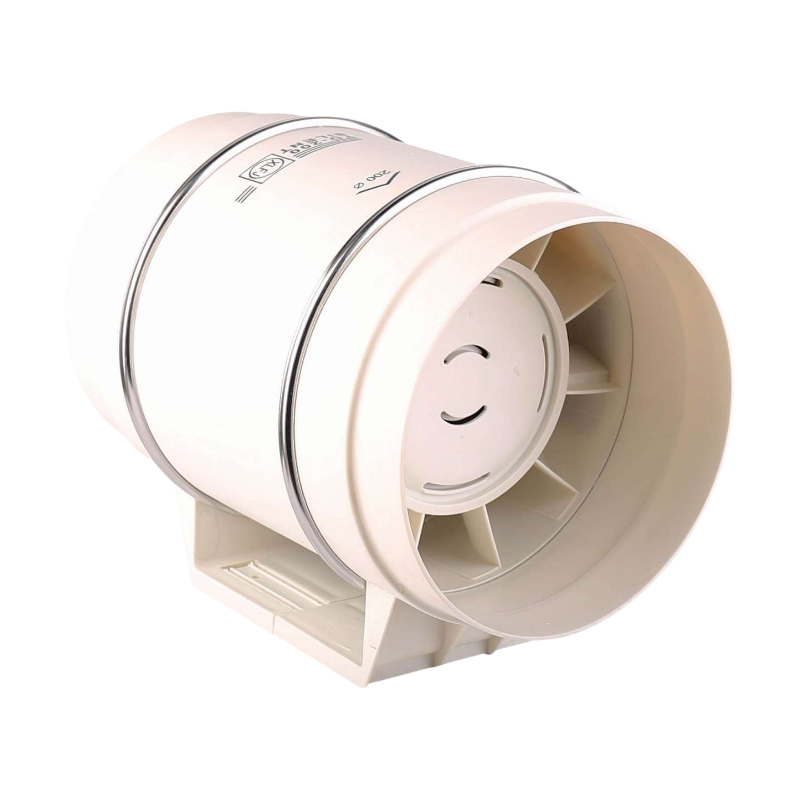

CASING
The casing is made of low-flammable polypropylene.

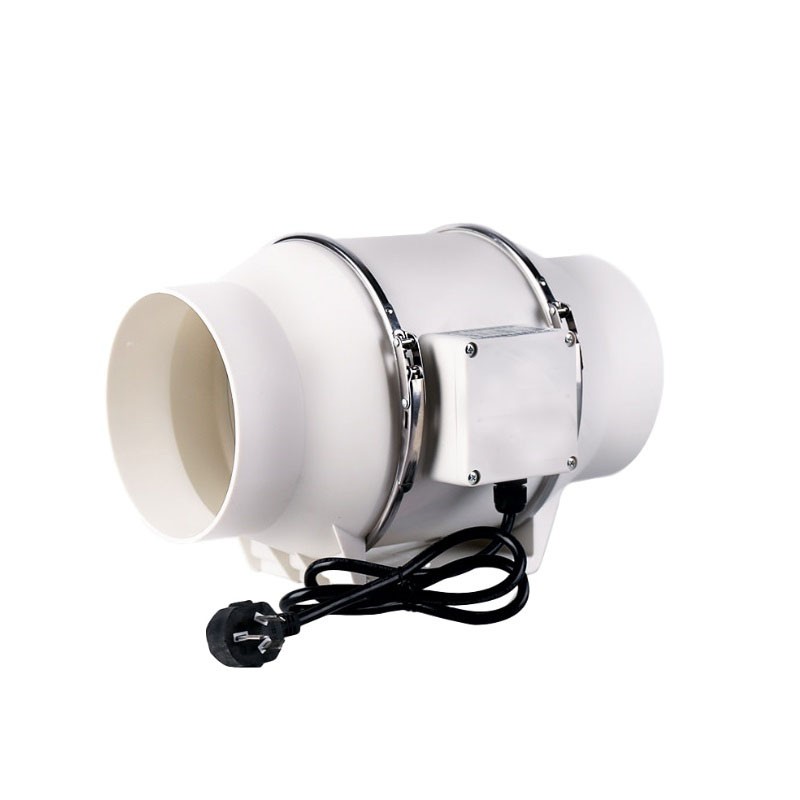

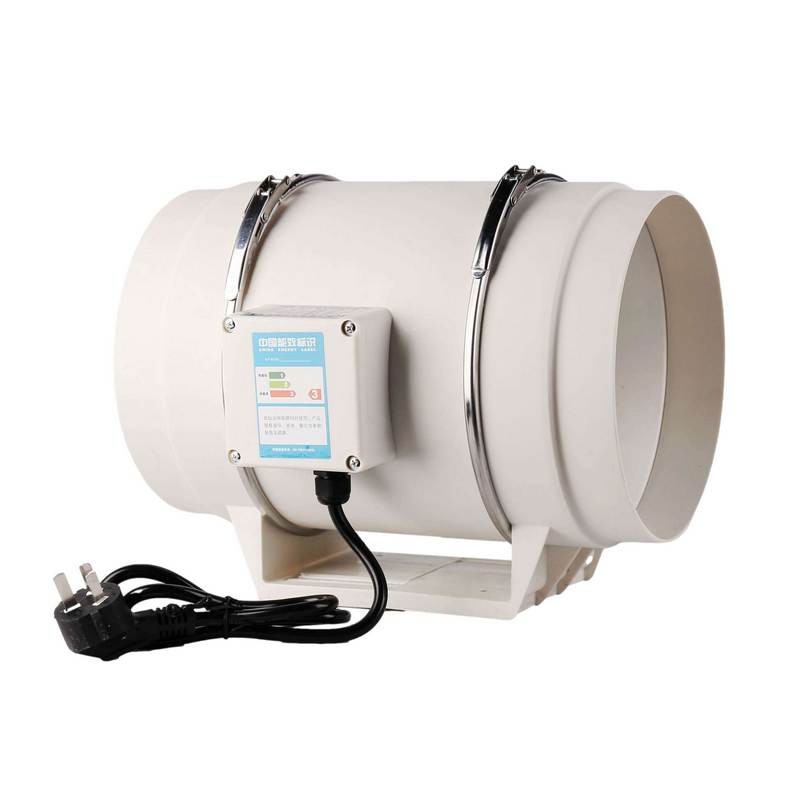

Ventilation unit with terminal box.
Can be turned to any position.

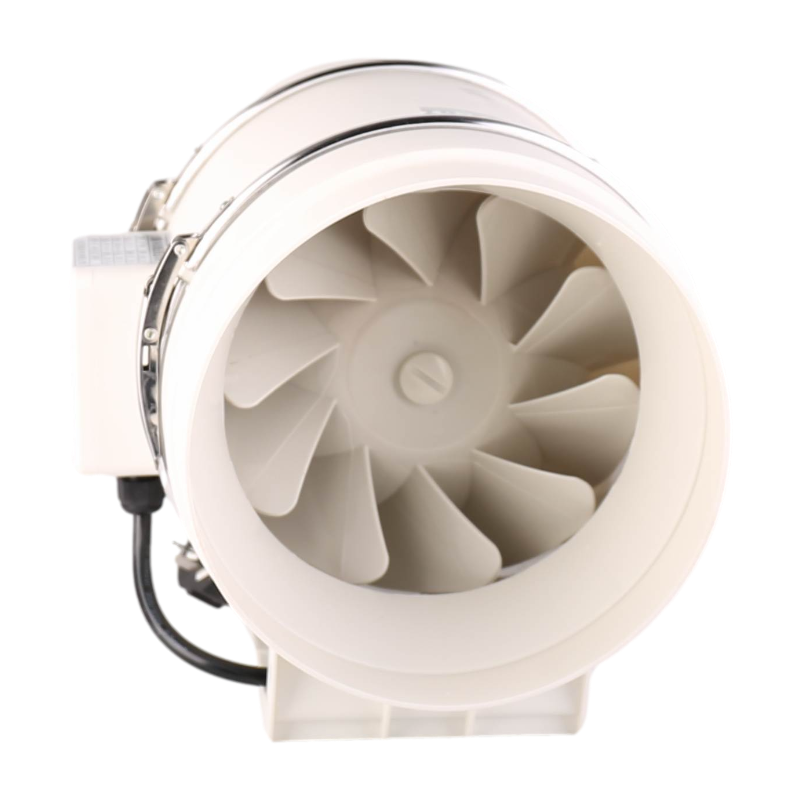

Special design of the casing permits easy dismantling of the impeller and motor block for fan servicing without dismantling the air duct.
MOTOR
One-speed single-phase motor on ball bearings. Equipped with thermal overheating protection.
MOUNTING
Due to the compact design the fan is the ideal solution for mounting in limited spaces, including space behind a false ceiling.
The fan can be installed in any section of the ventilation system from intake to the end of the ductworks. Wall or ceiling mounting with a mounting plate.
TD: mounting kit for installation of one diameter fans in parallel (for boosting capacity)
TL: mounting kit for installation of one diameter fans in series (for boosting pressure).
Product parameters
| Model |
Air volume |
Power |
Rated power |
Maximum static pressure |
Noise |
Exterior dimension |
Tuyere |
| (m³/h) |
(V/Hz) |
(W) |
(Pa) |
dB(A) |
(mm) |
(mm) |
| AXG-75 |
220 |
220/50 |
35 |
150 |
31 |
220X170X150 |
75 |
| AXG-100 |
310 |
220/50 |
40 |
180 |
34 |
300X215X185 |
100 |
| AXG-125 |
310 |
220/50 |
40 |
180 |
34 |
295X215X185 |
125 |
| AXG-150 |
540 |
220/50 |
75 |
300 |
38 |
310X230X220 |
150 |
| AXG-200 |
900 |
220/50 |
130 |
380 |
43 |
305X240X250 |
200 |
| AXG-250 |
1450 |
220/50 |
225 |
488 |
50 |
390X300X280 |
250 |
| AXG-315 |
2900 |
220/50 |
320 |
630 |
69 |
445X400X345 |
315 |
