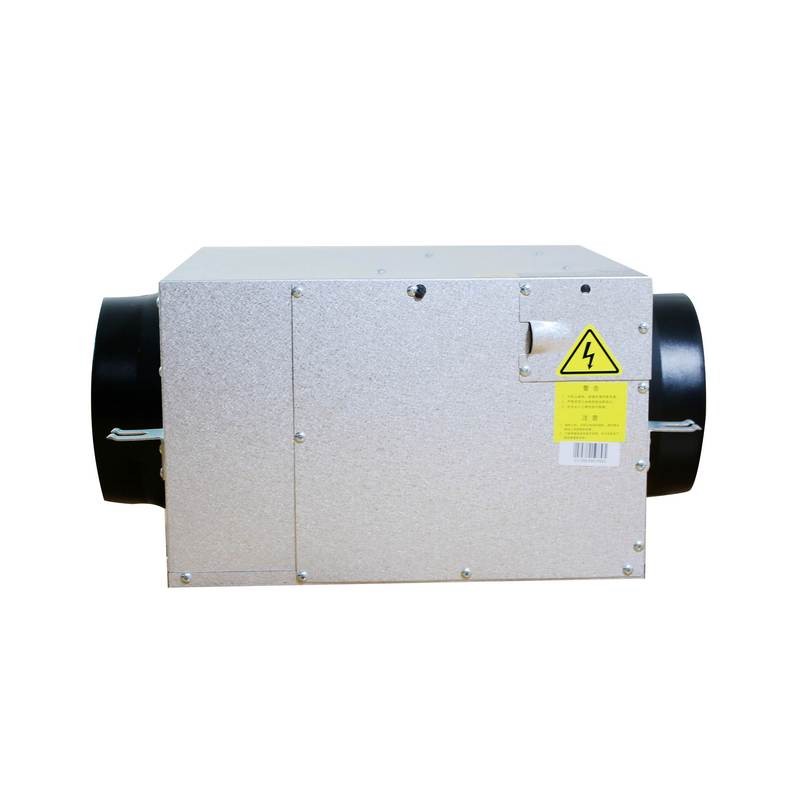

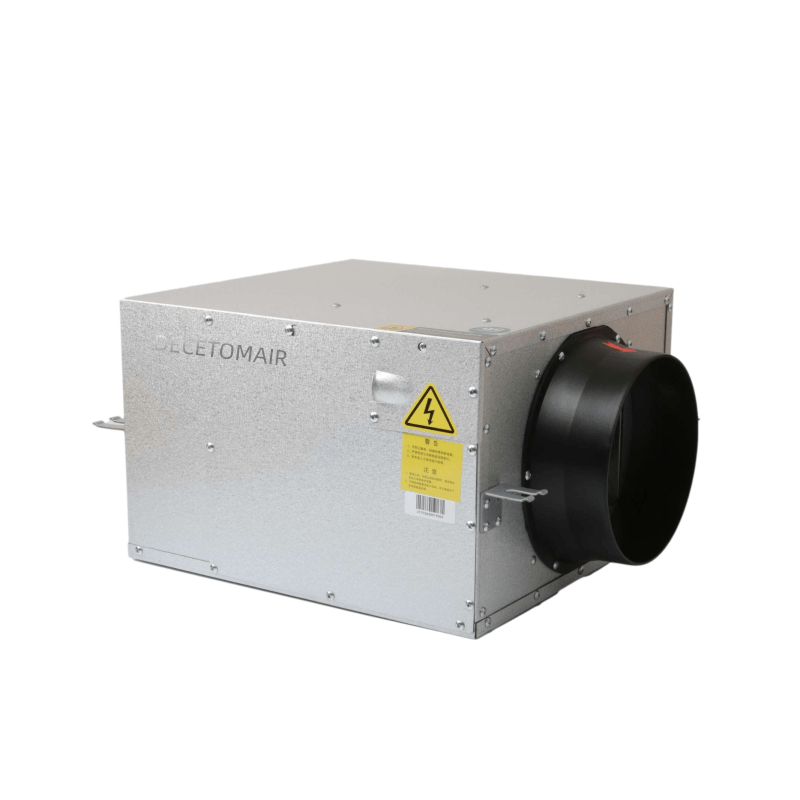

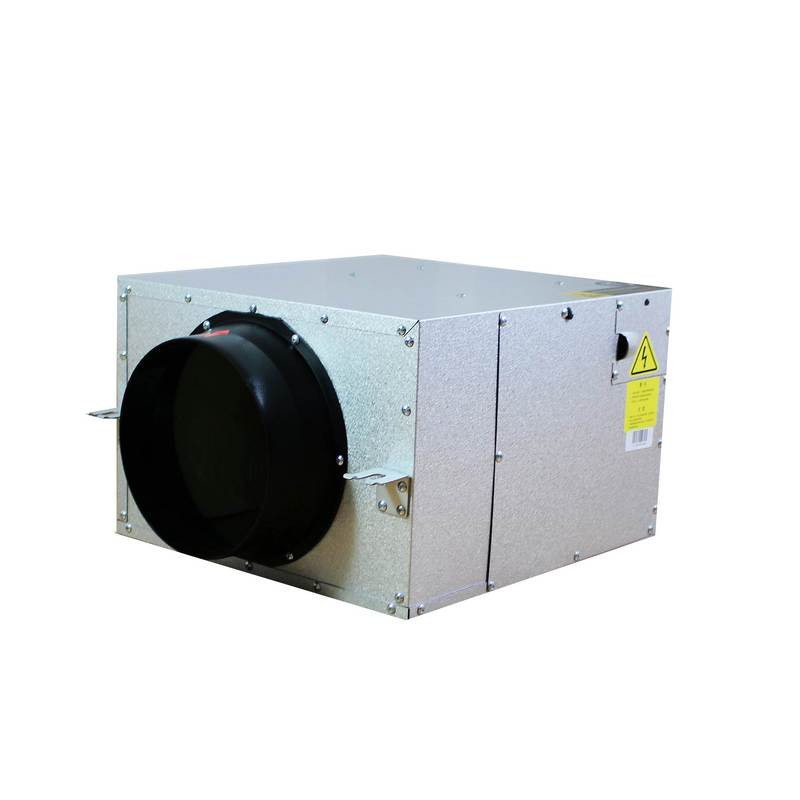

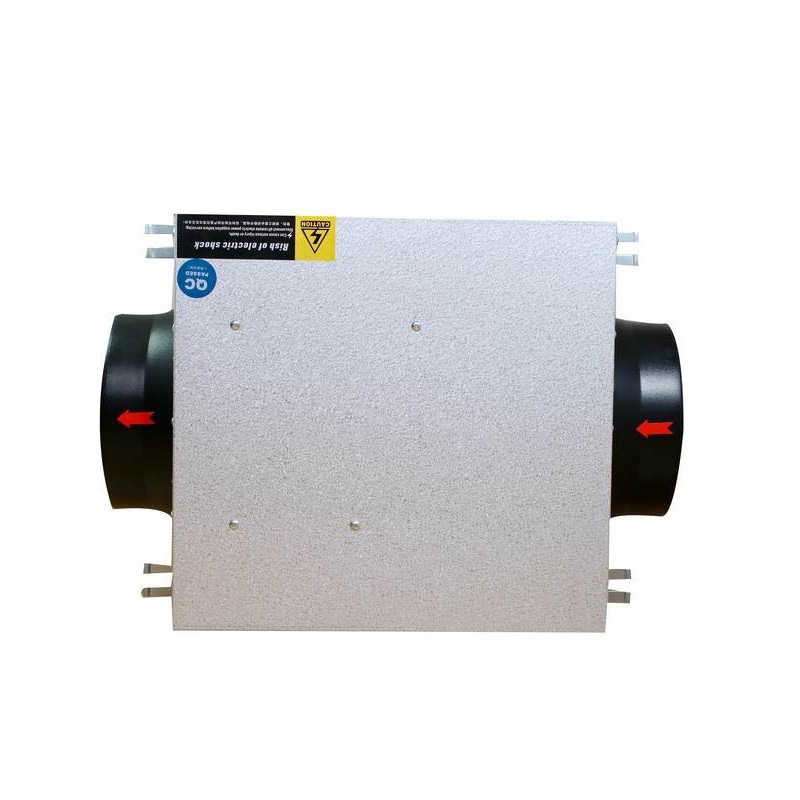

CASING
Steel casing is covered with high-quality multilayer aluminum and zinc alloy to prevent corrosion . Ventilation unit with terminal box. Can be turned to any position.

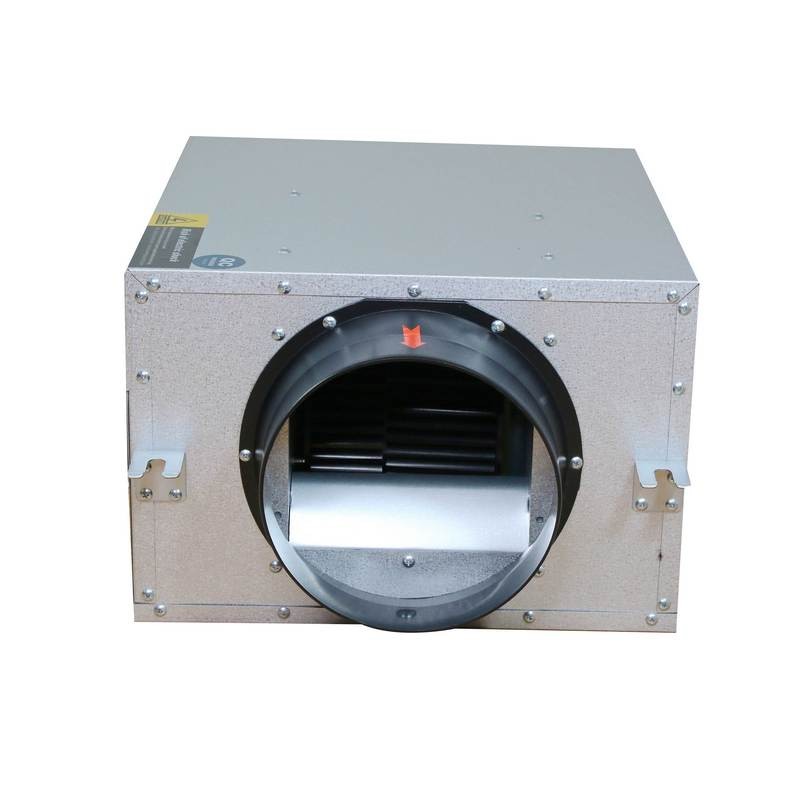

FANS
High efficient electronically commutated motors with external motor and impeller with forward curved blades. AC motors are featured with high performance and total
speed controllable range. The electric motors and impellers are dynamically balanced.
CONTROL BOARD
Can be adapted to two-speed rotary switch or LCD controller or Smart controller
SUITABLE FOR
Kitchens / bathrooms / offices / factories / commercial premises
We accept custom orders with special requirements for special places.
Product parameters
| Model |
Air volume |
Power |
Rated power |
Maximum static pressure |
Noise |
Exterior dimension |
Tuyere |
| (m³/h) |
(V/Hz) |
(W) |
(Pa) |
dB(A) |
(mm) |
(mm) |
| ADX-200 |
200 |
220/50 |
25 |
100 |
21 |
390X290X185 |
100 |
| ADX-400 |
400 |
220/50 |
32 |
102 |
24 |
440X290X205 |
150 |
| ADX-600 |
600 |
220/50 |
40 |
110 |
26 |
440X290X205 |
150 |
| ADX-800 |
800 |
220/50 |
78 |
190 |
28 |
480X320X230 |
150 |
| ADX-1000 |
1000 |
220/50 |
115 |
255 |
33 |
540X375X255 |
200 |
| ADX-1200 |
1200 |
220/50 |
182 |
275 |
35 |
580X420X275 |
200 |
| ADX-1700 |
1700 |
220/50 |
248 |
320 |
37 |
640X470X295 |
250 |
| ADX-1900 |
1900 |
220/50 |
395 |
460 |
40 |
670X500X330 |
250 |
| ADX-2200 |
2200 |
220/50 |
430 |
480 |
42 |
670X500X330 |
250 |
