CASING
Steel casing is covered with high-quality multilayer aluminum and zinc alloy to prevent corrosion. Equipment side access door opens with terminal blocks for connecting power and controller.

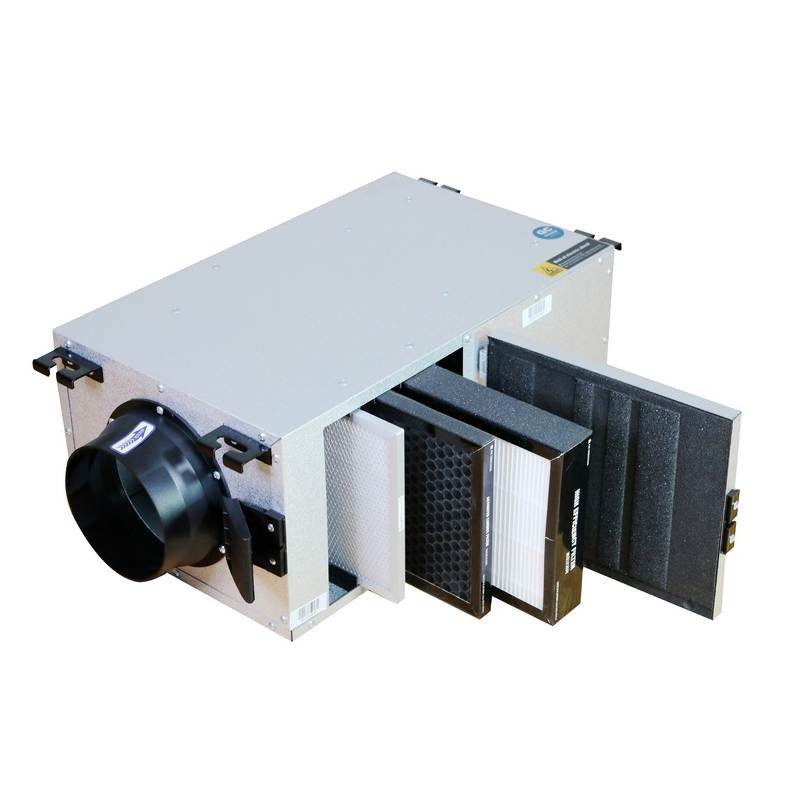

FILTER
Three-layer high-efficiency filtration system: primary G4 filter, activated carbon filter and HEPA H12 filter. The PM2.5 purification efficiency of the whole machine is up to 99.97%.
FANS
High efficient electronically commutated motors with external motor and impeller with forward curved blades. AC motors are featured with high performance and total
speed controllable range. The electric motors and impellers are dynamically balanced.
CONTROL BOARD
Can be adapted to three-speed rotary switch or LCD controller or Smart controller
SUITABLE FOR
Apartments / cottages / offices / school / hospital / commercial premises
We accept custom orders with special requirements for special places.
Product parameters
| Model | Air volume | Power | Rated power | Maximum static pressure | Noise | Exterior dimension | Tuyere |
| (m³/h) | (V/Hz) | (W) | (Pa) | dB(A) | (mm) | (mm) |
| AGDX-250 | 250 | 220/50 | 25 | 98 | 22 | 485X290X207 | 150 |
| AGDX-350 | 350 | 220/50 | 35 | 107 | 23 | 485X290X207 | 150 |
| AGDX-500 | 500 | 220/50 | 68 | 178 | 26 | 520X320X230 | 150 |
| AGDX-800 | 800 | 220/50 | 108 | 197 | 28 | 580X380X250 | 200 |
| AGDX-1000 | 1000 | 220/50 | 142 | 270 | 33 | 650X470X295 | 250 |
| AGDX-1200 | 1200 | 220/50 | 190 | 310 | 34 | 650X470X295 | 250 |
| AGDX-1500 | 1500 | 220/50 | 310 | 430 | 37 | 690X495X330 | 250 |
| AGDX-1700 | 1700 | 220/50 | 370 | 435 | 39 | 690X495X330 | 250 |
| ADX-2200 | 2200 | 220/50 | 430 | 480 | 42 | 497X500X330 | 250 |
