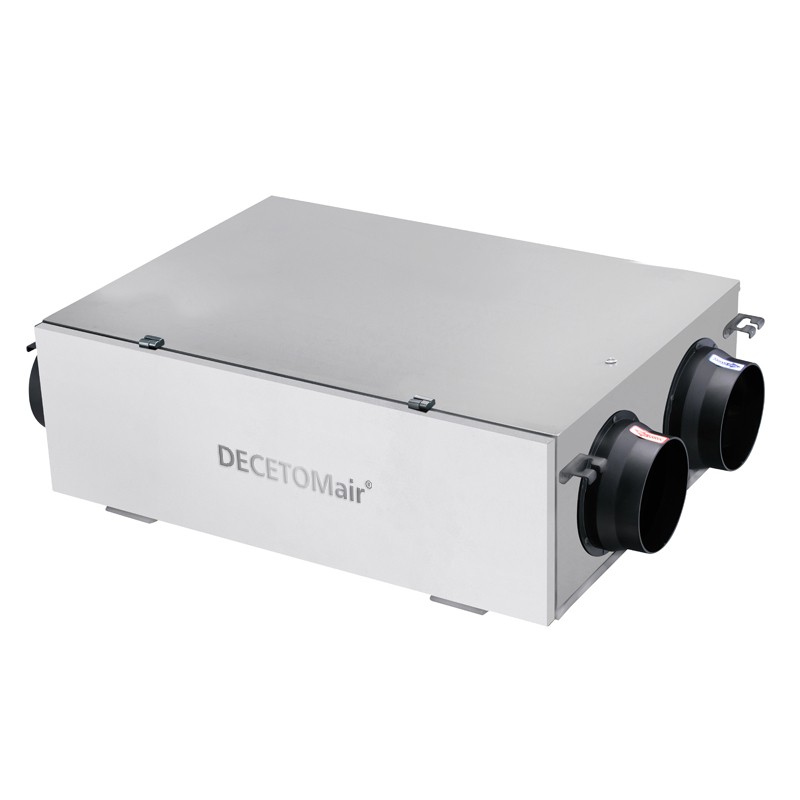

Low noise central energy recovery ventilators system ERV AQR series

Name: Low noise central energy recovery ventilators system ERV AQR series
Brand: DECETOMair

Short Description:

AQR series heat recovery ventilator transfer heat or cool air from exhaust air to fresh air. The ventilation solution removes excess moisture, odors, and contaminates while saving energy and enhancing comfort.s a cost-efficient way to ensure fresh and climate-controlled air.

CONTACT NOW

Details

CASING

Steel casing is covered with high-quality multilayer aluminum and zinc alloy to prevent corrosion within energy recovery ventilation unit. Equipment side access door opens with terminal blocks for connecting power and controller.

FILTER

The Enthalpic core is equipped with one primary filter on both sides to prevent dust contamination

FANS

High efficient electronically commutated motors with external motor and impeller with forward curved blades. AC motors are featured with high performance and total speed controllable range. The electric motors and impellers are dynamically balanced.

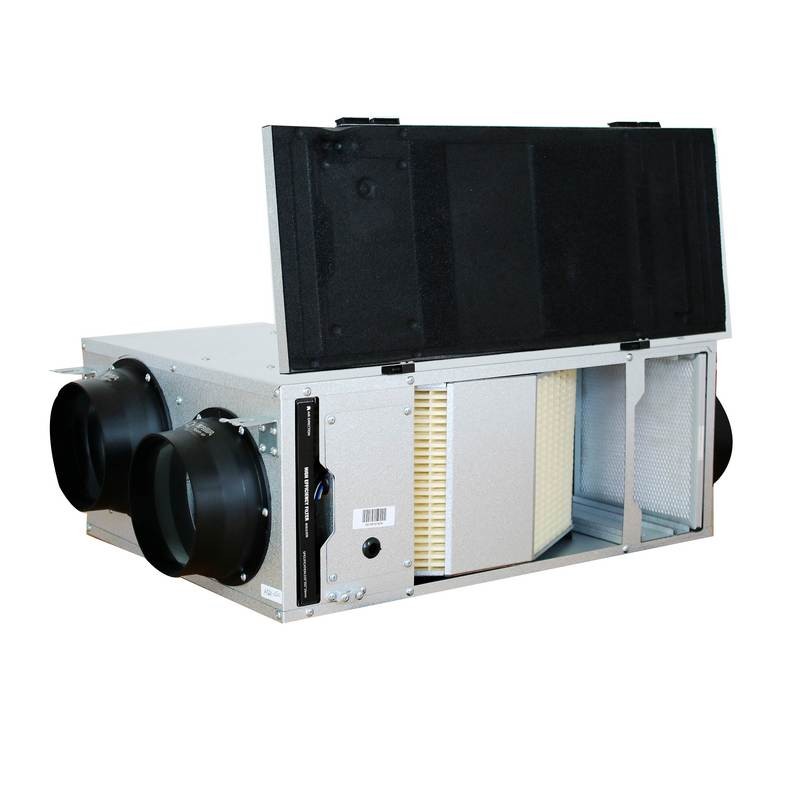

ENERGY RECOVERY CORE

Enthalpic core provides both heat & humidity recovery. For enthalpic core no drain required. Enthalpy cores are antimicrobial and provide up to 10+ years of use.

THE ENERGY RECOVERY

EFFICIENCY OF HEAT EXCHANGE CORE IS HIGH

Function in winter

Features in summer

2-0 - 副本.jpg

Formula for heat exchange
Winter：indoorairtemperature=
(indoor temperature-outdoor temperature) X

heat exchange efficiency+outdoor temperature

EXAMPLE：(20℃-0℃)×70%+0℃=14℃

Formula for heat exchange
Summer：indoorairtemperature=
(indoor temperature-outdoor temperature) X
heat exchange efficiency+outdoor temperature
EXAMPLE：35℃-(35℃-26℃)×70%=28.7℃

CONTROL BOARD

Can be adapted to three-speed rotary switch or LCD controller.

SUITABLE FOR

Residential / apartments / cottages / offices / school.

We accept custom orders with special requirements for special places.

Product Parameters

Model	Air volume (m³/h)	Power (V/Hz)	Rated power (W)	Maximum static pressure (Pa)	heat exchange rate (%)	Noise dB(A)	Exterior dimension (mm)	Tuyere (mm)
AQR-150	150	220/50	63	125	78	22	730X465X232	150
AQR-250	250	220/50	72	131	78	24	730X465X232	150
AQR-350	350	220/50	115	158	78	27	960X645X232	150
AQR-500	500	220/50	155	195	78	31	960X645X232	150
AQR-600	600	220/50	192	215	78	33	960X645X232	150
AQR-800	800	220/50	215	288	78	35	1090X700X280	200
AQR-1000	1000	220/50	295	297	78	37	1090X700X280	200
AQR-1200	1200	220/50	410	330	75	39	1255X770X297	250
AQR-1500	1500	220/50	480	350	75	40	1255X770X297	250
AQR-1800	1800	220/50	850	385	75	42	1265X855X330	250
AQR-2000	2000	220/50	915	395	75	43	1265X855X330	250
