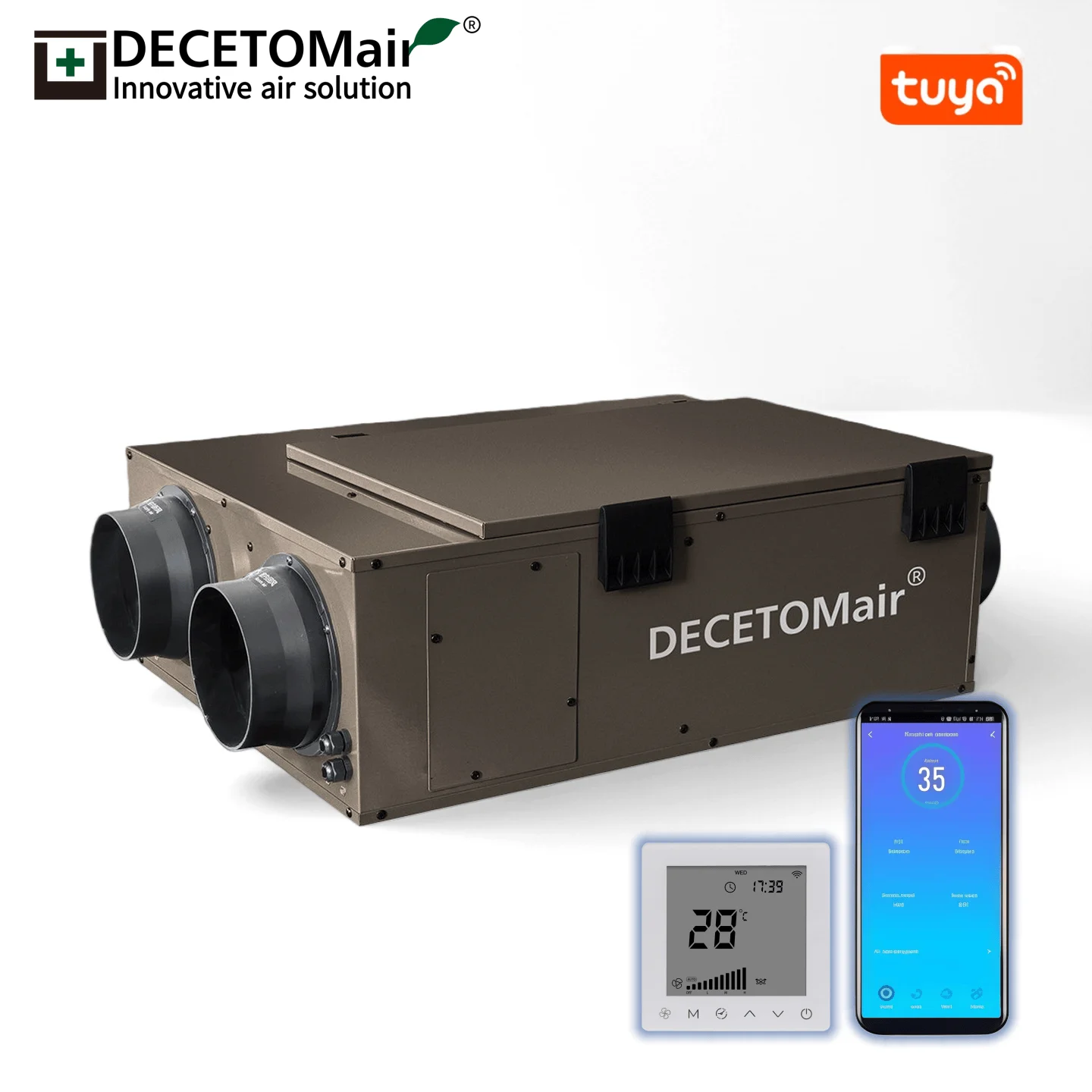

Decetomair Mvhr Mechanical Recuperator Heat Recovery Ventilation System Whole House Fresh For Tuya App Control Outdoor Bathroom-heat recovery ventilation

  • Decetomair Mvhr Mechanical Recuperator Heat Recovery Ventilation System Whole House Fresh For Tuya App Control Outdoor Bathroom-heat recovery ventilation
Decetomair Mvhr Mechanical Recuperator Heat Recovery Ventilation System Whole House Fresh For Tuya App Control Outdoor Bathroom
  • Decetomair Mvhr Mechanical Recuperator Heat Recovery Ventilation System Whole House Fresh For Tuya App Control Outdoor Bathroom
  • Decetomair Mvhr Mechanical Recuperator Heat Recovery Ventilation System Whole House Fresh For Tuya App Control Outdoor Bathroom
  • Decetomair Mvhr Mechanical Recuperator Heat Recovery Ventilation System Whole House Fresh For Tuya App Control Outdoor Bathroom
  • Decetomair Mvhr Mechanical Recuperator Heat Recovery Ventilation System Whole House Fresh For Tuya App Control Outdoor Bathroom
  • Decetomair Mvhr Mechanical Recuperator Heat Recovery Ventilation System Whole House Fresh For Tuya App Control Outdoor Bathroom
  • Decetomair Mvhr Mechanical Recuperator Heat Recovery Ventilation System Whole House Fresh For Tuya App Control Outdoor Bathroom

Decetomair Mvhr Mechanical Recuperator Heat Recovery Ventilation System Whole House Fresh For Tuya App Control Outdoor Bathroom

Short Description:

Decetomair Mvhr Mechanical Recup

Details

Model
Air Volume
(m³/h)
Power Supply
(V/Hz)
Power
(W)
Static Pressure
(Pa)
Heat Exchange Rate(%)
Noise
dB(A)
Wind Outlet Size
(mm)
Applicable Area
(m²)
AHQR-280X
280
220/50
85
175
78
27
150
70-110
AHQR-380X
380
220/50
125
255
78
29
150
120-160
AHQR-550X
550
220/50
170
298
78
32
200
170-200
24 hours continuous supply of fresh air and exhaust of dirty air to create a comfortable and healthy office and home environment

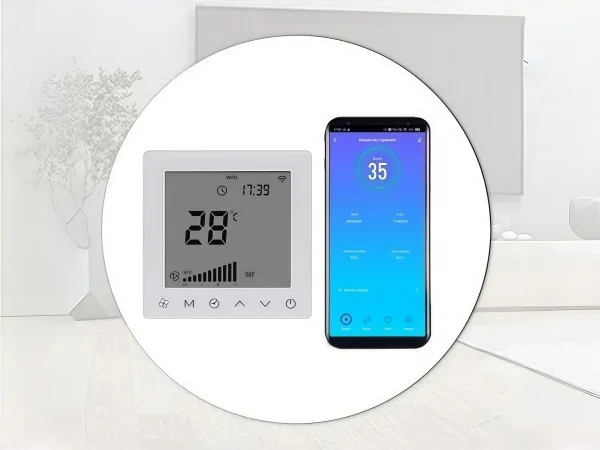

.....INTELLIGENT CONTROLLER.....



* Emnerafire annhumidity detection


*Three speed regulation

*Timing switch

*Filter reminder

*APP control
THE ENERGY RECOVERY EFFICIENCY OF HEAT EXCHANGE CORE IS HIGH
Function in winter
Features in summer

FORMULA FOR HEAT EXCHANGE

WINTER:
indoor air temperature=(indoor temperature-
outdoor temperature) X heat exchange

efficiency+outdoor temperature

EXAMPLE:(2O°C-O°C)×7O%+O°C=14°C

FORMULA FOR HEAT EXCHANGE

SUMMER:

indoor air temperature=(indoor temperature-
outdoor temperature) X heat exchange efficiency
+outdoor temperature
EXAMPLE:35°C-(35°C-26°C)×70%=28.7°C

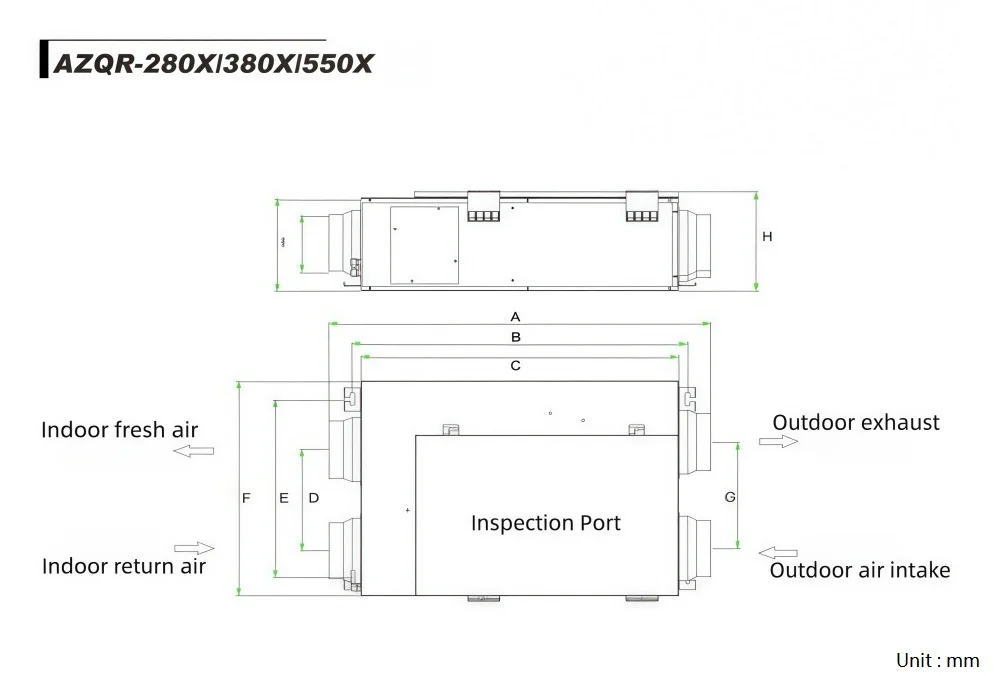

Model
A
B
C
D
E
F
G
H
∅d
AHQR-280X
840
738
700
252
443
535
265
248
150
AHQR-380X
840
738
700
252
443
535
265
248
150
AHQR-550X
945
839
800
285
540
620
285
272
200

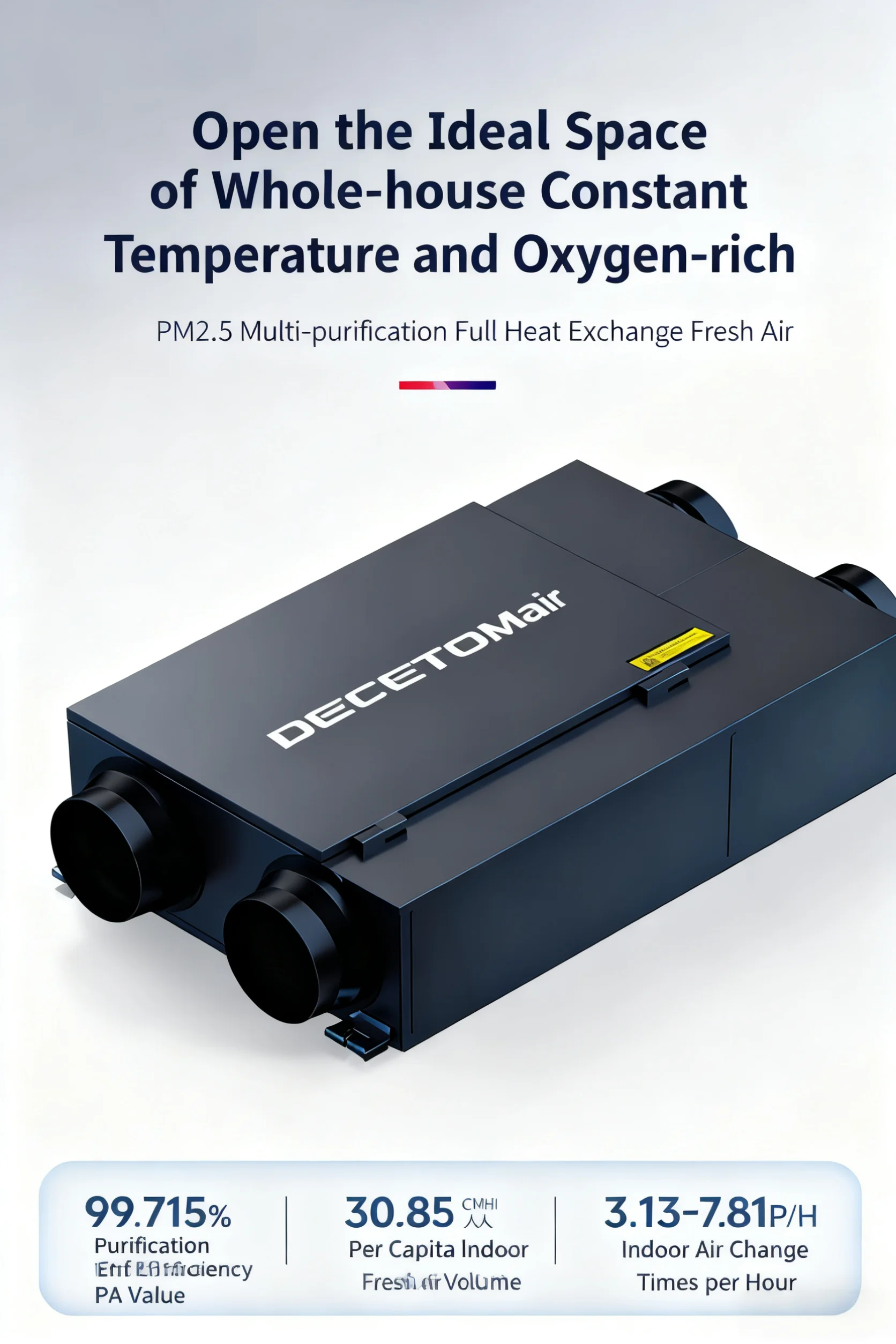

WHOLE HOUSE CYCLE
Large space fast circulation, breathable replacement, protect the respiratory
health of tens of millions of families.




AC Alternating



current motor

The motor runs after scientifically matching the wind wheel and the air duct volute so that its temperature is
still controlled within the range of national standards for lasting

and stable operation

Intelligent induction

Real-time monitoring of indoor
TVOC、PM2.5、PM10,
temperature and humidity
display

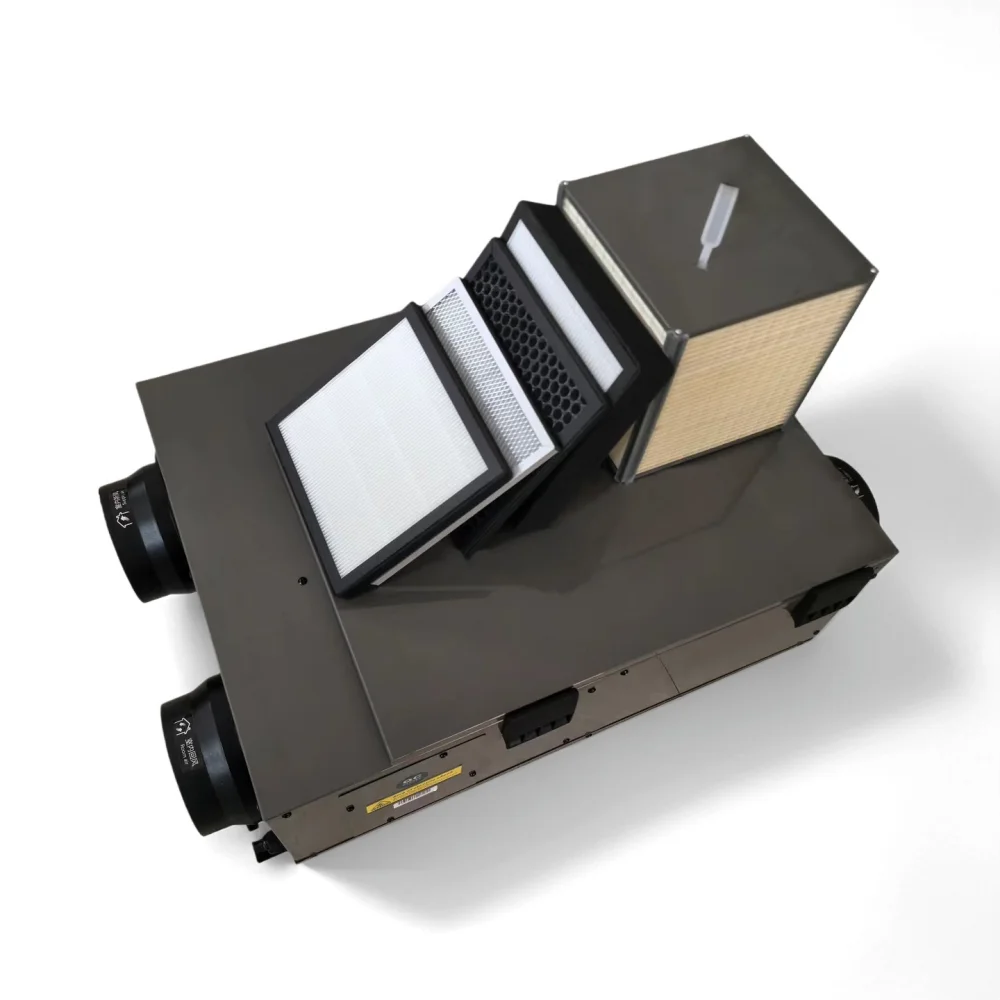

Multiple filtration

The initial effect of G4 filter can filter large particles of dust,
coconut shell activated carbon
filter can remove odor toluene and other pollutants,H12 HEPA filter PM2.5 purification rate of 99.9%

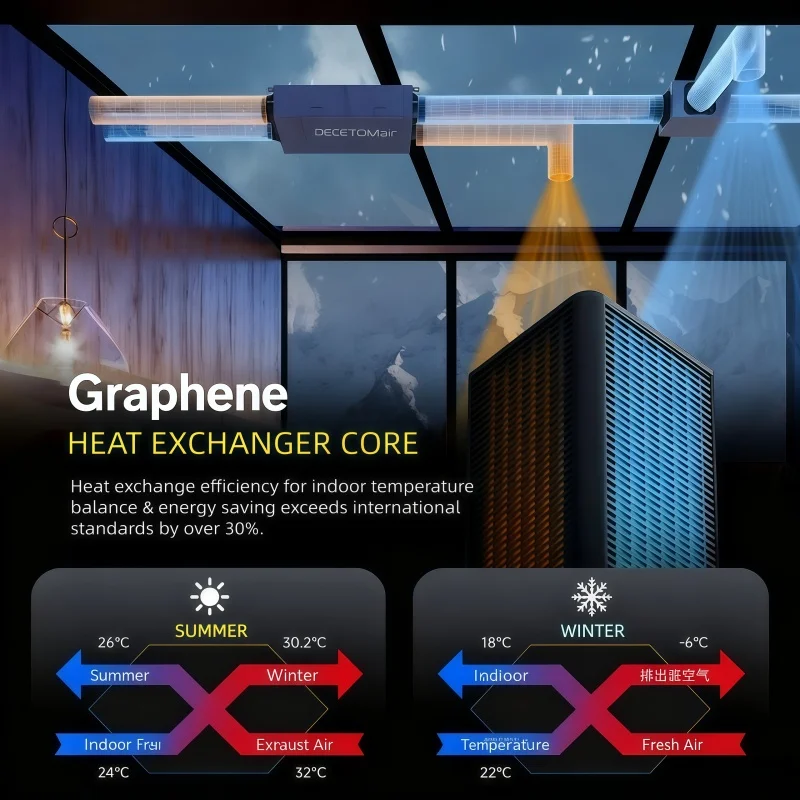

Graphene heat
exchange core

Washable graphene

heat exchange core with
higher heat exchange
efficiency and easier
maintenance

Ultra-thin body,

easy maintenance

Ultra-thin body design,
Bottom Access Door Design
flexible installation to save space.Bayonet type access door, easy to access.


Built-in anion module



Anions can purify air,

assist in inhibiting bacteria,
and improve environmental

comfort.


PRODUCT APPLICATION

Wenzhou Daqidi Technology Co., Ltd is headquartered in Wenzhou, Zhejiang Province, China, We have several production bases in Zhejiang, Shandong and Guangdong. specializing in the research and development, production and sales of various types of home and commercial air system products, water purify products and new energy sources products.

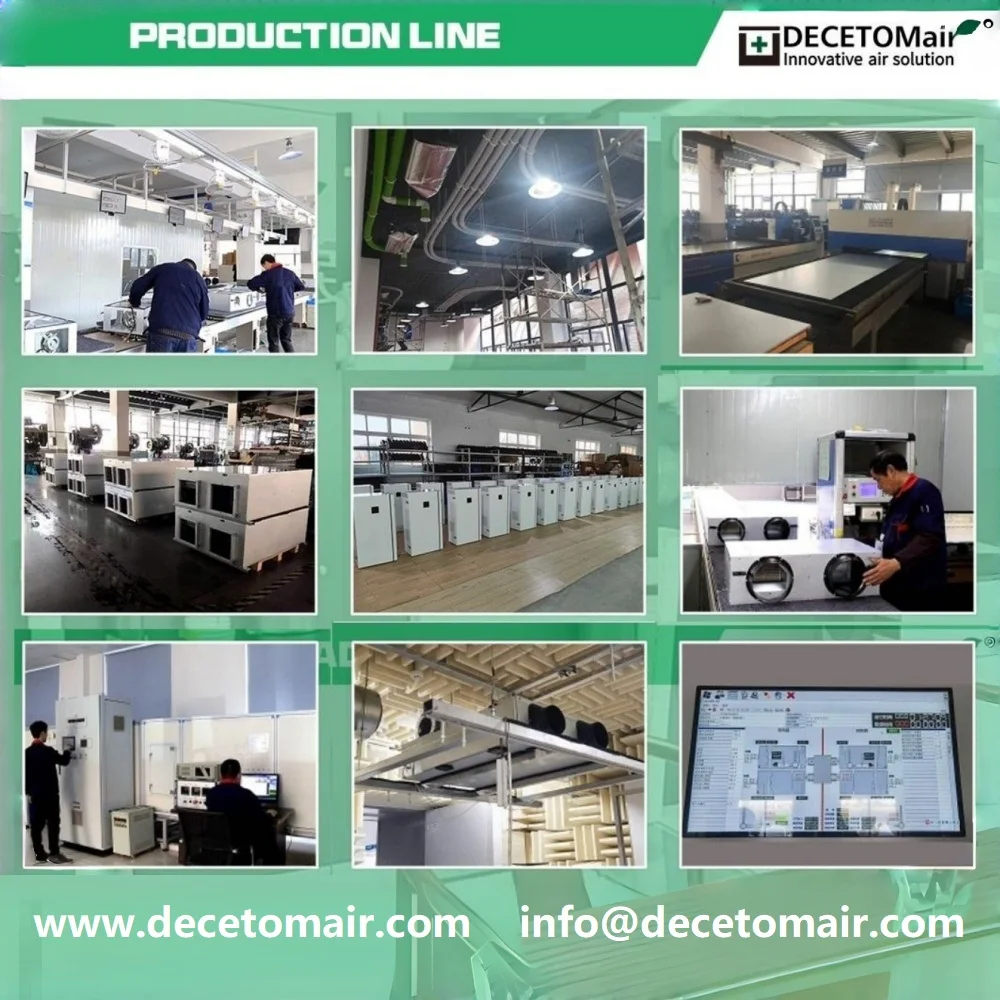

The company has a production area of nearly 35,000 square meters, more than 500 employees, multiple production lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. After more than 10 years of cultivation, the company has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.
