Decetomair Ce 500 M/h Ceiling Mounted Single-directional Fresh For Supply Fan Hepa Filter | Silent Pm2.5 Hospital Kitchen

Short Description:

Model / Series: AGDX-500

Details

Model
Air volume
Power Supply
Rated power
Max static pressure
Noise
Interface Size
(m3/h)
(V/Hz)
(W)
(Pa)
dB(A)
(mm)
AGDX-250
250
220/50
25
98
22
Φ150
AGDX-350
350
220/50
35
107
23
Φ150
AGDX-500
500
220/50
68
178
26
Φ150
AGDX-800
800
220/50
108
197
28
Φ200
AGDX-1000
1000
220/50
142
270
33
Φ250
AGDX-1200
1200
220/50
190
310
34
Φ250
AGDX-1500
1500
220/50
310
430
37
Φ250
AGDX-1700
1700
220/50
370
435
39
Φ250
Primary filter (G4), activated carbon filter, high efficiency HEPA (H12) filter Purification efficiency of
up to 99.99%,think of healthy breathing; Optional 485 communication interface, central interation,
remote doud control Real-time monitoring of indoor air quality(PM2.5,TVOC, CO2, etc.)Suitable for shopping
malls, hotels, villas,restaurants,office buildings and other adult traffic places,providing sufficient fresh air volume;

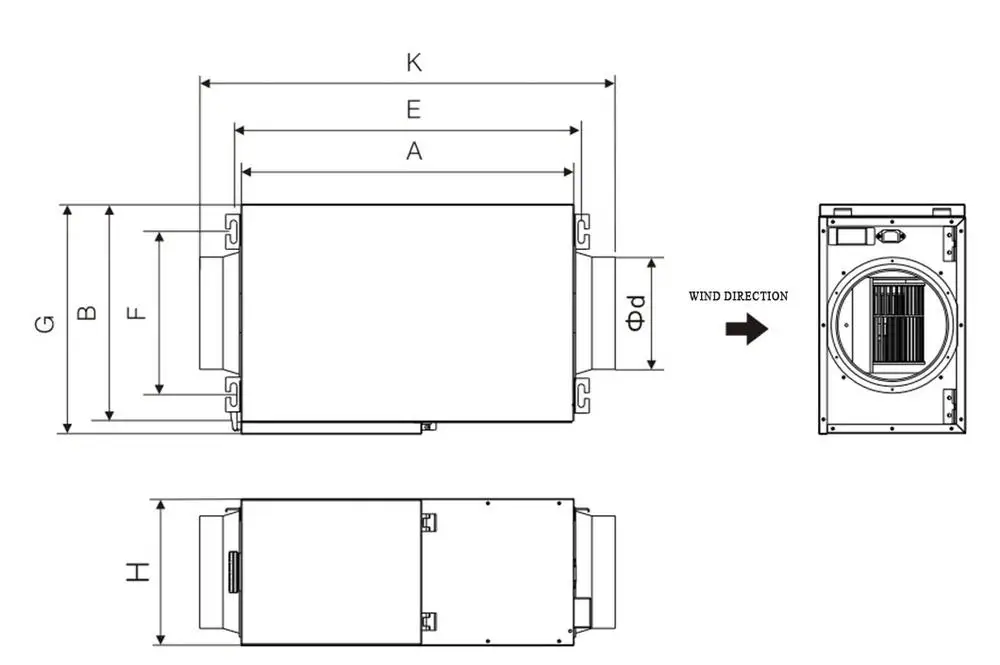

Unit: mm
Model
A
B
E
F
H
K
Φd
AGDX-250
485
290
515
245
207
605
150
AGDX-350
485
290
515
245
207
605
150
AGDX-500
520
320
550
270
230
638
150
AGDX-800
580
380
605
332
250
720
200
AGDX-1000
650
470
680
420
295
825
250
AGDX-1200
650
470
680
420
295
825
250
AGDX-1500
690
495
715
445
330
857
250
AGDX-1700
690
495
715
445
330
857
250

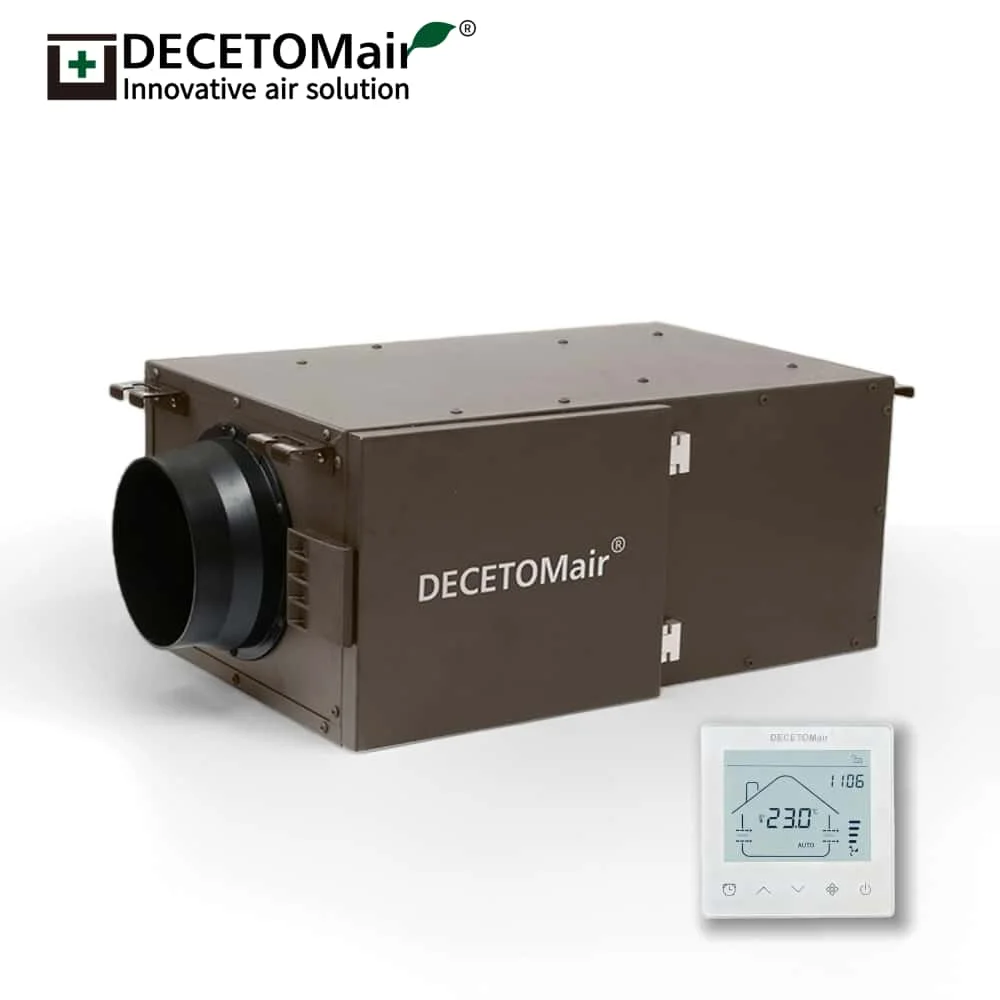

CONTROLLER OPTIONAL

Intelligent LCD Controller/DM-900A

Timing function,

3.5-inch color screen controller
Temperature and humidity,
PM2.5, PM10 and TVOC sensors
Mobile phone APp function,
Tmall Genie voice control
Optional CO2 detection, RS485 port

Standard LCD Controller/DM-A50

Timing Function
Indoor Temperature Display
Three-speed contro!
Filter Alarm
RS485 communication interface

Remote Control LCD Controller/DM500A

Timing Function
Indoor Temperature Display
Remote control is optional
Three-speed Speed Control
Filter Alarm


PRODUCT ADVANTAGE

HIGH STATIC

PRESSURE FAN
High static pressure fan, suitable forall kinds of commercial places longer pipe line, greater static pressure greater air volume, 24 hours
uninterrupted operation

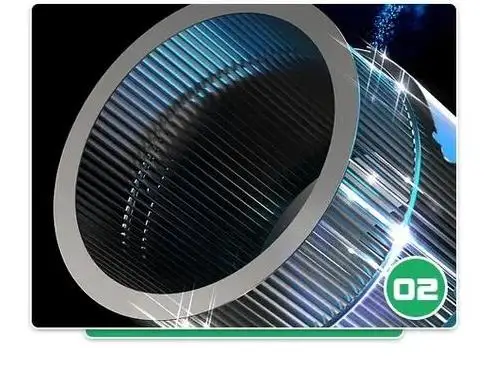

WIND WHEEL

OF METAL
Newly upgraded all-metal wind wheel, comprehensive optimization, stable air supply suitable for long-distance air supply and exhaust needs

METAL CASE

Our new air volute uses an all-metal design, scientific air duct, higher quality, longer experiment time, more durable.

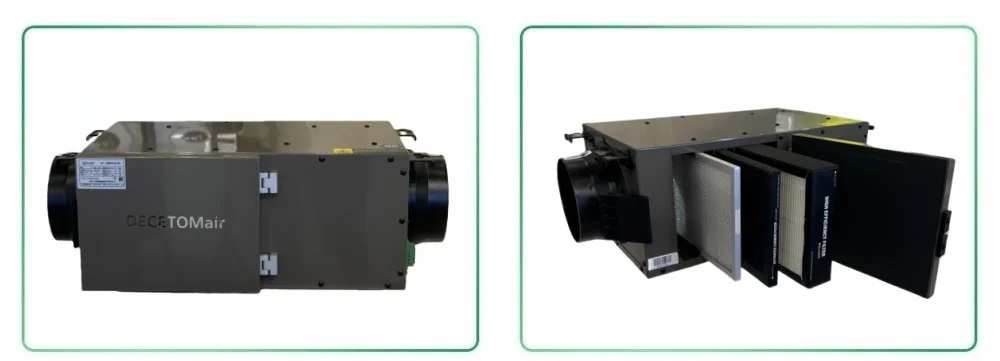

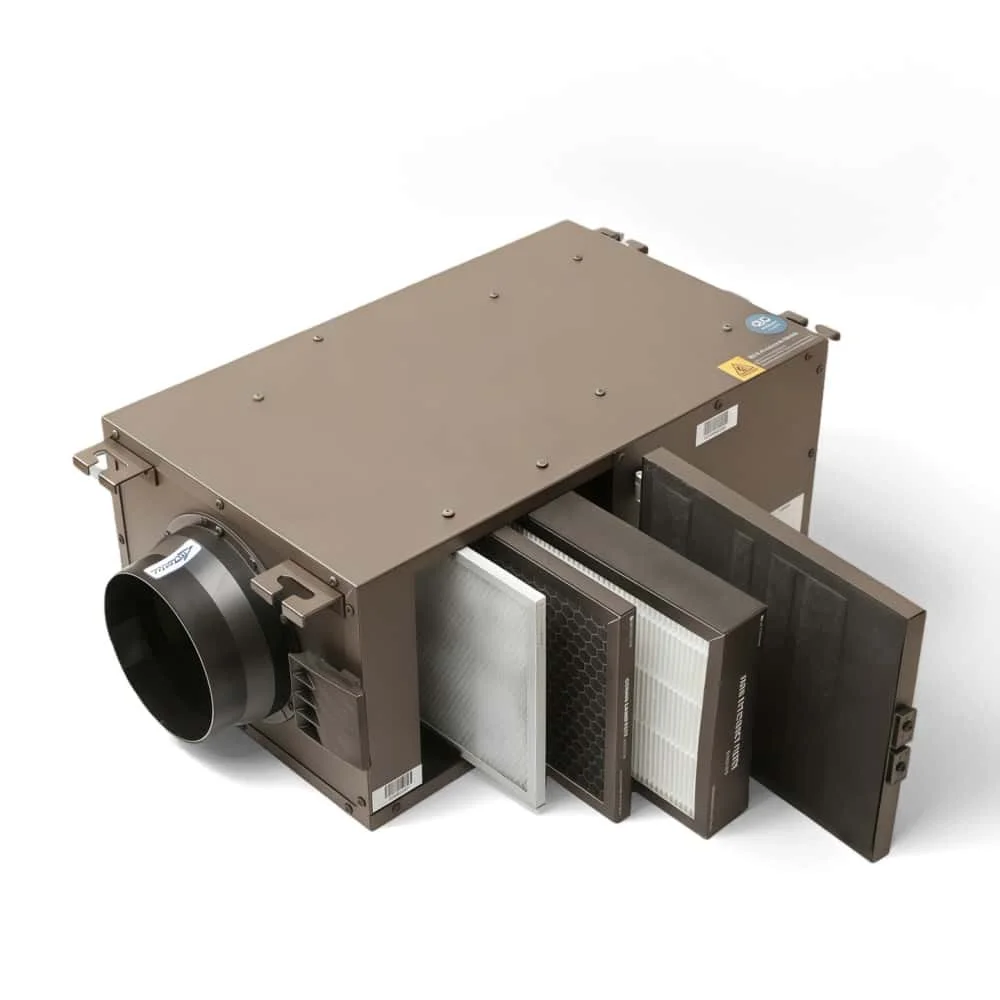

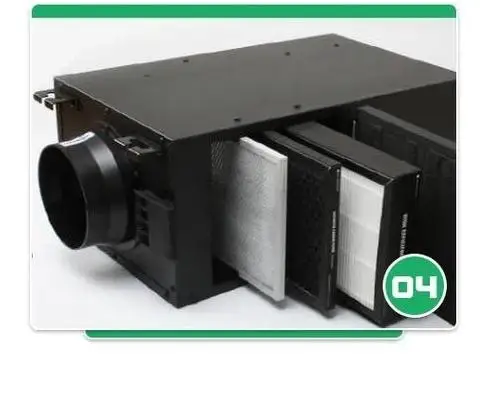

MULTIPLE

FILTRATION

Primary filter,
Activated carbon filter
H12 HEPA filter
Filter pollutants
like dust, odors and smog.
effective filtration rate of
up to 99.97%
.

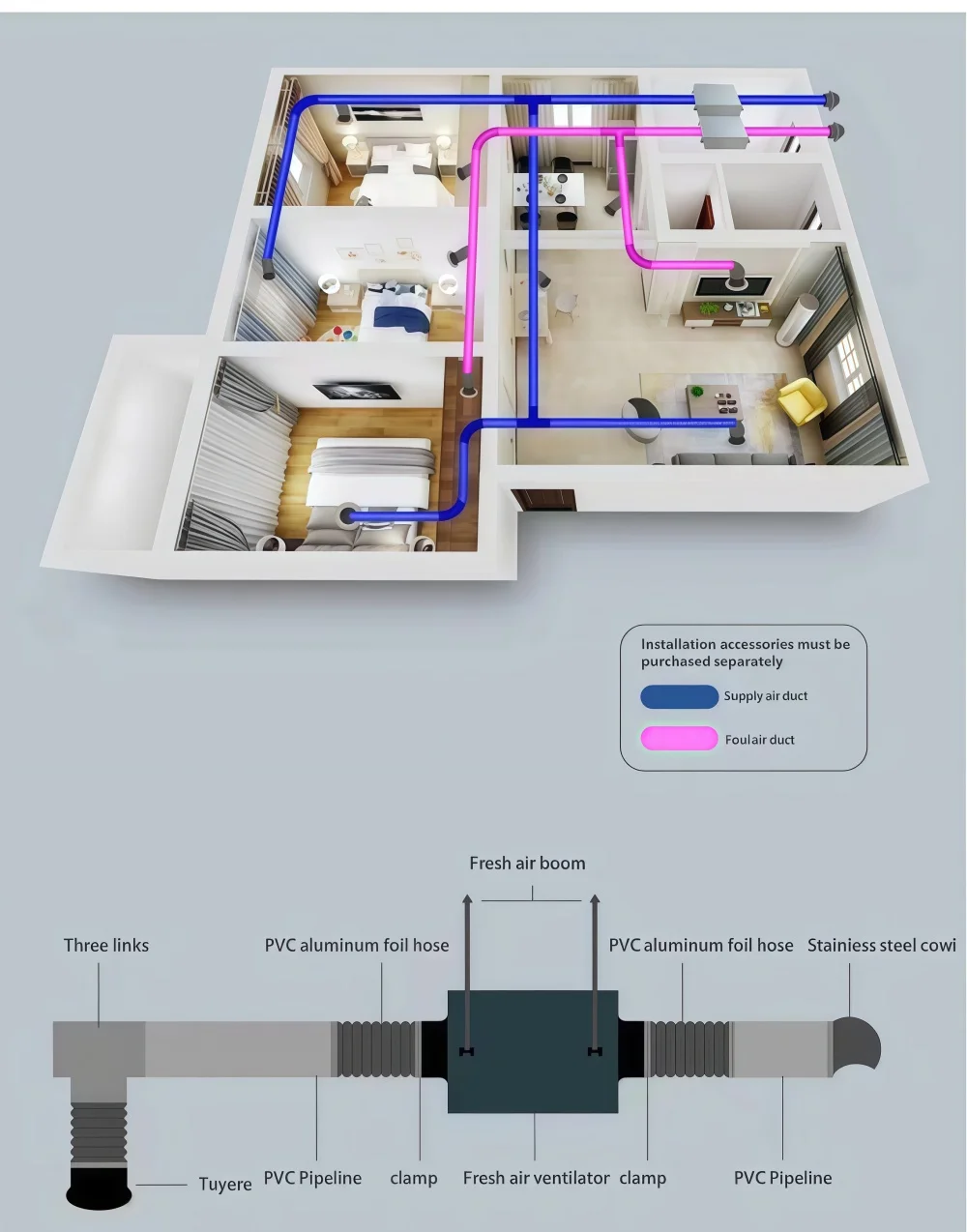

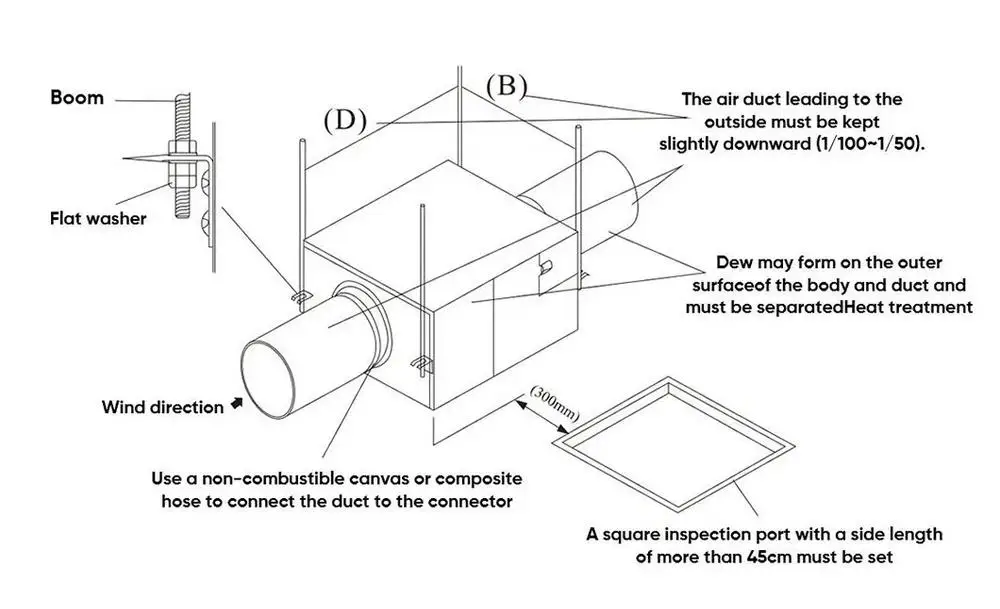

.....INSTALLATION MODE.....

PRODUCT APPLICATION
Wenzhou Daqidi Technology Co., Ltd is headquartered in Wenzhou, Zhejiang Province, China, We have several production bases in Zhejiang, Shandong and Guangdong. specializing in the research and development, production and sales of various types of home and commercial air system products, water purify products and new energy sources products.

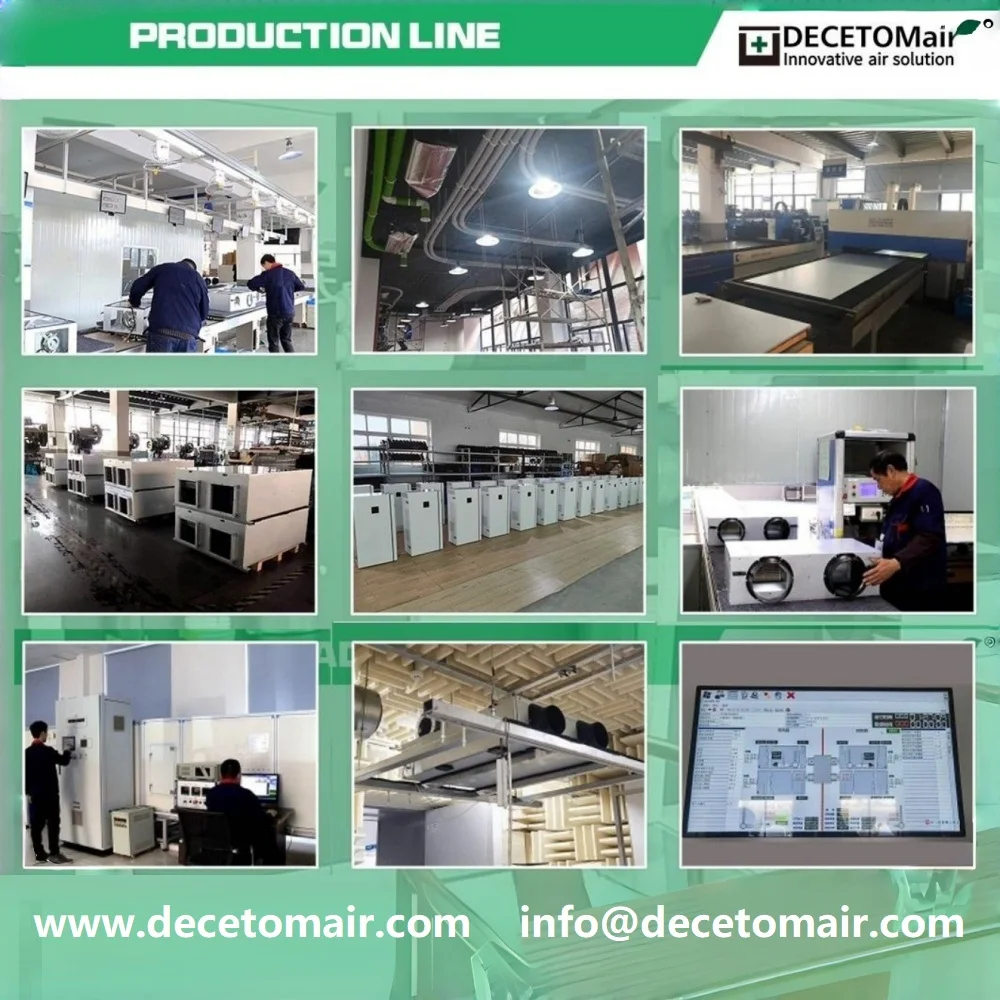

The company has a production area of nearly 35,000 square meters, more than 500 employees, multiple production lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. After more than 10 years of cultivation, the company has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.
